Used Semiconductor Equipment/Tool

Many people’s easiest pitfall when buying used semiconductor equipment and tools is to only focus on the price of the entire device.If we want to truly avoid late-stage operating risks and maximize the production-to-production ratio, the safest way is to shift the focus from simply “buying hardware” to conducting a full life cycle assessment of each core component.

If you want to avoid those frustrating sudden downtime when running mature processes and old processes, buyers must keep an eye on whether this second-hand equipment can completely restore to the original factory factory indicators through a strict renovation process. This requires the cooperation of a reliable and independent third party who not only understands the process but also has the ability to handle high-precision spare parts ——such as advanced electrostatic systems, cavity components, wafer transmission manipulators, and vacuum and gas circuit control systems. Shifting some of the upfront capital expenditure saved on used equipment to this solid third-party renovation and preventive maintenance project not only allows the equipment to achieve or even exceed the yield and stability required by the original manufacturer, but also saves the budget compared to directly buying OEM new equipment.

Why Component-Level Life Cycle Assessment Can Circumvent High Failure Costs

When dumping these second-hand wafer manufacturing equipment, if you just buy the equipment as a “what you see is what you get” sale, you will definitely suffer later. Many devices look neat and have frames on the outside, but the subsystems inside have actually been worn out unevenly due to different processes they have run through before.This is also the root cause of various inexplicable errors and yellow light zone outages in the later period.

Before the equipment enters the clean room, it must have a thorough component-level life cycle assessment and a full body examination. This physical examination must focus on three things:

• Evaluate cumulative operating time: Focus on high temperature, high vacuum and compression of the transmission part, and calculate which parts have approached the critical point of average time without failure.
• Check surface integrity: Look carefully at the coating and seals inside the cavity. Even small erosion, cracks or chemical degradation that are not visible to the eye will cause fatal particle contamination when running the film in the later stage, directly reducing the yield rate.
• Verify software and firmware compatibility: This is often overlooked. We must confirm whether those old control boards and legacy systems can be seamlessly connected with your factory’s latest factory automation system.

Only by disassembling the entire machine into these key components can the engineering team have a count in their minds: which parts can be kept directly, which need to be repaired immediately, and which must be completely refurbished.

Restore Old Equipment From Mature Processes To Original Factory Specifications

Now running mature processes, the yield requirements are actually no lower than those of advanced processes. When used equipment is in operation, even if the performance drifts by a small amount, it will be directly reflected in the film deposition uniformity, etching depth or photolithography alignment, and the waste film rate will increase.

To completely restore a used machine to its original OEM factory specifications, there is a hard, multi-stage renovation process:

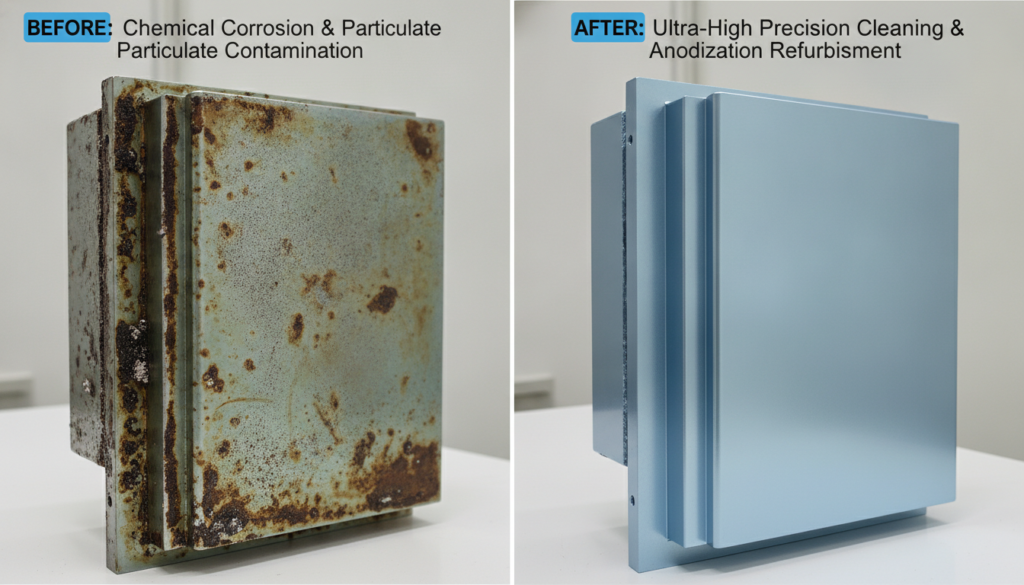

• Ultra-high precision decontamination and cleaning: Completely remove chemicals, process by-products and oxide layers remaining on critical surfaces without damaging the base material. This job is very demanding on the craftsmanship. Parts that are washed too heavily are useless, and there are residues after not washing enough.
• Surface modification with secondary anodization: Reprocessing critical metal and ceramic surfaces to restore their ability to withstand plasma bombardment and dielectric properties to their initial levels.
• Functional testing under process simulation: This step must not be saved. We have to run around with these assembled parts in a simulated vacuum, high temperature and chemical cycle environment to see if the data on them can really be compared with the initial performance benchmark.

After completing this complete set of renovations, the equipment can only run smoothly when it is transported to your factory’s production line, and the yield rate of the produced wafers is guaranteed.

High-Precision Spare Parts Procurement And Maintenance For Four Core Subsystems

If you want to open up the road of used equipment, the core link is actually to establish a reliable and precise spare parts supply chain independent of the original manufacturer. Expect those expensive, overdue and dragged original factory parts to sometimes kill people in a hurry. Finding third-party experts who can repair and deliver goods, and focusing on the following four categories, is the most cost-effective way to play:

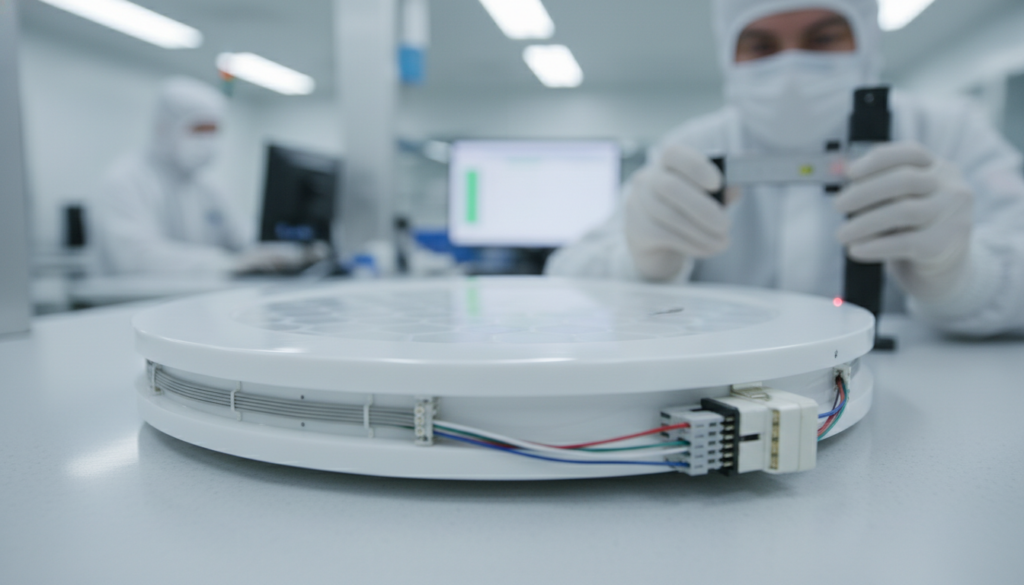

Advanced Electrostatic and Thermal Systems

If the temperature control and fixation of the wafer go awry under plasma bombardment, the wafer will be completely useless. Electrostatic adsorption system and heating base In long-term high temperature and electromagnetic environment, it is normal for the dielectric layer and heating wire to age. Only by professional renovation and restoration of their dielectric layers and heating elements can the helium cooling and uniform heat transfer be maintained.

Cavity Components and Process Kits

The process cavity is a “hard-hit area” ravaged by chemical corrosion and high-density plasma. The inner lining, cavity body, sealing cover and various protective components inside must be inspected regularly. After getting these things done, you can also polish the gas distribution plate, restraint ring and other consumable components to a great extent to avoid later flakes and particle contamination.

Wafer Transmission Manipulator Module

The reliability of the mechanical part directly determines the equipment’s rate of run. Components such as robotic arms, wrist shafts, lifting and rotating drives swing in micron-scale space every day, and bearing wear and mechanical drift are inevitable. This requires rebuilding the manipulator module, replacing worn bearings, and recalibrating the motion trajectory to avoid accidentally dropping the wafer of a box of dozens of thousands.

Vacuum, Gas and Thermal Control Units

Precise control of process gases requires absolute vacuum sealing. For example, slit valve valves, butterfly valve control mechanisms, air boxes and air circuit distribution plates, even the slightest leakage may cause the entire furnace film to be scrapped. These thermal control and gas circuit control subsystems, including the heating lamp module, must achieve a high degree of sealing detection and calibration.

Finding A Balance Between Capital Expenditure And Third-Party Preventive Maintenance

Everyone goes to buy used semiconductor equipment, and the picture is nothing more than saving money. If you just buy a cheap one and it gives you all sorts of weird downtime failures every day, the little CAPEX you save in the early stage will be completely wiped out by the bottomless pit of repair costs and downtime losses in the later stage within a few months.

your budget must be spent wisely:

• Optimize CAPEX: Spend a small amount of money on a reliable used empty machine frame with a good mechanical architecture.
• Targeted budget investment in renovation: Spend the big money saved on the renovation and inspection of fragile parts and core precision components with precision. The base must be beaten before the equipment is installed in the clean room.
• Give the shot of preventive maintenance: Establish a daily PM mechanism using cost-effective and high-quality third-party refurbished spare parts. Daily maintenance is done diligently, the machine will naturally not drop the chain.

Author: David Thorne

I have worked inside various semiconductor cleanrooms and third-party refurbishment facilities, helping fabrication managers navigate the complexities of sourcing and maintaining legacy tools. My focus is not just on the hardware, but on the micro-details—ensuring that every electrostatic system, chamber lining, and robotic module is precisely restored to keep production lines running predictably. I write these guides to share practical, engineering-based insights that help fabs optimize their CAPEX without compromising on wafer yield.
