Achieving maximum uptime for the Applied Materials P5000 requires completely severing three primary failure sources: aging VME bus electronic control systems, mechanical wear in wafer transport, and supply chain disruptions for critical chamber consumables. 200mm fab managers face a brutal reality right now: these 30-year-old platforms must sustain high-volume production for power management ICs, MEMS, and IoT chips. Relying on original OEM manuals or routine wet cleans fails to sustain production line demands. To keep the AMAT P5000 running at over 95% availability, fabs and equipment refurbishers must implement solid-state electronic retrofits, introduce predictive sensor monitoring, and eliminate substandard non-OEM parts. This guide directly exposes a maintenance matrix and troubleshooting parameters validated by top-tier fabs, helping you systematically eliminate unplanned downtime on the p5000 amat platform.

AMAT P5000 Downtime Analysis

Reactive maintenance strategies directly cause low OEE on 200mm production lines. The original architecture of the Applied Materials P5000 was never designed for 30 years of continuous operation, leaving highly vulnerable structural nodes. Head crashes and floppy drive failures on legacy SCSI hard drives account for over 60% of console freezing events. Wear and tear on the belts and bearings of the robot arm causes microscopic wafer placement drift, leading to wafer scratching or dropping. Micro-tolerance stacking in thermal consumables like the showerhead and susceptor triggers severe in-chamber particle spikes and forces extended wet clean downtime.

The P.A.R. Uptime Matrix

The P.A.R. Matrix (Predict, Adapt, Replace) is a systematic life-extension engineering framework for obsolete semiconductor equipment. This model bypasses the inefficient “break-fix” loop by locking in the tool’s health status through hardware retrofits and front-loaded data monitoring.

Data Monitoring for Robot Torque and Vacuum Micro-Leaks

Tracking robot motor torque variations provides the strongest defense against wafer breakage inside the loadlock. Drive current spikes abnormally when the robot arm belts lose tension or bearings dry out. Engineering teams need to attach external current monitoring modules to establish a torque baseline. A reading deviating 15% from this baseline triggers an immediate transmission component swap during the next PM cycle, preventing a hard crash.

Tracking the pump-down curve detects micro-leaks before they crash a process recipe. Record the time it takes to pump from atmospheric pressure to base pressure during every cycle. A continuous pump-down delay exceeding 5 seconds over three consecutive cycles usually signals microscopic cracks in the bellows or critical O-rings, demanding immediate helium leak testing.

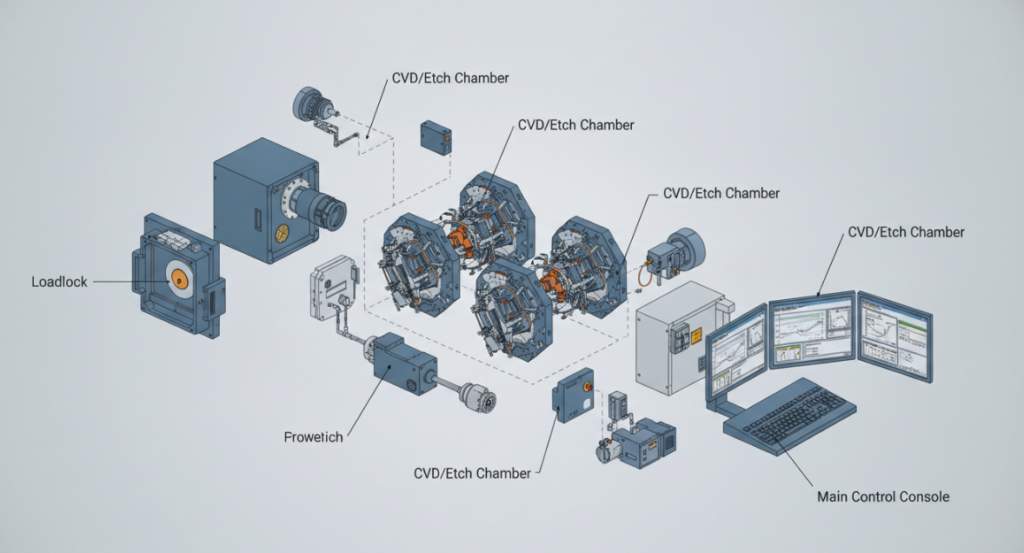

AMAT P5000 Highlighted System Architecture

Highlighted Module	Primary Function	Contribution to Maximum Uptime
Loadlock System	Serves as the atmospheric-to-vacuum transition zone for wafer cassettes.	Allows the central transfer chamber to remain under continuous high vacuum during cassette swaps, drastically reducing pump-down times and contamination risks.
CVD / Etch Chambers	Single-wafer processing environments equipped for specific deposition or etching recipes.	Modular, independent chamber design means one chamber can undergo maintenance (PM) while the others continue processing, ensuring the tool never completely stops.
Main Control Console	The central “brain” managing robotics, gas flows, RF power, and process recipes.	Provides real-time automated fault detection and precise recipe execution, minimizing human error and preventing catastrophic wafer scrap events.

Permanent Upgrades for Obsolete Electronic Components

Upgrading legacy SBCs and storage media to modern solid-state architectures eliminates 90% of control system crashes. The original AMAT P5000 relies on fragile mechanical hard drives or floppy disks to load recipes and system logs. Installing SCSI-to-SD or SCSI-to-CF solid-state emulators provides the highest ROI for field operations. This retrofit multiplies read/write speeds and entirely removes the risk of vibration-induced bad sectors.

Dried-out electrolytic capacitors on control boards pose another fatal threat. Refurbishment vendors must possess board-level repair capabilities to perform full-scale recapping on procured used boards. They must also validate the logic gate response latency using professional ICT to ensure replacement parts work instantly upon installation.

Building Strategic Inventory for Critical Consumables

Building a multi-tiered supply chain pool for core chamber consumables is the only way to survive OEM discontinuation and lead-time delays. Ceramic susceptors, aluminum heaters, and specific MFCs dictate the process stability of the Applied Materials P5000. Procurement decision-makers must subject second-source vendors to rigorous on-wafer testing. Qualified components go straight into strategic inventory, with a minimum stock level covering six months of projected consumption.

Hidden Faults Consuming 80% of Your Repair Time

Troubleshooting used semiconductor equipment is mostly a process of eliminating false premises. The root causes of apparent process drift often hide in obscure mechanical installation details.

The Slit Valve O-Ring “Cold Leak” Misdiagnosis

Maintenance engineers frequently encounter mysterious vacuum leaks immediately after replacing the Slit Valve O-ring. The failure stems from the incorrect sequence of baking and tightening. Junior technicians often torque the bolts fully while the chamber is cold, then initiate heating. Uneven stress during thermal expansion creates microscopic creases in the Viton O-ring. The correct procedure involves applying only 70% of the locking torque when cold, heating the chamber to operating temperature, baking for two hours, and then applying the final torque verification. This specific protocol prevents repetitive chamber venting caused by “cold leaks.”

RF Reflected Power Spikes from Second-Source Showerheads

Cheap, non-standard gas distribution showerheads directly cause RF matching networks to fail repeatedly. Procurement teams often focus entirely on hole diameter and physical dimensions while ignoring aluminum purity and the density of the anodized layer. Inferior anodization alters the plasma impedance distribution inside the chamber, preventing the RF Match from finding a tuning point quickly and generating massive reflected power. This ruins film uniformity and burns out expensive RF generators. Using only consumables validated through material composition analysis and impedance testing remains the hard bottom line for protecting fab yield.

How a 200mm Power Fab Recovered 14% OEE

Data from a North American 200mm power semiconductor fab validates this specific maintenance matrix. This facility runs six applied materials p5000 systems dedicated to dielectric deposition. During Q1 2023, the average uptime across this fleet hovered at just 78%, with massive engineering hours wasted on rebooting frozen consoles and hunting for obsolete I/O boards on the secondary market.

The engineering team executed the exact upgrade strategy outlined above. They gutted all legacy floppy and SCSI drives, spending $12,000 to deploy complete solid-state storage emulators across the fleet. For the robots, they recalibrated the optical sensors and swapped in high-tension drive belts. For spare parts, they blacklisted three substandard vendors providing out-of-tolerance susceptors. By the sixth month post-retrofit, the average downtime plummeted, stabilizing the fleet’s comprehensive availability at 92.4% and recovering 14% OEE. Each tool generated over $45,000 in extra monthly output value, achieving a full ROI on the hardware upgrades in just 40 days.

FAQs

Q1: How do I fix AMAT P5000 robot calibration and wafer placement errors?
Wafer placement drift is usually caused by dust accumulation on the motor encoder or stretching of the transmission belts. First, clean the encoder discs with high-pressure nitrogen. If belt tension falls below the OEM limit, replace it immediately. Then, run the built-in Robot Calibration routine to guarantee zero offset coordinates between the Loadlock and the Chamber.

Q2: What is the typical MTBF for a fully refurbished Applied Materials P5000?
A P5000 that has undergone a complete solid-state electronics retrofit, pneumatic component replacement, and uses premium consumables can achieve an MTBF of 1,500 to 2,000 hours. The exact number depends heavily on the high-temperature corrosive nature of the specific CVD or Etch recipe being run.

Q3: Where can I source obsolete p5000 amat electronic boards?
Since the OEM no longer manufactures these 1990s-era boards, you must rely on specialized secondary market refurbishers. Always demand a “full-load stress test report” and “recapped certification” from the vendor before issuing a purchase order.

Q4: Why is my AMAT P5000 RF matching network failing repeatedly?
The primary suspect for RF match failure is altered impedance caused by flaking surface coatings on chamber internals, or oxidation on the coaxial cable connectors between the RF Generator and the Match. Inspect the physical connections of the RF line and verify that the conductivity and insulation of chamber internals meet specifications.

Q5: Can I replace the old floppy drive on the P5000 with a USB or SD card emulator?
Yes, and you absolutely should. Dedicated Floppy Drive Emulators designed for legacy equipment are readily available on the market. The installation is plug-and-play and completely eliminates recipe loss or boot failures caused by corrupted magnetic disks.

Q6: What causes a continuous base pressure vacuum leak in the P5000 loadlock?
Loadlock micro-leaks concentrate in three areas: aging Slit Valve O-rings, worn dynamic seals on the door valve cylinder drive shaft, and loose flanges on the roughing pump line connections. Spraying helium locally on these three critical zones while using a Helium Leak Detector is the fastest way to pinpoint the exact failure node.
