Chip Making Equipment

For B2B purchasing managers, technical engineers, and decision-makers at semiconductor startups, the core of managing the chip manufacturing equipment business lies in how to maintain a high yield while keeping the total cost of ownership to the most reasonable level. If they want to expand production or maintain a clean dust-free chamber production line, it is definitely not as simple as spending a lot of money to buy the core equipment of lithography, etching and deposition . The real hard bones are actually the subsequent large number of supply chain bottlenecks, delivery deadlines that often take several months, and ridiculously high maintenance fees from the original manufacturer To break through, the technical team must focus on screening and verifying high-precision “factory equivalent” replacements and consumables——from high-purity cavity spare parts, process kits, gas distribution modules, to manipulator transmission components and even refurbishment modules. These things must perfectly align with factory metrics in terms of thermal stability, plasma resistance, and dimensional tolerances . Only in this way can we truly reduce equipment downtime, extend tool life, and maintain a stable wafer yield without being “kidnapped” by the factory supply chain.

Calculate TCO: CapEx And OpEx In Fab Management

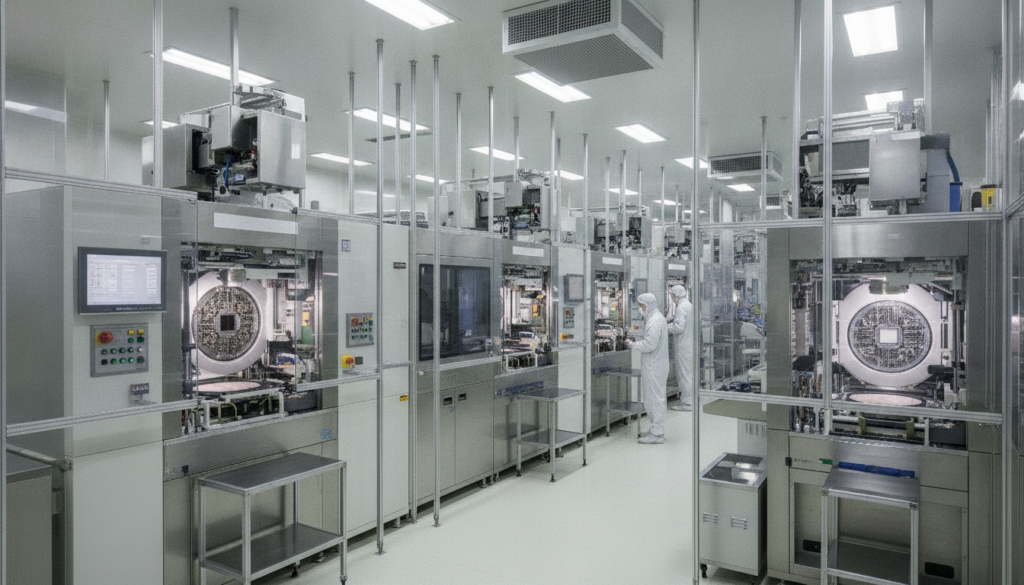

Buying advanced chip manufacturing equipment upfront is indeed astronomical, whether a wafer fab can make money in the long term depends largely on the operating costs that are burned every day. In the extremely demanding dust-free rooms, those machines used for lithography, dry etching and chemical vapor deposition basically rotate continuously under extreme physical and chemical stresses all year round.

To prevent micro-media contamination and ensure process repeatability, the key components inside these devices are actually consumables or semi-consumables. If technicians blindly believe in the original factory channel as soon as they encounter parts wear, then when superimposed with the original factory’s unique “brand premium”, the TCO of the entire equipment will be directly pulled to an unbearable height. To optimize TCO, the procurement and technical teams must establish a reliable and verified procurement strategy for secondary suppliers of high-wear parts, ensuring that our limited operating budget is spent on solid equipment performance rather than paying IQ tax on the original manufacturer’s logo.

Preventing Factory Deadline Black Holes And Supply Chain Bottlenecks

Everyone knows how fragile the semiconductor supply chain is. Geopolitical friction, raw material shortages or market fluctuations will cause chain reactions in any situation. In a wafer fab, the economic cost of shutting down a critical deposition or etching cavity for even an extra hour due to part wear is enough to make people feel uncomfortable.

Putting all the eggs in the same basket as the original factory is too risky to operate. The delivery period for those standard maintenance items alone can sometimes be delayed by several months. To address this hidden danger, fabs should evaluate and verify in advance some high-precision independent manufacturers specializing in semiconductor-grade spare parts. By building a localized or vertically segmented alternative supply chain, you not only ensure that critical components are on demand and reduce equipment downtime, but also completely eliminate the need to compromise on the stringent quality standards required by advanced submicron processes.

Technical Threshold For Evaluating And Verifying Non-Original High-Precision Components

Ultimately, replacing extremely sensitive chip manufacturing equipment with non-original accessories is definitely not a decision that can be made with a snap of the head. This requires extremely rigorous engineering evaluation. The technical team had to work tirelessly and compare the replacement parts with the physical and chemical benchmarks established by the original factory.

High-Purity Cavity Integrity and Process Kits

In plasma-enhanced etching and deposition systems, the interior of the vacuum cavity undergoes a dual baptism of highly corrosive fluorine or chlorine chemical gases and high-power radio frequency electromagnetic fields every day. Therefore, the structural and protective parts in the cavity must be able to withstand physical bombardment and chemical corrosion.

• Cavity structural components: such as the cavity body, cavity assembly, cavity cover , base and lining. The replacement of these components must be perfectly aligned with the original factory specifications, otherwise the vacuum level will not be maintained or RF leakage will occur, which will be very troublesome.

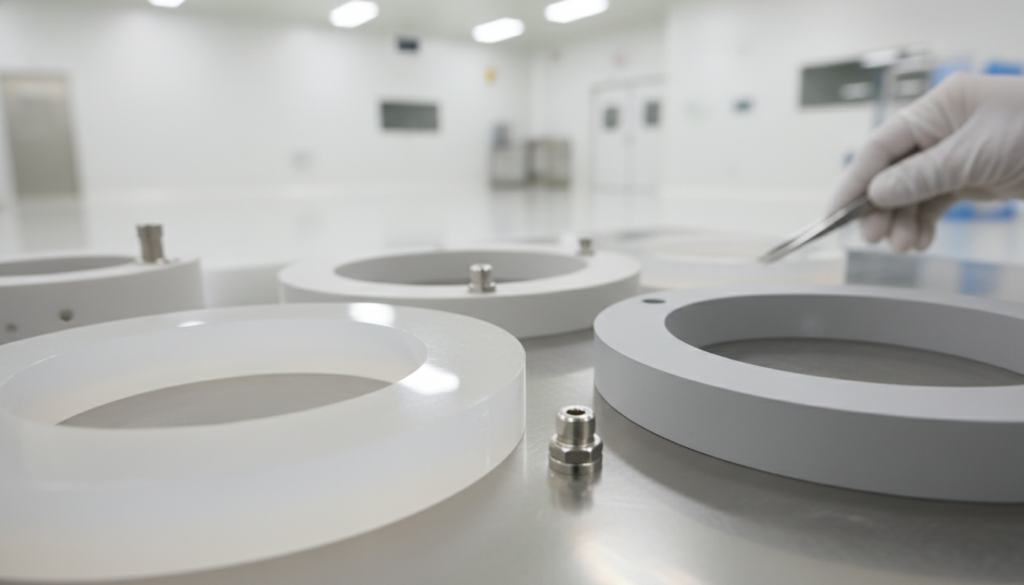

• Process Kit: Like various consumable rings, shield, air distribution plate and shutter disk, as well as cage and hoop. These things must be precision machined from ultra-high purity single crystal silicon, quartz or ceramic materials. Otherwise, the slightest impurity will drop debris, contaminate the wafer, and fail to protect the main cavity wall from direct gnawing by the plasma.

High-Precision Gas Distribution and Fluid Dynamics

On a 300mm wafer, precise gas distribution and pressure control are the lifeblood of making the film grow evenly or carving the grooves to a consistent depth.

• Gas distribution system: Like the pneumatic control box and gas distribution sprinkler head , their surface treatment and microporous geometry must be exactly the same to ensure that the process gas can be blown to the wafer in a smooth laminar flow state.
• Pressure control: The high vacuum throttle valve and thermal cooling structure must have a microsecond response speed to stabilize the vacuum pressure in the cavity during the gas switching transition.

Frictionless Wafer Transfer and Mechanical Automation

Every mechanical action in the vacuum transmission cavity is actually a race against the pollution particles. The mechanical alignment accuracy of the transmission mechanism must be extremely high and wear must be minimized.

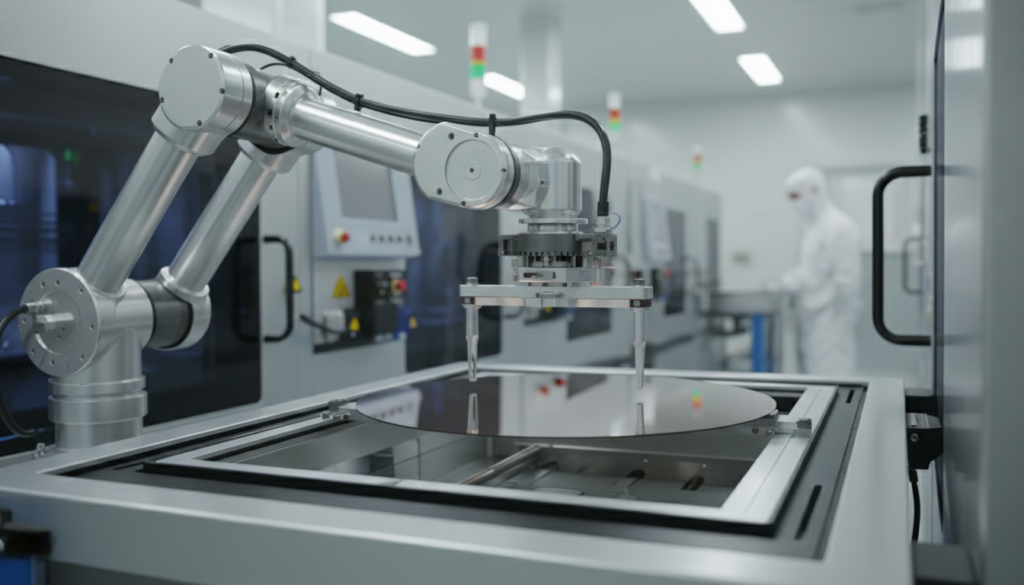

• Manipulator transmission components: Vacuum robotic arm, transmission blades and assembly, wrist join, lifting transmission assembly, rotation shaft and input and output assembly. Ultra-high precision bearings and special materials must be used There must be absolutely no mechanical shaking or occlusal gap.
• Vacuum isolation: The slit valve door panel and dynamic seal must be foolproof, completely separating the atmospheric lock from the vacuum reaction chamber without losing a little debris during frequent opening and closing.

Temperature Uniformity and Substrate Control

The chemical reactions are all uneven and depend largely on whether the temperature curve across the wafer is flat enough.

• Electrostatic Suction Cup and Heating Base: The electrostatic suction cup and heating base must guide the temperature evenly throughout the wafer to prevent local process drift or wafer thermal deformation.
• Thermal Energy Control: The integrated heating lamp module and thermal shield structure must provide stable and precisely calibrated thermal radiation to ensure that the same high level is maintained at every process run.

Qualifying Replacement Parts For Production Lines

To ensure that the replacement parts can be even with the original parts, or even surpass the original parts,the technical team must adhere to the three most critical verification dimensions:

• Plasma Resistance Test: The part must be subjected to a certain process time in a real fluorine/chlorine plasma environment to verify that its corrosion rate and particle generation rate can indeed be compared with the original factory standards.
• Thermal Stability : Components that work close to the heating base or lamp module must pass multiple rounds of thermal cycle testing to prove that they will not release impurity gases, deform, or crack due to thermal stress at high temperatures.
• Dimensional Tolerances: Critical mating surfaces, sealing joints, and manipulator connection points must be inspected by a three-coordinate measuring machine to ensure that the dimensional tolerances reach sub-mil level, completely eliminating vacuum leakage or mechanical jamming caused by dimensional deviations.

Follow these stringent engineering standards and systematically verify high-precision replacement parts, the fab can establish an independent supply chain that is extremely flexible, extremely cost-effective and has full performance. This not only saves a lot of maintenance expenses, but also ensures that your chip manufacturing equipment is in the most efficient operating state all year round.
