Used Applied Materials Centura: Slash Fab Tool Costs

Compared with directly purchasing new equipment from the original factory (OEM), purchasing used application materials (Applied Materials) Centura system can significantly reduce capital expenditure (CAPEX) by 40% to 65%, thereby directly thinning the wafer fab’s individual costs. However, if the purchasing director is in the second-hand market “blind buying”, these savings are often consumed by implicit factory software transfer fees or long yield climbing periods. This article will provide an accurate technical guide on how to evaluate, procure, and deploy used Centura hosts without disrupting existing production baselines.

Three-Step Evaluation Framework

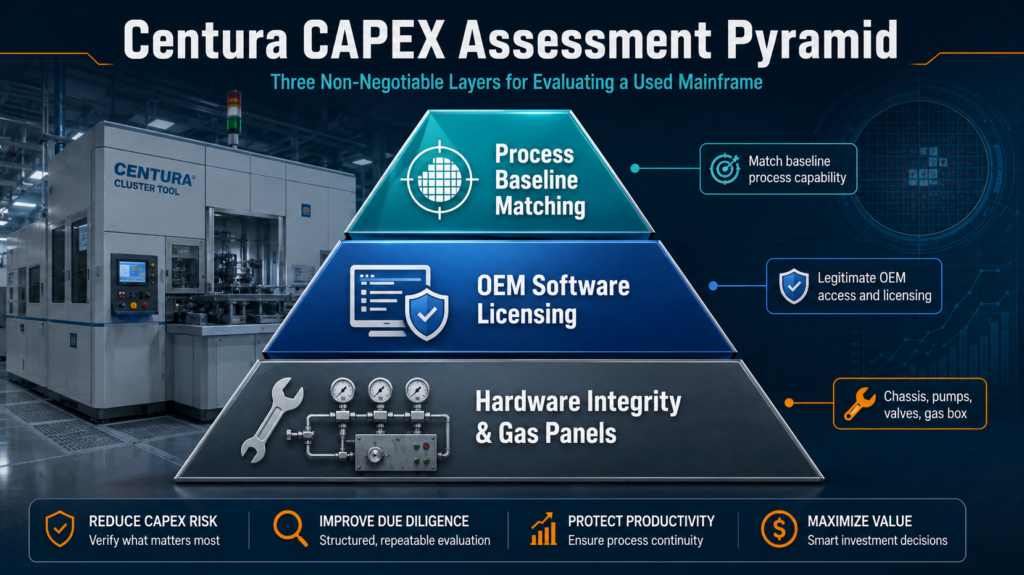

To evaluate a used AMAT Centura host, it must be disassembled from three dimensions: hardware integrity, software compliance, and process capability. Just relying on “appearance” to receive goods will definitely cause serious delays in later installation. The following “evaluation pyramid” divides device verification into three core levels that are not negotiable.

Cavity decontamination and integrity of air panel

The residual precursors in the mass flow controller (MFC) and spray head directly determine the initial defect density when you first install the machine. Always have the refurbisher produce a baseline residual gas analysis (RGA) report before making the final decision to pay. Many second-hand equipment intermediaries only do superficial work, polishing the outer wall of the cavity, but do not care about the intricate air paths inside. You have to ask them to completely disassemble and ultrasonically clean all parts that come into contact with gas to ensure that the equipment starts “zero defects” when it comes online.

Original software authorization transfer trap

Just because you buy a Centura hardware host doesn’t mean its operating system and control software licenses will automatically follow suit. Many wafer fabs have a fatal misconception: they think that if they buy a hard drive, they will naturally have the right to operate the device. In fact, application materials are very strict in controlling software authorization for second-hand buyers, and even activating old versions of the system often charges exorbitant fees. Be sure to review the software permissions in advance and write the authorization transfer terms in black and white in the contract signed with the intermediary. Otherwise, you might have to hold your nose and pay a six-figure fine to the manufacturer once the equipment arrives.

Process Baseline and Radio Frequency (RF) Generator Aging Issues

If you want the purchased equipment to perfectly match the existing process baseline in the factory, you have to check which generation the RF matching network and generator hanging on the main machine belong to. Older RF components were phased out very quickly, and many have been discontinued. The purchasing team must find out in advance the parts channels in the second-hand market and find a good way back for every consumable electronic component. Otherwise, if it enters the mass production stage, the equipment shutdown will be catastrophic.

Comparison Of Used AMAT Centura And Centura XE

Compared with traditional old Centura hosts, the used Centura XE platform is much more stringent in particle control and has a larger production capacity throughput. For fabs preparing to transition to 130nm or even more advanced processes, the XE configuration is a necessity due to its faster robotic arm transmission speed and more modern gas path architecture. However, for production lines that produce 200mm MEMS, analog chips and discrete devices, the old Centura is still an extremely profitable main machine. If you get stuck in advanced dielectric CVD or deep silicon etching processes, purchasing an XE host can often directly solve these yield pain points.

Category	Legacy Centura Mainframe	Centura XE Platform
Throughput (WPH)	Moderate, optimized for stable legacy production	Higher throughput with improved handler speed
Particle Baseline	Standard particle control suitable for mature processes	Significantly tighter particle control for advanced nodes
Wafer Size Compatibility	Primarily 200mm systems	200mm and advanced configurations for modern integration
Recommended Node	200mm MEMS, analog, discrete devices	130nm and below advanced semiconductor nodes
Best Use Case	Stable high-volume mature-node manufacturing	Advanced dielectric CVD, deep silicon etch, yield bottleneck optimization
Automation Level	Legacy robotic handling system	Modernized high-speed robotic wafer handling
Gas Delivery Architecture	Conventional legacy gas delivery	Upgraded precision gas delivery system

3 Fatal Mistakes When Buying Used Centura Equipment

Buying used semiconductor equipment as ordinary IT hardware will cost the purchasing director of the wafer fab millions of dollars. When expanding dust-free room production capacity, avoid the following major technical pitfalls:

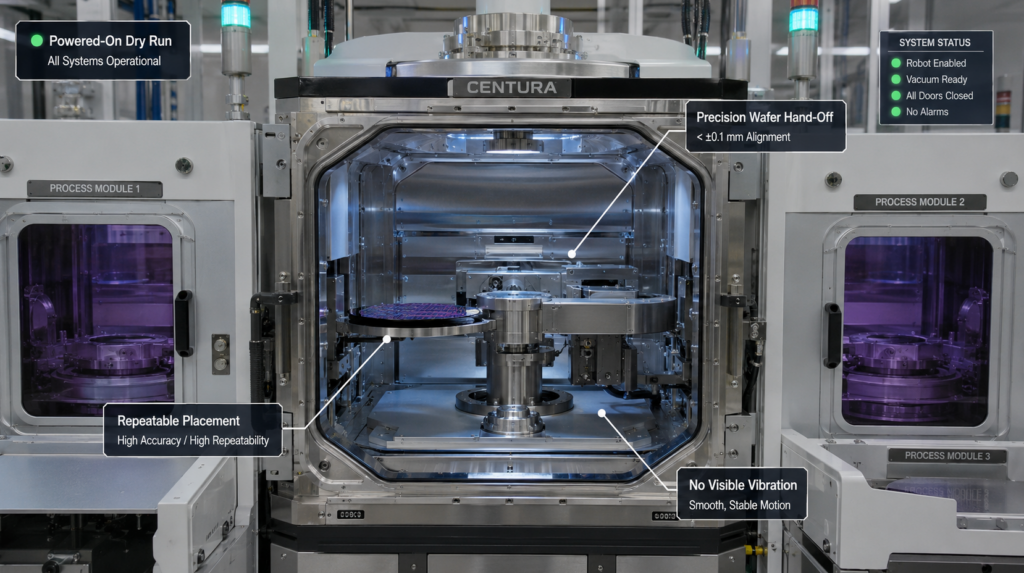

Skip the “empty run” test of the transmission robotic arm: Before shipment, a demonstration of energization of the central transmission cavity (Dry Run) must be mandatory. This idle run test can directly verify the repeatability accuracy of wafer placement and can also expose wear problems of mechanical bearings in advance.

Ignore the air panel schematic: If the air system does not match, you will have to spend a lot of effort to modify it. If you buy an etching machine that previously ran a chlorine-based chemical process, plan to take it back to run a fluorine-based process, and do not carefully check the gas path schematic, then the engineering time spent on the modification alone can take advantage of the CAPEX you saved.

Ignore the condition of the VME rack: Once the back plate in the VME case is corroded, it will cause intermittent communication failures, and it often takes several weeks to find out the cause. Be sure to find the high-definition photos of the inside of the VME rack that the other party wants to see to confirm that there are no traces of chemical vapor erosion before discussing the next step.

Real Case: 200mm Foundry Cuts Etching Equipment By 45% CAPEX

In the first quarter of 2026, a medium-sized analog foundry in Texas cut capital expenditures on deep silicon etching by 45% through a “factory-to-factory” second-hand purchasing model. Instead of browsing a typical used equipment listing website, their factory director pulled back three refurbished hosts directly from a first-line storage wafer fab that was retiring equipment.

Their procurement team strictly implemented the above “evaluation pyramid”, put the dirty talk first, negotiated the software transfer fees in advance, and carefully reviewed the VME chassis. Less than 14 days after the equipment was installed, the particulate matter baseline of the cavity met the original factory standard, directly eliminating the three-month yield climb period common in the industry.

“Buying a used AMAT Centura without software authorization is like buying a Ferrari without the car keys. We checked VME rack and software permissions in advance, and that alone saved us $200,000 in unexpected factory activation fees. ”——Senior Director of Fab Operations, John D.

FAQs

How much does a used Centura cost?

Prices range widely, typically ranging from $150,000 to over $800,000. It depends on the configuration of the cavity, the degree of renovation, and the software license that does not include the original manufacturer in the price.

When buying a used AMAT Centura, will the original software license follow the device?

No. Having physical ownership of a device does not mean you can legally use its software. The fab must talk directly to the original manufacturer about the transfer of operating system and control software, or ensure that the refurbisher has cleared the authorization issue from the legal level.

What processes can the Centura XE host run?

The XE platform supports advanced dielectric CVD, polysilicon etching (Poly Etch), metal etching (Metal Etch), and rapid heat treatment (RTP). Its upgraded air-path system is ideal for running processes below 130 nanometers.

Can a 200mm Centura device be upgraded to make a 300mm (12-inch) wafer?

No. The physical architecture of the Centura host is stuck on 150mm or 200mm wafers. To make a 300mm factory, you can only purchase Endura or Producer platforms for application materials.

How long does it take for a refurbished Centura to meet baseline standards from installation?

If the equipment has been fully audited and decontaminated, it will take approximately 14 to 30 days to install and match the process baseline. But if you buy one of those “current delivery (as-is)” blind box machines that don’t even have RGA reports and software authorization, it may not reach mass production standards after more than half a year of trouble.

Where can I find the most reliable spare parts for my used AMAT Centura XE system?

For components like RF generators and MFCs that are prone to wear and tear, it is best to work directly with professional used semiconductor parts suppliers. Don’t just rely on ordinary used equipment intermediaries who can throw everything away.
