Centura DPS Core Optimization Rules

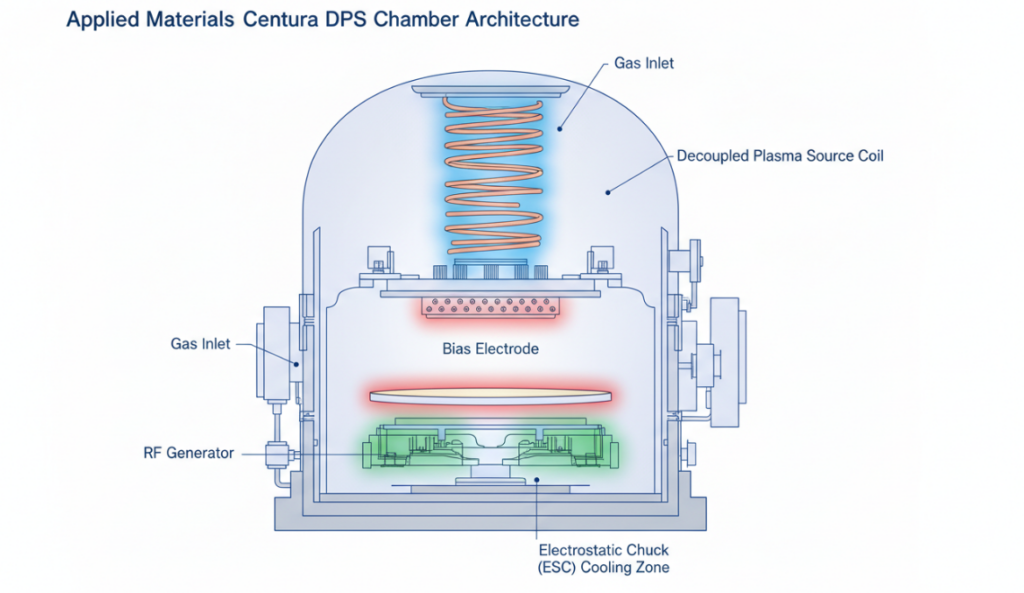

Hardware aging will directly lead to process deviation. Many process engineers (PE) 1 encounter problems and spend hours knocking the gas ratio of the mass flow controller (MFC), but do not realize that the root cause is actually the delay of the RF matching network or the polymer accumulation on the top of the cavity invisible to the naked eye. To truly harness decoupled plasma sources, you must have absolute control between chemical etching and physical bombardment.

“DPS-Yield Triangle” Thinking Model: A Practical Perspective in 2026

The yield loss on DPS is Centura by using materials. To put it bluntly, it is caused by the imbalance of 3 physical variables: source radio frequency (which determines radical density), bias radio frequency (which determines ion energy) and polymer state on the sidewall of the cavity. As long as this “DPS-yield triangle” model is applied, most etching faults can be located within a few minutes.

1. Decoupling source and bias: stop using those old continuous wave formulas.
   The source power tube is the plasma density, that is, the chemical etching rate; the bias power tube is the kinetic energy of the ions bombarding the wafer, which determines the anisotropy (perpendicularity). When doing high aspect ratio (HAR) etching, these two forces often “fight”, resulting in a bow (Bowing) topography of the trench sidewalls. Synchronous radio frequency pulse (duty cycle is usually 1kHz to 5kHz) is the antidote. During the “off” period of the pulse, the etch byproducts have sufficient time to be pumped away, thereby completely avoiding local depletion of the reaction gas at the bottom of the deep trench.

Continuous Wave vs. Synchronous Pulsed RF in Centura DPS

Mode	Etch Rate	Selectivity	Micro-loading	Thermal Budget
Continuous Wave (CW)	Higher(Continuous plasma generation provides constant ion flux, maximizing raw throughput)	Lower (Continuous ion bombardment accelerates mask and underlayer erosion)	Higher / Pronounced (Rapid depletion of reactive species causes etch depth variation between dense and isolated patterns)	Higher(Continuous ion energy transfer causes constant heat accumulation on the wafer)
Synchronous Pulsed RF	Slightly Lower(Depends on the duty cycle, but offers highly controlled and precise etching)	Higher(RF off-cycles reduce average ion energy and physical damage, preserving the mask and gate oxide)	Lower / Minimized (Off-cycles allow neutrals/radicals to replenish and volatile byproducts to evacuate from deep trenches)	Lower(Heat effectively dissipates during the RF off-cycles, preventing thermal degradation of photoresist)

2. Cavity sidewall state management (Y2O3 coating and by-product control)
   As long as the sidewall state is stabilized, the “first film effect” this damn problem will naturally disappear. Centura DPS uses specific cavity materials (such as alumina or yttria Y2O3 coatings), these materials will react violently with fluorocarbon or chlorine-based plasmas. After each wet cleaning, forced to run a special “Seasoning (hanging film)” formula is an absolute iron law. You have to deposit a stable layer of fluoropolymer on the walls of the cavity, and the thickness must be exactly the same as the thickness produced during mass production. You know, the bare yttrium oxide side wall and the side wall with the film are very different from each other in the consumption of free fluorine radicals, which directly leads to the completely different etching rates of the first wafer and the 50th wafer.

2026 Frontier Etching Techniques and Troubleshooting

Get rid of aspect ratio dependent etching (ARDE) effects

The deeper the trench, the more difficult it is for reactants to reach the bottom. In the dense array area, the ARDE effect will make the etching rate significantly slower than that in the open area. To solve this headache, the chamber pressure and the Cl2/BCl3 or CF4/CHF3 stoichiometry must be dynamically adjusted during the etching step. For example, when the formulation is halfway through, reducing the cavity pressure from 15 mT to 8 mT can effectively increase the mean free path of ions. This deliberate depressurization action can strengthen the directional bombardment of ions and directly penetrate the etching barrier layer at the bottom of the trench without causing a top-corner faceting.

Grasping the end point with AI-driven OES full-spectrum “fingerprint”

In the face of the current 3D complex structure, if you still rely on single wavelength OES (emission spectrum) to knock the end point, you are purely digging a hole for yourself, 1 you are not careful, you will get serious over-etch (Over-etch). The head Fab has changed its play method for a long time now, directly ML the algorithm to run the full spectral trajectory analysis of OES. AI is like recording fingerprints, keeping a close eye on the spectral characteristics of the plasma. Once the system captures the sudden power drop of 2% in the carbon-nitrogen (CN) emission frequency band, accompanied by a slight spike in radio frequency reflected power, it is definitely a precursor to micro-arc ignition (Micro-arcing). At this time, the machine will cut off Recipe instantly within the limit time of 400 milliseconds, abruptly rescuing the wafer from the scrap edge.

Expert Pit-Avoidance Guide: Those Thunder that Most Wafers Are Stepping on

Trap 1: misjudged CD deviation

Once a wafer has a center-to-edge CD (critical dimension) deviation, nine out of ten engineers will instinctively suspect that the gas showerhead is maldistributed. Then Xingshi changed the expensive shower head and ran the test film, and found that the index was still unqualified after 1 rounds. In fact, the real culprit is often hidden in the thermal pad at the bottom of the electrostatic chuck (ESC). Long-term thermal cycling will pull down the back helium cooling efficiency of local tiny areas. The iron rule of the old mages in the factory is: don’t worry about how normal the data reported by the macro temperature sensor is, as long as the radio frequency on time (RF hours) approaches the 50000 hour mark, replace the ESC thermal pad without saying anything.

Trap 2: RF matching network (Match Box) of the fatal blind area

Even tiny fluctuations in plasma impedance make the capacitors in the RF matching box “blindly find” the tuning point back and forth like headless flies. If the matching network is slow to respond, in a short 15-second etching step, the plasma in the first 3 seconds is actually in an extremely unstable state, which will directly create extremely serious inter-chip differences (Wafer-to-wafer differences). The permanent cure is to disassemble and reorganize the matching box of AMAT Centura, replace it with a stepping motor with low friction and fast response, and hold on to the algorithm: the reflected power must be severely pressed to zero within 400 milliseconds.

First-line combat case: 28nm logic process yield soared 4.2 percent inside story

We moved this optimization scheme intact to a 28nm polysilicon gate Centura DPS production line. Before the rectification, the benchmark process of this line had a high scrap rate of 6% due to serious line edge roughness and unfinished edge problems.

We directly apply the “DPS-yield triangle” play:

Hardware cutting: replace the aging and degradation of the ESC polyimide layer to restore uniform helium back cooling.
Recipe rewrite: Force a 2.5kHz synchronous RF pulse on the bias generator.
The state of the cavity is stable: in each wafer processing gap, a 15-second SF6/O2 flash step is rigidly inserted to completely stabilize the passivation state of the cavity side wall.
The result was a direct drop in the scrap rate to 1.8 per cent. The critical dimension uniformity converges directly from 3.2nm to 1.1nm across the 300mm wafer. The combination of precise thermal control and RF pulse completely smoothed the LER defect.

FAQ

1.What exactly is the cause of AMAT Centura DPS plasma instability and reflected power spikes?

The root cause is often in the fast-breaking RF matching network or the sudden change of cavity pressure. The aging tuning capacitor simply cannot keep up with the rate of change of impedance. Check the motor speed of the matching box and confirm whether the throttle valve of the turbopump has mechanical jam.

2.How can ESC temperature calibration Centura by applied materials be accurate?

This job must be done on professional temperature measurement wafers (such as KLA SensArray). Put the temperature measuring piece on the chuck, give the standard helium back pressure, and then map the data of each temperature zone. Then fine-tune the heat exchanger (Chiller) setpoint and software compensation until the actual physical temperature on the temperature measuring plate is completely aligned with the reading on the machine interface.

3.What is the core difference between Centura DPS and DPS II cavities?

DPS II redesigned the geometry of the source coil and top cover (Roof), mainly to get plasma uniformity on a 300mm silicon wafer. Compared with the old DPS architecture, the second generation has upgraded the gas distribution system, and the RF pulse function is more radical and flexible.

4.How long does it take to change the yttrium oxide (Y2O3) accessories in the DPS system?

Don’t look at the natural day, the RF time and the type of process gas running. The process with high fluorine content gnaws Y2O3 very quickly. Every 3,000 hours of RF time, you must use a flashlight 1 check the dome and lining. Once micro-cracks or serious discoloration are found, replace them immediately, otherwise the falling particles will smash the yield of the day.

5.Why does my Centura DPS always fail to catch the end point when doing shallow trench isolation (STI)?

The open area of the STI layer is extremely small, often less than 5%. The chemical change produced when the etch hits the pad oxide is too weak to capture the signal-to-noise ratio of standard OES. In this case, only the interferometer (Interferometry) can catch the end point system, or the full spectrum OES with AI enhancement can capture the tiny by-product fluctuation.

6.Can the old AMAT Centura chamber be used to etch silicon carbide (SiC) or gallium nitride (GaN)?

It can be done. Many wide band gap semiconductor factories have successfully converted Centura DPS into machines for etching SiC and GaN. However, the premise is that you must replace the RF generator with a high-power one and install a special cavity bushing that is extremely resistant to beating, because breaking the extremely strong chemical bond of SiC requires extremely brutal ion bombardment energy.
