Centura 5200 MXP & Ultima: Boost AMAT Chamber Yield

To improve the yield of AMAT Centura 5200 machines, process engineers must keep a close eye on the polymer deposition on the side wall of MXP etching cavity and completely eliminate the radio frequency (RF) impedance matching delay problem of Ultima HDP-CVD cavity. In an eight-inch (200mm) wafer fab, these two major hardware injuries are the absolute culprits that lead to Particle (particle) anomalies and Gap-fill (gap filling) voids. What’s more, when more than 60% of the refurbished Centura machines are put back on line, the mechanical linkage effect between the micro-vibration of the host VHP mechanical arm and the aging cavity sealing ring is often ignored, which can directly eat up to 8% of your effective yield. Next, we will break apart and analyze these specific hardware parameters and first-line renovation data to see how to squeeze the capacity of this old equipment to the limit.

Systematic Logic Of Centura 5200 Yield Improvement

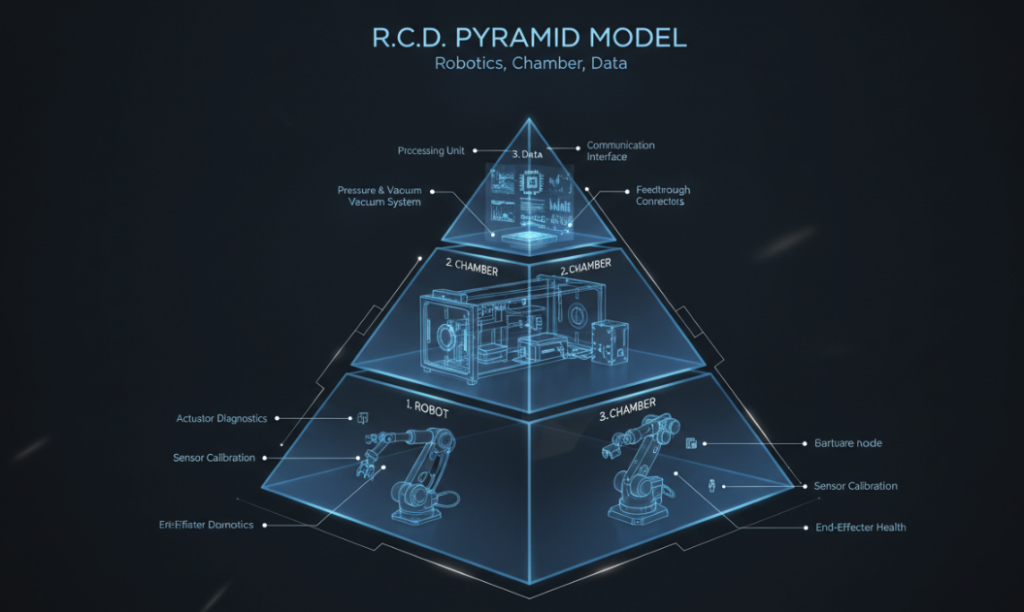

Cluster Tools (cluster equipment) like Centura 5200 cannot solve the systematic yield attenuation by troubleshooting single-cavity faults alone. Based on our actual combat experience in catching bugs for more than 150 old AMAT equipment, the R.C.D. model can directly break down the serial faults that are not mentioned in the standard PM (preventive maintenance) manual.

Robot arm alignment is the base for all process stability. The high-frequency continuous rotation of the VHP transmission robot arm will cause backlash wear of the micro gears of the Z-axis servo motor. This is an irreversible physical impair that causes the wafer to be off-center as it enters the MXP or Ultima’s electrostatic chuck (ESC), resulting in extremely severe edge non-uniformities during the etch or deposition steps.

Chamber deterioration, to put it bluntly, is basically the fault of thermodynamic drift. Long-used heaters and cooling pipes will be filled with scale, resulting in a temperature difference of 2°C to 5°C between the actual surface temperature and the sensor feedback value.

Data delay is the “invisible killer” that causes mass wafer scrap “. Those old VME bus control boards that handle complex Recipe (recipes) occasionally drop the I/O timing for a few milliseconds, which can directly disrupt the gas injection sequence of MFC (mass flow controller).

Exfoliation Of Rooted Polymers And Particle Anomalies

Centura the explosion Particle in the 5200 MXP chamber, 90% of the cases are due to the polymer hanging too thick on the anodized aluminum chamber wall and then suddenly dropping slag.

Thermal Drift Management Of Gas Distribution Disk

After thousands of hours of radio frequency bombardment, the edges of the pores of the old MXP GDP will be physically eroded. This deformation disrupts the local flow field of the reactant gas, causing the plasma density at the center and edge of the wafer to be unmatched. Engineers must get rid of the “day-to-day” rigid PM scheduling and watch the fluctuation of reflected power (Reflected Power) in real time. As long as you see that the baseline continues to float up by 3W, that is, you are calling the police. You must immediately do GDP chemical cleaning or change parts directly, and press the problem to death before the defect scanner turns on the red light to scrap the whole batch of wafers.

Dead Mechanism Of Sidewall Temperature Optimization

Absolute thermal stability of the cavity wall is the only physical means to prevent the fluorocarbon polymer from slagging. Some second-hand equipment refurbishers, in order to save money, will leave the aging coolant valve on the side wall to continue to make do with it. As long as there is a little instability in the refrigerant flow in the process, it will cause slight fluctuations in the temperature of the cavity wall, resulting in the polymer layer tightly attached to the wall due to thermal expansion and cold contraction cracking, directly falling on the wafer surface.

MXP Chamber Particle Troubleshooting Matrix

Particle Morphology (under SEM)	Chemical Composition (EDX analysis)	Suspected 5200 MXP Hardware Failure	Corrective Action
Spherical, metallic	Ni, Cr, Fe	Chamber wall erosion, seal degradation	Replace seals, inspect chamber walls, optimize process parameters
Irregular, powdery	Si, O	Etch residue, wafer contamination	Clean chamber, optimize etch recipe, improve wafer handling
Fibrous, organic	C, O, N	Gasket degradation, airborne particles	Replace gaskets, improve cleanroom protocols, use HEPA filters
Crystalline, white	Al, O	Aluminum oxide flakes from anodized parts	Inspect anodized components, replace if necessary
Flaky, dark	W, Si	Filament degradation (if applicable)	Replace filament, optimize filament temperature

Conquering The Problem Of Radio Frequency FiringAnd Voids

On the Centura 5200 Ultima platform, if you want to make shallow trench isolation (STI) or interlayer dielectric (ILD) void-free filling (Gap-fill) beautiful, the synchronization between high and low frequency RF generators must be perfectly matched.

Investigation Of Hidden Microcracks In Ceramic Dome

The ceramic Dome covered on the Ultima cavity, under long-term high-energy ion bombardment, will produce lattice-level microcracks that are invisible to the naked eye. These gaps can harbor dirt, hold in trace amounts of water vapor and oxygen, and then release them when vacuuming, causing severe plasma ignition and process drift. Once Dome deteriorates to this critical point, it must be scrapped immediately and don’t wait for the entire batch of wafer yields to collapse.

Fatigue Problem Of Stepping Motor With Matching Network

The plasma impedance changes dynamically during the deposition process, which forces the stepper motor in the RF matching network to adjust the capacitance instantaneously. The response lag of the motor that has been in service for more than 10 years in the Ultima cavity is very serious. The most direct performance is: in the radio frequency (RF strike) in the first 200 milliseconds, reflected power abnormally high. With a few tenths of a second of plasma instability, holes can be created at the bottom of deep trenches that are not completely filled. Upgrading these old parts into digital stepper motor components can uproot this particular Gap-fill defect.

Pit-Avoidance Procurement Logic For Used Semiconductor Equipment

Buying a second-hand AMAT Centura is definitely not as simple as comparing prices. The wrong configuration can put your engineering team in the pit for several months.

The compatibility of the host controller determines whether this device can run out of real money. Now the second-hand market is full of 5200 hosts with early SBC and the long-obsolete OS/2 operating system. If the hard disk of this system is hung up, the replacement cost is prohibitive, and there is no way to connect to the SECS/GEM data acquisition network of modern fabs. When signing a contract, one must be nailed: upgrade to a Linux-based controller architecture, or the bottom line is that SSD arrays must be modified.

Engineers must also disassemble the electrostatic chuck (ESC) to check the helium cooling channels on the back. Those refurbishers who 2 knives only know how to polish the ESC surface, but turn a blind eye to the local blockage in the depths of the microchannels caused by years of high-temperature baking. Poor helium flow can directly cause local overheating of the wafer, and you will see the classic “donut” failure pattern on the yield map (Yield Map), or severe thermal damage in the central area.

Factory Service End Sensor Drives Yield Quality Change

For the top eight-inch factory, integrating the edge computing at the factory’s service end and transforming the old 5200 equipment is the core move to achieve yield growth against the trend.

Internal data show that in an optimization project in the fourth quarter of 2025, a PMIC foundry in Taiwan did a beautiful job: they synchronized the millisecond vibration data of the factory’s dry pump (Dry Pump) with the throttle position data of Centura 5200 MXP. By focusing on the micro-frequency shift of the pump rotor, process engineers successfully predicted the condensation of by-products in the exhaust line 12 hours in advance, without giving it a chance to drag down the etching rate of the chamber.

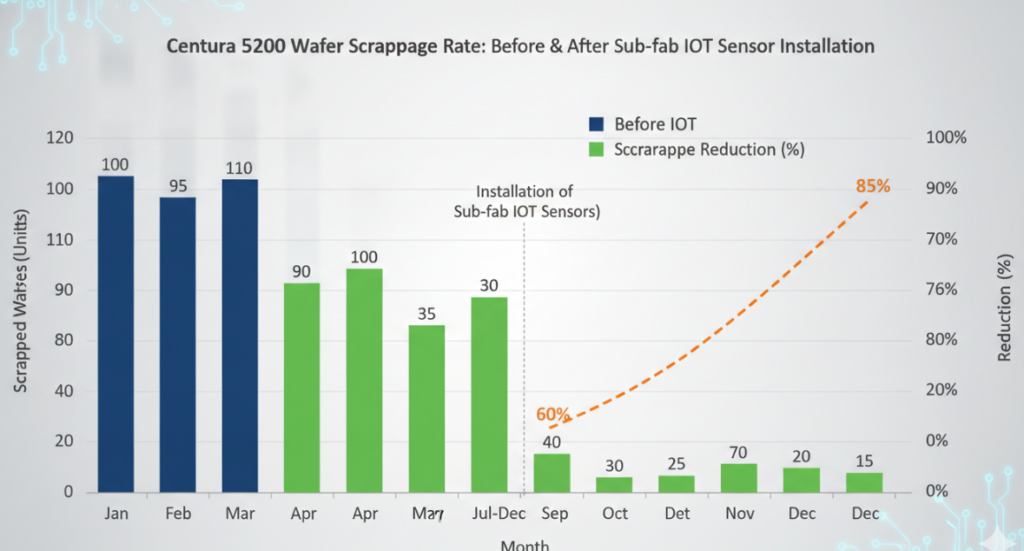

After the deployment of this converged data architecture, the unexpected downtime of the MXP cavity was abruptly cut by 45%, and the overall wafer yield rate rose steadily from 91.2 to 94.8. Compared with blindly changing the hardware inside the cavity and using external factory-end sensors to fill the I/O blind area of the old equipment, the ROI (return on investment) is not a little higher.

FAQs

Q1: The edge etching rate of my Centura 5200 MXP wafer is always low. What’s the matter?
Directly check the focus ring (Focus Ring) wear. Once the focus ring is thinned to the limit, the plasma sheath at the edge of the wafer (Plasma sheath) is severely bent, biasing the trajectory and density of the bombarding ions. Re-calibrate the height of the focus ring, replace the out-of-tolerance parts, and the uniformity can be saved.

Q2:AMAT Centura 5200 Ultima’s RF generator always reports errors frequently. Where do you start?
First touch the bend of the coaxial cable to see if the shielding layer is physically damaged, and then see if the connector is oxidized. After checking these two points, immediately look at the cooling water flow index. Even if there is only a slight scale blockage in the cooling pipeline, the power tube in the RF generator will directly trip and shut down very violently in order to prevent itself from burning.

Q3: How to judge whether the VHP mechanical arm of the second-hand Centura 5200 should be completely overhauled?
Take a wafer to find the center fixture (Centering fixture) and run a dynamic test. If the placement repeatability deviation exceeds 0.1mm during the telescopic action, and low-frequency abnormal vibration can be heard at the same time, then the hammer is a real hammer-the bearing or transmission belt inside has been abandoned, and the mechanical arm must be completely redone (Rebuild).

Q4: Can MXP and Ultima cavities hang on the same Centura 5200 host and run together?
The physical installation will fit perfectly, but the risk of cross-contamination will skyrocket. A large number of by-products produced by the Ultima HDP-CVD process can easily flow back into the MXP etching chamber along the slight pressure difference of the transmission chamber. If you insist on running in the mix, the purge gas flow in the transfer chamber must be calibrated to the extreme, and an extremely strict pressure gradient control mechanism must be applied.

Q5: Can replacing the old control system for Centura 5200 really improve the manufacturing process?
Absolutely. The replacement of the old control board is equivalent to eliminating the millisecond delay in gas flow. Modern controllers can achieve zero-time sequence jitter (Timing Jitter) when triggering MFC and RF generators, which can not only jam the deviation of the process window to death, but also ensure that thousands of wafers run down, and the consistency of Run-to-run (batch-to-batch) is as stable as Mount Tai.
