Thin Film Deposition

Thin film deposition is the most basic link in the micro-nano manufacturing process. Tt is to create a layer of material several nanometers to several micrometers thick on a silicon wafer or glass substrate so that it has specific functions. The core logic of this work is three steps: first, the material is turned into a gas then these vapors are sent to the substrate, and finally it is nucleated and grown on it. There are two main categories: PVD relies on kinetic or thermal energy to transport atoms sputtering and electron , while CVD relies on gaseous precursors to carry out chemical reactions on the surface. Usually, some plasma is added to achieve step coverage and film density. When you encounter structures with high depth-to-width ratios that require atomic-level accuracy, you have to rely on ALD , whose conformal and thickness control are simply amazing. Uniformity, adhesion and purity are indispensable for producing a good film. It all depends on whether the process parameters and the precision hardware in the vacuum chamber can be closely matched.

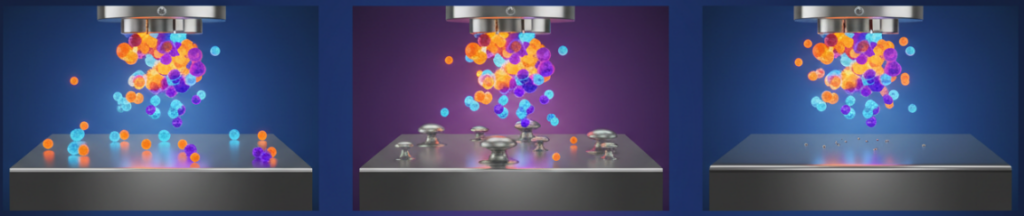

Three Stages Of Disassembly: From Gasification To Surface Nucleation

To make what is called a “perfect film”, engineers must eat through the transformation process from the source material to the stable solid layer. In the first step, the vaporization method directly determines the initial purity of the process. Whether it is the sublimation of solids in PVD or the precise metering of precursors by gas box in CVD, as long as there is a slight fluctuation in this stage, there will definitely be defects in the end. The second step is transport, at which point the geometry of the vacuum chamber becomes powerful. Internal components such as the gas distribution plate and Blocker must ensure that the vapor is controlled and flows toward the substrate in a laminar state, otherwise once turbulence is generated, the film thickness will definitely be uneven. Finally, there is nucleation and growth, which is extremely dependent on the thermal environment and electric field environment provided by the substrate . Whether it is an electrostatic suction cup or a high-performance Pedestal, the temperature control must be as stable as Tarzan for the atoms to be arranged according to the expected crystal structure, otherwise the conductivity and stress state of the membrane layer will collapse directly.

Process Path Depth Comparison: PVD, CVD And Conformality

Choosing between PVD and CVD is usually a trade-off between deposition rate and structural complexity. PVD makes the metal coating very pure, but it has a hard wound ——“line-of-sight transmission” effect. To combat shadowing and ensure sidewall coverage, the mechanical precision of the rotating components and Shutter disk in the chamber must be too high. CVD follows the path of surface chemical reactions, which makes the chemical environment inside the Chamber body extremely sensitive. High-quality Liner and Isolator rings are essential here, otherwise parasitic deposits will be everywhere on the cavity wall, which will eventually fall off and turn into dust , which will directly kill the yield. As for the most troublesome 3D architecture now, ALD’s pulse-like style places extremely high demands on the vacuum sealing and fast exhaust performance of Throttle valve and Slit valve door.

Maintaining Process Integrity: Synergy In Chamber Hardware

As process nodes become smaller and smaller, the “synergy between process parameters and hardware integrity” I mentioned earlier becomes the key to winning or losing mass production. Without reliable vacuum sealing and precision mechanical transmission, high-quality deposition is a fantasy. Parts like the Cover ring, Edge ring, and Clamp ring may not look impressive, but they do a lot: they hold the wafer in place while protecting the edges from plasma. Furthermore, whether the process can be carried out for a long time depends entirely on the durability of the consumables. Shield and Liner must be able to withstand corrosive chemical environments and high thermal cycles without degradation. Even the Wrist and Blade components, the robotic arms responsible for handling the wafers, must produce zero particles, otherwise the deposition environment that they have worked so hard to maintain will be completely destroyed.

Optimizing Deposition Results Through Precision Engineering

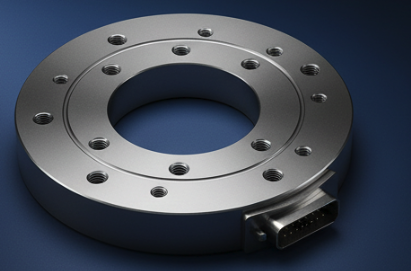

Our goal in deposition is ultimate uniformity, adhesion, and purity. This requires a global perspective on the device. Pedestal not only carries wafers, but also requires precise temperature control through the advanced Cooldown system and lamp module . Each insulating ring , hoop , and insert in the chamber is involved in managing the plasma path and thermal gradients. As long as every piece of hardware ——from the small bearing to the entire Chamber body—— is guaranteed to meet the strict tolerance requirements, low-level pits such as film spalling or high resistance can be avoided. For those who manage high-capacity production lines, the core is always to rely on high-precision components to reduce downtime and ensure that the deposition of each furnace is as stable as the previous one. This is what turns complex physical theories into repeatable industrial success.
