Semiconductor Equipment Spare Parts

The core strategy for purchasing semiconductor equipment spare parts is cram verified second-source or equivalent original spare parts into your dual-source procurement model. In order to break the price monopoly of the original manufacturer, the purchasing team must use a set of extremely hard-core engineering standards to identify suppliers, such as whether their size tolerance matching is to the micron level, material compatibility cannot pass the test, and whether they have a 100-level dust-free packaging capability.Suppliers that offer full life cycle extension services such as precision cleaning of components, surface refurbishment, and plasma-resistant thermal spray coatings offer the best value for money. Through them, the fab not only gets cavity components and gas transfer parts that are no better than the factory average time without failure , but also can directly shorten the spare parts delivery period by half.

A Dual-Source Procurement Model For Spare Parts Replacement

The global supply chain of semiconductors is actually quite fragile, constantly affected by geopolitics, raw material shortages or logistics blockages. If you buy a key spare part and tie it to the original manufacturer , it is common to delay the delivery date for more than half a year and double the price.

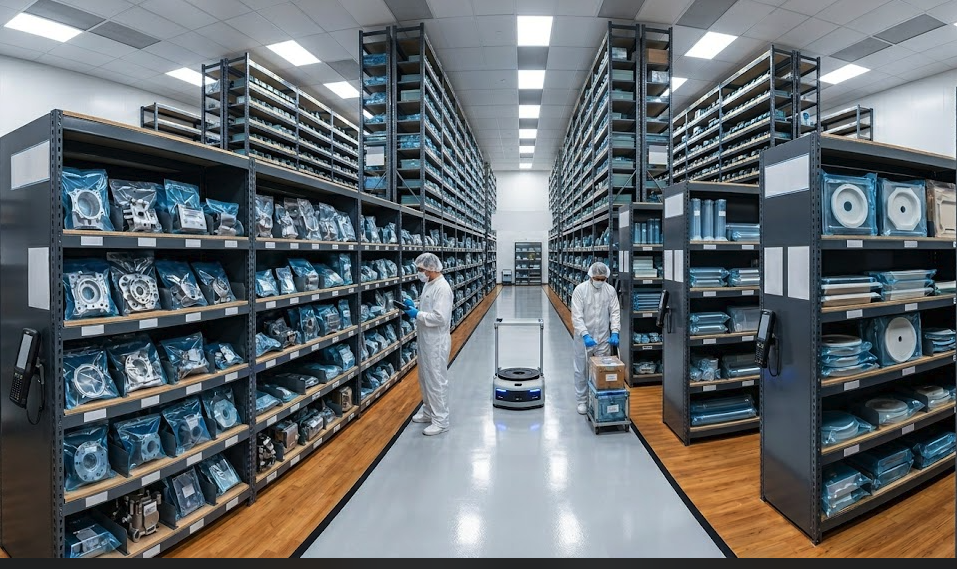

The purpose of dumping high-quality second-source spare parts into inventory is not only to save a few purchase money, but also to buy insurance for the supply chain. Cultivating an additional verified alternative supplier will give the purchasing team the confidence to negotiate and help reduce the overall cost of ownership.

Find a local spare parts partner that is quick to respond and on call, so that the machine does not need to panic if an emergency occurs. As long as the replacement parts are properly verified, they will fit tightly when installed, which not only stabilizes the budget but also preserves the production line schedule.

How To Pass The Second Source Spare Parts

Many high-precision spare parts, such as robotic arm parts, end jaws, transmission connecting rods and slit valves, all require micron-level dimensional accuracy. It is slightly off, and it will either freeze or leak when installed, and may even cause the film to be scrapped.

Gas path parts such as gas distributors and gas flow blocking plates will have uneven gas flow if the hole position and surface roughness on them are slightly wrong. The qualified supplier factory must be equipped with hard-core metering equipment such as three-coordinate measuring machine and optical projector to ensure that every replacement part is exactly the same as the original factory drawing.

The right material selection directly determines how long the part can survive in the harsh cavity chemical environment:

High-purity quartz: Mainly used for high-temperature diffusion and CVD, no metal impurities can be carried in it, otherwise it will directly contaminate the wafer.

Advanced ceramics : They are bombarded by plasma every day in the etching machine and must withstand corrosion and not drop dust.

Special anodized alloy: The anodized layer on the surface of aluminum parts is required to be dense and defect-free, which can not only block corrosive gases but also cannot be discharged under high vacuum.

100-level dust-free room packaging

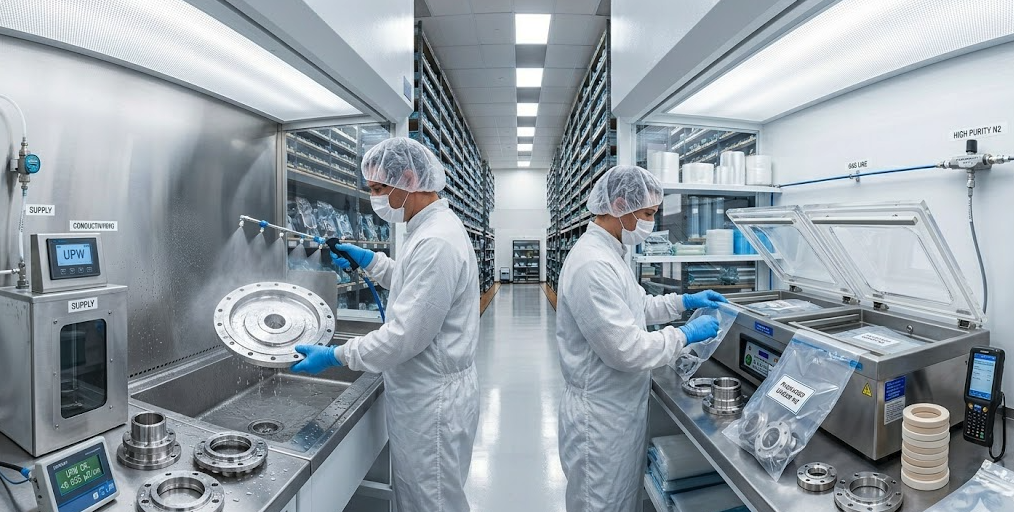

Some parts, no matter how clean they are, will be completely wasted if they get even a little dust on the way. Before leaving the factory, the replacement spare parts must be precision final washed with ultra-pure water , dried and tested in a standard 100-level/10-level dust-free room, and finally sealed with a double-layer vacuum bag. Only then can the parts be directly installed when they are sent to the fab for opening.

Squeezing The Value Out Of Spare Parts Through Refurbishment

Parts such as cavity inner lining and shielding cover , which are often sprayed by process gas, do not need to be thrown away directly after the surface area has a thick layer of by-products. As long as you find a professional cleaning plant to perform non-destructive chemical cleaning and mechanical refurbishment, and safely peel off the outer fluoropolymers and oxides without damaging the inner metal or ceramic substrate, you can restore the parts to the original factory new state at a very low cost.

For those parts that are soaked in the etching cavity every day, how to extend the life is the key. An advanced way to play in the industry is to spray a dense protective film on the surface of the part, such as plasma spraying yttrium oxide or ultra-high purity aluminum oxide.

These coatings are a “stole guy” that block the plasma’s bite from the substrate. When the coating is almost worn out, it is returned to wash off and repaint, and the parts are revived with blood. This helps the fab buy fewer new spare parts.

Before these spare parts can be delivered to you, they must also undergo an extremely tedious set of quality verifications to ensure they run smoothly in the high vacuum chamber:

Ultrapure Water Flush Test: Use 18 megohms of ultrapure water to flush the part, measure the resistivity and total organic carbon of the outflowing water, and not even a small amount of chemical residue will pass the test.

Liquid Particle Counting Test: It is specifically designed to measure the number of micron-sized and submicron-sized particles remaining on the surface. It will never be released unless it meets the original factory-level cleanliness standards.

Trace metal analysis: Use professional instruments such as ICP-MS to detect whether there are trace metal residues on the surface of the part. To be honest, wafers are most afraid of this. Once the metal ions exceed the standard, all malignant problems such as transistor leakage and gate oxide breakdown will occur.

Dust-free chamber nitrogen-filled vacuum packaging: After verification, the parts are double-bagged in the dust-free chamber and filled with high-purity
