Semiconductor Parts Manufacturing

The core of semiconductor parts manufacturing lies in four pillars: sub-micron precision processing capability, strict material traceability, ISO 9001/AS9100 quality certification system, and assembly standards for 10,000 or even 100 clean rooms. A reliable manufacturer must hit hard on the data: the tolerance must be stable within 0.001mm, and the surface roughness must be below 0.1μm, otherwise it will not pass the ultra-high vacuum compatibility level. In order to ensure the long-term growth rate of wafer manufacturing equipment, you have to see if they have the real work of five-axis linkage and can play with special ceramics, silicon carbide and high-performance fluoropolymers. Only when these details are aligned can the part hold up in the extreme processes of lithography, etching and deposition.

1. Submicron Precision And Five-Axis Machining “Ticket”

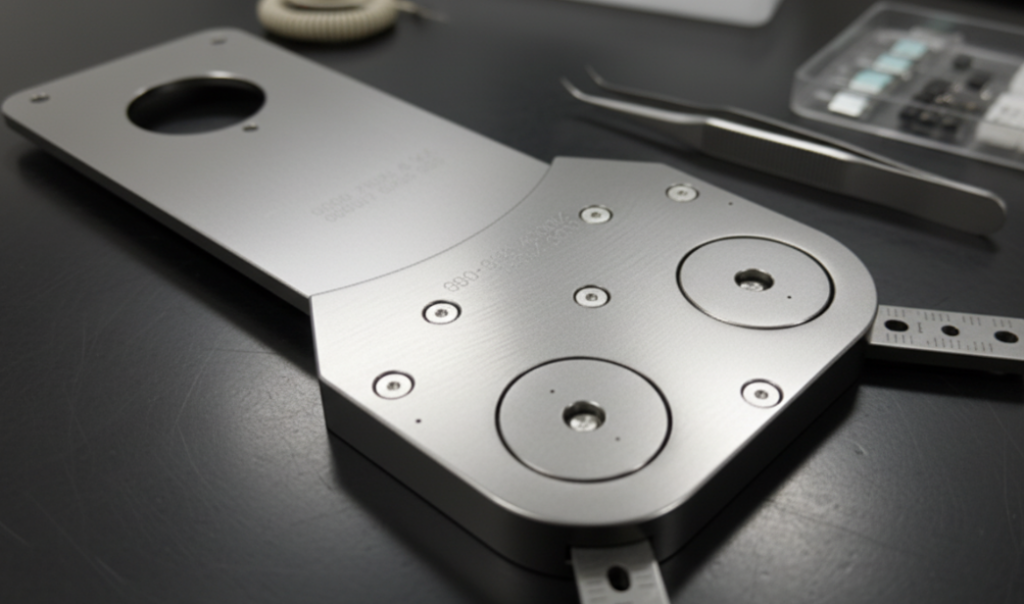

In the semiconductor parts manufacturing industry, the accuracy is not calculated in millimeters, but in microns. It is now necessary to rely on a high-level five-axis CNC. Because complex geometric features can be handled in one clamping, which is the key to locking the tolerance to 0.001mm. Don’t underestimate this precision. The key parts in the vacuum chamber, whether it is the gas path system or the moving components, will die if the precision is a little bit poor, which will directly feed back to the yield and downtime of the wafer equipment.

2. Material Traceability And Ability To Gnaw “Hard Bone” Materials

The fate of parts is actually in the atomic purity and physical properties of the material. A decent manufacturer must provide material traceability for the whole process. You must ensure that every piece of silicon carbide, special ceramics or high-performance fluoropolymers is properly obtained from certified suppliers.

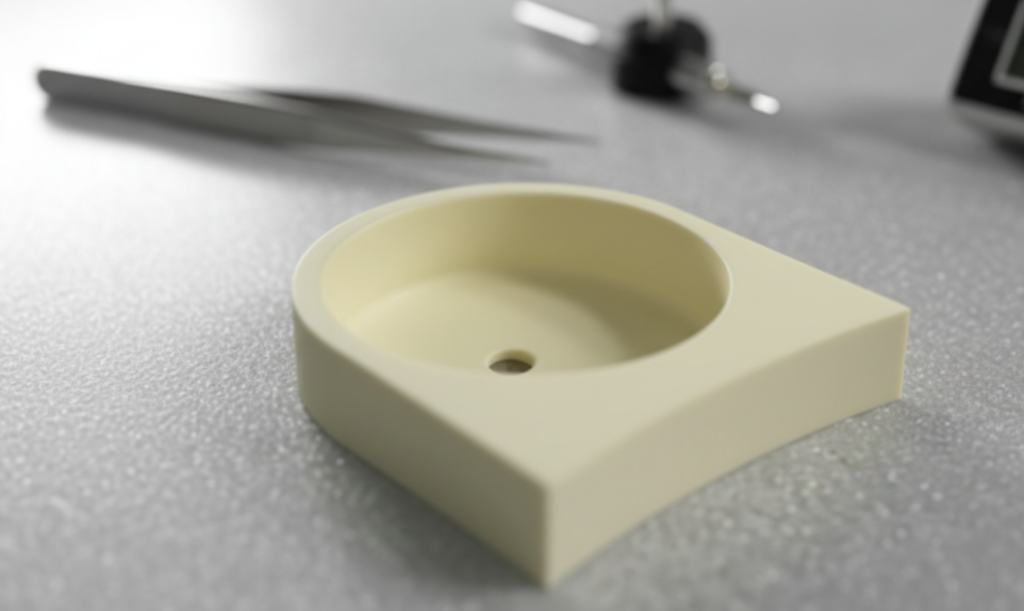

Special ceramics and silicon carbide: These materials are the saviors of the etching process. Without them, the parts will be discarded after a few days of plasma erosion.

Fluoropolymers: Just needed for wet cleaning and chemical delivery.

If the supplier can’t handle these special materials, it’s a small matter to scrap the parts in advance. In case of metal pollution, it’s a nightmare for the supply chain manager, and the whole batch of production lines may suffer.

3. UHV Compatibility And That Set Of “Aviation-Grade” Quality Management

For parts of lithography or deposition equipment, ultra-high vacuum compatibility is a hard indicator. This depends on the surface roughness, in order to prevent the parts from deflating and leaving no place for dust to hide. In addition, the manufacturer’s quality commitment can not only rely on the mouth to say, ISO 9001 is only the starting price, AS9100 this aerospace-grade standard is hard enough. This kind of certification can ensure that the processing process is repeatable and auditable. In the current market where supply is always cut off, a transparent process can help the procurement team block many potential risks.

4. Clean Room Procedures And Supply Chain “Resilience”

After processing, it is not finished, and the last step is often the easiest to lose the chain. In order to prevent cross-contamination, the parts have to be cleaned by multi-stage ultrasonic cleaning, and finally packaged 1 times in the 100 to 1000 clean room. When it is delivered to your hand, it must be in a state where it can be disassembled and installed.

In addition to technology, I am particularly interested in the supply chain resilience of suppliers. Semiconductor projects cost billions of dollars at every turn. As long as the delivery date is chaotic, everyone will have to jump. A smart manufacturer will hedge risk through active inventory management and optimized production flow. Choking a supplier who understands lithography and etching pain points is actually buying insurance for the robustness of your equipment.

Author: David Chen

My focus has always been on bridging the gap between complex engineering designs and reliable supply chain execution. From mastering 5-axis CNC precision to enforcing rigorous cleanroom protocols, I am passionate about ensuring that every component I oversee meets the uncompromising standards required for the next generation of wafer fabrication equipment.
