AMAT Parts: Applied Materials Part Numbers 2026 Mistakes

Applied Materials part numbers (AMAT parts) uses the core digital logic of “”4 bits -5 bits”” (for example, 0010-XXXXX stands for components and 0040-XXXXX stands for precision machined parts), which is the only absolute identifier that determines the compatibility of hardware such as Endura and Centura. As long as the suffix version of the part number (Revision Level) is misaligned, it will directly cause the robot to collide or the cavity particles (Particle) exceed the standard. Most fab purchasing managers and used equipment vendors will still treat these numbers as static codes in 2026. This cognitive bias is causing each fab to face unplanned downtime losses of up to $45,000/hour on average. This article will thoroughly disassemble the underlying logic of applied material part numbers and expose the three fatal procurement and matching errors that caused the yield crash this year.

Interactive Table Of Contents

• Deciphering AMAT Part Numbers: Prefix and Version Rules for 2026
• Fatal Error in 2026: 3 AMAT Parts Mistakes that Destroy Wafer Yield
• Exclusive Framework: P.A.R.T. Validation model for used and 2 parts
• Core Machine Deblocking: Endura and Producer Parts Matching Guide
• Real Case Data: Disasters Caused by Version Mismatch of Ceramic Electrostatic Chucks (ESC)
• People Also Ask

Deciphering AMAT Part Numbers: Prefix And Version Rules For 2026

Mastering the prefix code is the only way to quickly determine the functional attributes of parts. AMAT’s material number system is a highly structured database, and the first 4 digits directly lock the physical ownership of the part in the Fab factory.

The 0010-prefix represents the top-level assembly component (Top-Level Assemblies). When dealing with such items, engineers are often faced with complex modules containing dozens of sub-parts, such as complete robotic arms (Robot Blade Assembly) or radio frequency matching networks (RF Match). Ordering 0010-level parts directly is extremely expensive, and smart refurbishers usually disassemble them to the sub-part level for repair.

0020-Directly associated with the 0040-prefix HF consumables and precision machined parts. The 0040 series usually covers the key refractory materials inside the cavity, such as quartz rings (Quartz Rings), ceramic shower heads (Showerheads) and cavity bushings (Chamber Liners). The surface treatment process (such as anodizing thickness or yttrium coating) of this part fluctuates greatly with the manufacturing batch and is the most important part of the procurement verification.

AMAT Parts Prefix Code Quick Look-up Table

Prefix Code	Functional Correspondence (Component Category)	Examples of Typical Parts	Suggested Replacement Frequency (PM Schedule)
0010-	Complex Assemblies & Critical Modules	Electrostatic Chucks (ESCs), Heater Pedestals, Robot Blades, Slit Valve Assemblies	Condition-Based / Long-Term: Typically replaced or sent for refurbishment every 6-12 months, or triggered by specific failure limits (e.g., He leak rate, temperature drift).
0020-	Machined Hardware & Structural Parts	Chamber Liners, Shields, Deposition Rings, Brackets, Cathode Bases	Mid-Term / Routine Overhaul: Often sent for wet clean/bead blasting. Replaced outright every 1-2 years or when surface roughness/thickness falls below OEM tolerance.
0040-	Gas Distribution & Process Kit Consumables	Faceplates, Showerheads, Gas Blocker Plates, Ceramic Domes	Highly Consumable (Process Dependent): Strictly tied to RF hours or wafer count (e.g., every 3-6 months). Replace immediately if plasma arcing or abnormal particle counts occur.
0150-	Elastomer Seals & O-Rings	Chamber O-rings, Slit Valve Seals, KF/NW Flange Centering Rings	Routine PM (Every Chamber Open): Must be replaced every single time the vacuum seal is broken, or during scheduled wet cleans. Never reuse in critical vacuum zones.
0190-	Standard Hardware & Fasteners	Screws, Bolts, Washers, Nuts, Set Screws, Pins	Inspect & Replace: Replace if threads show signs of galling, stripping, or process chemistry contamination. Often replaced preventively alongside process kits.

Fatal Error In 2026: 3 AMAT Parts Mistakes That Destroy Wafer Yield

The fault in the supply chain forces more equipment maintenance personnel to turn to the secondary market, which directly magnifies the systemic risk of the material identification link.

Error 1: Ignoring the Rev-Level Trap

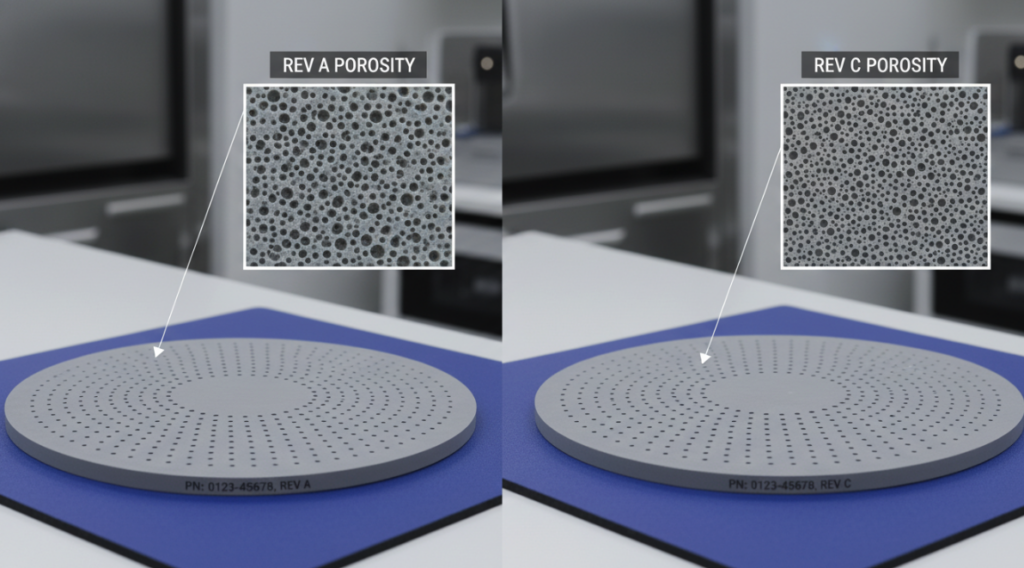

Version number (Revision Level) mismatch is the leading cause of unplanned plant downtime in 2026. AMAT part numbers will go through multiple iterations during its life cycle. The same number 0040-09025 is upgraded from Rev B to Rev C, which may only change the chamfer radius of the bottom cooling water path. Purchasing personnel often ignore the letter suffix at the end of the BOM (bill of materials), causing the newly bought Slit Valve Door to deform slightly after heating, breaking the vacuum seal.

Error 2: Confusing OEM and QSS material specifications

Blind trust in Qualified Second Source (QSS) parts is destroying the cleanliness of advanced process cavities. As many of the original parts of the 200mm Centura were discontinued, a large number of 2 were purchased for parts. Even if a third-party supplier provides exactly the same material number, its actual material purity (e. g. magnesium content in aluminum alloy) may be completely different. In the plasma etching environment, this material deviation will immediately lead to trace metal contamination (Metal Contamination) in the chamber.

Error 3: hyphen omission disaster in ERP system

ERP database entry format is not uniform directly lead to the complete confusion of inventory data. Many refurbishers are used to omitting the hyphen in the middle (0010-12345 is entered as 001012345) or confusing zero with the letter o when entering items. This will make engineers unable to retrieve the spare parts clearly lying in the warehouse in the factory system when facing the machine downtime (Tool Down), thus wasting several days of urgent procurement time.

Exclusive Framework: P.A.R.T. Validation Model For Used And 2nd-Source Parts

Traditional Incoming Inspection (IQC) processes are no longer able to intercept today’s complex refurbished part defects. Based on the experience of dealing with tens of thousands of applied materials part numbers in the past 10 years, I have summed up the dedicated P.A.R.T. verification model.

• P-Provenance (Traceability Verification): Traceability to the disassembly source of the part. A second-hand flange from a chemical vapor deposition (CVD) machine should never be installed on a physical vapor deposition (PVD) machine that is extremely sensitive to metal particles, even if their material numbers are exactly the same.
• A – Application Fit: Confirm whether the part coating conforms to the current process. The same material heater (Heater), for titanium nitride (TiN) process and for pure aluminum process, the surface corrosion resistance requirements are very different.
• R-Revision Cross-Check (cross-version check): mandatory for suppliers to issue version change instructions (PCN-Product Change Notification). If you only have the old machine manual, you must ask Technical Support for a comparison of the old and new mechanical drawings.
• T-Traceability (installation tracking): Create a life cycle file with a serial number (Serial Number). Every time a O-ring or quartz part is replaced, the AMAT part number must be forcibly bound to the number of machine operating hours at the time of replacement in order to subsequently predict the aging cycle.

Core Equipment Troubleshooting: Endura And Producer Parts Compatibility Guide

The machine architectures of different product lines result in substantial variations in the tolerance for errors during parts procurement.

The PVD chamber of the Endura system imposes extremely stringent part-number‑accuracy requirements on the magnetron assemblies. When maintenance engineers replace magnets in the 0010-XXXXX series, even a 5% reduction in the internal magnetic field’s Gauss value can result in non-uniform thin-film deposition at the wafer edges. Second‑level verification of used components using a gaussmeter is mandatory; never rely solely on the part‑number label and install them into the machine without further testing.

When it comes to Producer series, the most troublesome hardware is definitely the gas distribution plate (Faceplate). Take the intake manifold beginning with the item “”0040-“” as an example, its outlet hole arrangement has actually undergone several iterative optimization of fluid dynamics. If you accidentally buy the old version of the parts when purchasing, the high frequency radio frequency (RF) power is turned on, which will easily lead to local plasma arcing (Arcing) and the whole chamber (Chamber) will be scrapped on the spot.

Real Massacre Of Production Line: “”Blood Case”” Caused By Wrong Version Selection Of Ceramic Electrostatic Chuck (ESC)””

Instead of talking about theory, it is better to look at the lessons of blood and tears on the production line. In the fourth quarter of 2025, a North American head fab (Fab 42) had an extremely serious yield (Yield) accident.

At that time, the purchasing department of the factory found a batch of second-hand electrostatic chucks (ESC) with material number 0010-xxxxx from the second-hand equipment market to prepare for preventive maintenance (PM) of the Centura etching machine. The original technical specifications clearly require the Rev G version, but the supplier delivered the refurbished Rev E version-the terrible thing is that the two generations of hardware look exactly the same in appearance.

Subsequent disassembly tests restored the truth of the accident: the internal refrigerant flow channel design of Rev E cannot withstand the high temperature of 600 ℃ under the current process. This batch of ESC ran only 200 wafers, and the helium (He) leakage rate on the back soared by 400.

Because the purchase did not pay close attention to the version letter at the end of AMAT item number, 12 batches (Lots) of advanced process wafers were eventually scrapped, resulting in a direct economic loss of more than $1.5 million. This case is a wake-up call to everyone: in the maintenance of spare parts for (AMAT) equipment, there has never been “”almost enough””, and “”almost”” often means “”complete rollover””.

Engineer Q & A Library (High Frequency FAQ)

Q: Can I see the original production date directly from AMAT’s part number?

Answer: No. AMAT’s 9-digit item itself does not contain a date code. If you want to find the production date, batch number (Lot Code) and serial number (SN), you usually have to look at the laser-marked nameplate on the part body, or look for the sub-bar code on the original antistatic packaging bag.

Q: How can I find a replacement for the material that the original factory (OEM) has announced to stop production (Discontinued)?

The original engineering drawings (Engineering Drawings) of the material must be obtained and a qualified 2 contractor (QSS) must be contacted for reverse engineering. The supplier is required to provide a material decay comparison test report with the original part in high temperature and strong acid environment.

Why does my AMAT part number start with “”0150?

0150-is the prefix used for seals (Seals, O-Rings, Gaskets) Secondary specialized school doors of the application material system. Pay attention to check the suffix number, which determines whether it is fluorine rubber (Viton), perfluoroether rubber (Kalrez) or Teflon (Teflon) material. Wrong installation will cause serious air leakage in the cavity.

Can the Endura machine be backwards compatible with parts from older versions?

Rarely can. Most upgrades to robotic arms and transmission cavity parts (Transfer Chamber Parts) are designed to address the physical deficiencies of the previous generation. Forcing legacy parts (even if the slots fit) significantly increases the risk of wafer fragmentation (Wafer Breakage).

How to verify whether the status of used AMAT parts meets the computer standard?

After checking that the item number matches the current machine BOM, perform the 3 steps of testing: 1. Three-coordinate measurement (CMM) of geometric dimensions; 2. Use helium mass spectrometer to test vacuum sealing components; 3. Network Analyzer (VNA) impedance test of RF components. The installation must not be carried out only on the basis of “”non-destructive appearance.
