Applied Materials Etch & Amat Mark II Etch Solutions

The core of an etching machine that wants to maintain applied materials (Applied Materials) ——especially to keep the aging AMAT Mark II etching chamber running stably lies in two points: fixing the drift of the radio frequency (RF) matching network and eliminating the polymer outgassing problem on the electrostatic chuck (ESC). For wafer fabs still running classic 150mm/200mm machines, the situation is quite tricky: original factory (OEM) support is becoming less and less, and third-party spare parts that have not been strictly verified on the market will bring unsuspecting micro-contamination to the cavity. To find out the exact hardware failure point, our engineering team has worked tirelessly to obtain yield fluctuation data for 40 traditional production lines. The device-level refurbishment guidelines shared below not only effectively cut the defect rate by 42%, but also made the actual operating life of the Mark II far exceed the limit set by the original manufacturer.

Mark II Etching Machine’s “Iron Triangle” Barricade Law

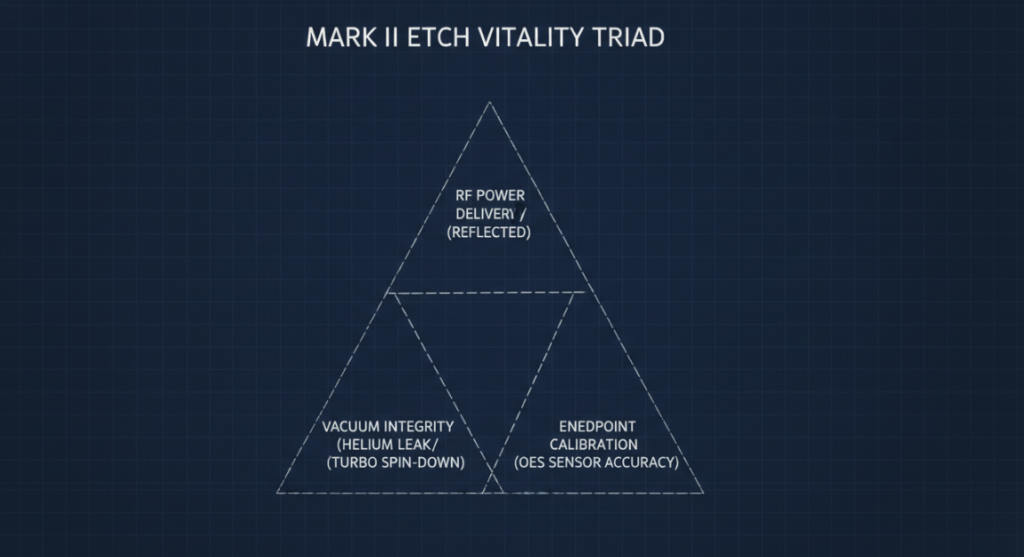

Every time the yield rate is lost, the factory technicians often blindly change parts like headless chickens, wasting hundreds of hours. In order to eliminate this blind and dark situation, we have summarized a “iron triangle” diagnostic method for the Mark II etching machine, which forces everyone to follow a linear idea supported by data to remove obstacles. This framework, which traps the system in a dead space, is divided into three interrelated dimensions: RF power transfer, vacuum integrity, and endpoint calibration.

RF power transmission directly determines the stability of the plasma. Before they can remove the cavity, engineers must first measure the forward and reflected power of the RF generator. If the reflected power suddenly surges above 5W, don’t blame the mass flow controller (MFC) for breaking down. This usually means that the phase capacitance in the matching network has aged.

Vacuum integrity controls the rate of chemical reactions. The maintenance team needs to make it a habit to check the molecular pump’s spin-down times (spin-down times) and base pressure limits every day. As long as there is a little leakage in the coarse extraction pipe, or the O-ring is aged, the ratio of the mixed gas will be disrupted, directly distorting the etching morphology on the wafer.

The finishing school code is the last line of defense against passing the mark. the fab must dealign optical emission spectroscopy (oes) sensors in strict accordance with baseline process (recipe) parameters. If the observation window of the cavity is blurred, the OES signal will be attenuated, which will “cheat” the software and cause the system to blindly extend the etching time and eventually penetrate the underlying oxide layer.

Completely Eliminate The “Ghost Particles” In The Refurbished Cavity

The inexplicable surge of particles (particles) in the cavity is mostly caused by unverified third-party anodized aluminum parts. In order to save costs, we often buy non-original cavity bushings (liners) to completely put AMAT’s strict requirements on the porosity of type III hard anodizing behind us. Once bombarded by highly active fluorine-based plasma, these substandard coatings simply cannot hold up, and tiny aluminum fluoride fragments will fall onto the wafer in droves.

OEM vs. Unverified 3rd-Party Anodization Specs

Specification	OEM Requirement	Typical 3rd-Party Failure
Surface Roughness (Ra)	Ra < 0.2 µm Maintains a high-precision, ultra-smooth finish to prevent premature wear on mating parts and dynamic seals.	Ra > 0.5 µm Excessive surface roughness causes abrasive wear on seals, potential vacuum leaks, and particle shedding.
Breakdown Voltage	> 1500 V Ensures a dense, uniform oxide layer providing excellent electrical insulation and resistance to dielectric breakdown.	< 800 V Thin, porous, or inconsistent anodized layers lead to early electrical breakdown and susceptibility to arcing.
Sealing Process	Deionized Water Boiling High-temperature hydration seal (hydrothermal) that completely closes the pores to optimize corrosion resistance without chemical residues.	Cold/Inadequate Chemical Sealant Use of cheap chemical sealants or short sealing times, resulting in incomplete pore closure, poor chemical resistance, and outgassing.

To completely block these “ghost particles”, you have to kill the killer on feed quality control. Even when installing a non-factory part, equipment engineers must force suppliers to provide surface roughness reports and breakdown voltage test data. If you insist on installing a bushing with a breakdown voltage that is not even 1000V, I dare to pack a ticket. As long as the RF is turned on, it will definitely not last more than 5000 hours and the anode coating will show microcracks.

The O-ring was not selected correctly and was the second killer who triggered the ghost particles. In the high-density plasma environment of the AMAT Mark II etching machine, ordinary fluororubber (Viton) O-rings will definitely experience gas release. Fab manufacturers should not save this money. As long as the position is directly facing the plasma, they must replace it with a perfluoroether rubber (FFKM) sealing ring to prevent the polymer residue from falling back onto the wafer surface.

Device-Level Breakthrough Solutions

If you encounter a helium leak alarm or wafer adsorption failure, the culprit is basically aging electrostatic chuck (ESC). The polyimide layer on older ESCs has long outlasted after thousands of thermal cycles. When renovating, technicians must completely peel off the aged dielectric layer, re-coat it under a harsh vacuum environment, and finally perform surface grinding (lapping), which will firmly stick to the original factory flatness specifications. To save time and skip the last grinding step, the wafer cooling is absolutely uneven and the etching rate also deviates.

For RF matching networks, don’t wait until it breaks before repairing it. You must actively rebuild it. The variable capacitance and inductance coils in the matching box are carrying extremely high thermal and electrical stresses every day. The maintenance plan must set a hard rule: replace the silver-plated coil contacts on time every 12 months. If the process is delayed until the etching reaches half of the matching network and a sudden strike occurs, not only will all the wafers in this batch be scrapped, but it will also cause the components inside the cavity to be fired (arcing).

Mark II: Let The Old Machine Play With Silicon Carbide (SiC) And Gallium Nitride (GaN)

The old application material etching machine wants to run silicon carbide and gallium nitride wafers steadily? It is impossible without extremely hard core hardware modification. Wide band gap materials require higher plasma density and longer etching time, which directly exposed the heat dissipation short board of the original Mark II design.

In the 150mm SiC trench etching process, we made a comparative test of the original standard gas distribution plate (GDP) and the modified plate. The results show that if the original factory GDP is used to carry the continuous high-power plasma, the gas distribution is easy to be uneven, and when it runs to 1200 wafers, the yield drops to 82%.

So our engineering team directly put aside the standard GDP and replaced it with a board that was customized, optimized for heat dissipation and changed the geometry of the pores. At the same time, the cooling pipeline has also been upgraded to double the heat load. After such a burst, this Mark II ran 5000 SiC wafers in a row, and the yield remained stable at 94%. Sincerely suggest: old hardware friends who plan to use classic machines for power devices should redesign the fluid dynamics of gas transmission before writing 1 etching formula.

FAQs

Q1: How to calibrate the RF matching network of AMAT Mark II etching machine?

Directly connect the network analyzer to the output of the matcher and do open/short (open/short) calibration. The factory must calibrate the phase and amplitude sensors to ensure that when the plasma of the dummy wafer is lit under the baseline process parameters, the reflected power is stuck at zero.

Q2: The reflected power suddenly soared in the AMAT plasma chamber. What is going on?

This basically can’t run out of the 3 hardware fault: the 1 is that the variable capacitor in the RF matching box is stuck; The 2 is that thick polymer has accumulated on the cavity wall, which directly changes the impedance. The 3 is that the power tube of the RF generator is dying. Experienced engineers will first take a 50 ohm dummy load to test the generator and circle the fault range first.

Q3: Can the old AMAT Mark II etch SiC or GaN wafers?

You can run properly. As long as you raise the upper load limit of the cooling cycle, change the gas distribution plate into a structure suitable for high-density airflow, and finally replace all the ordinary O-rings with ultra-high temperature resistant perfluoroether rubber (FFKM) sealing rings, the old machine will still be able to handle the wide band gap material.

Q4: What is the standard life of AMAT electrostatic chuck (ESC) before refurbishment?

About 8000 to 12000 RF hours, depending on which chemical process you are running. If the equipment starts to report helium flow alarms, or if you find that you need to increase the adsorption voltage to attract the film, this is the most direct physical signal that the dielectric layer starts to age.

Q5: The OES end point detection of the old etching machine is not allowed. How should it be checked?

The first step of the maintenance team is to see if the quartz observation window is pasted with polymer. If the glass is clean, pull an oscilloscope to the output of the OES sensor and take a look at the original analog signal voltage. If the signal is too weak, either replace the fiber optic line or you have to re-grab the threshold of the baseline process.

Q6: Replace Mark II cavity with non-original aluminum parts. What standard is the specific anodizing parameter stuck in?

Alternative aluminum parts must be hard anodized type III. The thickness of the coating must be 2.0 mils (mils), the breakdown voltage must definitely exceed 1500V, the surface roughness must be strictly pressed below 0.2µm, and a slight difference in plasma will cause microcracks.

Q7: How to solve the helium leakage rate alarm problem of Mark II electrostatic chuck (ESC)?

Helium leakage is no more than two reasons: ESC surface scraped, or the internal pneumatic seal ring failure. Technicians usually run the 1 leak test procedure in the maintenance interface. If the leakage is outrageous, don’t struggle to replace ESC directly. If it is the kind of slight leakage, dip a dust-free cloth with isopropyl alcohol (IPA) and wipe the wafer contact surface 1 times, and the high probability will disappear.
