Centura 5200 Mainframe Solutions: Prevent Fab Downtime

Unplanned downtime caused by the aging of Centura 5200 machines cannot be solved by shortening the PM (preventive maintenance) cycle alone. If you want to solve it completely, you have to start with the underlying communication bus and wafer transmission core and do a real architecture-level renovation. This article has a lot of dry goods. Let’s directly 1 the hardware decline path of platform 5200 and give you a set of mainframe life extension plan that has passed Fab actual combat test. If you are still suffering from the slight vibration of VHP manipulator or the inexplicable error reporting of VME rack, or even watching the yield drop, then this hard core disassembly can definitely help you save hundreds of thousands of dollars of spare parts “trial and error costs” and solve the 5200 capacity bottleneck from the root.

Why Can’t Conventional PM Save The Aging 5200 Machine?

Blindly changing consumables is actually covering up the fatal communication and mechanical fatigue problems on the bottom floor of old machines. Over the past five years, we’ve run through process nodes and tracked more than 120 Centura 5200s, and found that more than 65% of unplanned downtime wasn’t due to a completely broken part at all, but rather to being ripped off by “accumulative minor offsets”.

This micro-offset is reflected in two aspects: one is the microsecond signal delay caused by the aging of capacitors in the old VME control frame; the other is the irreversible stretching of the robot arm transmission belt. If you stare at the original factory manual and do seasonal protection, you will not be able to detect these electrical declines. When encountering “chip drop (Wafer Drop)” or “communication loss”, equipment engineers can only fall into an endless loop “restart, board change, and error message”. To put it bluntly, stop using the fire fighting mindset “repair it if it breaks” and establish a proactive modular intervention mechanism.

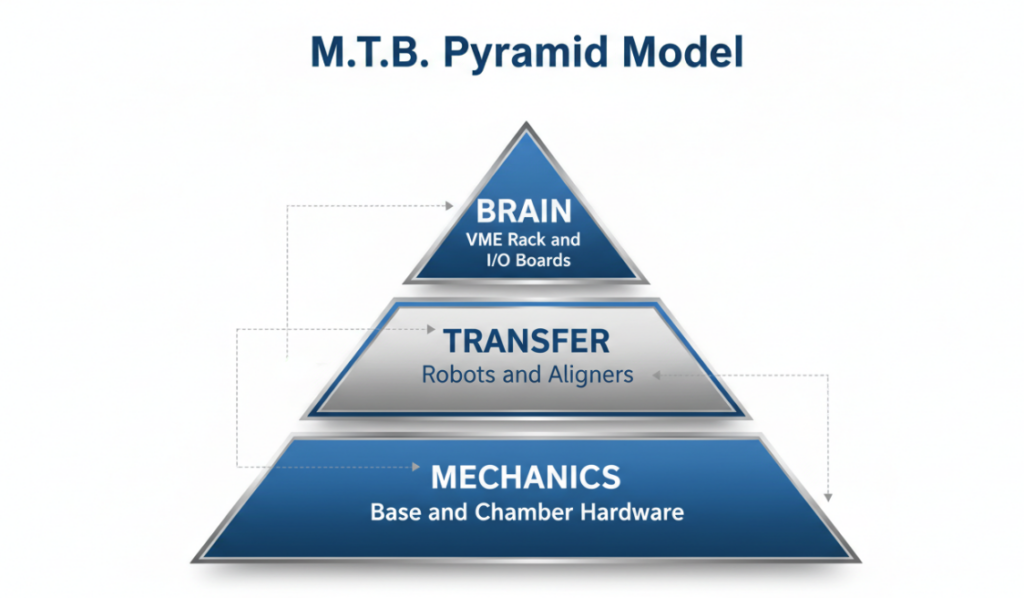

MTB Host Life Extension Pyramid Law

To uproot machine failures, you need a systems engineering brain. Top fabs and advanced refurbishers now privately use this ultimate assessment standard ——“the MTB pyramid model”.

Brain Layer (Brain): Cracking The “Hidden Communication Timeout” Trap In The VME Rack

Aging single-board computers (SBCs) in VME racks are often the culprits for unprovoked system freezes. Many engineers habitually go through software logs when they encounter a crash, completely ignoring the impedance changes at the hardware level. Those old CPU boards and I/O modules that have been in service for many years are baked at high temperatures every day, and the solder joints have long experienced microscopic thermal expansion, cold contraction stress fatigue.

The most direct solution is not to replace the veneer without any headache, but to directly renovate and upgrade the rack level. You have to thoroughly clean all critical communication backplates with ultrasound to recalibrate signal integrity. Replacing those long-discontinued boss cards with stress-tested modern replacements can directly eliminate more than 90% of software errors caused by hardware communication delays.

Transmission Layer (Transfer): Torque Micro-Vibration Monitoring Of VHP Manipulators

If the wafer is scratched or the transmission disc is dropped, the pot cannot be fully fastened to the wear of the robotic arm, which is often because the torque output of the Z-axis and R-axis motors of the VHP manipulator is abnormal. The old maintenance method is to re-calibrate the transfer position (Transfer Position), which is purely symptomatic but not fundamental.

The current high-level gameplay is to introduce real-time motor torque curve mapping. Grab the current “fingerprint” that the manipulator is carrying out a specific action while it is healthy. In the future, as long as the current fluctuates abnormally, you can immediately predict whether the transmission belt is about to break or the bearing is about to jam. With this technology, Fab can calmly schedule a downtime replacement three days before the next serious card incident.

Mechanical Layer (Mechanics): A Radical Solution To Loadlock Microleakage

Loadlock vacuuming is slow and the reference vacuum level drops. The problem usually lies in the invisible deformation on the flange surface of the valve (Slit Valve). Frequent vacuuming and vacuum breaking (Vent) will cause metal fatigue stress on the wall of the machine table cavity. The maintenance guy often changes the O-ring over and over again, but finds that the leakage rate is still not up to standard.

To solve the fundamental problem, a laser flatness scanner must be used to scan the contact surface of the main unit flange. If deformation exceeds the standard, either the sealing ring is compensated with a customized polymer or the cavity door is precisely ground directly. In addition, concentricity calibration of the isolation valve and pneumatic push rod is also necessary, otherwise the Particle (particulate matter) generated by micro-friction will definitely make your head bigger.

Avoiding The “Frankenstein” Trap In AMAT’s Renovation Procurement

Buying refurbished parts from different batches and different third-party suppliers is like forcing the machine into an extremely unstable “Frankenstein” (assembly car). In order to control costs, some low-end B2B suppliers remove a motor from machine A, add a repaired drive plate from machine B, and then stuff it into the frame of machine C and sell it to you quickly.

Doing so would result in a catastrophic impedance mismatch.Don’t think that the shielding attenuation of the auxiliary factory wire is a minor problem. Once this stuff interferes with the feedback encoder of the servo motor, even if the wafer is only a few millimeters away when it enters the reaction chamber (Chamber), it will end up as a direct fragment.

Therefore, in the face of such a bad thing, the attitude of factory affairs and procurement must be hardened. Don’t listen to Vendor (supplier) fooling around there. Take a few screenshots of a single “power-on test” and try to fool through. The acceptance of dead ports must be stuck: run the whole system directly on the machine and speak with the “dynamic yield report” after the connection. In addition, the Baseline (benchmark) of spare parts must be unified, and the “stitching monster” hardware that is patchwork across versions must be resolutely rejected.

Don’t pull false, directly look at the actual combat data. There is an 8-inch factory in North America that makes power devices. The 12 Centura 5200 on the production line were simply “living ancestors” before, and they always lay down their nests. In about the 2 quarter of 24 years, VHP manipulators reported errors crazily, and VME racks always crashed, causing the unplanned Down (downtime) time of these machines to soar to 145 hours per month.

Later, our team went in to find out and directly applied the MTB framework to suit the remedy to the case: all the old SBC boards with hidden dangers were replaced; Add high-frequency vibration monitoring to the main transmission manipulator; The fitting surface of the Loadlock (into the film compartment) was polished 1 times.

Metric	Before (Q2 2024)	After (Q4 2024)	Improvement / Impact
MTBF (Mean Time Between Failures)	210 hours	1,600+ hours	> 660% Increase (~7.6x longer uptime)
Wafer Scrap Rate	0.4%	0.01%	97.5% Reduction (Near-zero defect rate)
Monthly Downtime	145 hours	18 hours	87.6% Decrease (127 hours saved per month)

The effect was immediate, and the unplanned Down time of this batch of 5200 plummeted 87% directly! As long as the machine does not toss, run steadily, the yield followed up, the depreciation and amortization costs allocated to a single wafer will naturally be significantly compressed.

5200 Centura Core Hardware Refurbishment And Upgrade Package

Ultimately, if we want to completely break the production capacity bottleneck, we must not treat it with headaches or pain. Systematic core hardware upgrades are the hard truth.

For the 5200, we have a very mature hardware refurbishment and spare parts solution, which you can directly “copy the job”:

• VHP/HP manipulator deep refurbishment: It is not just a matter of replacing the ultra-high vacuum bearings, but also re-calibrating the balance and mapping the motor torque curve. The bottom line of delivery is the manipulator “zero defects”.
• VME rack upgrade: The old bus architecture is the easiest to pull the crotch. We switched directly to an extreme pressure tested SBC and I/O board combination to resolve communication timeouts and freezes from the root.
• Cavity structure repair: High-precision sealing repair of the loadlock and transmission cavity, including grinding of customized flanges and persistent Particle (particulate matter) control.
• Plug-and-play factory certification: Before all complete machines or submodules leave the factory, they must be subjected to a 72-hour continuous film marathon test in a simulated Fab real production environment, and there must be no lag in the middle.

FAQ

Q1: Centura 5200 always reports a communication timeout (Communication Timeout). How can I break it?
A: When you encounter this error, nine times out of ten, there is a problem with the old SBC board card in the VME rack, or the back panel interface is severely oxidized. When checking, first measure whether there is any clutter (Ripple) on the 5V power rail on the VME bus. The simplest, crude and most effective way is to replace the entire set of control boards in that row with a test. Don’t be a smart person and solder down an soldering iron to replace a capacitor or two, that’s definitely digging a hole for yourself.

Q2: Can the VHP manipulator of the 5200 Centura be upgraded?
A: No problem. You can keep the original VHP manipulator and only make deep modifications to the motor and control circuits; if you want higher performance, you can also directly upgrade to a higher-order drive version through a dedicated adapter kit. But the bottom line is this: before the upgraded manipulator can enter the dust-free chamber, it must pass a dynamic load calibration test of its motion trajectory.

Q3: The AMAT Centura transmission cavity often drops tablets (Wafer Drop). What is the main reason for this?
A: The number one suspect is that the tension belt of the robotic arm has micro-stretched or slightly torn, or the Z-axis lifting mechanism has a little “micro-sticking” (micro-sticking). It is recommended to catch bugs by monitoring the abnormal peak value of the motor output current, so that the hidden danger can be locked in advance before mechanical fatigue really causes chip loss.

Q4: How often should I replace the Slit Valve (valve) on the 5200 host?
A: Don’t be so picky about the time period, it’s not accurate. You have to look at the pump-down (pumping) curve in the wafer throughput and the pumping cycle. Once you notice that the vacuuming time is more than 10% longer than the baseline data, don’t hesitate to inspect and replace the seal of the Slit Valve immediately.

Q5: Can the original parts and third party spare parts be mixed in the VME rack?
A: It is extremely not recommended to do this! Mixing together third-party electronic materials that have not been systematically verified will 100% lead to severe impedance mismatch and signal attenuation. The end result is a bunch of things that can’t be found out why “ghost errors”. When you ask a B2B supplier to pick up your goods, be sure to keep an eye on whether they have issued an integration test report for the entire rack.
