Deploying Applied Materials etch products maximizes fab yields by eliminating Edge Placement Errors (EPE) and maintaining atomic-level selectivity in sub-2nm logic and 300+ layer 3D NAND architectures. Fabs utilize specific platforms like the Sym3® Y for high-aspect-ratio (HAR) memory profiling and the Selectra™ system for isotropic Gate-All-Around (GAA) nanosheet release.

Purchasing an etching tool does not guarantee process control. Many fab directors install state-of-the-art Applied Materials etch systems but still suffer from a 5% yield drop across the wafer edge.

You lose die yield when you misunderstand how to match RF pulsing configurations and electrostatic chuck (ESC) temperature zones across multiple chambers. To extract the maximum ROI from your AMAT tool fleet, you must align your hardware deployment with strict atomic-level parameters.

The Y.E.S. Matrix: Evaluating Applied Materials Etch Systems

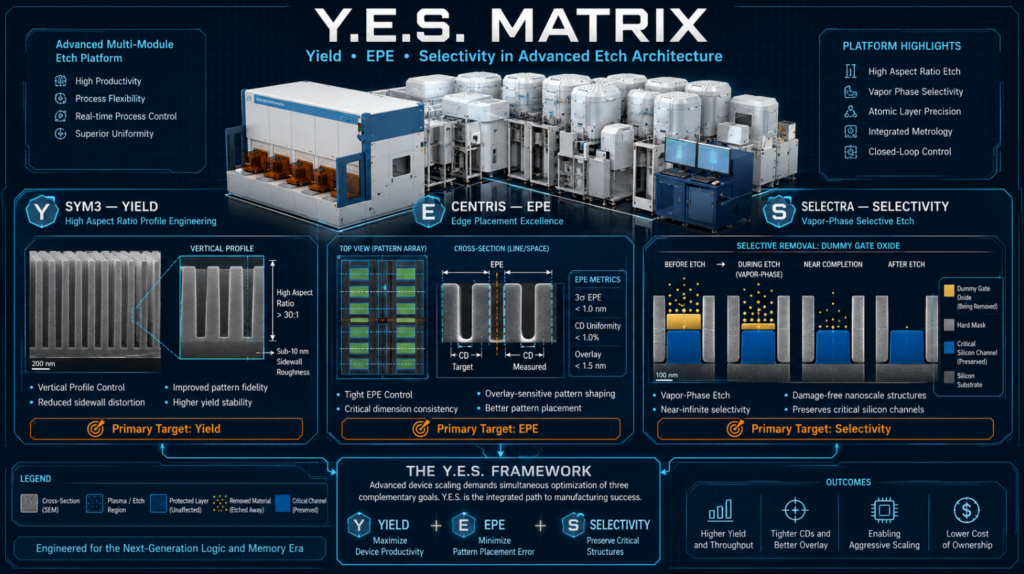

Semiconductor process directors use the Y.E.S. (Yield, Edge-placement, Selectivity) Matrix to assign specific AMAT platforms to their exact integration bottlenecks. You cannot fix an EPE issue with a tool designed for bulk dielectric removal.

Yield: Eliminating Center-to-Edge Variance

Wafer yield crashes when plasma density fluctuates across a 300mm wafer. The Applied Materials Sym3® conductor etch system solves this by utilizing a high-conductance chamber design. The system pumps out etch byproducts at unprecedented speeds, preventing redeposition on the wafer edge. If your current yield maps show a “ring of death” at the wafer’s perimeter, upgrading your Producer® etch chambers to high-conductance layouts flattens that variance.

Edge-Placement (EPE): Aligning 2nm Features

Patterning sub-2nm features introduces severe Edge Placement Errors. AMAT’s Centris® Sym3® Y system integrates advanced RF pulsing capabilities. This precise control over ion energy and angular distribution ensures that the etch profile aligns exactly with the EUV lithography mask. Fabs rely on this multi-frequency RF pulsing to etch tight spaces without bowing or twisting the trench.

Selectivity: The Atomic-Level Differentiator

Advanced logic requires removing one material while leaving an adjacent layer entirely untouched. Wet chemistry damages delicate nanostructures through capillary forces. The AMAT Selectra™ system operates purely in the vapor phase, achieving infinite selectivity. It removes dummy gates or specific oxide layers molecule by molecule without eroding the critical silicon channels.

Logic Nodes (2nm & 1.4nm): Selective Etch for GAA Architectures

Gate-All-Around (GAA) integration mandates perfect isotropic selective etching. FinFET structures are dead at 2nm. To build GAA transistors, fabs must build alternating layers of Silicon (Si) and Silicon Germanium (SiGe), and then selectively etch away the SiGe to release the silicon nanowires.

Traditional plasma etch destroys these delicate suspended nanowires. The Applied Materials Selectra system uses cold plasma technology to generate reactive radicals outside the main chamber. These radicals flow over the wafer, etching the SiGe isotropically (in all directions) with zero physical ion bombardment.

2026 Fab Data Context: Fabs implementing the latest Selectra systems report a 99.8% preservation rate of the silicon channel thickness during the SiGe release process. Failing to utilize remote plasma chemical etching at this step guarantees severe channel mobility degradation and immediate chip failure.

Memory (300L+ 3D NAND): Conquering High-Aspect Ratio (HAR)

Scaling 3D NAND beyond 300 layers creates a physical nightmare for dry etching. Pushing ions down a 10-micron deep hole (an aspect ratio of 100:1) usually results in incomplete etching at the bottom and severe bowing at the top.

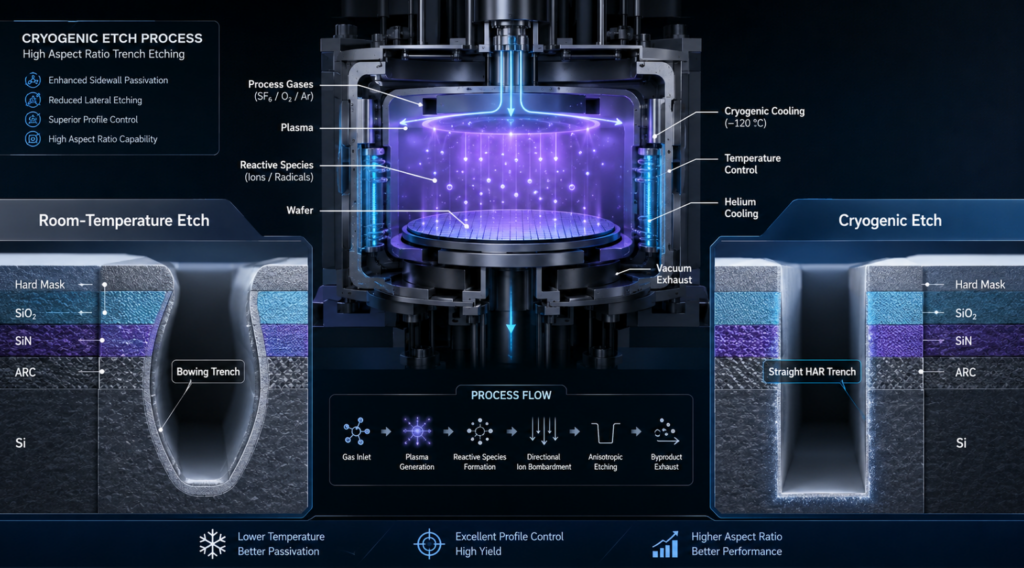

Applied Materials addresses HAR bottlenecks directly with cryogenic etching technology integrated into the Sym3 Y chamber. Operating at extremely low temperatures alters the polymer deposition chemistry on the sidewalls.

A protective passivation layer forms instantly on the upper sidewalls, shielding them from stray ions. Simultaneously, highly energized ions travel straight down to the bottom of the trench. The cryogenic approach ensures a perfectly vertical profile through 300 alternating layers of oxide and nitride, preventing cell-to-cell short circuits and massive yield loss.

The “Chamber Matching Illusion”: A Fab Director’s Pitfall Guide

Process engineering teams frequently fall into the Chamber Matching Illusion. You buy ten identical Applied Materials etch products, load the exact same recipe, and expect identical yield. You will not get it.

Micro-Wear on the Electrostatic Chuck (ESC)

The ESC holds the wafer and controls its temperature. Over the course of 10,000 wafers, the physical surface of the ESC degrades microscopically. A 0.5-degree Celsius difference between Chamber A and Chamber B alters the radical sticking coefficient on the wafer surface, changing your critical dimensions (CD). Implement AMAT’s real-time optical emission spectroscopy (OES) monitoring to adjust recipes dynamically based on individual chamber age.

RF Grounding Degradation

RF return paths deteriorate over time as byproducts coat the chamber walls. Poor RF grounding shifts the plasma potential, reducing the ion bombardment energy. You must mandate strict wet-clean recovery protocols. Do not wait for the built-in sensor alarms; track the RF tuning capacitor positions to predict grounding degradation before it destroys a batch of $20,000 wafers.

AMAT Etch Platform	Primary Application	Key Technology	Yield Bottleneck Solved
Sym3 Y	3D NAND & DRAM	Cryogenic / High Conductance	HAR Bowing & Incomplete Bottom Etch
Selectra	2nm/1.4nm Logic (GAA)	Remote Cold Plasma (Vapor)	SiGe Release / Poor Selectivity
Producer	High-Volume Dielectric	Twin-Chamber Architecture	Low Throughput (WPH)
Centris	Advanced Patterning	Multi-Frequency RF Pulsing	Edge Placement Error (EPE)

Frequently Asked Questions (People Also Ask)

What is the function of Applied Materials Sym3?
The Applied Materials Sym3 is an advanced conductor and dielectric etch system designed for sub-5nm logic and high-density memory. It uses a unique high-conductance chamber to rapidly evacuate etch byproducts, minimizing defectivity and ensuring extremely uniform etch depths across the entire 300mm wafer.

How does AMAT Selectra differ from traditional plasma etching?
Traditional plasma etching uses physical ion bombardment, which causes structural damage to delicate atomic layers. The AMAT Selectra system is an extreme selectivity tool that uses remote plasma to generate chemical radicals. It performs isotropic etching purely through chemical reactions, removing specific materials without damaging the adjacent silicon channels.

Why is cryogenic etching necessary for 3D NAND?
Cryogenic etching operates at sub-zero temperatures to strengthen the protective polymer passivation layer on the sidewalls of deep trenches. In 300+ layer 3D NAND, standard temperatures allow ions to erode the sidewalls (causing bowing). Cryogenic temperatures freeze the sidewall profile in place, forcing ions to etch straight down to the bottom.

How do you match Applied Materials etch chambers?
Matching AMAT etch chambers requires controlling hidden variables beyond the standard recipe. Process engineers must calibrate the mass flow controllers (MFCs), verify the exact RF impedance matching network signatures, and track the thermal uniformity of the electrostatic chuck (ESC) using instrumented sensor wafers.

What is Edge Placement Error (EPE) in etching?
Edge Placement Error (EPE) is the deviation between where a feature was intended to be printed on the mask and where the etch process actually carved it into the silicon. AMAT reduces EPE by utilizing highly directional, multi-frequency RF pulsed plasmas that prevent the etch profile from twisting or expanding outside the intended boundaries.
