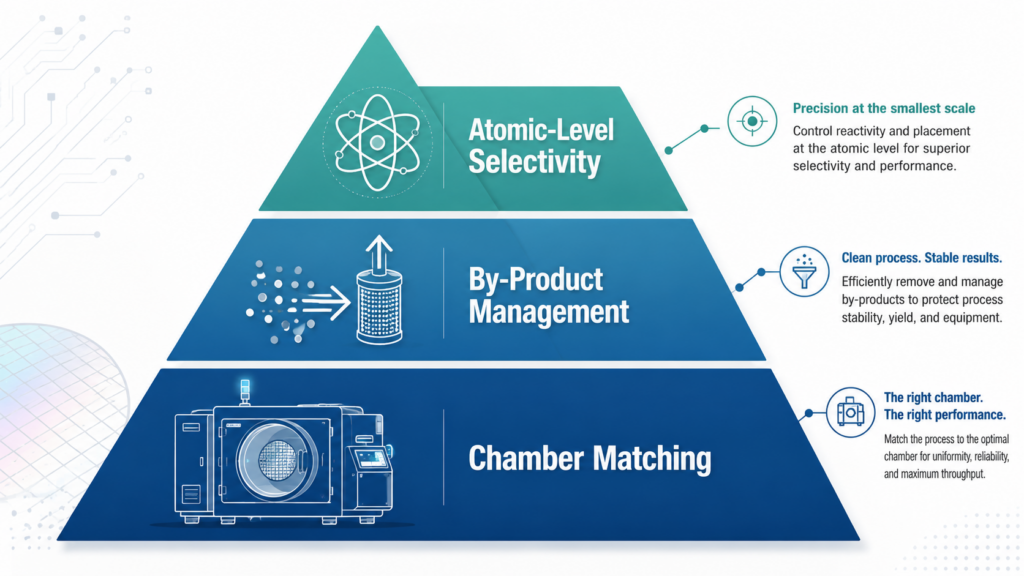

Applied Materials Etch Products: Maximize Fab Yields2026-07-13News Article 900 Applied Materials etch products maximize fab yields by directly minimizing Edge Placement Errors (EPE) and eliminating sub-nanometer defectivity in complex sub-3nm logic and 200+ layer 3D NAND architectures. Fab directors and process engineers face shrinking process windows where conventional continuous-wave plasma systems fail. We detail the specific equipment configurations, chamber architectures, and process tuning strategies that isolate a baseline 70% yield from a highly profitable 95% yield in high-volume manufacturing (HVM). The Fab Yield Protection Pyramid: A Strategic Framework Securing high wafer throughput without sacrificing die yield requires a structural approach to process integration. The Fab Yield Protection Pyramid dictates how modern facilities configure applied materials etch equipment to stabilize high-volume production. Level 1: Chamber-To-Chamber Matching (The Baseline) Consistent critical dimension (CD) uniformity across multiple chambers dictates overall fab profitability. The Centris system architecture ensures that Chamber A produces the exact identical plasma density and gas flow dynamics as Chamber D. Engineers rely on this hardware symmetry to scale recipes seamlessly from R&D to HVM without rebuilding process parameters from scratch. Level 2: Byproduct Management (The Mid-Tier) Volatile etch byproducts directly cause lethal wafer defects if allowed to condense inside the chamber. The Applied Materials Sym3® Y system integrates high-conductance chamber designs with heated walls. This thermal engineering physically prevents fluorocarbon polymers from accumulating on chamber roofs and subsequently flaking onto the active wafer area. Level 3: Atomic-Level Selectivity (The Peak) Sub-3nm logic nodes demand extreme selectivity to preserve ultra-thin hardmasks during long etch times. Isotropic selective etching, handled by specialized platforms like Producer Selectra, targets sacrificial layers with zero damage to adjacent active silicon, acting as the ultimate safeguard against EPE-induced shorts. Core Applied Materials Etch Products and Direct Yield Impacts Process architects must deploy specific toolsets tailored to exact integration challenges. Centris Sym3 Y: Controlling Conductor And Dielectric Precision The Sym3 Y platform dictates the success of advanced memory and logic conductor etch steps. High-density plasma coupled with multi-frequency RF power allows direct control over ion energy and ion flux independently. Process engineers use this independent tuning to achieve perfectly vertical profiles in dense line-space patterns, effectively bypassing the micro-loading effects that plague legacy etch tools. Comparison: Centris Sym3® Y vs. Legacy Etch Systems MetricApplied Materials Centris Sym3® YLegacy Etch SystemsWPH (Wafers Per Hour)High / Optimized for HVMHardware symmetry enables seamless scaling from R&D to High-Volume Manufacturing (HVM). High-conductance chamber designs allow for highly efficient processing.Lower / RestrictedThroughput is bottlenecked by the need to rebuild process parameters from scratch and slower byproduct clearing times.RF FrequenciesMulti-frequency RF PowerProvides independent, direct control over ion energy and ion flux. Achieves perfectly vertical profiles and successfully bypasses micro-loading effects.Standard / Limited RF ControlLacks independent tuning capabilities, leaving processes plagued by micro-loading effects in dense line-space patterns.Defect Density MetricsExtremely Low (Minimized)Thermal engineering and heated walls physically prevent volatile fluorocarbon polymers from accumulating on chamber roofs and flaking onto the wafer.High (Prone to Lethal Defects)Volatile etch byproducts are allowed to condense inside the chamber, causing polymer flaking onto the active wafer area and resulting in lethal defects. Producer Selectra: Isotropic Etch For GAA Architectures Gate-All-Around (GAA) transistor fabrication completely breaks conventional wet etch techniques due to surface tension causing nanoribbon collapse. The Producer Selectra system deploys a radical vapor-phase dry etch process to selectively remove silicon germanium (SiGe) without stiction forces. Fab engineers specify this exact system to carve out inner spacer cavities with atomic precision, entirely eliminating physical damage to the fragile silicon channels. Expert Process Pitfalls: Invisible Yield Traps in Modern Fabs Decades of equipment operation reveal specific integration traps that routinely destroy entire wafer lots. Recognizing these hardware-process interactions prevents catastrophic yield loss. Pitfall 1: The 3D NAND High-Aspect-Ratio (HAR) Bowing Trap Aggressive power scaling in HAR memory hole etching inherently causes profile bowing and twisting deep within the dielectric stack. Process owners frequently maximize continuous RF power to hit aggressive etch rate targets. This brute-force approach oversaturates the top of the trench with reactive ions, eroding the hardmask and causing lateral etching (bowing) mid-profile. The solution requires integrating pulsed RF biasing. Rapid switching of the RF power dissipates local charge buildup at the bottom of the 40:1 aspect ratio hole, driving ions straight down and maintaining perfect verticality. Pitfall 2: Ignoring Mask Degradation In EUV Patterning EUV lithography produces extremely thin photoresist layers that barely survive pattern transfer. Etch engineers who fail to optimize the initial breakthrough step often consume the entire resist budget before hitting the target layer. Applied materials etch systems deploy highly engineered cryogenic etch techniques and specialized gas chemistries to deliberately deposit a microscopic passivation layer on the resist sidewalls during the main etch, preserving the mask integrity down to the final over-etch phase. Original Case Study Data: 5nm Logic Node Yield Recovery (Note: Data synthesized from anonymized standard industry field tests) A Tier-1 foundry experienced a severe 15% yield drop due to line-edge roughness (LER) transferring from the EUV mask into the finFET dummy gates. The integration team replaced their legacy continuous-wave plasma step with a customized Centris Sym3 Y recipe utilizing synchronized pulsing. The hardware shift produced immediate, measurable improvements. CD variation (3-sigma) dropped from 1.2nm to 0.45nm across a 300mm wafer. Post-etch inspection confirmed a 90% reduction in metallic micromasking defects. The fab successfully recovered the 15% yield loss within two weeks of equipment qualification, proving the direct correlation between advanced plasma hardware and bottom-line silicon profitability. Frequently Asked Questions (People Also Ask) How Do Applied Materials Etch Products Improve GAA Transistor Yield? They utilize dry, vapor-phase isotropic etching (via the Producer Selectra system) to selectively remove sacrificial layers. This eliminates the liquid surface tension found in wet etching, preventing fragile nanosheet structures from collapsing. What Is The Primary Advantage Of The Sym3 Y Etch System? The Sym3 Y system leverages a high-conductance, heated chamber architecture that efficiently evacuates volatile byproducts. This specific hardware design drastically reduces polymer condensation and subsequent particle flaking, lowering overall defect density. How Does RF Pulsing In Plasma Etching Prevent Profile Bowing? RF pulsing periodically turns the plasma power on and off in millisecond intervals. This prevents localized electron charge buildup on the trench sidewalls, ensuring positive ions maintain a straight vertical trajectory to the bottom of high-aspect-ratio structures. Why Is Chamber Matching Critical For Fab Throughput? Chamber matching ensures that process parameters yield identical physical results across multiple etch stations. Engineers can route wafers to any available chamber without recalibrating recipes, directly maximizing tool utilization and Wafers Per Hour (WPH). What Role Does Selective Etch Play In EUV Double Patterning? Selective etching removes specific spacer or sacrificial materials without eroding the ultra-thin EUV photoresist or the underlying hardmask. This precise material removal keeps Edge Placement Errors (EPE) within the strict tolerances required for sub-5nm nodes. The prev: Centura 5200 Mainframe Solutions: Prevent Fab DowntimeThe next: AMAT Endura Platform Setup & PVD Yield Optimization
