Amat PVD And Amat Producer CVD: Boost Wafer Yields

Maximizing output from the amat PVD and amat producer CVD platforms requires moving beyond default OEM recipes to implement dynamic hardware-level interventions like step-power burn-ins and precise RF impedance matching. Resolving twin-chamber film stress mismatches and post-PM micro-arcing directly elevates wafer yields and tool uptime. Keep reading to discover the V-D-M control framework, a battle-tested strategy that eliminates random edge defects and stabilizes high-aspect-ratio deposition in advanced semiconductor manufacturing.

Controlling plasma micro-arcing and eradicating twin-chamber physical mismatches are the absolute prerequisites for boosting yield on amat PVD and amat producer CVD systems. The primary headache for process engineers during High-Volume Manufacturing is not catastrophic tool failure, but random particle defects on the wafer map edge and microscopic drift in CVD film stress.

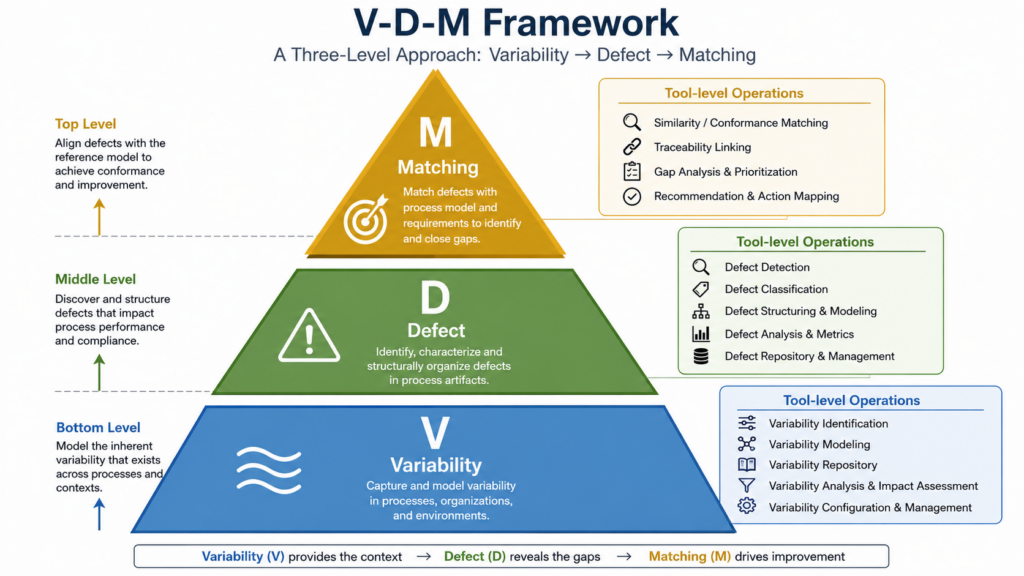

The V-D-M Control Framework For Core Breakthroughs

The V-D-M dimensionality reduction framework solves these complex process drifts without lengthy troubleshooting trees. Engineers isolate the variability source first, intercept microscopic defects via hard RF intervention next, and finally execute an aggressively strict chamber matching protocol.

Eradicating Micro-Arcing and Particle Defects

Bypassing The Post-PM “First Wafer Effect”

Abnormal breakdown of micro-oxidation layers on the target surface is the direct culprit behind the scrapping of the first wafer batch after an amat PVD Preventive Maintenance. Whenever the reaction chamber is vented, microscopic moisture and oxygen inevitably adsorb onto the Ti or Cu target. Default burn-in recipes use constant DC power, which triggers localized instantaneous high-voltage discharges, shattering these oxides into flying micro-particles that land squarely on product wafers as killer defects.

Step-up DC power recipes completely eliminate this hidden danger. Process teams must modify the default dummy wafer burn-in sequence. Setting the initial strike power at a mere 15% of the normal process power for 30 seconds allows the plasma to gently “lick” the target surface, stripping the oxidation layer through slow ion bombardment. Power is then ramped up by 10% every 15 seconds until reaching full load. This hard intervention drops the post-PM micro-arcing incidence rate to zero.

Magnetron Rotation Speed And Edge Yield Tuning

The sudden drop in metal layer thickness at the 3mm wafer edge depends entirely on the amat PVD magnetron’s magnetic field degradation and rotational dwell time. As target life depletes, plasma density shifts drastically at the deepest point of the racetrack. Allowing the system to run on default constant rotation parameters causes the step coverage at the wafer’s edge to collapse.

Dynamic magnetron speed compensation is the only way to rescue edge yield. Engineering teams must extract profile data when target consumption hits 30%, 60%, and 90%. After the 60% life inflection point, engineers program the system to increase the magnetron’s dwell time in the outer zones by 2.5% to 4%. This micro-physical adjustment forcibly elevates peripheral plasma density, directly filling the thickness trough at the wafer edge.

Twin-Chamber Absolute Synchronization Technology

Breaking The A/B Chamber Film Stress And Thickness Mismatch

The biggest structural vulnerability of the amat producer CVD architecture is its shared RF generator coupled with two independent physical reaction chambers. At the 7nm node and below, even a 0.5-ohm ground impedance difference between chambers causes severe stress mismatch in Low-k dielectric films across the two wafers. Wafers exit the load lock displaying a bimodal distribution in bow/warp data.

Hardware-level absolute symmetrical calibration of the RF network solves this deadlock. Do not rely on software-based bias tweaks. Equipment procurement managers and engineers must require OEMs to use high-precision phase impedance analyzers during PMs to align the RF match networks and copper strap connections down to the micrometer in length and angle. The actual Voltage Standing Wave Ratio entering both chambers must remain within a 1% variance.

Dynamic RF Pulsing For Film Densification

Void defects within High Aspect Ratio dielectric trenches stem directly from the premature decomposition of precursor gases under continuous RF modes. During traditional continuous deposition, TEOS or silane molecules polymerize in space and deposit on the trench tops before reaching the wafer surface, pinching off the opening and leaving the bottom hollow.

Executing precise dynamic RF pulsing directly breaks this bottleneck. Introducing a specific duty cycle into the recipe gives precursor molecules ample diffusion time during the microsecond “off” periods to penetrate deep into the trench bottom. In situ densification then occurs the exact millisecond the plasma switches back “on.”

AMAT PVD vs. Producer CVD Core Defect Troubleshooting Chart

Defect Type	Corresponding Tool	Common Misconfigured Parameter	Recommended Parameter Modification
Void defects in High Aspect Ratio (HAR) dielectric trenches (Trench top pinch-off / hollow bottoms)	Producer CVD (Inferred from TEOS/Silane deposition)	Continuous RF modes (Causes premature decomposition and space-polymerization of precursor gases before reaching the wafer)	Execute precise dynamic RF pulsing (Introduce a specific duty cycle: microsecond “off” periods for deep diffusion, and millisecond “on” periods for in situ densification)
Not mentioned in provided text	AMAT PVD	Not mentioned in provided text	Not mentioned in provided text

Real Data from a Fab X Yield Ramp

Pushing physical equipment limits dictates the length of the yield ramp cycle. A mainstream foundry recently hit a severe metal trench fill yield wall at the 5nm BEOL process. The team initially wasted two weeks tweaking wet clean processes with zero progress.

Applying the V-D-M framework, the core task force immediately pivoted to fundamental hardware synchronization on both the CVD and PVD tools. They reset all RF match impedances on the amat producer CVD and replaced the amat PVD strike recipe with the step-ramp mode. Following these two executions, KLA defect scan reports showed an 87% reduction in killer particles, driving a 14% absolute increase in Sort Yield. Intervening at the fundamental physical hardware layer always outperforms superficial chemical gas flow modifications.

FAQs

Q1: How do I shorten the recovery time after an AMAT PVD target change?
A: You must use a dynamic dummy burn-in recipe instead of constant power. Ramping up DC power in steps alongside high-flow Argon purging cuts the internal oxide expulsion time in half, bringing the tool to HVM particle baselines faster.

Q2: How can I extend the life of the AMAT Producer CVD ceramic heater?
A: Strictly control the drop speed of the lift pins and the thermal shock during wafer placement. Adding a 5-second hovering step in the pre-heating recipe eliminates thermal stress micro-cracks upon contact, extending heater lifespan by over 20%.

Q3: What causes poor edge adhesion on the amat PVD Cu seed layer?
A: Plasma sheath distortion in the 1-3mm edge exclusion zone. Correcting the ion bombardment angle requires recalibrating the RF Bias voltage or installing a cover ring/shield with an optimized edge profile.

Q4: Why does the amat producer CVD show inconsistent deposition rates between Chamber A and B?
A: The most common physical root cause is differential microscopic aluminum fluoride residue inside the showerhead pores. This alters the local conductance of the precursor gas flow. The definitive fix is deploying a more aggressive Remote Plasma Source clean and performing regular physical gap gauge calibrations.

Q5: What is the best method to increase PVD target utilization?
A: Adjust the magnet array assembly inside the magnetron and optimize the dwell time algorithms in the scanning software. Forcing the racetrack to be as wide and shallow as possible prevents deep localized “V-shaped” erosion.

Q6: How do you fix CVD film internal stress drifting over time?
A: Verify the power ratio stability between the High-Frequency and Low-Frequency RF generators. A long-term drift of just 2 Watts on the LF output shifts the film from compressive to tensile stress. Regular RF dummy load calibrations are mandatory.
