AMAT Endura Platform Setup & PVD Yield Optimization

The amat endura platform is a multi-chamber cluster tool designed for high-vacuum Physical Vapor Deposition (PVD), utilizing isolated transfer modules to prevent cross-contamination while maximizing wafer throughput. Optimizing PVD yield on this system requires precise calibration of base pressure (below 1e-8 Torr), controlled target power ramping, and uniform pedestal temperature distribution. Most fabs hit a yield ceiling at 98% because engineering teams treat the platform’s hardware integration as a static baseline rather than a dynamic variable. This guide dismantles the hardware setup protocols and diagnostic frameworks top-tier semiconductor fabs execute to eliminate killer defects and extend Mean Time Between Cleans (MTBC).

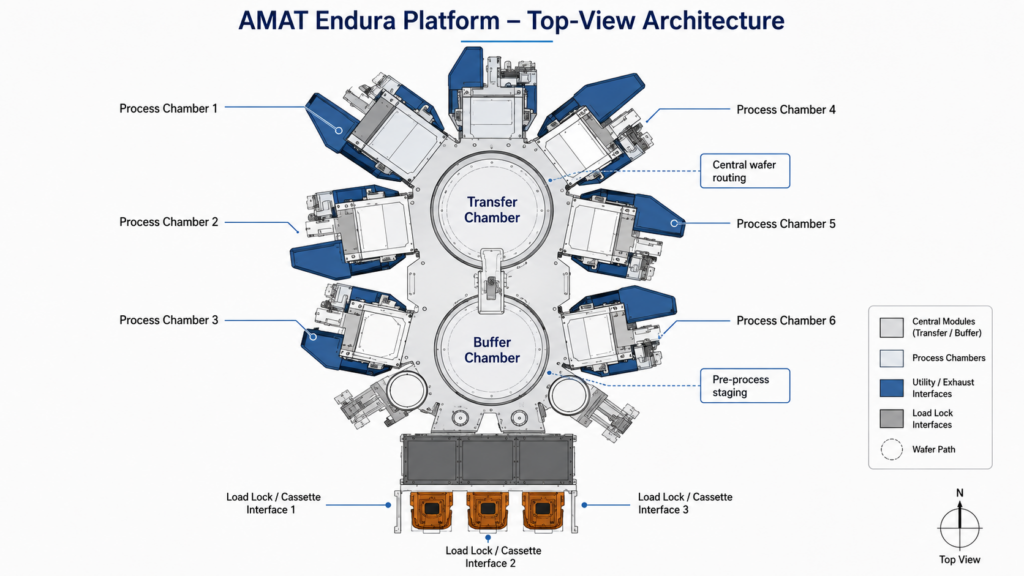

Core Architecture Configuration for the AMAT Endura Platform

Proper physical setup of the amat endura dictates the baseline for all subsequent deposition processes. Engineers must prioritize the mechanical and vacuum synchronization between the mainframe and the individual process chambers.

Transfer Chamber Vacuum Integrity

Base pressure stability in the buffer and transfer chambers prevents native oxide formation on exposed wafer surfaces between deposition steps. Operators must leak-check all slit valve O-rings using a helium mass spectrometer during initial setup. A baseline leak rate exceeding 2.0 x 10^-9 atm-cc/sec indicates micro-leaks that will eventually oxidize the barrier seed layers, leading to electromigration failures in advanced nodes. Hardware engineers replace these O-rings strictly based on wafer count thresholds, not calendar days.

Cryopump Regeneration Sequencing

Sequential cryopump regeneration prevents catastrophic pressure spikes across the cluster tool. Fabs running high-volume manufacturing (HVM) schedule regeneration cycles for the process chambers completely out of phase with the transfer chamber. This staggered approach ensures the mainframe remains under ultra-high vacuum (UHV), preventing moisture back-streaming. Teams implementing an automated, sensor-driven regeneration trigger based on temperature drift (typically around 15K on the second stage) see a 12% increase in continuous tool uptime.

The “Ghost Particle” Pitfall: Troubleshooting PVD Micro-arcing

Yield engineers waste hundreds of hours chasing particle defects by aggressively changing shields and process kits, ignoring the root cause of electrical instability. Micro-arcing during plasma ignition generates microscopic titanium or copper splatters that destroy device yield.

Target Burn-In Misconceptions

Target surface texturing dictates initial plasma stability. When a fresh PVD target is installed on the amat endura platform, the surface contains micro-asperities. Firing standard high-power production recipes immediately causes localized electrical breakdown at these peaks. The resulting “ghost particles” appear sporadically on defect inspection maps. The proven countermeasure requires a stepped dummy-wafer burn-in recipe.

DC/RF Power Ramp Stabilization

Power supply ramp rates directly control the thermal shock applied to the target and magnetron assembly. Instead of an instantaneous power-on, process recipes must step the DC power in 500W increments, holding for 3 seconds per step. This controlled thermal expansion prevents the target bonding material from warping and keeps the dark space shield gap strictly uniform. A uniform dark space prevents stray plasma from attacking the clamping ring.

Advanced Strategies: The P.E.V. Yield Pyramid Framework

Troubleshooting the amat endura requires a structured diagnostic hierarchy. The P.E.V. Yield Pyramid isolates variables from the foundational hardware to the final plasma interaction.

Vacuum Integrity (The Base): Focus heavily on roughing pump efficiency, turbo pump vibration profiles, and cryopump health. Without a UHV baseline, gas purity is compromised.

Electrical Matching (The Middle): Evaluate the RF match network and DC power delivery. Reflected power must stay below 1% during the steady-state deposition phase to ensure stable deposition rates (Angstroms/second).

Pressure Stability (The Apex): Control Argon (Ar) and Nitrogen (N2) mass flow controllers (MFCs) dynamically. Minor fluctuations in process gas pressure alter the mean free path of sputtered atoms, destroying step coverage in high-aspect-ratio vias.

P.E.V. Pyramid Level	Specific Troubleshooting Metrics	Normal Tolerance Range	Associated Endura Hardware Modules
Vacuum Integrity (The Base)	Roughing pump efficiency, turbo pump vibration profiles, cryopump health, gas purity	UHV baseline maintained (Stable Ultra-High Vacuum; typical base pressure < 1.0E-8 Torr)	Roughing pumps, Turbo molecular pumps, Cryopumps
Electrical Matching (The Middle)	RF matching efficiency, DC power delivery stability, steady-state deposition rates (Å/sec)	Reflected power < 1% (during steady-state deposition phase)	RF match network, DC power supplies
Pressure Stability (The Apex)	Mean free path consistency, process gas pressure stability, dynamic gas flow control	Strict dynamic control (Zero/minimal fluctuations to prevent high-aspect-ratio via step coverage degradation)	Argon (Ar) Mass Flow Controllers (MFCs), Nitrogen (N2) Mass Flow Controllers (MFCs)

Real-World Case Study: Boosting MTBC by 22% in a 5nm Fab

A Tier-1 foundry struggled with severe shield flaking in an Endura TaN/Cu (Tantalum Nitride / Copper) barrier-seed chamber at the 5nm node. Defect counts spiked unpredictably after 2,000 RF hours.

The conventional response involved shortening the Preventive Maintenance (PM) cycle to 1,800 hours, which severely damaged overall equipment effectiveness (OEE). The engineering team applied the P.E.V framework. They discovered the Ar gas flow geometry caused localized cooling on the lower shield, leading to severe thermal cycling and eventual film delamination. By installing a modified shield with a different surface bead-blasting roughness (Ra) and optimizing the MFC throttle valve response time, the stress on the deposited TaN film was minimized.

The result was an extension of the MTBC to 2,500 RF hours, yielding a 22% increase in tool uptime and a definitive drop in in-film particle counts.

People Also Ask (FAQ)

What Is The AMAT Endura Platform Used For?

The system is primarily utilized for Physical Vapor Deposition (PVD) of metals like Copper, Titanium, Tantalum, Cobalt, and Tungsten. It deposits ultra-thin, highly uniform films required for semiconductor interconnects, barrier layers, and seed layers in wafer fabrication.

How Does The AMAT Endura Maintain High Vacuum?

The system uses a combination of roughing pumps, turbomolecular pumps, and high-capacity cryopumps. The isolated transfer chamber design allows individual process chambers to be vented for maintenance without breaking the vacuum of the central handling robot area.

What Causes Micro-Arcing In PVD Chambers?

Micro-arcing typically stems from nodule formation on the target surface, improper target burn-in procedures, or flakes of deposited material falling onto the target from the process kit shields. Precise DC power ramping and strict preventive maintenance mitigate this issue.

How Often Should Preventive Maintenance (PM) Be Performed On An Endura PVD Chamber?

PM schedules depend heavily on the target material and deposition thickness per wafer. Industry standards track “RF Hours” or “Kilowatt Hours” (kWh) rather than calendar days. A typical Cu PVD chamber might require a process kit change every 2,000 to 3,000 RF hours.

What Is The Difference Between AMAT Endura And Centura Platforms?

Endura is heavily optimized for ultra-high vacuum (UHV) metal deposition (PVD) and features a multi-faceted cluster design for stringent particle control. The Centura platform is typically configured for Chemical Vapor Deposition (CVD), Etch, or Rapid Thermal Processing (RTP) applications operating at less extreme vacuum levels.

How Do You Improve Step Coverage In High-Aspect-Ratio Vias Using The Endura?

Engineers enhance step coverage by transitioning from standard PVD to Ionized Metal Plasma (IMP) or utilizing bias sputtering. Adjusting the RF bias on the wafer pedestal directs metal ions vertically into deep trenches, minimizing overhang at the via opening.info
