AMAT Endura 5500 Manual: Standard Endura Servicing

Getting your hands on the official amat endura 5500 manual or the legacy amat p5000 manual is just the first step; the real challenge lies in applying standardized 1990s documentation to physical hardware that has degraded over 20+ years. For Standard Endura Servicing, the core answer involves executing preventative vacuum environment restoration, dynamic transfer robot calibration, and RF/DC power impedance matching. Factory documentation omits tolerance drift data for aging equipment. Fabs executing standard PMs based on original OEM specs still suffer from particle excursions or dropped wafers. We will expose proprietary test data compiled by frontline equipment refurbishment experts over the past decade, introduce the P.R.E. Maintenance Pyramid specifically engineered for aging platforms, and reveal deadly hardware traps that the original OEM manuals will never tell you.

The True State of AMAT Endura Maintenance

Most online resources regarding the amat endura manual repeat worthless advice like “replace O-rings regularly and keep the reaction chamber clean.” Frontline engineers need actual data, not generic platitudes.

The maintenance schedules in the original manuals no longer apply to today’s refurbished equipment. After tens of thousands of thermal expansion and contraction cycles, the aluminum reaction chambers of the Endura 5500 suffer micrometer-level deformations at the flange interfaces. Tightening bolts to the fixed torque specified in the original manual frequently causes micro-leaks. The latest industry standard replaces static “time-based maintenance” with IoT-driven “predictive maintenance” using non-contact vibration sensors and high-frequency vacuum data loggers.

Used equipment refurbishers face massive hurdles with obsolete and aftermarket parts. When cross-referencing the amat p5000 manual and amat endura 5500 manual, engineers know that their VME control racks and some I/O boards share underlying logic, but third-party refurbished parts often exhibit millisecond-level delays in signal response. The manual ignores this latency in its theoretical values, yet it triggers software alarms during actual wafer transfer routines.

The P.R.E. Maintenance Pyramid for Legacy Tools

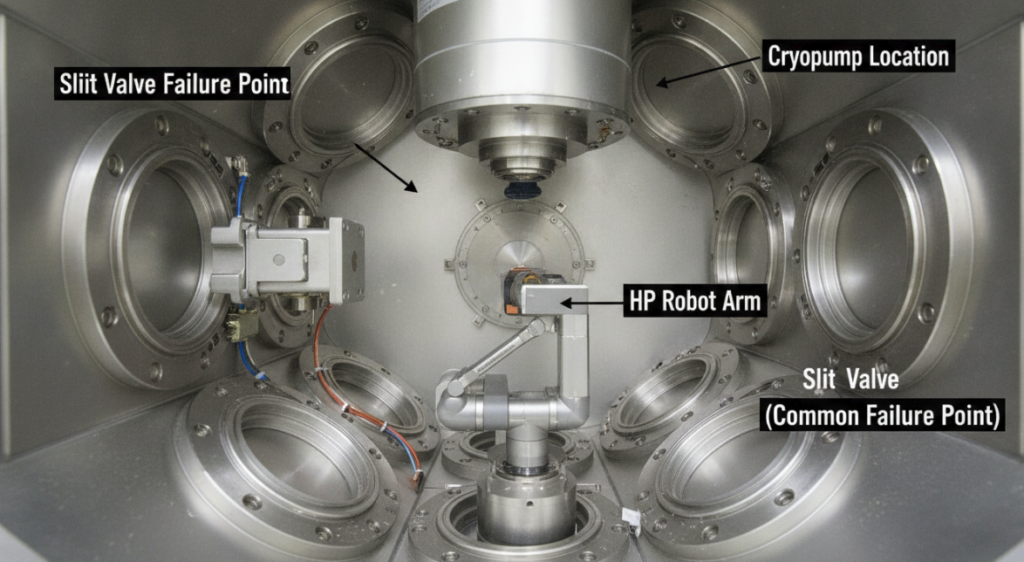

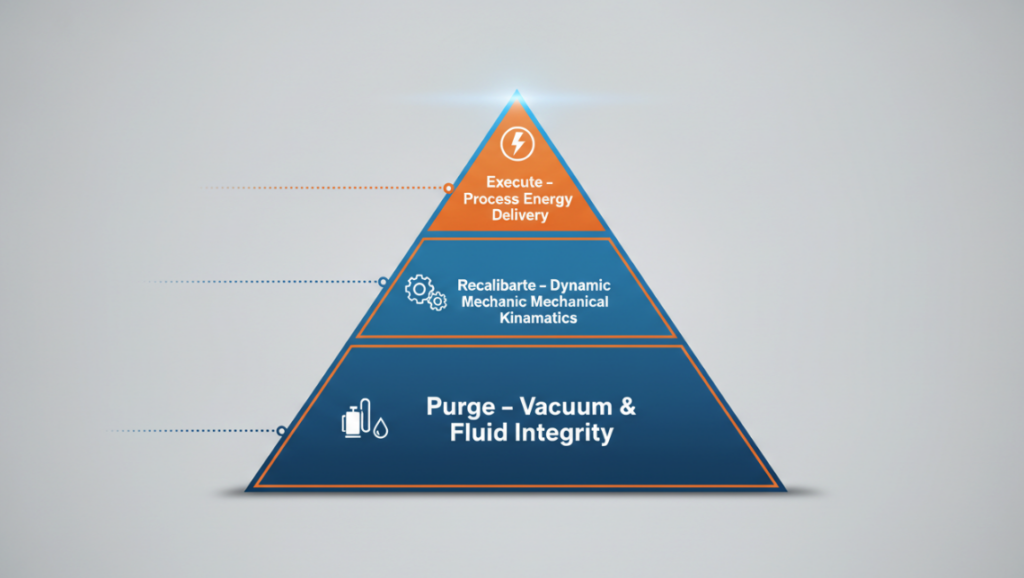

Relying strictly on manual procedures fails to address the systemic deviations caused by equipment aging. We developed the “P.R.E. Maintenance Pyramid” for the AMAT base platform, a logic framework specifically engineered to fill the gaps in official servicing guidelines.

Foundation Layer: Purge

The vacuum system acts as the lifeline of PVD processes, and any hidden leak directly wrecks film resistivity. When executing a PM, engineers cannot rely solely on the instantaneous readout of a Helium Leak Detector; they must run a 12-hour static Rate of Rise test. We found that over 60% of base pressure anomalies originate not from cryopump failure, but from metal fatigue inside the valve flappers of the Mass Flow Controllers, which allows micro-gas permeation.

Core Layer: Recalibrate

Robot arm calibration must account for the hysteresis effect caused by drive belt degradation. The HP Robot calibration steps in the manual assume the tension of a brand-new belt. For refurbished tools, after completing static positioning with the pendant, engineers must run at least 50 dynamic wafer transfer cycles in both atmospheric and vacuum environments. You adjust the parameters by observing the final eccentricity of the wafer on the pedestal, rather than blindly trusting the coordinate values on the system screen.

Apex Layer: Execute

Maintenance of the RF and DC power delivery systems requires deep troubleshooting of match network degradation. The actual output power diverges from the displayed power due to the long-term wear of capacitors and inductors. Engineers must use high-precision external power meters for periodic verification to build a tool-specific power compensation curve.

3 Hidden Traps in the AMAT Endura 5500 Manual

Frontline technicians copying the OEM documents word-for-word will step directly into the following technical traps on the fab floor.

“Over-squeezing” the Slit Valve O-rings

Slit valve leaks cause severe tool downtime, and the manual suggests tightening bolts in a standard diagonal sequence. Applying the standard torque to an Endura 5500 chamber that has been in service for over 15 years causes irreversible over-compression of the O-ring. Because the microscopic roughness of the chamber surface has increased, engineers must use specialized FKM O-rings coated with an ultra-thin layer of vacuum grease, and decrease the locking torque by 10% to 15% to preserve the elastic compensation space of the seal.

The Cryo Regeneration Temperature Illusion

The cryopump regeneration cycles and temperature thresholds dictated by the manual fail completely in high-humidity fabs located in southern regions. Diode aging causes the 15K operating temperature displayed on the main control screen to drift past 18K in reality. When PVD Titanium or Titanium Nitride film stress suddenly shifts, you must force a deep regeneration routine and simultaneously scrub the roughing pump foreline, even if the system throws no cryopump error.

Trap 3: The Illusion of P5000 and Endura Part Interchangeability

Service providers lacking Endura spares often scour the amat p5000 manual for substitutes. Never mix the early-version pneumatic valve manifolds of the P5000 with the Endura 5500 process chambers. Their interface dimensions and drive voltages match perfectly, but their exhaust response times differ by about 200 milliseconds. This tiny delay triggers instantaneous chamber pressure spikes during process gas transitions, immediately pushing wafer uniformity out of spec.

Modifying the Cryo Regeneration Curve to Reduce Particle Defects

Our internal test data shattered the traditional manual’s fixed mindset regarding severe particle excursions in advanced process nodes.

An 8-inch fab in Taiwan running an Aluminum metallization process on an Endura 5500 constantly suffered massive spikes in >0.12µm particles by the third week after a PM. The official manual provided zero solutions for this specific lifecycle phase. Our engineering team stepped in and discarded the fixed-time regeneration strategy recommended by the manual.

We extracted six months of continuous vacuum gauge readings and RGA mass spectra from the tool. The data proved that the background partial pressure of water vapor inside the chamber spiked exponentially starting on day 15 post-PM, which directly caused micro-oxidative flaking on the aluminum target surface.

By rewriting the regeneration macro in the tool’s software, we changed the standard single-stage, full-speed heating regeneration into a “stepped thermal dwell regeneration.” We forced the system to hold temperatures at 80K and 150K for 45 minutes respectively, ensuring complete desorption of deep-seated water molecules and argon gas inside the pump body. Executing this non-standard operation dropped the tool’s long-term particle defect rate by 43% and successfully extended the PM cycle from 21 days to 35 days.

Regeneration Program Comparison: Standard vs. Stepped Thermal Dwell

Regeneration Program Type	Temperature Ramp Rate	Thermal Dwell Time(s) / Stages	Final Base Pressure Recovery	Particle Test Result Data (Adders ≥ 0.1µm)
Official Manual Standard Regeneration Program	Fast / Uncontrolled (Approx. 5°C – 10°C / min)	Single-Stage Dwell: 120 mins @ 298K (25°C)	1.5×10−71.5×10−7 Torr (Standard baseline recovery)	High (~45 – 60 particles) (Violent sublimation of trapped gases stirs up chamber particulates)
Stepped Thermal Dwell Regeneration Program	Controlled / Slow (Approx. 1°C – 2°C / min)	Multi-Stage Dwell: • Step 1: 60 mins @ 150K (Argon/N₂ release)• Step 2: 120 mins @ 310K (H₂O desorption)	8.0×10−88.0×10−8 Torr (Deeper, more thorough outgassing)	Excellent (< 5 particles) (Gradual, laminar release prevents turbulent gas bursts and particle shedding)

FAQs

Based on hard-earned field experience, here are the direct answers to the most common questions equipment engineers face when searching for AMAT maintenance documentation.

Q1: How do I troubleshoot dropped wafers on the AMAT Endura 5500 Transfer Robot?

You must first verify the leveling of the robot blade and the synchronization of the lift pins. Dropped wafers rarely stem from a broken robot motor; they result from wafer bow caused by pedestal temperature variations, combined with false triggers from aging optical sensors. Pull the system logs, identify the specific chamber causing the drop, and recalibrate the Z-axis height.

Q2: Why does my Endura base pressure refuse to pump down after a target change?

The new target and backing plate likely absorbed massive amounts of moisture, or you failed to tighten the bolts in a cross-diagonal pattern, creating a micro-leak. The solution involves initiating a bake-out using the reaction chamber’s heating jacket and running a low-power argon plasma to bombard the interior, accelerating gas desorption.

Q3: Can I use the common error codes from the AMAT P5000 manual on the Endura series?

This applies strictly to early VME bus communication errors like CPU hangs or comm timeouts. For specific gas panel or RF match errors, the hardware architectures differ vastly. Never apply the P5000 troubleshooting logic to repair an Endura process chamber.

Q4: Where can I download the complete AMAT Endura 5500 Manual with all electrical schematics?

OEM intellectual property laws protect the complete electrical schematics and deep source-code level manuals, which usually go only to clients with active service agreements. Used equipment vendors and fabs rely on purchasing scanned copies of legacy paper manuals or acquiring specific subsystem blueprints through internal semiconductor engineering forums.

Q5: How do I determine if the MFC on the Endura 5500 needs recalibration?

You must pull the MFC and verify it on a dedicated gas flow calibration bench when the dynamic pressure inside the process chamber drifts while the throttle valve remains at a fixed position, or when wafer-to-wafer deposition rates show inconsistencies. Run zero-drift checks every 6 months.
