Amat pvd endura chamber: structure, parts, and sourcing

What people usually call “AMAT” is actually the stock code of semiconductor giant applied materials (Applied Materials). In the community, it is more of a company name than a specific machine. If there is any evergreen in the field of PVD (physical vapor deposition), it is the Endura series of platforms.

The core logic of the Endura platform is simple: to integrate pre-cleaning and multi-pass metal deposition (such as aluminum, copper processes or thin films for packaging) without destroying the vacuum. It involves bombarding a solid target with plasma, causing atoms “to fly” to the conjunctiva on the wafer surface.

What exactly is a chamber (Chamber)?

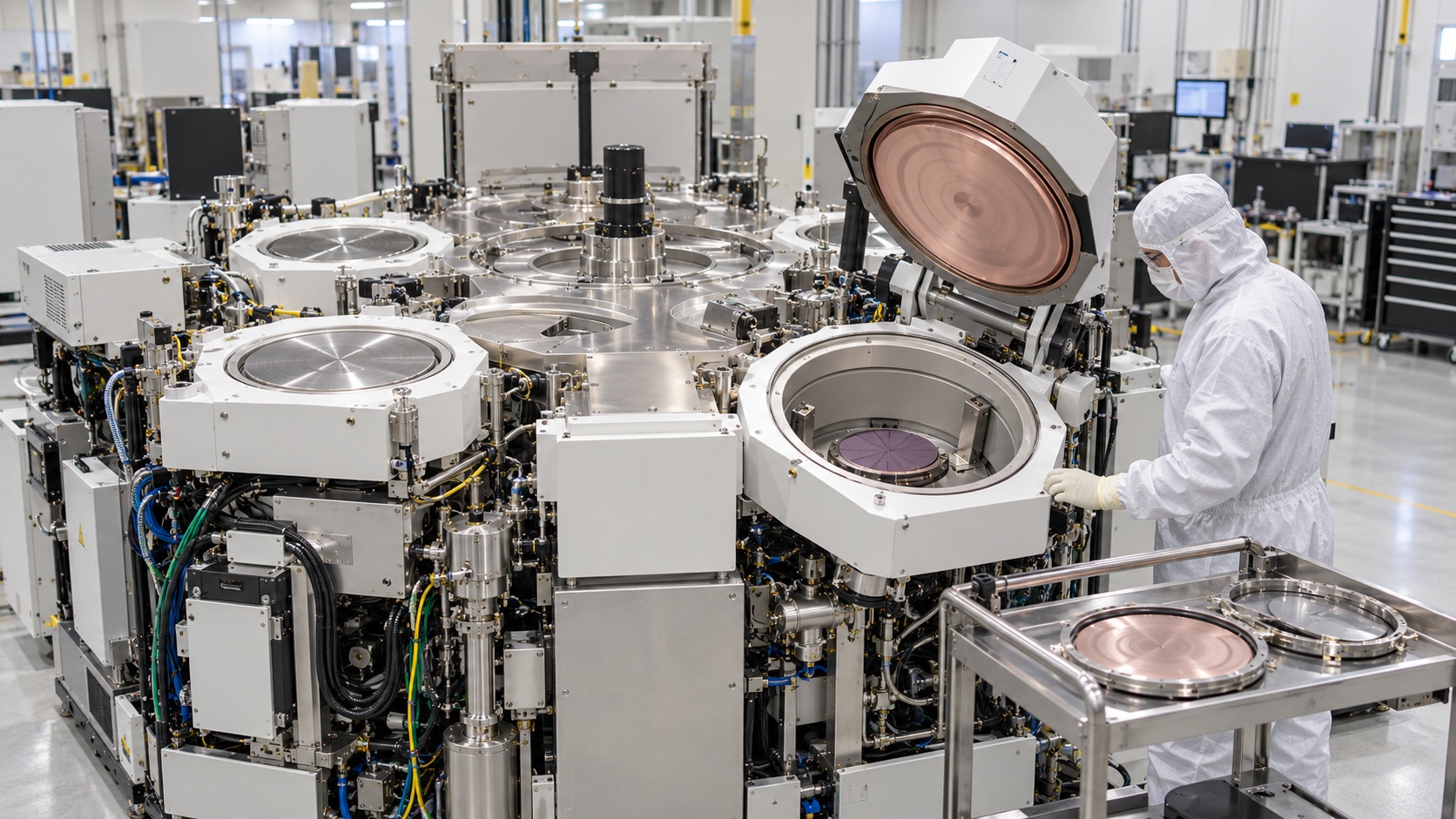

You can think of the chamber as a separate “working room” hanging on a platform. According to publicly available information, the Endura platform can be configured with up to nine process chambers, including two chambers specifically designed for pre-cleaning. However, not every device looks the same. For example, from the early Endura 5500 to the later Endura II, HP or TXZ, the versions span a wide range and the hardware configurations vary greatly, so it is impossible to generalize.

What “parts” are in the chamber?

A complete process chamber is actually quite complex to disassemble. Besides the housing (Body) and cover (Lid), the most critical thing inside is the support or base (Pedestal) that carries the wafer. Depending on the process requirements, these bases may also integrate heating, cooling, electrostatic suction cup (ESC), or radio frequency functions.

To protect the expensive cavity body, a ring of consumables is placed inside, which is what everyone often calls a “process kit”:

Protection classes: Substrate (Liner), Shield (Shield), Edge Ring (Edge Ring), Shadow Ring (Shadow Ring), and Clamp Ring (Clamp Ring). Their function is to define the deposition area, prevent metal from flying around, and protect the cavity walls.

Air path and vacuum: Spray heads (spray heads) are responsible for air distribution, pump rings (pump rings) and exhaust ducts are responsible for removing by-products.

Transmission and sealing: including bellows, O-ring, slit valve (Slit Valve) responsible for wafer inlet and outlet, and lifting needle.

Although these parts have similar names, they are unusable if the specifications differ even slightly, and the materials and surface treatments also have their own unique features.

Don’t use the model number as a master key: How to accurately match accessories?

Many newbies only report “Endura platform” when purchasing, which actually cannot lock the accessories. The safest approach is to check by step: Platform Series -> Host Model -> Chamber Name -> Material Number (P/N) -> Version Number (Revision).

If it is an old machine or a refurbished machine, you should pay more attention. Ideally, you should be able to provide the device serial number, actual photos of the old parts, and even the specific dimensions of the interface. Sometimes, although the material number is the same, the parts will not match if the process package (Kit) changes, or the wafer size changes from 6 inches to 8 inches.

In addition, the supply status of new parts, cleaning parts, repair parts and refurbished parts is completely different. The warranty and lifespan are separate matters, and you can’t just assume that they are interchangeable just because they look alike.

Regarding the supply capacity of Wuxi Zhanshuo (CHINSOR)

Wuxi Zhanshuo Technology (CHINSOR brand) has been deeply engaged in parts supply and renovation for many years. They do more than just parts distribution; they also cover R&D, manufacturing, and after-sales service.

Looking through their product catalog, they have a comprehensive inventory of accessories for classic models such as the Endura 5500, Centura 5200, and P5000. Especially in the field of PVD, there are nearly 100 items recorded, such as:

Endura 5500 special parts: lifting assembly, base, retaining ring, edge ring, baffle (Shutter disk), etc.

TXZ related: shielding components, insulation blocks, cover plates, etc.

Of course, inventory is dynamic. When inquiring with them, it is best to bring a clear material number and quantity. If you want to go through foreign trade (CIF terms), remember to report the port of destination as well. If the material number is really vague, they can also help identify it by providing a design sketch or sample.

Summarize

The core of getting AMAT Endura accessories done lies in the word “detailed”. From the platform to the cavity, and then to the specific Revision, every layer has to freeze. Finding a supplier with surveying capabilities and renovation experience, and discussing with detailed material information, can help you avoid more than 90% of the pitfalls.
