AMAT Endura TXZ Chamber: How to Identify and Source Parts

TXZ’s positioning in the Endura platform

AMAT is the stock symbol of Applied Materials and is often used by the market as an abbreviation for this equipment manufacturer. Applied Materials’ semiconductor equipment covers multiple stages of wafer fabrication, including deposition and etching. Endura is an important platform series for the company’s physical vapor deposition equipment, and public information lists it as an important platform example for PVD equipment. TXZ is the name of a cavity or process configuration in this platform system, and the writing of TxZ often appears in the writing. It belongs to the same xZ series writing system as names such as DxZ, Ti-xZ, and TiN-xZ in historical materials, and together they point to cavity configurations for different process uses.

It should be noted that the TXZ cannot be regarded as an official unified model that can lock a device individually. The knowledge compilation found that Endura 5500, Endura II, Endura HP, Endura TXZ and 300 mm related words may correspond to different eras, different platforms or different cavity configurations; only after obtaining the specific system model, wafer size, cavity name and hardware revision can the compatibility relationship between them be established. Therefore, it is safer to understand TXZ as a cavity process identifier under the Endura PVD platform than as a standalone device model.

Mapping of TXZ cavities in customer product listings

In the customer product list compiled by Wuxi Zhanshuo, almost all TXZ-related components are mapped to the Endura 5500 PVD tool or equipment entry. In other words, in the context of actual spare parts, the TXZ more often appears as a cavity configuration on the Endura 5500 PVD host, rather than existing separately from the host. The product description also lists the water tank and baffle components of the Endura II TXZ 300 as one of the 12-inch product directions, indicating that the name TXZ also appears in the context of the 300 mm size; while the edge rings, isolation rings, cavity bushings and other components in the product list appear in both 150 mm and 200 mm wafer sizes This indicates that TXZ configuration is not limited to a single wafer size.

Since the applicable tool field in the list is merely a product mapping of the customer’s product list, it does not constitute a conclusion on universal compatibility across the entire model series. Changing cavity configurations, changing wafer sizes, or changing hardware revisions can all cause the same name to correspond to different components.

Typical components of TXZ cavities

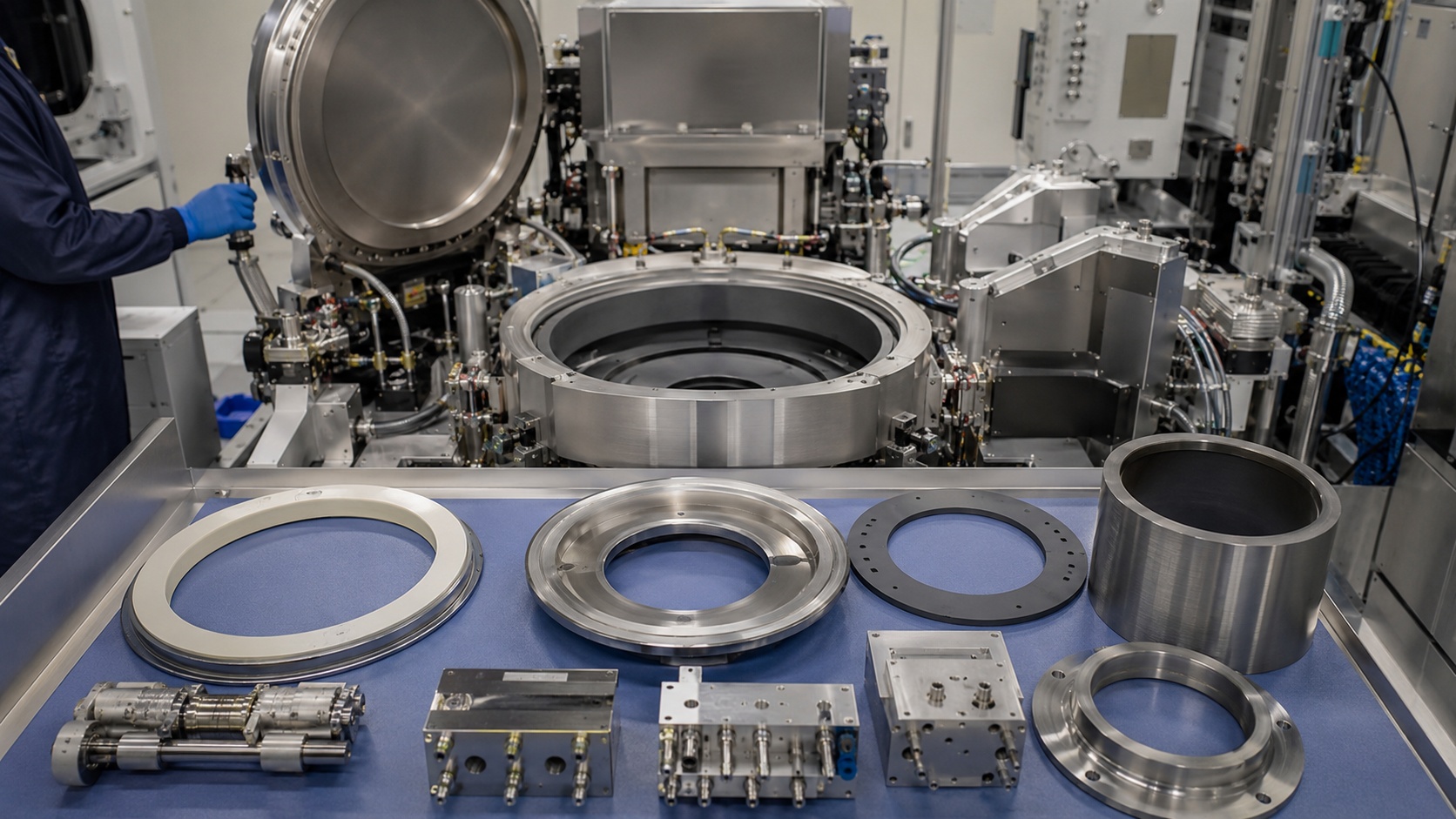

A batch of components marked with TXZ can be directly seen from the customer’s product list, covering multiple functional areas such as cavity body, shielding, isolation, gas and cooling. In terms of the cavity, there is the TXZ cavity body and the TXZ cavity hinge assembly; the parts facing the wafer include 150 mm and 200 mm TXZ edge rings, TXZ inner shield, TXZ isolation ring, and a 200 mm TXZ cavity bushing and reinforced isolator; associated with heating and lifting are the TXZ heater lift pin and heater lift drive shaft ring. In addition, there are BKM3 TXZ panels, TXZ water boxes and covers, TXZ inlet manifolds and outlet manifolds, TXZ chamber gate valve adapters, and 200 mm TXZ exhaust liners.

The names of these components themselves already indicate their approximate roles in the cavity. The cavity body and hinge assembly constitute the skeleton of the controlled process space. The edge ring, inner shield, isolation ring and bushing play the role of protecting the cavity surface, defining the deposition area or controlling the edge state of the wafer. The panel and gas manifold are responsible for conveying and distributing process gas to the process space. The water box, water inlet manifold, etc. are part of the cooling or fluid pipeline. However, similar names do not mean the same structure and materials. The differences between shielding parts, edge rings, isolation rings, and linings must be confirmed in conjunction with the specific material number and drawings.

Precautions for identifying and fitting TXZ components

When it is necessary to purchase or inquire for parts for AMAT Endura TXZ-related cavities, providing only one platform name is often insufficient to complete a unique match. A more prudent approach is to check each item individually at the platform, host, process cavity, process kit, wafer size, material number, and revision level. For older or refurbished equipment, the equipment serial number, photos of existing parts, interface dimensions, old part identification, historical modifications, and software or control versions should also be recorded as much as possible.

Wuxi Zhanshuo’s component inquiries require the target material number and required quantity. Providing part pictures, design documents or samples can also help confirm the product. Since the TXZ name itself spans multiple wafer sizes and possible hardware revisions, it is a key step for the purchaser to confirm component status, traceability information, inspection items, and acceptance criteria before placing an order to avoid mismatches.
