Endura Txz: A Practical Guide To Chamber Part Matching

Blogs 1180

The word “TXZ” can be vaguely recognized in the old photo, and “Endura” is also written on the quotation sheet. It is easy for the purchasing staff to put these two pieces of information together and mistakenly think that the machine model has been finalized. However, it was only when we checked the cavity accessories that we found that this information alone was not enough. Endura itself is a multi-cavity PVD platform series, and even if it belongs to this series, the year of the machine, the process chamber mounted, the wafer size supported, and the hardware version may vary widely. Only holding a “TXZ”, can not deduce the complete machine configuration.

Our Featured Products
View More Products ↗
Compare Products

Highlighted rows show different specifications. “—” means the source does not provide that value.

Request A Quote

* Name and email are required. Your inquiry will be sent to the CHINSOR sales team.

Open Official Contact Page ↗

If only “Endura TXZ” is marked in the inquiry materials, blind selection should not be made according to the appearance similarity. The equipment nameplate, cavity identification and old parts label must be combined with the specific installation position for unified check to find out whether the common parts of the host platform, transmission system parts or special consumables inside the TXZ cavity are to be found. This level can never be considered compatible as long as it is judged to be misplaced, even if the surface of the part can be stuffed into the station.

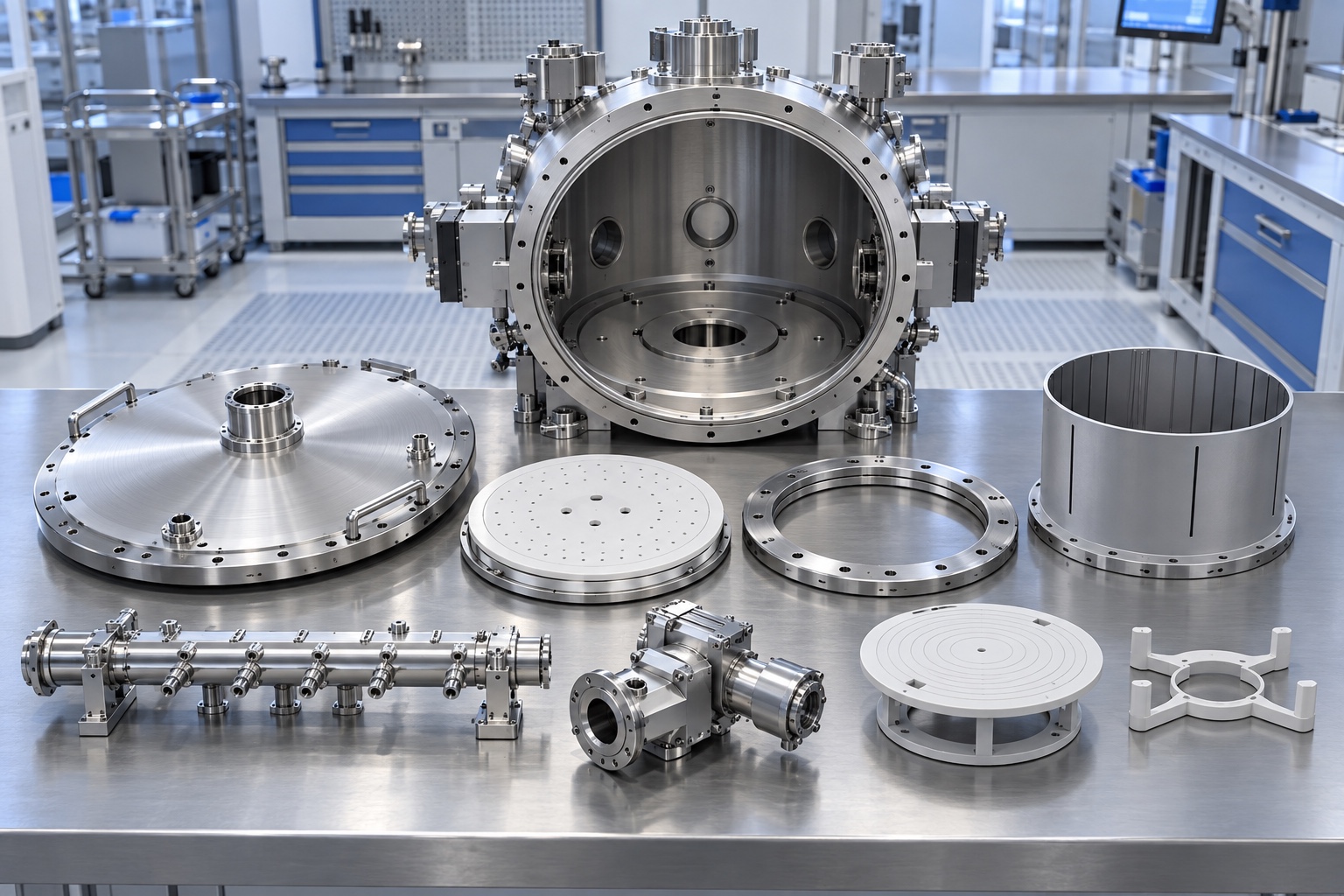

Concept illustration of an Endura TXZ chamber parts identification workflowFirst Distinguish the Platform Name from the Cavity Name

A complete Endura platform covers the mainframe base platform, wafer transfer system, load lock, process chamber, and vacuum and electronic control subsystems. The platform name represents a large series of equipment and does not determine which chamber is attached to each station. Endura 5500, Endura II, Endura HP and Endura TXZ appearing in historical data often refer to equipment of different ages or different architectures and cannot be directly batched as the same set of hardware.

To implement the inquiry link, to understand this layer of difference will directly determine the direction of verification. If the old parts are removed from the transmission area, the host and its superior components should be traced; if they are removed from the inside of the TXZ cavity, the cavity version, process kit (Process Kit), wafer size and hardware revision (Revision) parameters must be further confirmed. Only providing “Endura” or “TXZ” to the supplier can only narrow the scope of the investigation, far from being sufficient to uniquely locate the target part.

Eliminate Seemingly Identical Spare Parts Based on Wafer Size

TXZ accessories for both 150mm and 200mm wafers often appear in the customer’s list. For example, item 0021-35945 corresponds to “TXZ 150MM SMF edge ring”, while 0021-35946 is “TXZ 200MM SNNF edge ring”. The names of the two are extremely close, but the actual specifications and dimensions are completely different from the complete part number.

A similar situation also exists in the cavity structure. In the inventory records, including panels, cavity covers, water tanks, gas bus bars, plug-in valve adapter plates and exhaust bushings, there are independent specifications specifically for 200mm TXZ, and must not be confused.

When you see “TXZ” or “200MM”, you have only completed the preliminary screening. Next, you still need to check the part description, interface location and old part identification item by item. It cannot be replaced because it belongs to the same platform series, nor can 150 mm and 200mm parts be mixed.

When Part Numbers Are Similar, It Is Even More Important to Retain the Complete Version Information.

The same part name may correspond to multiple part numbers. Taking the panel as an example, 0040-25451 and 0040-22451 appear in the list at the same time, and the descriptions of both point to BKM3 TXZ 200MM. The cavity cover plate also has different records such as 0040-76838 and 0040-37667. Similar names do not imply that the differences between part numbers can be ignored. When quoting and placing orders, the full number shall be retained, and the REV, version letter or suffix in the identification shall not be omitted.

If the label of the old part is not clearly visible, it can be cross-checked with the photo of the old part, the nameplate of the equipment, the installation location, the item number of the superior component, the bill of material of the equipment and the current configuration file. Do not fill in ambiguous or unclear numbers yourself, nor infer missing version information based on similar descriptions. For equipment that has undergone upgrades, modifications, or control system replacements, the current installed hardware and modification records shall prevail.

Include Component Functionality in the Verification

TXZ related records cover different functional positions, including chamber body, panel, chamber cover, heater lifting mechanism, water inlet and outlet parts, gas manifold, gate valve adapter plate and exhaust bushing. They involve process space, gas delivery, temperature control, wafer support or transport interface, respectively, and cannot be replaced by each other because they are all located near the same chamber.

Alternatives also compare critical dimensions, vacuum interfaces, materials, surface treatments, cleanliness, temperature ranges, and chemical compatibility. Mechanical loading only indicates that a local condition is met; if the gas flow path, thermal performance, electrical characteristics or surface conditions are different, the process impact and acceptance conditions still need to be re-evaluated.

Perform a Final Cross-Check Before Submitting the RFQ

The 1 executable RFQ shall include the platform, mainframe, process chamber, wafer size, full item, revision, part description, quantity, and supply status. The old equipment is supplemented with serial number, photos of existing parts, interface size and historical transformation information. New parts, cleaning parts, maintenance parts or refurbished parts are required, and they should also be described separately, because these states correspond to different inspection items, life judgments and warranty boundaries.

Finally, the item number and version returned by the supplier are re-referenced to the old part label, assembly location and current configuration file. Only similar names, similar appearance or belonging to the same Endura series should not be the basis for placing orders.
