Amat Endura PVD: Proven Ways To Slash Tool Downtime

Slashing AMAT Endura PVD downtime requires migrating from OEM-schedule preventative maintenance to active Fault Detection and Classification monitoring, upgrading standard O-rings to high-temperature FFKM seals, and deploying pre-kitted source assemblies to cut routine PM times by up to 40%. A single hour of unexpected Endura downtime costs fab facilities tens of thousands of dollars in lost wafer throughput. We developed the “Zero-Downtime Endura Triangle” framework to eliminate ghost vacuum leaks, maximize sputtering target life, and stabilize robotic handling. Implement these precise engineering strategies to recover hundreds of production hours annually across your entire metallization fleet.

Why Traditional PM on AMAT Endura PVD Bleeds Fab Budgets

Blindly following the Original Equipment Manufacturer maintenance schedule guarantees you are throwing away usable consumable life and extending machine downtime. Maintenance engineers frequently replace dark space shields and targets based on fixed RF kilowatt-hour counts rather than actual degradation. This rigid methodology forces the tool offline for hours of chamber venting, physical replacement, and subsequent cryopump regeneration, even when the components could safely process hundreds of additional wafers.

Switching to a predictive maintenance model directly attacks the root causes of fab inefficiencies. Real-time monitoring of cryopump efficiency, slit valve actuation times, and plasma impedance provides an exact window into the physical state of the chamber. Tool owners executing data-driven PMs drastically reduce particle excursions while driving overall equipment effectiveness metrics to record highs.

A 3-Pillar Strategy for Maximum Uptime

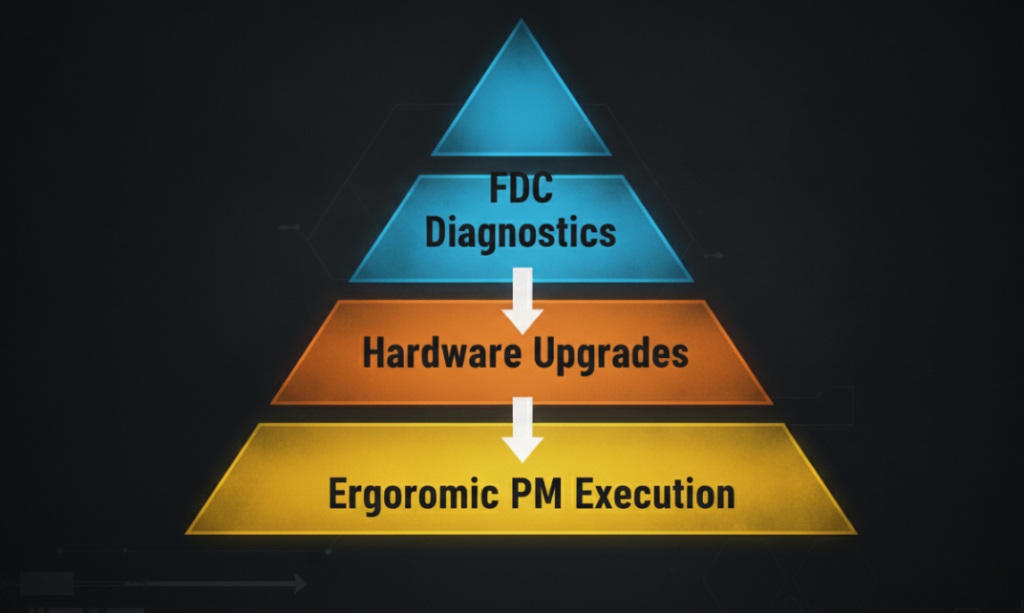

The Zero-Downtime Endura Triangle maps out a systematic approach to keeping your amat endura systems running. It replaces guesswork with an engineered structure focusing on advanced diagnostics, hardware upgrades, and ergonomic maintenance execution.

Pillar 1: Predictive Fault Detection Over Static PMs

Monitoring plasma impedance via FDC software predicts shield flaking events 48 hours before the first particle spike ruins a wafer. As aluminum or titanium builds up on the PVD shields, the electrical resistance of the chamber environment subtly shifts. Capturing this high-frequency RF match network data allows process engineers to pinpoint the exact moment the shield texture is saturated.

Tracking the regeneration cycle times of the chamber cryopumps prevents catastrophic vacuum failures mid-process. An aging cryopump takes progressively longer to hit base pressure after a target change. Plotting this rate-of-rise data over six months gives facility managers the exact week a compressor failure will occur, allowing them to swap the pump during a scheduled target change rather than facing an abrupt 12-hour abort.

Pillar 2: Eliminating the “Ghost Leak” Trap During Source Changes

Routine target changes account for 65% of preventable endura pvd downtime due to a phenomenon known as the “ghost leak.” Technicians often reuse slightly deformed cooling plate O-rings or apply uneven torque when bolting the heavy magnetron back into place. The chamber easily passes a cold static leak check, but once the RF plasma strikes and heats the assembly to 300°C, the warped metal expands, breaking the vacuum seal and causing severe oxidation on the product wafers.

Enforcing a strict, star-pattern torque sequence using calibrated digital torque wrenches eliminates thermal-expansion vacuum leaks completely. Coupling this mechanical procedure with high-grade thermal paste ensures even heat dissipation across the backing plate.

Pillar 3: Extending Consumable Lifespan with Advanced Materials

Upgrading slit valve O-rings to perfluoroelastomer eliminates the most frequent source of inter-chamber vacuum leaks. Standard Viton seals degrade rapidly under high-temperature outgassing and aggressive RF plasma exposure, leading to micro-cracking within three months. FFKM compounds withstand continuous exposure to extreme heat and harsh chamber cleaning chemistries, extending seal life from 90 days to over a year.

Deploying arc-sprayed textured shields prevents film delamination and doubles the preventative maintenance interval. Smooth stainless steel shields allow deposited metals to peel off quickly, creating massive particle defects. A highly textured surface area gives the sputtered film mechanical grip, allowing the shield to accumulate twice the thickness of metal before a chamber clean is required.

Viton vs. FFKM O-Rings in PVD Environments

Specification / Metric	Viton™ (Standard FKM)	FFKM (Perfluoroelastomer)
Max Temperature	~200°C to 210°C (392°F – 410°F)	Up to 300°C – 327°C (572°F – 620°F)
Plasma Resistance	Poor / Moderate. Prone to rapid etching, particle generation, and degradation in aggressive O2/Fluorine plasmas.	Excellent. Highly resistant to plasma etching; generates minimal to no particulate contamination.
Average Lifespan (in aggressive PVD)	1 to 4 Weeks. Requires frequent maintenance cycles (PM).	6 to 12+ Months. Significantly extends mean time between failures (MTBF).
ROI (Return on Investment)	Low. Cheap initial cost (~5−5−20), but causes high tool downtime, labor costs, and potential wafer scrap.	High. High initial cost (~100−100−300+), but saves tens of thousands of dollars by maximizing tool uptime and yield.

How Fab X Recovered 140 Hours of Annual Uptime

Fab X, a leading 200mm foundry, recovered 140 hours of lost production time per tool annually by redesigning their source rebuild workflow. Their baseline metric showed an average of 24 hours spent on a full PVD chamber PM. The primary bottleneck was technicians manually cleaning and assembling heavy shield sets while the tool sat idle.

Implementing pre-kitted, off-line shield assemblies reduced the mechanical intervention time by 40%. The maintenance team built complete “clean kits” on specialized alignment jigs in a separate cleanroom area. When the amat endura tool was vented, engineers simply swapped the entire pre-aligned assembly in one motion. This single operational pivot dropped the total PM time from 24 hours to 14 hours, instantly boosting the fab’s daily wafer output.

Advanced Robotic Handling and Slit Valve Optimization

Calibrating the VHP robot blade using laser-alignment tools stops wafer sliding and mechanical scratching. Visual teaching methods rely on human eyesight, which leaves a margin of error that causes the robot blade to clip the edge of the lift pins inside the PVD chamber. Laser-assisted teaching guarantees precise X-Y-Z axis placement, dropping robotic transfer errors to near zero.

Adjusting the pneumatic exhaust flow controls on the slit valves prevents the sudden pressure bursts that stir up dormant chamber particles. Fast-actuating doors create microscopic turbulence. Dialing back the actuation speed by just 0.5 seconds ensures a smooth, laminar flow transfer between the transfer chamber and the process module, keeping defect counts well below specification limits.

FAQs

How often should an AMAT Endura PVD cryopump be regenerated?
Regeneration depends entirely on process gas loads, but standard high-volume manufacturing protocols dictate a fast regeneration every 100 to 150 hours of active sputtering, with a full deep regeneration performed during every major chamber PM.

What causes wafer sliding on the Endura VHP robot blade?
Wafer sliding is primarily caused by degraded static charge on the blade surface, improper leveling of the transfer chamber, or aggressive acceleration/deceleration parameters in the robot motion software.

How can I extend the life of PVD targets in the Endura chamber?
Maximizing target utilization requires optimizing the magnetron sweep profiles. Upgrading to rotating magnetrons ensures a uniform erosion groove, allowing you to consume up to 45% of the target material before replacement is mandatory.

What is the difference between Endura 5500 and Endura 300mm platforms?
The Endura 5500 is the legacy standard for 150mm and 200mm wafer processing, utilizing a specific transfer chamber layout. The 300mm platform features an expanded footprint, advanced Factory Interface for FOUP handling, and upgraded dual-blade robots to manage the weight and size of larger substrates.

Why does my Endura system fail the rate-of-rise vacuum leak test after a target change?
ROR failures immediately following a target swap usually point to pinched O-rings on the target cooling plate, debris left on the main chamber sealing surface, or an improperly seated dark space shield interfering with the top lid closure.

How do I fix AMAT Endura slit valve particle issues?
Particle generation at the slit valve is fixed by replacing the main door seal, vacuuming the internal housing to remove accumulated metal flakes, and adjusting the pneumatic cylinder to prevent slamming during the open/close cycle.
