Yes, PVD is definitely standard for high-precision vacuum hardware surface treatment. It can deposit a layer of high-density, super-hard film on a metal or ceramic substrate, which can improve wear resistance, corrosion resistance and plasma etching resistance under the premise of almost no change in the dimensional tolerance of the parts. Most of the time we will compare it with CVD, but CVD can easily cause thermal deformation of precision metal parts at a high temperature of thousands of degrees, which engineers should have a deep understanding. PVD is a low-temperature plasma-assisted process, in the vacuum chamber through magnetron sputtering or cathodic arc, can achieve strong atomic-level adhesion, ultra-high density, and almost no secondary particle pollution. Especially in the extremely demanding industry of semiconductor manufacturing, PVD coating is like putting a layer of body armor on the parts, which not only prevents metal pollution, but also depresses the downtime maintenance cost of the equipment.

Solve The Early Failure Of Parts And Particle Pollution

In advanced manufacturing and high vacuum processes, parts are actually very difficult to live, suffering from severe mechanical wear, chemical corrosion and hot and cold cycles every day. The early failure of parts is often not just a matter of mechanical damage, its most lethal effect is the particle contamination that can destroy your yield.

If the precision parts in the vacuum chamber are not protected by coating, the surface of the substrate is prone to degradation under the double impact of micro-friction and harsh environment, releasing a large number of sub-micron dust particles. These invisible things float in the vacuum chamber. Once they fall on the wafer or substrate, they basically declare the film scrapped.

The principle of action of PVD technology is simple: a high-strength protective layer is directly “welded” to the surface of these hardware. Without microscopic spalling and friction, the source of particle generation is naturally cut off and the vacuum environment is stabilized. This trick has been tried and tested repeatedly to solve the wear of the inner wall of the cavity and the moving parts.

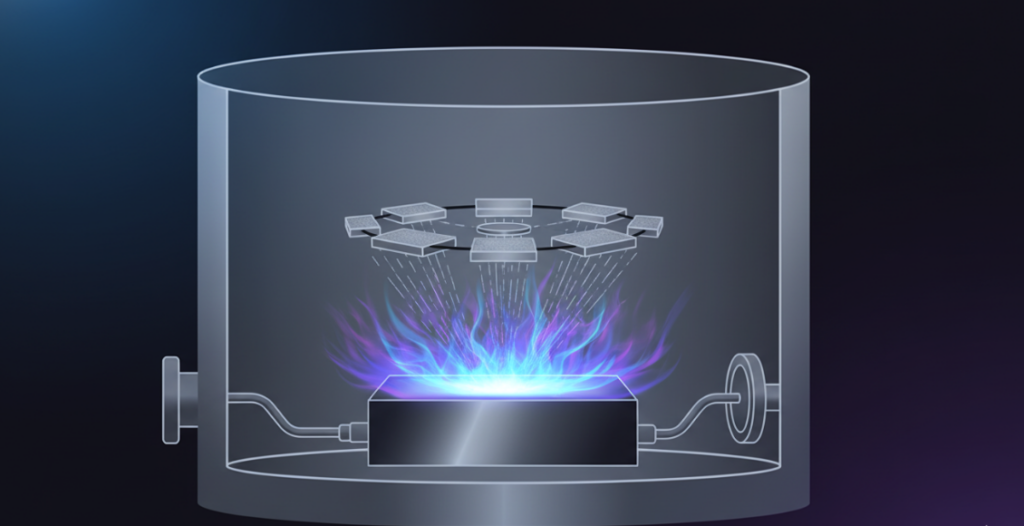

Schematic diagram of the working principle of PVD vacuum cavity

Advanced PVD Films And Substrate Compatibility

PVD can deposit a variety of high-density ceramics or metal compounds onto almost any metal and ceramic substrate. For different working conditions, the industry generally has the following mainstream options:

The first is titanium nitride. Everyone is familiar with its iconic golden appearance. It is the first choice to solve the wear of mechanical wear, sliding contact and precision conveying parts.

Followed by chromium nitride. It is not only good toughness, chemical stability is also more prominent, if your parts need to face a variety of corrosive process gases, or need to often use corrosive chemicals to clean, choose CrN often can save a lot of trouble.

Then there is yttrium oxide. In high-density plasma processes containing fluorine or chlorine, ordinary metal parts usually do not last long. Y2O3 provides an extremely strong plasma erosion barrier.

These advanced coatings with our commonly used stainless steel, high-grade aluminum alloys, and even industrial ceramics such as alumina and quartz can be closely intertwined to form a uniform and reliable protective layer.

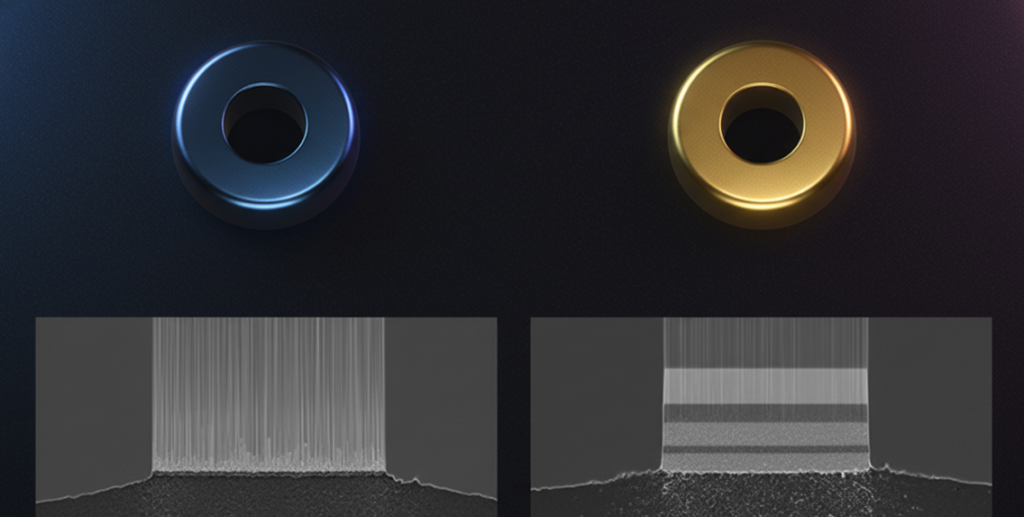

Appearance after PVD coating and corresponding cross-sectional electron microscopic comparison

Retain The Ultimate Dimensional Tolerance Of Precision Hardware

Vacuum seal doors, gas distribution plates, wafer trays or internal protective covers, as long as the size of even a few microns deviation, it may lead to vacuum leakage or mechanical stuck.People used to use thermal spraying or electroplating cheaply, but the coatings made by these processes were thick and uneven, and secondary mechanical processing had to be carried out after completion, which was time-consuming, laborious and easy to destroy the accuracy.

Based on the atomic deposition characteristics of PVD, it can accurately control the thickness of the coating between 1 and 5 microns, and it is extremely uniform. How thin is this thickness? It allows you to change the thread accuracy, fit clearance and sealing surface of the original part almost zero, and the coating can be installed and used directly after it is finished, without any secondary rework.

PVD Vs. CVD: The Low-Temperature Advantage

Although CVD has good performance, it relies on chemical reactions at 800°C or even above 1000°C. This temperature is simply a disaster for precision-machined aluminum alloys. The light part warps and the heavy part directly destroys the heat treatment organization of tool steel.In contrast, PVD presses the operating temperature to a low range of 150°C to 450°C in a high vacuum chamber. Through the addition of plasma, excellent compactness and binding force can be achieved without high temperature:

Magnetron sputtering: The magnetic field is used to constrain ions to “impact” the target, and the deposited film is extremely uniform and the surface roughness is extremely low, which is suitable for places with extremely high requirements for flatness.

Cathodic arc deposition: the material is directly vaporized and ionized by high-energy arc, and the plasma ionization degree is extremely high, so the adhesion and density of the film layer are also top.

This kind of low-temperature processing can ensure that the precision parts carefully processed by you will not undergo any thermal deformation and the foundation will be intact as before.

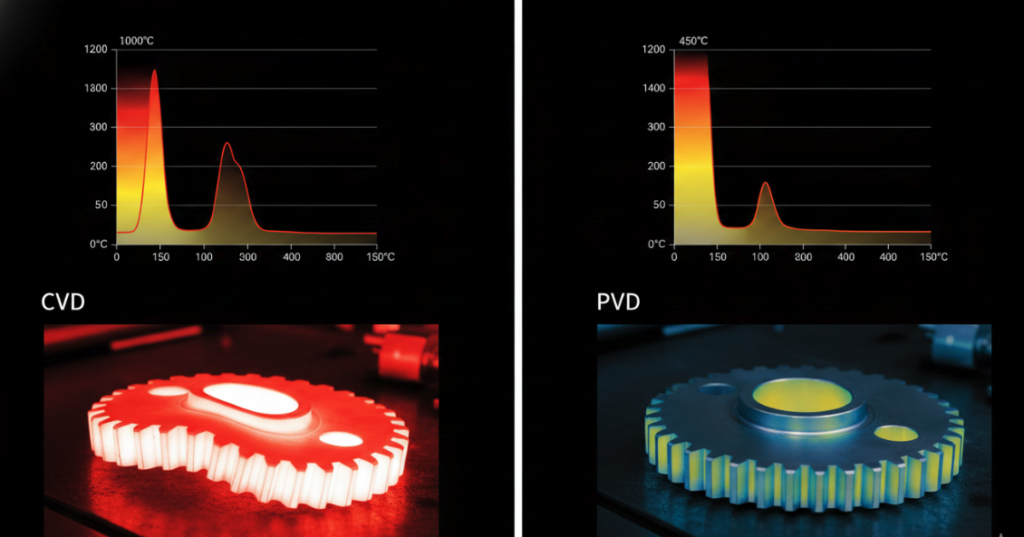

Comparison of PVD and CVD process temperature and workpiece thermal deformation

Extend The Service Life And Eliminate High Maintenance Costs

In industries such as semiconductor manufacturing, where productivity and uptime are extremely sought, the operational efficiency of equipment is life. If the parts in the vacuum chamber that are easy to wear and be eroded by plasma are running naked, you will have to stop the machine before long to do complicated wet clean or replace new parts, which will cause a lot of downtime loss to make people feel painful.Bare metal parts are susceptible to outgassing and metal contamination under plasma bombardment, directly destroying expensive products.

After PVD coating these parts, the return on investment on the book is very obvious:

Double life: parts with protective film resistance to wear and corrosion resistance are doubled, and can last several times longer than parts without coating.

Eliminate metal contamination: The dense PVD film is like a big lock, which deadlocks the metal ions in the substrate and prevents them from polluting the cavity environment.

The extension of the maintenance cycle: the parts are not bad, the cavity is not dirty, and the interval of daily preventive maintenance (PM) can naturally be extremely long, which not only saves labor, but also greatly releases the productivity of the equipment.

Picking the right PVD coating process is about finding that most profitable balance between high process performance and long-term operating costs. If you do this well, the potential of high-precision vacuum hardware will be brought into full play.
