amat endura 5500: Modular PVD Platform and Spare Parts

Get to know the amat endura 5500 platform

The amat endura 5500 is a common name for a historical PVD platform in the semiconductor equipment industry. AMAT is the stock symbol and common abbreviation of Applied Materials, a manufacturer of semiconductor manufacturing equipment. Endura is a series of physical vapor deposition platforms under Applied Materials. It should be noted that applied materials endura 5500 and amat endura 5500 point to the same platform, except that the former uses the full company name and the latter uses the stock code abbreviation. Historical records describe the Endura 5500 as a modular monolithic multi-cavity platform that can accommodate ultra-high vacuum PVD processes while also carrying conventional high vacuum chemical vapor deposition and etching processes. This historical positioning indicates that it is a highly integrated equipment platform, rather than a single process cavity.

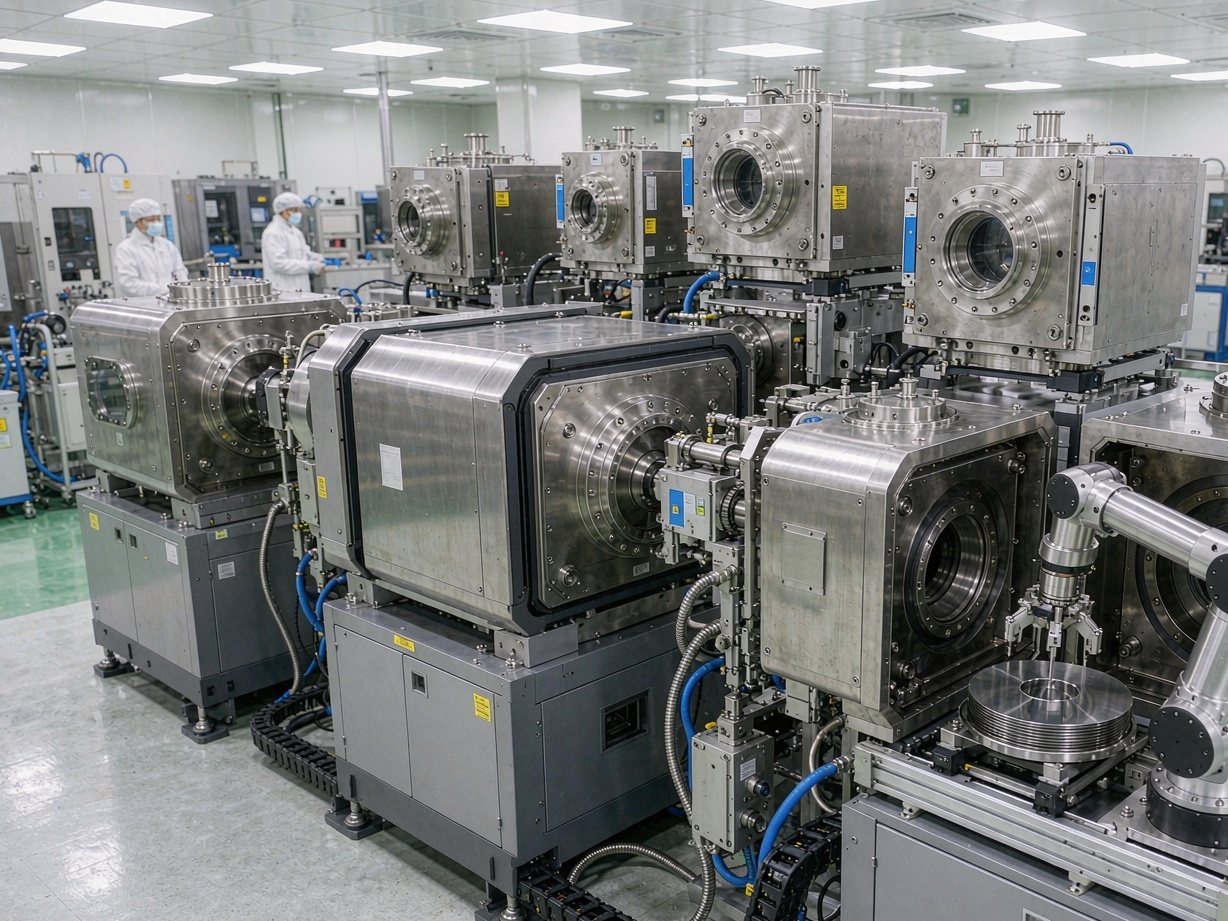

Modular multi-cavity architecture and cavity configuration

Monolithic multi-cavity equipment typically consists of a base platform, wafer transfer system, loading lock, one or more process cavities, and vacuum and control subsystems. The Endura 5500 is one such platform that can connect different process cavities to the same wafer transport environment, allowing wafers to continuously complete multiple process steps under controlled vacuum conditions. The currently disclosed Endura PVD product information describes the configuration capabilities of up to nine process cavities, which may include two pre-cleaned cavities and are geared towards applications of 150 mm and 200 mm. It is important to emphasize that the number of cavities is the upper limit of platform-level configurability and does not mean that every device is equipped with the same number or type of cavities. The Endura platform can integrate pre-cleaning and multiple metal deposition steps in a controlled vacuum environment, thereby reducing vacuum interruptions during multi-step metallization processes.

Process positioning and historical evolution

From a process perspective, PVD equipment uses solid targets as the source of deposition materials, mainly for the deposition of metals and related thin films. Applied Materials’ semiconductor PVD disclosure uses the Endura series as an important platform example, with applications covering metallization, aluminum and copper interconnects, and partially encapsulating metal layers. Specifically, Endura 5500 is a platform name that appears in historical public information. Like Endura II, Endura HP, Endura TXZ and other names, it represents different eras or different configurations and cannot be directly regarded as the same hardware version. In other words, although these names all contain the word Endura, they must be treated as different platform configurations when doing equipment identification and spare parts matching, and cannot be interchanged by name.

How to identify Endura 5500 parts

As a historical platform, providing only platform terms such as amat endura 5500 when procuring its components is usually insufficient to achieve a unique component match. A more prudent approach is to check each level according to the hierarchy of platform, host, process cavity, process kit, wafer size, material number, and revision. The types of cavity components appearing in the publicly available materials are very diverse, including cavity bodies, liners, shields, panels, baffles, bases, rings, manifolds, covers, adapters, wafer lifting assemblies, robot blades, lifting rings, heaters, and insulators. These components with similar names often have different structures, materials, and applicable cavities, and cannot be considered interchangeable based solely on their similar appearance or description. For older or refurbished equipment, the equipment serial number, photos of existing parts, interface dimensions, old part identification, and historical modifications and software or control versions should also be recorded. This information can help narrow down the identification range.

Wuxi Zhanshuo’s Endura 5500 parts support

Wuxi Chinsor Technology Co., Ltd., whose English name is Wuxi Chinsor Technology Co., Ltd. and brand name is CHINSOR, was established in 2017 and is located in the Optoelectronics Technology Park, Liangxi District, Wuxi City, Jiangsu Province. Its business interests include semiconductor component research and development and manufacturing, as well as after-sales service of related equipment. In the customer product list, Endura 5500 PVD is the platform tool expression with the largest number of records, covering some of the platform’s components. The list also includes components for other equipment or process configurations such as Centura 5200, P5000, and Emax. It should be noted that the coverage of the product list is not equivalent to real-time inventory, the maintenance capacity of all production products, or all models. When making an actual inquiry, the target material number and required quantity need to be provided for the parts inquiry; if a CIF quote is required, the port of destination should also be provided. When the material number is insufficient to confirm the product, old photos, design materials, or physical samples can be added for identification.

Conclusion

Understanding the architecture, historical positioning, and component identification methods of the Amat Endura 5500 platform can be of practical help in equipment maintenance and spare parts procurement. For this platform, whether it is called amat endura 5500 or applied materials endura 5500, the key is to confirm the adaptation relationship between parts and equipment step by step based on the material number and installation configuration in order to avoid purchasing mismatched parts.
