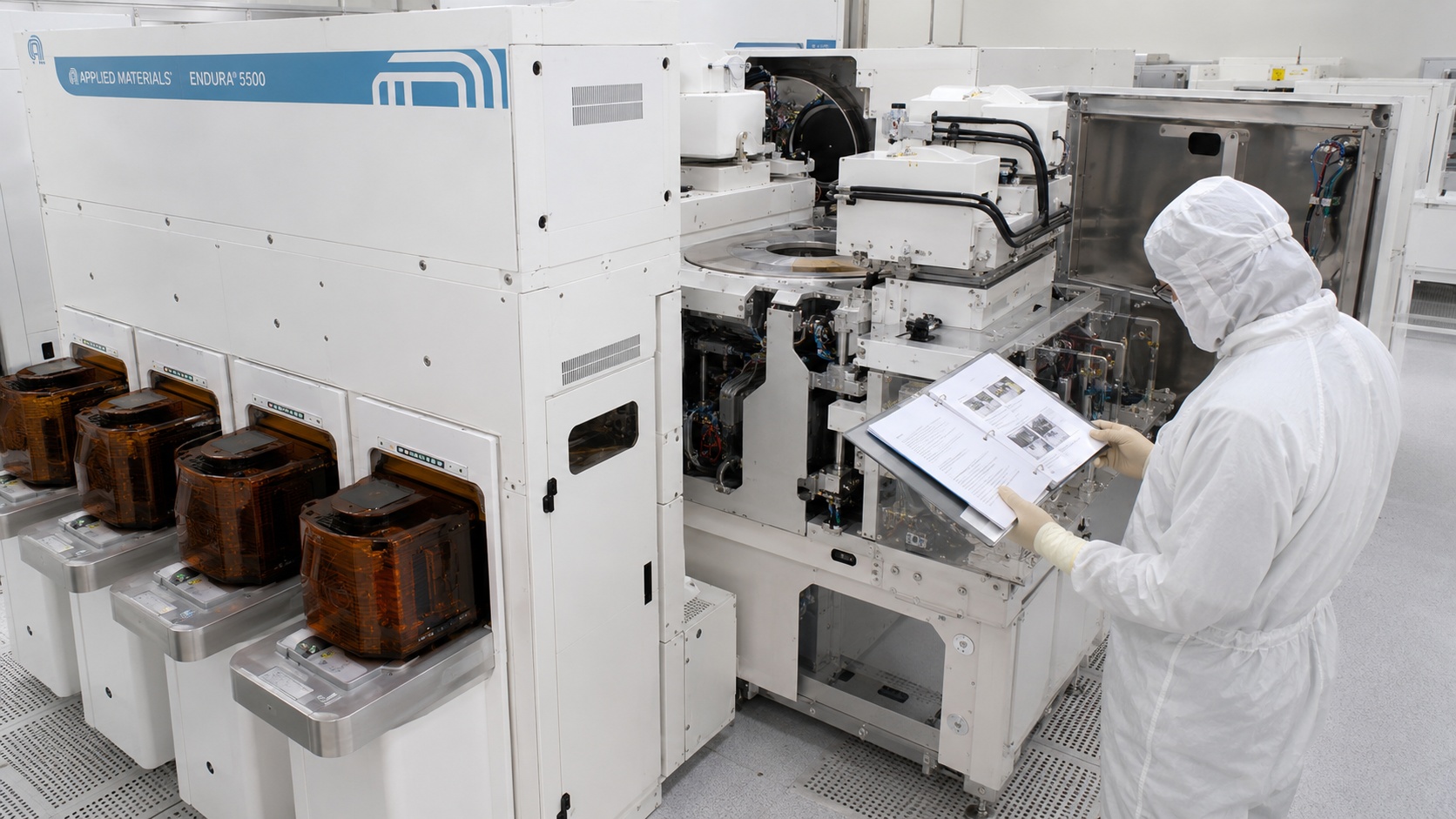

Amat Endura 5500 Manual: How To Find And Use The Right Documentation

Most people who have used the Endura 5500 will encounter the same thing: they want to find a manual, enter the device name, but get a variety of results and don’t know which one to use. This situation is common, mainly because the platform itself spans too large a range.

One manual is often not enough

Endura is Applied Materials’ PVD platform family, a family spanning multiple eras and configurations. Historical records describe the Endura 5500 as a modular, monolithic, multi-cavity platform that can accommodate both ultra-high vacuum PVD processes and a combination of conventional high vacuum CVD and etching processes. Which cavities and processes are installed on the same host directly determines which set of documents it corresponds to.

For this reason, it is usually impossible to directly locate the specific host file, PVD cavity file, or subsystem file by simply looking for the manual by the device name. Endura, Endura 5500, Endura II, Endura HP and other products with suffixes cannot interchange files just because the platform names are the same. The device files must correspond one-to-one with the actual installation configuration.

What files might be behind a device

Several types of documentation are typically involved around a multi-cavity device, including safety instructions, site and installation requirements, operation manuals, preventative maintenance documents, repair manuals, process cavity documents, parts catalogs, bills of materials, drawings, software instructions, and upgrade materials. They each solve different problems. The operation manual cannot automatically replace the maintenance manual, the platform manual cannot automatically replace the process cavity manual, and the parts catalog cannot replace the safety procedure.

When checking the data of multi-cavity equipment, you should also look at the host file, transmission system file, loading lock file, specific process cavity file and related subsystem files together. When parts need to be identified, give priority to using the formal parts list, bill of materials, assembly drawings and engineering change information corresponding to the equipment configuration, and try not to use a single appearance diagram to infer the material number.

Where to get the official documents

Applied Materials’ customer portal provides product documentation, parts lists, and system enhancement information, but it is a controlled document portal, and access rights require compliance with the portal’s registration and approval conditions. To obtain information about a specific device, you should request documents that match the actual configuration from the customer portal, regional service contact channels, or the legitimate source of the device.

There’s a common misconception here: not being able to find a download link through public channels doesn’t mean the platform doesn’t have an official manual. Documentation for historical devices is often only provided to eligible customers, device owners, or service recipients. Public product pages, annual reports, patents, and press releases can help confirm platform history and process categories, but they cannot replace equipment operation, maintenance, safety, or parts manuals.

Check the version before using

Don’t rush to follow the manual after you get it. Before use, you need to check the document title, document number, revision, release date, applicable platform, system type, cavity name, wafer size and software version, and then compare it with the device model, serial number, manufacturing time, hardware revision, installed options and modification records to confirm that this document is consistent with the installed equipment.

This is especially important for older equipment. The same platform name may span multiple processes, multiple eras, and multiple wafer sizes. Newer files may not be suitable for older hardware, and older files cannot cover subsequent upgrades. The part numbers, drawings, and maintenance procedures in the documents will be updated as the project changes occur. The material numbers in the manual cannot be directly regarded as procurement conclusions until the revised version is verified. If a scanned document encounters missing pages, abnormal page numbers, blurry drawings, incomplete titles, or missing revision pages, it should be treated as an incomplete document and should not be used as the sole technical basis.

Document boundaries of Endura 5500

Even after narrowing the scope to Endura 5500, the boundaries must still be maintained. Historical platform information for the Endura 5500 cannot replace a specific equipment’s installation configuration, process cavity documents, software instructions, or current parts catalog. When judging parts, it is necessary to locate them using the material number, part location, illustration and bill of materials, and record the document number and revision of the manual so that the conclusion can be traced back to the corresponding document version.

Third-party scanning manuals can provide clues to candidate part locations or old part numbers, but must be reviewed with official part documents, engineering change information, or verified installation records. For equipment that has been refurbished or upgraded, the installed hardware, modification records and current configuration files should be used as the basis. Copying the product name from the factory is often unreliable.

Safety and usage restrictions

Finally, we need to talk about using boundaries. Equipment operation, maintenance, and repair shall be carried out by trained and authorized personnel in accordance with the official documentation of the matching version. The operating conditions, maintenance procedures, and interlocking information in the manual cannot be extrapolated from other platforms or similar cavities. Before confirming the current condition of the equipment, hazardous energy sources, process residues, and on-site safety conditions, disassembly, assembly, powering, vacuuming, or process operation should not be carried out based solely on a manual available online.

For those who need to purchase or replace parts for the Endura 5500, the significance of using the manual correctly lies in ensuring that every judgment falls on a traceable version of the document. Rather than obsessing over finding a so-called universal Endura 5500 manual, it’s better to first align the three things of device identity, cavity configuration, and documentation version so that subsequent selection, inquiry, and maintenance can be based on reliability.
