amat endura 300mm: Platform and Wafer Size Explained

What is Endura

Applied Materials is a semiconductor equipment manufacturer, and AMAT is its stock symbol on the market and is often used as the company’s abbreviation. Many people search for amat endura 300mm or applied materials 300mm endura, essentially trying to confirm the same thing: does Applied Materials’ Endura platform have models for 300mm wafers, and how to find the corresponding cavities and components.

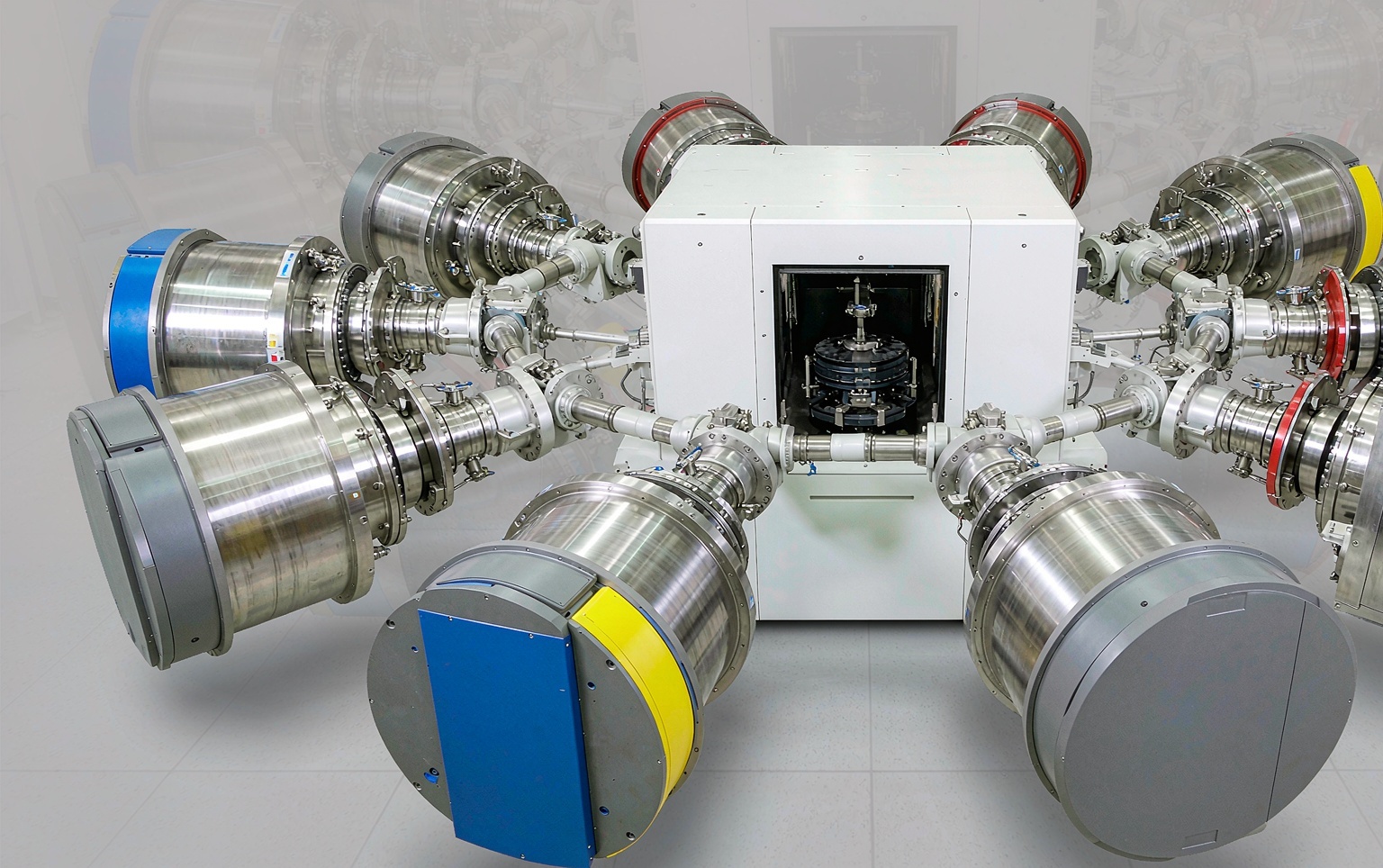

Endura is a PVD platform series from Applied Materials. PVD is physical vapor deposition. The equipment uses a solid target as the deposition material source and uses plasma to separate the target atoms and deposit them on the wafer surface. It is mainly used for metal and related thin film deposition. In publicly available information, applications of Endura coverage include front-end metallization, aluminum and copper interconnects, and sub-bump metallization in packages.

A notable feature of Endura is its integrated multi-step architecture, which allows pre-cleaning and multiple metal deposition steps to be performed in the same controlled vacuum environment, reducing vacuum interruptions during multi-step metallization. The currently available Endura PVD product information describes the configuration capabilities of up to nine process cavities, which may include two pre-cleaning cavities. The number of cavities here is the upper limit of platform-level configurability and does not mean that every device is equipped with the same number and type of cavities.

The relationship between 300mm and Endura

This is the most important concern for people searching for these types of keywords. As far as the current public information is concerned, the current Endura PVD product page is aimed at 150mm and 200mm applications, and there is no public information in the knowledge base that describes Endura as a 300mm platform. The names Endura 5500, Endura II, Endura HP, Endura TXZ, etc. that appear in historical materials represent different eras or different configurations and cannot be directly regarded as the same hardware version.

So where did the keyword 300mm come from? Public historical data shows that official data from 2000 matched 300mm products of eMax, IPS, Metal Etch DPS and Silicon Etch DPS with the Centura 300 platform, in addition to 300mm products such as Epi Centura 300 and Radiance Centura 300; current Producer CVD product data also covers 150mm, 200mm and 300mm wafers. That said, the 300mm is more associated with historical or current products from platforms like Centura and Producer than with Endura’s publicly available configuration.

This also explains why there are risks in placing an order directly using terms like applied materials 300mm endura: wafer size is only one of the compatibility conditions, and the platform name itself cannot determine the process capabilities of a device alone. The same platform may be equipped with different process cavities, different wafer size configurations and different hardware versions.

How to check component and wafer dimensions

If the procurement target is Endura-related components, at least several levels must be confirmed simultaneously: platform series, host model, process cavity type, wafer size, material number, and revision. Only platform words like amat endura 300mm are usually not enough to complete a unique part match.

Specifically regarding wafer size, the Endura 5500 PVD is the platform tool expression with the largest number of records in the customer product list, and its corresponding parts are mostly 6-inch and 8-inch calibers; while the 300mm parts in the list mainly appear on tools such as Emax etching and HDP-CVD. This indicates that in the product range of a parts supplier, 300mm and Endura do not automatically correspond and must be checked item by item according to the specific material number and description.

When inquiring, you should also record the equipment serial number, photos of the installed parts, interface dimensions, old part identification, and modification records, especially for refurbished equipment. The same English description may correspond to multiple material numbers or revisions, and the same material number may also be limited by cavity configuration, wafer size, or process kit.

Wuxi Zhanshuo parts support

Wuxi Chinsor Technology Co., Ltd., also known as Wuxi Chinsor Technology Co., Ltd. and branded as CHINSOR, is engaged in the research and development and manufacturing of semiconductor equipment components and provides after-sales service for related equipment. PVD, CVD and ETCH equipment spare parts and mechanical components are its main business scope. The company’s customer product list contains a total of 285 original component records, of which 281 are unique material numbers, covering a variety of cavity and platform components such as chamber body, liner, shield, faceplate, pedestal, ring, etc.

If your target device is indeed an Endura PVD, or if you need 300mm etching, CVD-related parts, you can inquire with the material number and required quantity. For cases where the wafer size and platform are still uncertain, it is recommended to first provide the equipment nameplate, cavity name and old part identification, and then gradually confirm to the specific material number. This can avoid the adaptation risks brought by placing an order based solely on keywords such as amat endura 300mm.
