AMAT Centura: Next-Gen Upgrades to Maximize Fab Yield

If you want to squeeze the yield to the limit on the AMAT (Applied Materials) Centura machine, relying solely on the original factory standard preventive maintenance (PM) is no longer enough. You have to perform a targeted next-generation hardware overhaul: replace the old VHP robotic arm with a high-torque version, introduce edge AI (Edge-AI) for real-time fault detection and classification (FDC), and completely eliminate the drift problem of the MFC (mass flow controller) in the gas cylinder cabinet. Nowadays, many wafer fab (Fab) managers still cling to the factory benchmark specifications of those old Centura consoles, resulting in the loss of 2-3% of the machine utilization rate (Uptime) for nothing. In this article, let’s completely dismantle how the top Fab managed to force 200mm and 300mm old equipment beyond the limits of modern production capacity by relying on non-standard hardware modifications, sensor fusion, and kinematic tuning.

Centura 3D Yield Matrix: An Optimization Framework for Older Machines

To upgrade the Centura system, we must never rely on passive parts “which are either broken or replaced” to blind snip the sniper. This requires a rigorous engineering logic. The so-called “Centura three-dimensional yield matrix” is to decompose the machine optimization into three interconnected dimensions: eliminating the risk of component obsolescence, struggling with kinematic accuracy, and superimposing predictive sensors.

Phase 1: Eliminating The Risk Of Component Obsolescence

Aging single-board computers (SBCs) and outdated VMEbus architectures are often the culprits for sudden host computer downtime. Replacing these old-fashioned devices directly with modern solid-state simulators can instantly curb MTBF (mean time between failures) avalanches. For those power modules and radio frequency (RF) generators that have been discontinued (EOL), engineers must find reliable supply channels in the second-hand market or find authorized third parties to modify them.

Phase 2: Fighting For Kinematic Accuracy

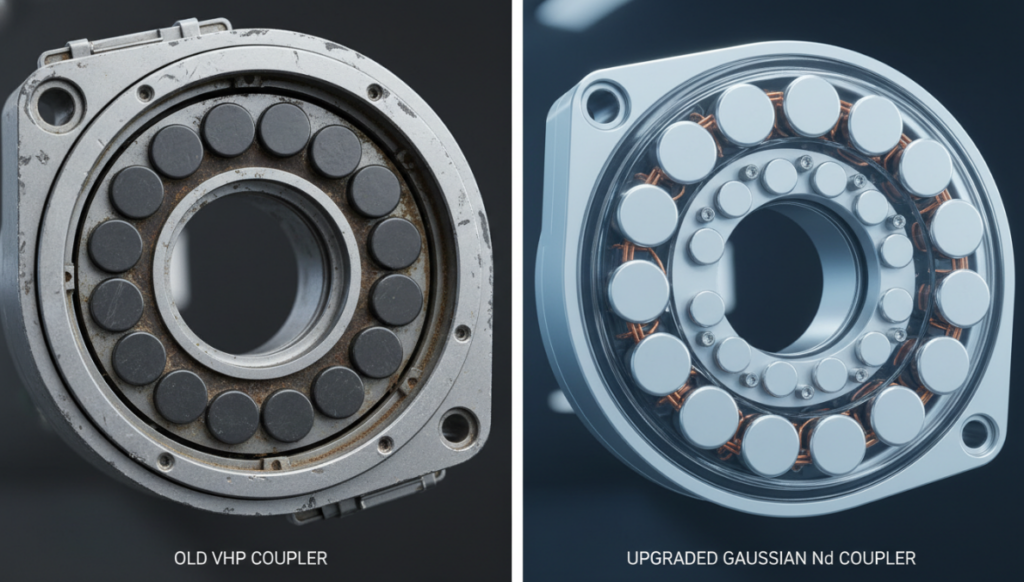

The accuracy of the transfer directly determines the physical defect rate. Upgrading the central transmission cavity can effectively avoid wafer micro-scratches and particle (Particle) splashing. The core here is the drive unit of the VHP (ultra-high capacity) robotic arm ——the badly worn polyferromagnetic coupler must be eliminated and replaced with a modern Gaussian neodymium magnet version to completely eliminate the mechanical backlash (void position) during wafer handover.

Phase 3: Superimposing Predictive Sensors

Early Centura systems simply did not have the high-frequency data sampling capabilities of modern devices. The countermeasure is to plug-in non-intrusive Internet of Things (IoT) sensors on the process chamber exhaust line and radio frequency matching network (Match Network) to directly capture high-fidelity data. The advantage of this is that real-time parameter drift detection can be achieved without having to make drastic changes to the original SECS/GEM communication protocol of the machine.

Centura’s high-reward hardware upgrade

To squeeze those few percentage points of yield improvement out of these mature devices, you have to be ruthless in the gas delivery and plasma stabilization subsystems.

Eradication Of MFC Drift In Cylinder Cabinets

Analog mass flow controllers (MFCs) age over time, leading to subtle chemical mismatch in CVD or etching processes. Replacing the digital MFC directly in the gas cylinder cabinet, which is not affected by pressure fluctuations, can ensure that even if the pressure of the gas supply pipeline in the factory is pumped out, the air intake curve of the machine can be stable and steady. This purely digital replacement directly smoothes out the analog-to-digital conversion errors that come with the older generation AMAT I/O boards.

Evaluation Dimension	Traditional Analog MFC	Digital Pressure-Insensitive (PI) MFC	Practical Context & Impact
Response Time	1000 ms ~ 2000 ms (1.0 – 2.0 sec)	< 100 ms (Typically 50 ~ 100 ms)	PI-MFCs use advanced digital algorithms for ultra-fast stabilization, which is critical for short-step processes like ALD.
Flow Drift Rate (under upstream pressure transients)	± 1.0% to ± 2.0% of F.S. (Full Scale)	< ± 0.5% of S.P. (Set Point)	Analog MFCs suffer from flow variations (“cross-talk”) when adjacent gas lines open/close. PI-MFCs dynamically compensate for pressure changes.
Yield Impact Coefficient* (Relative flow-induced defect rate)	High Impact (Baseline Index: 1.0)	Minimal Impact (Index: < 0.1)	Flow spikes in analog MFCs often cause particle generation and uneven deposition. PI-MFCs eliminate these spikes, significantly improving wafer yield.

Modernization Of RPS (Remote Plasma Source)

Standard RPS modules equipped on early Centura consoles were often accompanied by ignition delays and severe modular aging problems. After upgrading to the new generation of high-dissipation RPS modules, the dissociation rate of NF3 (nitrogen trifluoride) during chamber cleaning can be completely stabilized. The faster and more thorough the cleaning speed, the higher the wafer output will be directly exchanged, and the number of parts that can cause defects will also drop sharply.

A Guide to Practical Pitfalls: The Most Common Mistakes Fab Supervisors Make

Even battle-hardened maintenance teams often create new failure modes when modifying old machines. If you want to avoid a yield failure after upgrading, avoid the following two deep pits.

Slit Valve (Slit Valve) Timing Trap

Switching to a faster VHP robotic arm without recalibrating the slit valve opening timing is definitely laying a mine in the wafer micro-scratch. A common mistake maintenance technicians make is to install a new robotic arm drive, run a standard Macro counterpoint, and then throw it back to production. What about the results? The robotic arm ran too fast, and before the pneumatic mechanical structure of the slit valve could fully retract, the arm rushed into the chamber. You have to modify the machine’s Macro program and force a 50-100 millisecond delay in the valve to ensure that the valve completely leaves the physical interference zone before the end effector (End-effector) reaches in.

RF Matching Network Blind Spots

By simply replacing the RF generator while ignoring the physical wear and tear inside the automatic matching network, the plasma will sooner or later be on the verge of losing control. Process engineers have a habit of pinning the problem on the chemical environment of the chamber, but in reality, it is often the aging stepper motors in the Match Box (matching box) that are spinning too slowly to keep up with the rhythm of tuning the capacitors. Remember this: as long as the main RF power supply is upgraded, the entire matching network must be refurbished with a high-speed stepper motor. This is an iron rule.

Practical case: A 300mm Fab regained a 4% yield using edge AI

A major head memory chip manufacturer successfully suppressed the micro-arcing (micro-arcing) defect in the AMAT Centura etching cavity by deploying a high-frequency edge AI voltage sensor.

Their engineering team did it cleverly: bypassing the slow SECS/GEM polling limit of the power station itself (usually only 1Hz), they clamped an oscilloscope-level sensor directly on the RF output line to grab the waveform at an ultra-high frequency of 10kHz. The local AI model can accurately capture the microvoltage drop that lasts only 5 milliseconds ——this is not even visible in the Centura’s built-in log file. Once the pull arc is predicted, the system immediately Abort (terminates) the process step. Thanks to this, the Fab has saved countless batches of expensive 300mm logic wafers, which directly generates an additional $1.2 million in net profit for the company each year for a single cluster (Cluster).

FAQs

How exactly does upgrading RPS increase production capacity?

Modern remote plasma sources are much more efficient at dissociating clean gases (such as NF3). This can cut off nearly 30% of the forced cavity washing time between two tablet runs, directly and roughly raising the total number of wafers that the machine can process per day.

Can AMAT Centura run modern SECS/GEM data collection?

No problem at all. You can upgrade your old SBC (single board computer) to a modern emulator. This way, instead of going to great lengths to find the original manufacturer to replace it with a complete new software and operating system, the machine can directly support faster SECS/GEM polling rates.

What’s with the old VHP robotic arm (Drop Wafer) in the Centura console?

The chip drop is basically caused by two reasons: either the magnetic coupling inside the robot arm drive hub has aged and demagnetized, or there is a problem with the vacuum sensor reading on the end effector. Upgrading the drive mechanism and replacing all old analog vacuum switches with high-precision digital vacuum sensors can cure this disease.

How to solve the problem of Centura old machine parts discontinued (EOL)?

The fabs are now basically “a three-pronged approach”: find a certified third party to go through the repair process; use modern replacement cards made by reverse engineering; and the most practical move ——go to the second-hand market in advance to stock up on refurbished parts before a major failure occurs.

After the upgraded AMAT Centura, how much MTBF can it reach?

For old machines that have never been used, MTBF basically hovers around for 300-400 hours. But if the full set of modifications —replaced with digital MFC, new VHP drive and solid-state computer emulator— is completed, MTBF will easily exceed the 1,200-hour mark.
