It is essentially a high-vacuum multi-chamber platform for high-volume production (HVM) advanced physical and chemical vapor deposition (PVD/CVD) in fabs. Just looking at the original factory operation manual, you can’t squeeze the limit capacity of this equipment. Every year, due to chamber matching misalignment and condensate pump (Cryopump) management is not in place, yield optimization experts and supply chain executives have wasted millions of dollars in recoverable operating expenses . This article does not talk about the boring parameters that official website can download. We directly look at the yield maximization, defect density crushing and full life cycle management framework of top fabs in the advanced process metallization process.

Architecture Dismantling: Lose the Bottom Logic of Original Factory Brochures

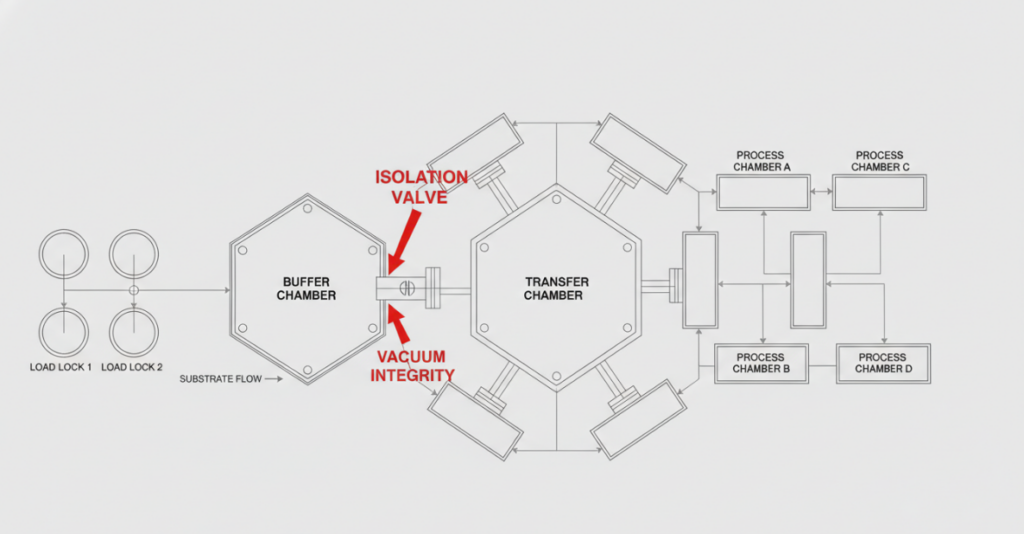

The core of the dual transfer chamber design is physical isolation, which must completely block cross-contamination between high-pressure CVD and ultra-high vacuum PVD modules. Buffer chamber is responsible for the atmospheric pressure conversion and wafer degassing , the wafer is accurately fed into the high vacuum transfer chamber. The process engineer must knock the transmission path of the robot arm here, even if the wafer residence time is shortened by a few seconds, the drift of the thermal budget can be greatly reduced.

Entering the interconnection metallization stage of nodes below 5nm, the vacuum requirement is extremely abnormal, and the basic cavity pressure must approach 10-9 Torr. The conventional leak detection SOP can not catch the micro leakage caused by the aging of the O-ring of the pre-cleaning module . The veteran simply threw away all the standard fluoropolymer sealing rings in the sputtering etching chamber and replaced them with customized high-temperature perfluoroelastomer, which just lengthened the mean time to failure (MTBF) by 1200 process hours.

Exclusive thinking model: Endura third-order OEE optimization matrix

Think of Endura as a patchwork of independent chambers, and your overall equipment efficiency (OEE) will always be stuck at the bottleneck. The play of the high-yield fab is to treat this equipment as a dynamic linkage ecosystem. The “Endura 3-Stage OEE Optimization Matrix” (third-order OEE optimization matrix) that we run through can directly evolve the factory operation from the fire-fighting mode of “which is bad and which is repaired” to the prediction mode of rapid production capacity increase.Entering the interconnection metallization stage of nodes below 5nm, the vacuum requirement is extremely abnormal, and the basic cavity pressure must approach 10-9 Torr. The conventional leak detection SOP can not catch the micro leakage caused by the aging of the O-ring of the pre-cleaning module (Pre-clean). The veteran simply threw away all the standard fluoropolymer sealing rings in the sputtering etching chamber and replaced them with customized high-temperature perfluoroelastomer, which just lengthened the mean time to failure (MTBF) by 1200 process hours.

Exclusive thinking model: Endura third-order OEE optimization matrix

Think of Endura as a patchwork of independent chambers, and your overall equipment efficiency (OEE) will always be stuck at the bottleneck. The play of the high-yield fab is to treat this equipment as a dynamic linkage ecosystem. The “Endura 3-Stage OEE Optimization Matrix” (third-order OEE optimization matrix) that we run through can directly evolve the factory operation from the fire-fighting mode of “which is bad and which is repaired” to the prediction mode of rapid production capacity increase.

Phase 1: Hardware Baseline and Baffle Reconfiguration
The surface texture of the PVD shield directly determines the defect density and kit life. The default baffles given by the original factory are mostly conventional sandblasting, and the target utilization rate is very high. Specific to the actual production line, the surface roughness (Ra) of the baffle must be removed according to the deposited metal. For example, when hitting a titanium target, it is replaced by a deeper arc spraying aluminum coating, which can bite stray atoms and greatly delay the time point of peeling (Flaking).

Phase 2: Process chamber dynamic matching
The RF generator output fluctuation and the response time difference of the mass flow controller (MFC) are the main reasons for the process drift of the same configuration process chamber. The fab must go online with a high-frequency data recording system that keeps an eye on the true plasma glow delay (Plasma strike latency) in each chamber. According to the impedance difference of the whole equipment to reverse calibrate MFC, this is the only solution to ensure that no matter which chamber the wafer enters, the thin film sheet resistance (Rs) can be absolutely consistent.

Phase 3: Predictive Vacuum Management
Condensate pump (Cryopump) regeneration plan is simply the number one cancer of equipment downtime. Stop scheduling the regeneration cycle according to the calendar time, and directly synchronize the regeneration nodes according to the actual deposition thickness of the target material to completely eliminate the overlapping maintenance window period. Acoustic emission sensors are installed on the roughing pump, and the bearing can alarm several weeks in advance as soon as it starts to wear, thus directly killing the wafer scrap caused by vacuum loss in the cradle.

OEE Performance Comparison: OEM Standard Maintenance vs. 3-Stage Optimization Matrix

Key Performance Indicator (KPI)	OEM Standard Maintenance	3-Stage Optimization Matrix	Performance Shift (Δ)
OEE (Overall Equipment Effectiveness)	75.0%	92.5%	🟢 + 17.5%
Equipment Uptime (%)	82.0%	98.5%	🟢 + 16.5%
MTBF (Mean Time Between Failures)	450 Hours	1,250 Hours	🟢 + 177.0% (+800 Hrs)
Defect Density	2.5%	0.4%	🟢 – 84.0% (-2.1% absolute)

Advanced Process Dead Cave: Integration of Cobalt and Ruthenium Liner Processes

Copper interconnect scaling hit the physical limit at the 3nm node, leaving fabs with no choice but to replace the traditional tantalum/tantalum nitride (Ta/TaN) barrier with ALD-deposited cobalt (Cobalt) or ruthenium (Ruthenium). The AMAT Endura 300mm platform supports mixing and matching ALD and conventional PVD modules on the same host (Mainframe). The process integration team’s nightmare is how to protect these ultra-thin liner layers (Liners) from oxidation within a few milliseconds of wafer transfer.

The key to getting the target utilization rate of refractory metals is to fine-tune the magnetic field at the abnormal level. The rotating magnetron behind the target degrades asymmetrically and eventually directly messes up the deposition uniformity at the wafer edge. The most useful solution is to upgrade all magnetron motor components to high torque drivers with encoder feedback, lock the speed, and directly press the in-wafer (WiW) non-uniformity below 1.5%.

Actual combat pit avoidance: chamber matching and condensate pump regeneration trap

Most equipment installation SOPs seriously underestimate the fatal blow of factory exhaust fluctuations to chamber pressure stability. As long as the cooling water pressure of the factory is slightly dropped, the PVD source will be locally overheated, and the deposition rate will immediately follow the deviation. Experienced factory integration engineers will never take chances. They directly nail a dedicated local voltage stabilizer and bypass circulation system upstream of the Endura base (Pedestal).

The indicators written in the original factory renovation contract dare not guarantee you the tolerance of micron target-to-base spacing required by advanced manufacturing processes. As long as the base thimble (Lift-pin) assembly is tilted by 50 microns, the deposited film stress is visibly distorted to the naked eye. The measurement team of the fab must forcibly press in the in-situ interference leveling calibration when the equipment is Sign-off (acceptance). Any equipment that only takes mechanical gauge blocks to fool leveling will be rejected.

Real Case: How to Cut 22% Defect Density in HVM Mass Production

When a head foundry in Asia was running a 7nm barrier layer/seed layer, the Applied Materials 300mm Endura fleet encountered a strange particulate matter (Particle) emergency, causing the yield to plummet. The routine inspection SOP all throws the pan to the PVD baffle and peels it. The internal engineering team went in directly to do a penetrating audit and dug out the real focus: extremely tiny mechanical scratches occurred when the end of the transfer arm (Robot blade) and the thimble of the process chamber handed over the wafer.

The engineer team directly administered two doses of strong medicine to intervene at the mechanical level. The first step is to rewrite the code of the extension trajectory of the mechanical arm, and force the descent speed to be cut by 40% in the last 2mm of the placement action. In the second step, the original ceramic thimbles were pulled out and replaced with custom-made Vespel (polyimide) thimbles. After the parameters run through, the particles generated by mechanical contact directly return to zero, the overall defect density drops by 22%, and the wafer scrap loss of 3.4 million US dollars is forced to be rescued from the factory within 18 months.

Secondary Market and CapEx (Capital Expenditure) Sourcing

Going to the second-hand market to find a refurbished version of the AMAT Endura 300mm platform is purely a bet on the wear history of the transmission agency. Supply chain executives often suffer from this kind of boring loss: the equipment bought at a large price has a polished appearance, but the inside is filled with seriously aging magnetic direct drive (MDD) robots. The manager in charge of purchasing is joking with CapEx if he does not dare to ask for the historical torque log (Torque-logging data) of the MDD robot before signing the contract.

Downgrading the old Endura system to run edge processes such as back metallization or thick aluminum pads is the most ruthless trick to squeeze out the financial value of the equipment. To achieve this degradation, the gas delivery panel must be removed and redone so that it can withstand a larger precursor flow. Compared to buying special non-advanced process new equipment, the fab will definitely level the return on investment (ROI) within 8 months by closing the door and doing this downgrade.

FAQ

What is the true limit capacity of the Applied Materials 300mm Endura?
Production capacity (Throughput) is directly stuck on the process recipe and chamber configuration. However, an Endura, which optimizes the layout of the process chamber and specially runs the standard copper barrier layer/seed layer, can stably output 60 to 80 wafers (WPH) per hour. The processing time of the bottleneck chamber (usually a pre-clean or a long PVD step) directly determines this upper limit data.

How does Endura 300mm mix ALD and PVD on the same platform?
The underlying logic lies in the dual high vacuum transmission chamber architecture. The working pressure and precursor reactivity of the ALD chamber are completely different. The system is physically isolated by a dedicated exhaust management system and an ultra-high vacuum isolation valve. The precursor gas has no chance to enter the ultra-high vacuum PVD chamber next door.

What is the current second-hand market price of a refurbished AMAT Endura 300mm?
The price fluctuates greatly, depending on what process package you want (such as simple titanium/titanium nitride and high-grade copper process difference is huge) and the depth of renovation. At present, the refurbished 300mm system with complete configuration and process deposit is sold for between 1.5 million and 3.5 million US dollars. A bare machine (Mainframe) without a specific process kit will be cut in price.

How often should the condensate pump on Endura PVD be regenerated?
Don’t look at the instructions, look at your gas flow and target consumption. HVM factories that run crazily with thick aluminum or heavy argon sputtering have to be regenerated once every 10 to 14 days. The plant with the predictive data model on line will stretch the cycle to 21 days by keeping an eye on the internal temperature drift of the condensation array.

What metallization processes can the Endura platform do?
The front and back ends are metallized and it is almost full package. The core processes are: copper barrier/seed layer (Ta/TaN/Cu), tungsten plug fill (W plug), advanced process interconnect liner (cobalt, ruthenium), aluminum pad deposition, and through silicon via (TSV) metallization specifically for advanced packaging.

Why can’t several Endura chambers with the same configuration match anyway?
Because the process engineer is lazy and only stares at the recipe parameters. Hardware tolerances, MFC aging, small impedance changes caused by the length of the RF cable, and even differences in the pumping speed of the vacuum pump will cause the same parameters to run out of completely different film thicknesses. True chamber matching is the use of measurement data to reverse and individually fine-tune the hardware set point for each chamber.

Can the fab upgrade the old 200mm Endura directly to a 300mm system?
Absolutely impossible. The geometric dimensions of the host (Mainframe), the skeleton of the transmission cavity, and the stroke of the internal robotic arm are completely two-dimensional things. Although their underlying logic and some electronic components are common, at the mechanical and physical level, 200mm is 200mm. If a fab wants to make a 12-inch line, it can only honestly pay for a pure blood 300mm platform.
