Endura AMAT Systems: How to Solve Common PVD Defect Issues

To resolve PVD defects on the AMAT Endura tool, one must never simply consult the Defect Map or blindly shut down the machine to dismantle and clean the chamber whenever an issue arises. Yield Enhancement (YE) engineers and process technicians often spend considerable unproductive time troubleshooting vacuum microleaks or performing overhauls on cryopumps, while the root cause of product scrap may be as simple as a few millimeters of gap tolerance error in the dark‑space shield, or a minute helium leak in the electrostatic chuck (ESC) back‑side purge. This document presents a set of troubleshooting SOPs based on the underlying principles of the equipment, completely eschewing the boilerplate language found in official OEM maintenance manuals and instead teaching you how to precisely identify and isolate key issues such as particle contamination, poor step‑coverage uniformity, and abnormal sheet resistance (Rs).

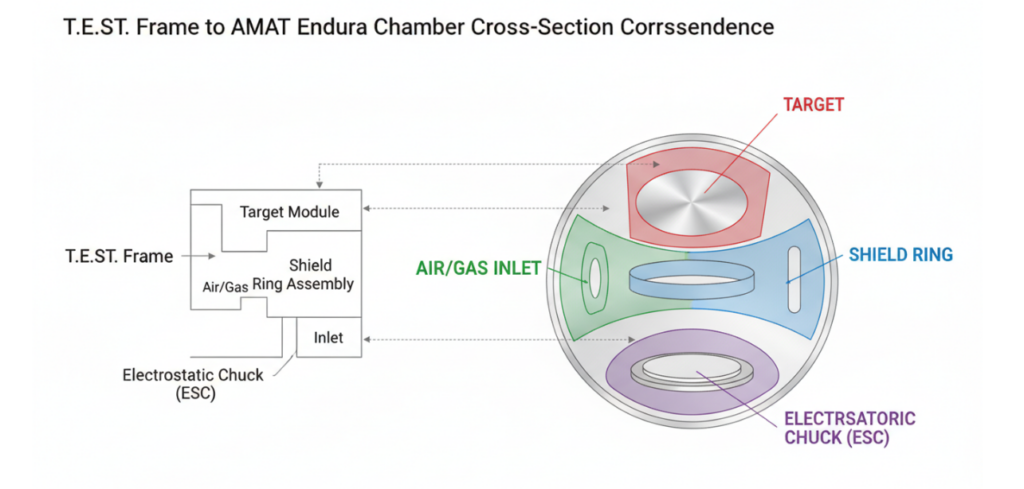

The proprietary AMAT Endura T.E.S.T. defect‑resolution framework
When a process alarm occurs, do not rush to modify the recipe. The T.E.S.T. (Target–Environment–Equipment–Thermodynamics) framework mandates that engineers conduct a structured hardware‑issue troubleshooting procedure before adjusting process parameters, thereby minimizing equipment downtime to an absolute minimum.

Target (target dynamics): Cathode sputtering target aging directly alters the morphology of the erosion groove. Once the magnetron’s performance degrades, the plasma density shifts, directly causing a sudden drift in the sheet resistance (Rs) at the wafer edge.
Environment (Vacuum and Gas Environment): An abnormal base pressure typically indicates a microleak in the O-ring. However, if a sudden pressure surge occurs during the coating process, the first step is to check whether the cryopump has failed to regenerate or whether impurity gases are trapped in the dead volume of the argon gas supply line.
Shield & E-Chuck (shielding ring and electrostatic chuck hardware): Even a misalignment of the dark-zone shielding ring that is barely visible to the naked eye will immediately trigger micro-arcing. An ESC clamping fault can disrupt the back-side helium‑cooled gas layer, directly leading to excessive local thermal stress on the wafer and subsequent film delamination.
Thermal (Thermodynamic Management): PVD is a process that is highly dependent on thermodynamics. Unstable heater temperature or poor wafer bonding can lead to grain boundary misalignment in the titanium (Ti) or aluminum (Al) film layers, resulting in inevitable failure of these wafers during downstream electromigration (EM) testing.

Accurate isolation and SOP of core defects
Large Particle Burst (Particle Excursions): Powder Drop and Micro Arc
The thermal stress of the shielding ring in the cavity is the primary culprit that causes large area powder drop. In the continuous running film process, titanium nitride (TiN) and tantalum (Ta) film will be continuously enriched on the shielding ring. When the film thickness accumulates to a certain extent, severe thermal expansion coefficient mismatch will cause the film to peel off the wafer like snowflakes.

Replacing the conventional shielding ring with accessories whose surface has been treated by arc spraying aluminum roughing (Textured surface) can greatly improve the adhesion of the film layer and directly extend the average cleaning cycle (MTBC). If a particle explosion occurs immediately after PM (preventive maintenance) is performed, the root cause is almost 100% that the paste cavity/running film (Conditioning) is not done well. Using the Conditioning formula with low power and high argon flow rate to run over 50 kWh, a stress-free backing adhesion layer can be established on the new shielding ring to completely stifle early powder loss.

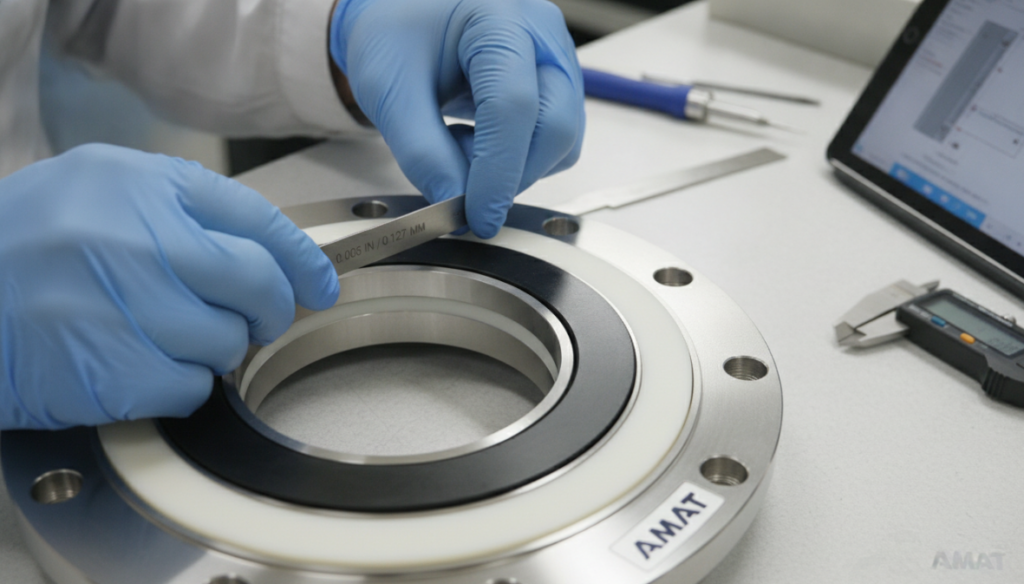

Micro-arcing (Micro-arcing) causes a completely different pattern of defects-usually a perfect ball of spatter (Splatters) on the wafer. As long as the gap between the target and the dark space shield ring deviates from the very narrow tolerance window of 0.5mm to 1.0mm, sparking will occur. During the PM recovery phase, strict use of feeler gauge (Feeler gauge) to recalibrate the spacing of shielding rings can directly kill 90% of particle events caused by micro-arcs.

Step coverage difference and coating eccentricity
If asymmetric step coverage (Step coverage) occurs in high-aspect ratio vias, the problem is usually locked in magnetron scanning failure or wafer misalignment on the pedestal. The magnetron inside the Endura AMAT target assembly must rotate extremely smoothly to ensure a uniform angular distribution of sputtered atoms. The aging of the magnetron motor or the wear of the drive belt will form “hot spots” in the plasma, resulting in excessive film thickness on one side of the wafer, but grooves (Trenching) appear on the other side.

The diagnostic screen on the machine interface is called up and the actual rotation speed of the magnetron is verified to accurately locate whether the motor is declining. The calibration error of the thimble (Lift pin) is another serious disaster area. If the thimble does not drop completely or level, the Wafer will rest on the ESC with a slight tilt. Using a dial gauge (Dial indicator) to level the height of the thimble is the only truth to ensure that the Wafer is absolutely level.

Square resistance (Rs) drift and uniformity range
For troubleshooting of abnormal square resistance, the back-blown helium (Helium Backside Cooling) pressure of electrostatic chuck (ESC) must be directly hit. ESC relies heavily on this extremely thin layer of helium to conduct heat away from the Wafer. Once the helium pressure drops, the cooling efficiency plummets and the Wafer temperature soars directly. The high temperature will immediately change the crystalline phase and density of the film, causing the Rs data on the measuring machine to completely deviate.

Staring at the ESC’s helium flow telemetry curve. If the set pressure does not change, but the flow value is slowly climbing up, it indicates that the chuck surface is worn and leaking or the clamping force has failed. At this time, the electrostatic clamping force can be restored and the heat distribution can be stabilized by directly replacing the ESC polyimide film or running the plasma Clean formula exclusive to the chuck 1 times.

Senior Expert’s Guide to Avoiding Pitfalls: Hard-core Truths Not Told in OEM Manuals
“First Wafer Effect ”FWE This ghost defect often tricks process technicians into checking for non-existent vacuum leaks. When an AMAT Endura is idle (Idle) for several hours, the extremely small amounts of oxygen and moisture remaining in the cavity react chemically with the target surface, causing the target to poison (Target Poisoning). At this time, the first mass-produced film will have a high square resistance, extremely poor reflectivity, and even excessive particles.

Standard PM guides usually have you running a few Dummy Wafer (stoppers), but this is completely useless for highly reactive metals like titanium targets. A 60 second, high power, shuttered (Shuttered) Burn-in formulation was forced in directly before the first mass-produced tablet was introduced into the chamber. This step can instantly burn off the toxic layer on the target surface and completely erase the yield loss caused by FWE.

The performance of the condenser pump (Cryopump) when saturated is exactly the same as the characteristics of cavity leakage. As the condensate pump approaches its adsorption limit, its pumping rate of hydrogen and water vapor drops precipitously. Many engineers start to point a helium mass spectrometer at the cavity to measure leakage as soon as they see that the basic vacuum cannot be pumped out. This is a complete waste of time. Take a look at the cold head temperature of the condensate pump first: if the temperature of the second-order cold head (Second stage) exceeds the red line of 15K, don’t remove anything and immediately enforce a complete regeneration cycle (Full Regeneration).

Original Practical Case: How to Eradicate High Frequency TiN Powder Drop from HVM Production Line
The endura amat metallized cavity of a certain head Logic Fab began to have a completely random TiN particle explosion after running for 30,000 RF hours. The standard plan given by the official equipment team is to advance the replacement cycle of the shielding ring from 25,000 hours, which directly leads to extremely high consumables costs and endless downtime.

After taking over, our YE team directly sent the exfoliated dust for scanning electron microscope (SEM) and energy spectrum analysis (EDX). When the data is 1, the truth becomes clear: the TiN film with purely high intrinsic compressive stress is peeled off.

A direct way to solve this problem is to modify the paste cavity (Pasting) logic of the shielding ring. We abolished the “continuous 2-hour high-power Burn-in” formula suggested by the original factory and switched to the pulsed paste cavity method: turn on for 5 minutes and turn off for 2 minutes to force a heat dissipation gap for the shielding ring.

Hardcore Results:

The intrinsic stress of the film layer deposited on the shield ring dips by 40%.
The life of Shield has been abruptly extended from 25,000 hours to 45,000 RF hours.
When reaching the 40000-hour node, the Particle defect density is dead pressure below <0.05/cm2.

Comparison of Chamber Seasoning (Pasting) Methods

Parameter	OEM Standard Seasoning Method	Pulsed Seasoning Method	Comparison / Improvement Rate
PM Cycle (Preventive Maintenance)	Baseline (e.g., 3 months or 30,000 Wafers)	Extended (e.g., 5 months or 50,000 Wafers)	+60% Extension (Reduced chamber open frequency)
Particle Count (Adders @ ≥0.12µm)	Typically < 30 particles/wafer	Consistently < 15 particles/wafer	>50% Reduction (Less film flaking due to optimized stress)
MTBC(Mean Time Between Cleans)	Baseline (e.g., 1,500 Wafers / 150 RF Hrs)	Extended (e.g., 2,500 Wafers / 250 RF Hrs)	+66% Increase (Significantly higher equipment uptime)

FAQ
Why does the basic vacuum of AMAT Endura suddenly deteriorate during process coating?
The sudden boost during coating is usually due to insufficient pre-baking (Pre-baking) resulting in a large amount of outgassing (Outgassing) of the cavity shield ring at high temperatures, or local overheating of the O-ring near the magnetron. Directly check if the cooling water flow of the target assembly meets the specified GPM (gallons per minute) safety threshold.

How can I quickly clear the Target Short alarm on my Endura system?
The short circuit of the target is usually due to the physical bridge formed by the sputtered material between the target and the dark area shielding ring, or the micro leakage of cooling water into the cathode assembly. The problem can be locked by directly connecting the multimeter to the cathode to measure the resistance. In most cases, the alarm can be cleared by disassembling and cleaning up the residue in the gap in the dark area.

What is the ideal ESC clamping voltage for the PVD aluminizing process?
It all depends on the type of chuck you use (coulomb type or Johnsen-Rahbek type). For most polyimide coulomb chucks, 800V to 1200V is the best working range. If the voltage is low, the back-blown helium will leak. If the voltage is high, the wafer will stick to the disc (Sticking), and if it is heavy, it will directly cause the dielectric layer to break down and be scrapped.

Wafer stuck to Endura’s transmission blade. How to solve it?
The wafer is bonded because there is residual static electricity on the wafer, or it is physically adhered to the ESC. First run a de-electrostatic formula (reverse polarity operation step, Reverse Polarity) to neutralize the charge. If it is still sticky after running, it means that the roughness of the chuck surface has been smoothed, and the mechanical surface must be renovated.

Why is the newly replaced target extremely prone to micro-arc ignition in the first 100 kWh?
Early ignition was basically due to the fact that the surface of the target was left with very small machining burrs, or the exhaust of the target was not in place when it was installed, which smothered the water vapor inside. The solution is to write a Burn-in formula of “slowly climbing and increasing power”, and use low-power plasma to “flatten” the burrs and water vapor on the surface a little bit before pulling up the high-power volume “.

Condensate pump compressor is about to break down. Can Endura cavity continue to run?
Absolutely not. Once the compressor recession, the cold head is less than the best working temperature of 10K-12K. This will lead to a very poor basic vacuum, free residual water vapor will immediately oxidize the extremely sensitive titanium (Ti) or tantalum (Ta) film layer, and the Wafer square resistance will definitely exceed the standard. If abnormal noise or insufficient cooling capacity of the compressor is found, the compressor shall be shut down and replaced.
