Used AMAT Centura Ultima HDP: Maximize Wafer Yield

Bringing a used AMAT Centura Ultima HDP tool into the production line is a remarkably cost-effective deal—you can achieve perfect void-free gap fill at the 65nm to 28nm nodes for roughly 40% of the price of a new-generation system. Although the hardware is considered “antiquated,” in critical process steps such as shallow-trench isolation (STI) and interlayer dielectric (ILD), where structural integrity demands are extremely stringent, high-density plasma (HDP) technology remains an unwavering industry standard. However, when working with this used equipment, the key isn’t how cheaply you can buy it; it’s whether you can properly recalibrate the RF matching network and thoroughly eliminate the chronic “micro-arcing” problem that plagues older HDP systems.

Next, we’ll break down the technical intricacies between our high‑throughput HDP tools and those scraps of junk that can only serve as a “spare‑parts graveyard.” This evaluation framework is precisely the practical standard that Tier-1 foundry consultants actually use in their day-to-day work.

Why The Ultima HDP Remains The Benchmark For STI Technology

The hallmark of the AMAT Centura Ultima HDP‑CVD system lies in its ability to precisely control the dynamic equilibrium between deposition and sputtering. It is precisely this “deposition/etching (Dep/Etch)” mechanism that effectively circumvents the “bread-loafing” capping defect commonly observed at the tops of high aspect‑ratio trenches in conventional PECVD processes.

Breaking The Physical Limits Of High Aspect Ratio Filling

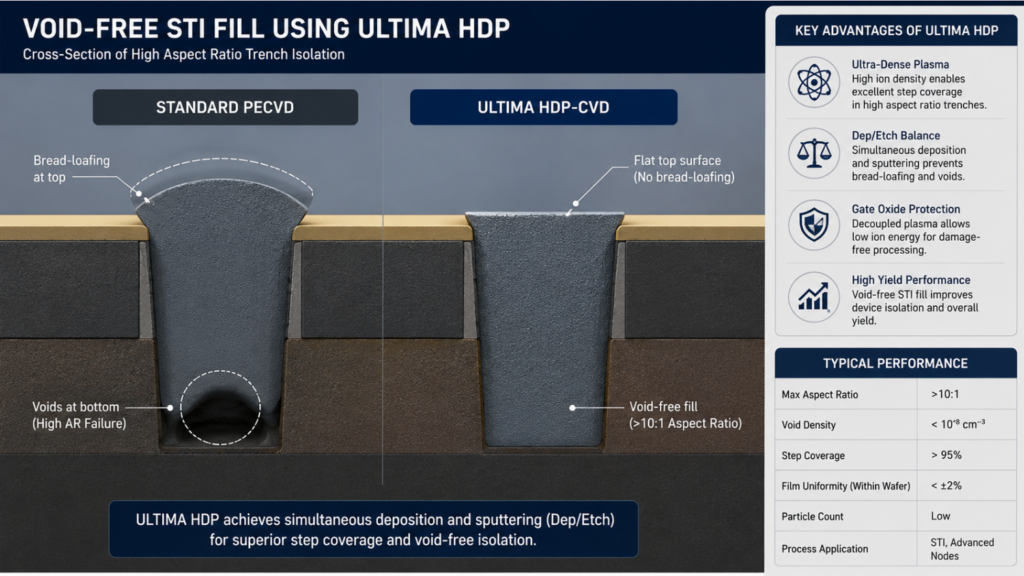

To achieve void-free filling in trenches with an aspect ratio exceeding 10:1, an extremely high‑density plasma environment is essential—precisely the unique strength of the Ultima chamber architecture. By employing an inductively coupled plasma (ICP) source, this device decouples plasma density from ion energy. This means that process engineers can fine-tune the bottom-up filling process without any hesitation, completely free from concern that the sensitive gate oxide layer at the trench bottom might be damaged.

Performance Metric	HDP-CVD (Ultima HDP)	Standard PECVD
Deposition Mechanism	Simultaneous Deposition & Sputtering (Dep/Etch)	Deposition Only
Plasma Source	Inductively Coupled Plasma (ICP)	Capacitive Plasma
Plasma Density	Ultra-High	Moderate
Ion Energy Control	Independently Tunable	Limited Control
Maximum Aspect Ratio Fill	>10:1	Typically ≤5:1
Void-Free Gap Fill	Excellent	Limited
Bread-Loafing Risk	Minimal	High
Bottom-Up Fill Capability	Excellent	Poor
Gate Oxide Protection	Excellent	Moderate
Particle Generation	Low	Moderate
Process Uniformity	Excellent	Good
Typical Application	STI, High Aspect Ratio Gap Fill, Advanced Semiconductor Nodes	General Dielectric Deposition

Dynamic Optimization Of The “Deposition/Etching” Ratio

To push the yield of a used Centura Ultima to its absolute limit, you must meticulously optimize the response times of the silane and oxygen mass flow controllers (MFCs). Even if gas-phase stability is delayed by as little as 50 milliseconds, it can still result in localized thickness nonuniformity on the wafer surface. Therefore, when evaluating used equipment, you must carefully examine the gas cabinet’s step-response log to ensure that the chemical‑gas‑mixture ratio remains absolutely stable during the critical ignition phase.

The Three-Tier Audit Method For Evaluating Used Equipment

Routine inspections can easily overlook hidden defects in used AMAT Centura Ultima HDP systems, so I typically rely on a “three-tier audit” approach to mitigate risks. Under no circumstances should you consider a simple “power-on test” to be sufficient; only by using the following framework can you truly determine whether this machine is ready to go live and handle production.

First Layer: RF Phase Stability and Impedance Matching

Yield issues with used HDP equipment are most often caused by “RF hunting”—that is, the matching network fails to lock onto the plasma impedance instantaneously. Over time, the vacuum capacitor in the RF matching unit will age. If the matching time exceeds 2 seconds, plasma instability “flashes” will occur at the very beginning of running the recipe, which will directly lead to severe particle contamination.

Layer 2: ESC (Electrostatic Chuck) Leakage and Temperature Uniformity

Used ESCs often harbor microscopic cracks on their surfaces, which can lead to helium‑coolant leaks on the back side. In an HDP environment, wafer temperatures rise extremely rapidly; if the ESC fails to provide uniform cooling, yield at the wafer edges will plummet. I strongly recommend performing a “helium leak rate” test under full‑load plasma conditions before making any payment.

Level 3: Single-Board Computer (SBC) Logic and SECS/GEM Protocol Modernization

It must be confirmed that the system’s single-board computer has been upgraded and is capable of supporting the automation protocols used in modern semiconductor fabs. The aging Centura platform often struggles with data buffering, and in the worst cases, it can crash with a blue screen right in the middle of a run. If you want the equipment to run around the clock in high‑volume production, replacing the aging mechanical hard drives with solid‑state drives (SSDs) and upgrading the VME‑bus components are non‑negotiable, mandatory requirements.

Strategic Transformation: From Logic Chips To Power Semiconductors

A clear trend has emerged in the used‑equipment market: refurbished second‑hand AMAT Centura HDP systems are being repurposed for processing wide‑bandgap materials such as silicon carbide (SiC). Because SiC power devices must withstand high voltages, they require a particularly thick and dense passivation layer. In this particular application, the HDP-CVD process is actually far more effective than those trendy new thin-film technologies.

From a technical standpoint, HDP can deposit high-density films with low hydrogen content, which significantly reduces the leakage current of power MOSFETs. If you’re expanding a SiC wafer fab, acquiring a refurbished 200mm (8-inch) Centura Ultima will deliver an ROI that easily outpaces most 300mm (12-inch) tools dedicated to advanced‑node logic chip manufacturing.

FAQs

What is the most critical spare part of a used Ultima HDP?

Answer: Ceramic Dome. This component can be regarded as the “consumable heart” of the reaction chamber. Over time, the accumulated thin-film stress on the dome will cause it to spall (generate particles). The warehouse must always have a certified‑clean spare dome on hand, which will help minimize unplanned downtime.

Can a used 200mm AMAT Centura Ultima HDP be upgraded to 300 mm?

Answer: No. Although the Centura platform is available in both sizes, their chamber geometries and robotic‑arm linkage mechanisms are fundamentally different. The cost of retrofitting the platform is too high; it’s far more economical to simply purchase a dedicated 300mm‑class tool.

A “particle spike” occurs every 500 wafers—how can this be resolved?

Answer: This is usually caused by the “cavity memory effect.” You will likely need to optimize the in-situ cleaning recipe for NF3. Slightly increasing the plasma-cleaning frequency or adjusting the chamber-wall temperature setpoint is usually sufficient to stabilize the particle count.

When purchasing equipment, is it better to choose “as-is” or “certified refurbished”?

A: When purchasing an HDP system, absolutely avoid “as-is” equipment—unless your plant has its own highly specialized team dedicated to refurbishing and upgrading such machinery. The device’s RF and vacuum subsystems are extremely complex, and their calibration requires specialized tools—equipment that most fabs simply do not have.

How does the throughput of a used Ultima compare to that of new equipment?

A: While the new equipment can boost throughput by roughly 10% to 15% due to its faster wafer-handling robot, for films of a specific thickness, the actual process times of the two systems are virtually identical. The higher return on investment from used equipment is entirely attributable to the cost savings generated by its steep, cliff-like depreciation.
