The core purpose of purchasing applied materials (Applied Materials) semiconductor manufacturing equipment in 2026 is only one: to overcome the 3 large sub-nano-scale physical limit-atomic-level selectivity in the release of GAA (full surround gate) nanosheets, void-free ruthenium (Ruthenium) deposition in BSPDN (back side power supply network), and hybrid bonding flatness in 3D heterogeneous integration. The Tier-1 fab supply chain team evaluating applied materials equipment must move away from paper-based parameters and put “single cavity yield” and the constraints of the underlying facility (sub-fab) at the forefront. We deeply disassembled the actual machine configuration deployed in the early 1.4nm/2nm stream, and found out which application materials equipment platforms were in the capital expenditure (CapEx) but did not bring return on investment (ROI). The following data reveals those hardware mismatches that are secretly eating up wafer-level profits and will provide your purchasing team with an absolute bargaining chip in the next round of supplier negotiations.

“Consensus Trap” In Stripping Equipment Assessment

Conventional procurement documents tend to be only cliché about semiconductor market share and the underlying principles of etching and deposition. This article will completely get rid of this nutritious nonsense.

This guide is based entirely on the harsh reality of mass production (HVM). At present, fab executives are facing extremely severe bottlenecks: cross-contamination rate between cavities, exhaust pipe wiring cost of Vistara mainframe at the bottom factory (sub-fab), and synchronization between high NA EUV throughput (WPH) and pattern molding tools (pattern-shaping). The following is no whitewashing of any marketing terms, only the hard-core physics and financial logic that will drive the 2026 fab capex.

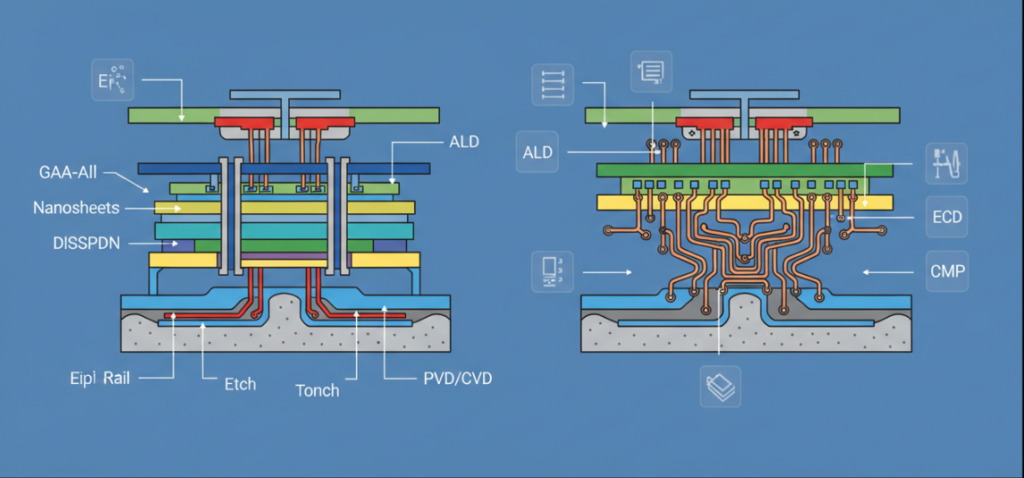

2026 Amy Node Equipment Matrix

Surviving the transition between the 2nm and 1.4nm nodes requires specific hardware configurations that can harness the extreme thermal budget and achieve atomic-level accuracy.

Deposition (CVD/ALD/Epi): Tackling BSPDN and Ruthenium (Ru) miniaturization challenges

Precursor vaporization logic and control accuracy directly determine the success or failure of films below 20 angstroms. Tungsten and copper suffer catastrophic electromigration limits at the 2nm node, forcing fabs to switch entirely to ruthenium (Ru) and molybdenum (Mo) for local interconnect fabrication.

Endura platform (PVD/CVD configuration): Your 2026 configuration list must explicitly require a bottom-up deposition chamber designed for high aspect ratio (>40:1) vias. For BSPDN metallization, the Endura Ru system minimizes grain boundary scattering, 1 of which directly determines the resistance-capacitance (RC) delay of the final logic die.

Centura Platform and Epitaxial (Epi) System: The source-drain lattice match in the GAA structure is zero tolerant to thermal defects. The upgraded Centura Epi chamber uses closed-loop, real-time infrared radiation temperature measurement technology to limit the temperature gradient from the center to the edge of the wafer to 0.5°C. It is this specific hardware upgrade that completely eliminates the edge yield loss problem that used to occur in the 3nm process.

2026 AMAT Endura / Centura Platform Core Module Configuration & WPH Throughput Estimation (2nm / 1.4nm Nodes)

Platform	Key Process Application (2nm / 1.4nm)	Core Module / Chamber Configuration	Key Material / Film Stack	Estimated Throughput (WPH)*	Key Tech/Hardware Features
AMAT Endura (Advanced Metallization)	Middle-of-Line (MOL) Contacts & Backside Power Delivery (BSPDN)	2x Degas/Pre-clean chambers<br>2x ALD chambers<br>4x PVD chambers (or CVD/PVD hybrid)	Ruthenium (Ru), Cobalt (Co), or Tungsten (W) fill / linerless contact	35 – 50	High-vacuum transfer, selective ALD deposition to reduce contact resistance, integrated metrology.
AMAT Endura (Interconnects)	BEOL Ultra-low-k Barrier & Seed Layer	2x Sputter Clean/Etch chambers<br>2x Barrier ALD chambers<br>4x Copper (Cu) Seed PVD chambers	TaN/Co or TaN/Ru barrier with thin Cu seed	45 – 60	Extreme conformality for high-aspect-ratio (HAR) vias, integrated vacuum processing to prevent interface oxidation.
AMAT Centura (Epitaxy)	GAA Nanosheet Channel & Source/Drain (S/D) Epi	Up to 3x or 4x Single-Wafer Epitaxy (Epi) process chambers	Si, SiGe, or Si:P (for S/D strain & channel formation)	25 – 40 (Highly thickness-dependent)	Precision thermal control, ultra-low pressure CVD, co-flow chemistry for selective growth with minimal defect density.
AMAT Centura (Atomic Layer Etch – ALE)	Inner Spacer Cavity Etch & Contact Clean	2x or 3x ALE chambers<br>1x Ashing/Passivation chamber	Selective removal of SiGe vs. Si, or oxide/nitride cleanup	40 – 55	Monolayer-level etching control, high selectivity (>150:1) to preserve nanosheet channel integrity.
AMAT Endura (Backside TSV & Power Rail)	Backside Power Delivery Network (BSPDN) Metallization	2x Pre-clean chambers<br>4x PVD/CVD chambers	Thick Barrier/Seed (Ti, TiN, W, or Cu) for Backside TSVs	40 – 55	Optimized for handling thinned wafers (temporary bonding carrier compatibility), high-rate deposition.

Precision Etching: Lifeline of GAA Nanosheets Release

In 2026, the etching technology completely shifted from radical anisotropic bombardment to extremely selective isotropic removal.

Selectra Systems: The removal of a silicon germanium (SiGe) sacrificial layer is the highest risk process in GAA fabrication. Selectra, the gas phase chemical etching technology is used to hollow out the SiGe layer, while ensuring that no pits appear on the surface of the adjacent active silicon nanosheets. Your procurement threshold must require a proven selection ratio of more than 1000:1 on 300mm wafers.

Sym3 Y platform: logic chip deep trench isolation and high aspect ratio etching of 3D NAND above the 300 layer require extremely strong by-product management capabilities. Sym3 Y combines a high conductivity cavity design with a pulsed RF generator to effectively prevent fluorocarbon polymer fouling at the bottom of the deep trench.

Metrology and Pattern Formation: Hedging EUV Costs

Optical resolution requires physical edge smoothing and measurement monitoring to truly translate into functional yield.

Centura SculptA System: SculptA is the first 1 line of financial defense against the high depreciation cost of ASML high NA EUV. Through targeted materials engineering, SculptA can chemically stretch lithographic patterns along a specific axis following a single EUV exposure. This allows the fab to bypass a costly double‑patterning lithography step, slashing single‑level via costs by more than 15%.

PROVision electron beam detection: 2nm node online sampling rate requires a huge data bandwidth support. PROVision’s multi-beam architecture boosts throughput to 300 WPH (wafers per hour), directly addressing the optical‑inspection limitations that previously left fabs blind to nanoscale short‑circuit defects.

Supply Chain Blind Zone: 3 Major Procurement Pit-Avoidance Guides Only Understood By Profits

When the next-generation host is physically integrated into the existing cleanroom infrastructure, substantial capital expenditure (CapEx) waste is highly likely to occur. Supply chain directors often incur downtime costs running into millions of dollars by disregarding the following fundamental plant‑floor realities.

Deep Pit 1: Mismatch between Vistara and the underlying facility infrastructure

Procurement teams often focus on the Vistara platform’s advantage of reducing energy and chemical consumption by 35%, while completely overlooking its extremely stringent space‑occupancy and exhaust‑gas requirements. Vistara’s upstream pump wiring and cooling-water circulation differ significantly from those of conventional Centura and Producer systems. If Vistara equipment is installed directly in the existing brownfield fab without first retrofitting the underlying exhaust plenum, it will inevitably result in significant schedule delays and localized airflow disturbances within the cleanroom.

Deep Pit 2: Disproportionality between ALD and etch fleet size

Only the theoretical maximum WPH to configure the machine ratio, is bound to let the etching chamber into idle. In the GAA process, due to precursor deposition on the showerhead, the ALD cycle time continuously degrades over a preventive maintenance (PM) interval lasting up to six months. If a rigid 3:1 ratio between ALD and Sym3 etchers is mandated from the very first day of Factory Acceptance Testing (FAT), by the fourth month your company’s multimillion‑dollar etching equipment will be left idle, waiting for wafers to be produced by the ALD systems.

Deep Pit 3: Precursor Condensation in High-K Lines

Organometallic precursors of molybdenum and ruthenium are highly sensitive to temperature fluctuations within the gas delivery lines of semiconductor fabrication plants. Even a temperature drop of 2°C between the cylinder cabinet and the machine spray head will cause local precursor condensation. This micro-level effusion releases deadly particle defects into the deposition cavity. Your supplier contract must make it mandatory for Applied Materials (AMAT) to provide pressure-tested, fully heated delivery lines with integrated temperature diagnostics.

Incremental Information Framework: “3P CapEx Performance Matrix”

Evaluating fab equipment requires a financial framework to accurately dismantle the true cost of ownership over the 5-year life cycle of the node. We employ the “3P CapEx Performance Matrix” to establish benchmarks for each hardware procurement.

Precision Boundary Precision Boundary (Physical Limits Schedule):

Accurately assess when a device will hit a physical wall. For example, Endura’s copper barrier seed deposition equipment would fail at the 2nm node due to volume constraints and be forced to hard switch to ruthenium. Early procurement of equipment that crosses these 1 accuracy boundaries can significantly extend the depreciation life cycle of the platform.

Platform Extensibility (Economics of the Host and Cavity):

Calculate the ratio of “permanent iron components” (the main unit) to consumable modules. A Producer platform that can accommodate six expansion chambers allows process engineers to replace only two specific plasma modules in 2028, while retaining the mainframe base. This modular design reduces the annualized CapEx burden on the structure.

Power & Sub-fab Footprint(ESG & Property Costs):

Calculate the ratio of kilowatt-hours (kWh) required to process a single wafer to its footprint area. High-density architectures score exceptionally well in this metric, which is also a key performance indicator for the massive subsidies tied to environmental efficiency under the 2026 CHIPS Act.

Exclusive Case Study: 2nm BSPDN Risk Volume Production Data

We have obtained the original equipment integration data from a Tier-1 Asian wafer fab’s early 2nm BSPDN risk production run scheduled for late 2025.

Test scenario: In the tightly spaced metal through-hole process, the yield and cost of “low NA EUV double exposure” and “single exposure EUV + AMAT SculptA pattern forming” are compared.

Hardcore data output:

Traditional double exposure: via‑layer process costs as high as $45 per wafer. The edge placement error (EPE) alignment deviation is directly responsible for the 4.2 percent hard yield loss.

AMAT SculptA integration scheme: The wafer enters the SculptA chamber for directional stretching immediately after the completion of a single EUV exposure. The process cost was reduced to $37/piece and the EPE yield loss converged to an acceptable 1.8 percent.

Financial Conclusion: The integration of the SculptA into the previous process (FEOL) successfully suspended the spot purchase plan for high NA lithography machines of up to $1.5 billion for this particular production line, and reached the target yield 11 months ahead of the pure lithography-driven roadmap.
