Used AMAT Centura DCVD Procurement Pit Avoidance Guide and Hardcore Technology Assessment

For this mature process from 28nm to 90nm, the introduction of used AMAT (Applied Materials) Centura DCVD equipment is definitely a good hand to reduce equipment investment (CapEx), and it can fully meet the factory standard in gap filling (Gap-fill) ability. However, plant process engineers and purchasing managers must keep an eye on several core indicators: the stability of radio frequency (RF) matching, the purity of gas disks, and the provenance of components. If you buy a assembly machine in a fool’s errand, the subsequent yield collapse will definitely cause people to collapse. Below we break it up and tell you how to avoid pitfalls through hard-core technical indicators in the hot market of second-hand equipment.

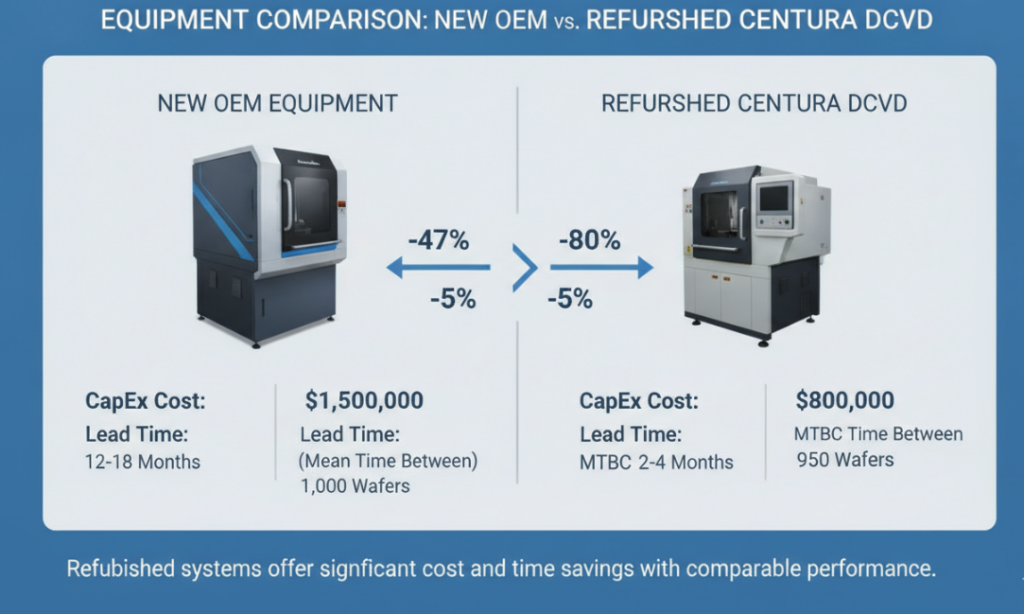

“Cost-Performance Ratio” And Capacity Advantages Of Used DCVD Systems

The delivery period for buying new OEM equipment can start in a year, and deploying a completely refurbished Centura platform can help you solve production capacity bottlenecks immediately. Thin film deposition places extremely high demands on the vacuum and precursor transport environment. A professionally refurbished and fully commissioned second-hand AMAT Centura, with its silane (Silane) or TEOS gas supply system, can still hold the high-density plasma process securely. Many old factories, in order to revitalize the space of the Sub-fab (underground factory area), rely on these refurbished mainframes to efficiently maintain traditional logic and storage production lines.

Beware Of “Frankenstein” Assembled Cavities: The Big Pit In Secondhand Purchasing

Mix the original factory parts and off-brand auxiliary factory parts in one cavity for use? This is purely asking for trouble for yourself and will result in extremely strange stress distribution on the wafer. Now some second-hand equipment dealers often put together parts from different generations in order to complete a machine. Think about it, if a third-party Showerhead (gas shower head) is equipped with a completely mismatched ceramic heating plate, process engineers will have to fight against micro-arcing (micro-arcing) and particle pollution (particle) every day.

There is also the aging condition of a fatal point ——RPS (Remote Plasma Source) that is easily overlooked. The RPS condition is poor, and the dissociation efficiency of NF3 will be greatly reduced during cavity cleaning. Some poor quality renovations are just a surface scrub that masks the aging issues of the RPS. As an equipment supervisor, before signing a contract, you must force the supplier to produce helium leak detection records and use an endoscope (Borescope) to check the inside and outside of the gas pipeline.

CPR Evaluation Model: A Guide To The Hardcore Acceptance Of Used AMAT Cavities

Appearance alone is not acceptable, and there must be a set of standards for hard-working technology when evaluating second-hand systems. We have summarized a set of “CPR Evaluation Model”, specifically used to standardize the technical acceptance of used Centura DCVDs.

C – Cavity Integrity and Thermal Uniformity (Chamber Integrity & Thermal Uniformity)

Once the ceramic heating disc is aged, the film thickness uniformity on the 200mm or 300mm wafer is directly scrapped. If there are invisible thermal stress microcracks inside the aluminum nitride heater, the entire temperature zone distribution will be chaotic. Buyers must find a supplier to obtain a wafer-level thermal mapping (Thermal mapping) for the final test time of the equipment at the factory to verify that the temperature tolerance is within the qualified line.

P – Plasma Stability and RF Matching (P – Plasma Stability and RF Matching)

If the RF generator calibration is not done on the refurbished host, the impedance mismatch problem will be very serious. During the transition phase from ignition to deposition, the matching network must be precisely tuned within milliseconds to stabilize the plasma. Engineers had to keep a close eye on the 13.56 MHz and low-frequency RF generators as they passed a full load test on a continuous run test strip (Dummy wafer) under conditions that fully simulated the actual process formulation.

R – Recipe Transferability (Recipe Transferability)

Want to copy the factory-ready BKM (Optimal Process Formula) directly to the refurbishment machine? Provided that the mass flow meter (MFC) response times are fully consistent. The old MFC reacts half a beat slower, and if you are not careful, it will cause the precursor gas to gush out, and the cavity pressure will instantly soar, resulting in a pile of particle defects. During the refurbishment phase, it is important to specify the replacement of digital MFCs with exactly the same specifications to ensure that the deposition rate does not differ by a single centimeter when cutting into mass production.

Test Item	Acceptance Criteria (Passing Standard)	Test Tools / Equipment
RF Load Test	< 1% Reflected Power (VSWR < 1.15:1)	RF Power Meter, Inline Directional Coupler, 50-Ohm Dummy Load
Carrier Frequency Accuracy	Within ±±10 Hz (or within local regulatory limits, e.g., FCC/ETSI)	Spectrum Analyzer, High-Precision Frequency Counter
Harmonic & Spurious Emissions	Down by at least 60 to 80 dBc relative to carrier power	Spectrum Analyzer, Bandpass/Lowpass Filters, RF Attenuator
RF Path Insertion Loss	< 0.5 dB across the operating frequency band	Vector Network Analyzer (VNA)
DC Insulation Resistance (Hipot)	Insulation resistance > 1000 MΩΩ; Leakage current < 5 μμA	Megohmmeter (Megger), DC Hipot Tester
RF Interlock & Safety Shutdown	Automatic shutdown triggered within < 100 ms upon VSWR/temperature fault	Oscilloscope (for timing), Multimeter, Calibrated Fault Simulator
Phase & Amplitude Balance	Phase error < ±2∘±2∘; Amplitude imbalance < 0.1 dB (for combined systems)	Vector Network Analyzer (VNA)

Practical Example: Upgrading And Transformation Of 200mm Silicon Carbide (SiC) Wafer Fab

Upgrading the RPS module during an equipment overhaul can significantly extend the average cleaning cycle (MTBC) of the equipment. For example, last quarter, an 8-inch (200mm) silicon carbide foundry in Texas hung three DXZ chambers on a refurbished Centura platform specifically for thick oxygen deposition.

Pulling out their production line data, they saw a direct 15% surge in weekly wafer output. This factory replaced all the old gas disks with high-purity, fast-response digital MFCs, completely eliminating the previous problem of unstable pressure and frequent alarms. This case fully illustrates that doing some targeted local upgrades on second-hand platforms can actually solve the troublesome yield pain points in power device manufacturing.

Single Replacement Of Parts Vs. Complete Machine Upgrade, How To Choose?

Compared with installing a complete new main unit, replacing only one process chamber can minimize downtime. This “plug-and-play” used AMAT cavity requires little to no mechanical modification, and the original vacuum pump, exhaust line, and underground water and electrical wiring can all be used. If a module in the factory frequently reports hardware failures, it is much more cost-effective to directly replace the entire cavity assembly than if you grind a foreign worker to repair it.

But if the software or system controller of the old device is too old to even run the SECS/GEM communication protocol, then the entire device must be upgraded. Now fully automated factories rely entirely on real-time data scraping for fault detection and classification (FDC). Get a complete Centura system with an upgraded VME controller to smoothly connect to the tracking network of modern smart fabs.

FAQ

What does the standard refurbishment process for a used AMAT Centura DCVD include?

The standard process must include: full system decontamination cleanup, replacement of all O-rings and seals, upgrade of old controllers, reconstruction of RF matching network, and finally full wafer cycle testing. Suppliers must perform leak detection and plasma ignition verification to ensure that parameters can be compared with original equipment (OEM) indicators.

How to verify whether the radio frequency (RF) matching of the second-hand cavity is stable?

Engineers will run several rounds of test pieces (Dummy wafer) under a high-power deposition formulation. The technician has to keep a close eye on the reflected power data on the device interface ——as long as the reflected power exceeds 1%, it means that the capacitance inside is aging or the tuning motor calibration is not done properly.

Can used Centura platforms handle silicon carbide (SiC) substrates?

No problem at all. As long as the refurbished Centura platform is equipped with an upgraded version of the electrostatic suction cup (ESC), the gas transmission disc will be optimized and designed according to the thermal requirements of the third-generation semiconductor, and the SiC substrate will be properly processed.

When a second-hand cavity is suddenly filled with particles (particles), what is usually the problem?

Most likely, these are the following reasons: the initial cavity oven (Seasoning) did not perform properly, micro cracks were not detected in the second-hand ceramic heating plate, or there were residual dirt in the front-stage vacuum pipe. The countermeasure is to run several rounds of long-term pasting (pre-laying) formula, check the basic particles firmly, and basically suppress the initial particle burst.

How long does it take to buy a used AMAT DCVD system and put it into the factory for debugging?

If it is just a routine “plug and play” single cavity replacement, connected to the factory and running through the basic formula, it can be completed in about 3 to 5 days. For complete system installation, including hardware leveling, gas disk calibration, and connection to the factory automation system, it usually takes 3 to 4 weeks. SiC substrates effectively when equipped with upgraded electrostatic chucks (ESC) and optimized gas delivery boxes designed for the specific thermal requirements of third-generation semiconductors.

What causes particle contamination in a newly installed used AMAT chamber?
Particle issues typically originate from poor initial chamber seasoning, micro-cracks in reused ceramic heaters, or residual contamination inside the foreline vacuum plumbing. Running extended pasting recipes and conducting thorough baseline particle checks resolve early contamination spikes.

How long does it take to commission a used AMAT DCVD system?
A standard plug-and-play single chamber swap takes 3 to 5 days, including facility hookups and baseline recipe qualification. Full mainframe installations require 3 to 4 weeks for complete hardware leveling, gas panel calibration, and fab-level automation integration.
