Applied Materials Endura: Boost Endura AMAT Yields

To improve the yield of Applied Materials’ Endura tools, it is essential to move beyond the original equipment manufacturer’s (OEM) conventional scheduled maintenance model and adopt a predictive hardware‑based approach focused on enhancing edge‑exclusion performance and plasma stability.

At most wafer fabs in the industry, there is a tendency to “over‑maintain” Endura tools—replacing targets and shields prematurely simply because the RF run time has elapsed, without any consideration of actual hardware wear‑and‑tear data. This article will walk you through the step-by-step implementation of a sensor‑based predictive maintenance (PM) strategy and an electrostatic chuck (ESC) upgrade, enabling a 15% increase in the number of good dies per wafer for your existing equipment.

At advanced process nodes, equipment engineers often struggle with the fact that legacy PVD (physical vapor deposition) tools have lost their process margin. By upgrading only the specific subsystems, these aging workhorses can be transformed into high-margin production assets. In the following sections, we will thoroughly dissect the cutting-edge upgrade strategies, calibration techniques, and unconventional maintenance practices employed by leading semiconductor foundries.

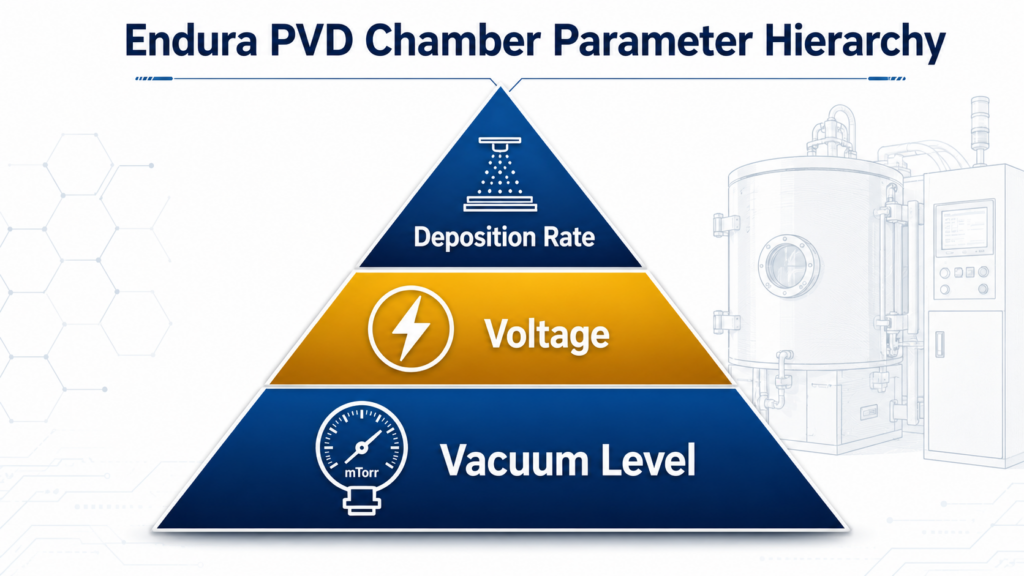

The “3-V Yield Pyramid” Principle For Endura Equipment

For process engineers to achieve stable process performance on the Endura tool, they must rigorously control three interrelated variables: vacuum (Vacuum), voltage (Voltage), and velocity (Velocity). We call it the “3-V yield pyramid.” When the machine is down, troubleshooting these three variables in sequence will help you pinpoint the root cause as quickly as possible.

Bottom Layer: Vacuum Integrity and Condensate Pump Optimization

Contamination at the sub-monolayer level can severely compromise the film’s adhesion and the uniformity of its sheet resistance (Rs). When a cryopump is forced to operate beyond its optimal saturation limit, it triggers microscopic outgassing of water vapor, resulting in significant yield losses for the fab.

Adopting an aggressive, data-driven condensing pump regeneration cycle can effectively prevent baseline pressure drift. Engineers must monitor the rate of rise (ROR) during pump isolation testing on a weekly basis, rather than rigidly adhering to the manufacturer’s monthly schedule. Once the ROR exceeds 2.0 mT/min, a red warning light illuminates, indicating that the seal is nearing failure or that the condenser pump array has become saturated.

Core: Voltage and Magnetron Arc Suppression

In the Endura chamber, micro-arcing causes more wafer damage than any other hardware failure. The primary causes of arcing are surface nodules on the target material or an uneven magnetic field distribution in the magnetron. Upgrading to an advanced variable‑frequency magnetron ensures that the long‑standing issue of localized grooving on the target material is completely eliminated. When combined with the real-time arc detection module, it can suppress voltage spikes within a few milliseconds—momentarily shutting off the RF power supply before an arc causes macroscopic particle spalling.

Top Layer: Speed and HP Robotic Arm Calibration

The accuracy of wafer placement directly determines the upper limit of edge yield. In the transfer chamber, aging high-performance (HP) robotic arms often exhibit mechanical backlash, causing the arm’s blade to misalign the wafer and fail to center it over the heater or the electrostatic chuck (ESC).

Once the process is misaligned, the heat distribution becomes asymmetric, and the film thickness inevitably suffers as a result. How can this be resolved? When performing PM, technicians should immediately bring out the optical alignment tool and ensure that the positioning accuracy of the robotic arm’s teach‑in is tightly constrained within 0.05 millimeters.

A Pro’s Guide To Avoiding Pitfalls: Escaping The Trap Of “Over-PMS” In PVD

Simply fixating on the RF’s kilowatt-hour (kWh) cap when replacing consumables is nothing short of squandering your return on investment. The original equipment manufacturer’s guidelines consistently recommend replacing the copper or titanium target at specified intervals to ensure process safety. However, production-line data told a different story: after such replacements, as much as 20% of the target’s usable life was actually being wasted.

Smart engineers deploy acoustic emission sensors and dynamic voltage monitoring to extract every last ounce of value from consumables. As the target material becomes thinner, the plasma impedance changes accordingly, forcing the power supply to adjust its output voltage. By closely monitoring this specific voltage drift data, it is possible to obtain highly precise, real-time measurements of the target’s remaining thickness. Let the data speak: when the data indicate it’s time to switch, do so. This can significantly reduce open-chamber dwell time and also mitigate particle contamination caused by vacuum pumping.

Hardware Retrofit: Multi-Zone ESC Upgrade

Upgrade the multi-zone electrostatic chuck (ESC) to reduce the edge exclusion zone by as much as 2mm. The old Endura cavity mostly uses single-zone cooling, which naturally produces heat attenuation (Thermal roll-off) at the extreme edge of 200mm or 300mm wafers. This temperature difference will directly change the metal film in the local deposition rate and grain structure.

By switching to a dual-zone or multi-zone ESC, you can independently control the helium (He) cooling at the back of the wafer center and edge. Process engineers can fine-tune the edge area to make it slightly hotter or cooler, thus completely flattening the overall heat distribution. Rs uniformity 1 up, and the Binning (grain sorting) yield on the wafer edge naturally rises.

Metric	Single-Zone ESC	Multi-Zone ESC Retrofit
Edge Exclusion (mm)	Baseline	Reduced by up to 2mm
Rs Uniformity (%)*	Lower / Variable (Impacted by edge thermal roll-off)	Tighter (Flattened thermal profile via independent tuning)
Yield Impact	Baseline	Higher binning yields at the wafer edge

Wafer Factory Case: Copper Interconnect Yield Increases 12%

A 200mm foundry for logic chip interconnects suffered severe wafer edge yield collapse on the Endura copper seed (Cu seed) cavity. Their engineering team decisively abandoned the standard PM specification and made a set of precise hardware modifications.

In the first step, they replaced the static magnetron with a dynamically tuned version, which directly suppressed the formation of copper nodules. In the second step, the optical sensor was installed to recalibrate the transmission cavity manipulator, and the 0.2mm placement deviation problem was fixed. Finally, the rigid “target change at 500 kW” requirement is abolished and a dynamic voltage drift model is used to push the target life to the 580 kW time. As a result, the plant saw a 12 percent increase in usable grain at the edge and 40 hours of downtime per unit per year.

Peers Are Asking (PAA)

What is the conventional capacity (Throughput) of the Applied Materials Endura machine?

Production capacity is extremely dependent on specific process recipes (e. g. Ti/TiN vs. Cu seed) and cavity configurations. For the optimized Endura system for conventional metallization, it can generally run to 40 to 60 wafers per hour (WPH). In order to improve this indicator, the transmission speed of the robot and the shortening of the degassing (Degas) time are the most direct and effective means.

How to reduce micro-arcing (Micro-arcing) in Endura PVD chamber?

The key to suppressing micro-arc is to control the surface state of the target and the stability of the plasma. Quickly install the high-speed arc detection circuit, 1 there is an instant cut off the RF power supply. In addition, the standard Conditioning of the new target material (baking target/adjustment) and the use of the upper variable speed scanning magnetron can effectively prevent the accumulation of nodules that cause the arc.

How long is the life of the copper target in the Endura system?

It depends on the purity, thickness and power applied. The traditional practice in fabs is to change targets between 500 and 600 RF kilowatt hours. However, as long as you can closely track the plasma impedance and cathode voltage, you can safely break through the upper life limit recommended by the original factory without sacrificing the membrane quality.

How do I calibrate the HP manipulator on the Endura platform?

Don’t use the naked eye to “blind guess” teaching! Technology veterans have long since switched to laser-or optical-based alignment fixtures. These tools can accurately measure the absolute displacement of the manipulator fork relative to the cavity slit valve (Slit valve) and the center of the chuck, and then through software compensation, the mechanical clearance error is completely cleared.

What are the signs that Endura’s ESC is about to break?

The most obvious characteristics of ESC aging are the soaring helium leakage rate on the back side and the long and short time of wafer adsorption (Chucking) or de-chucking (De-adsorption). If the wafer is still stuck to the disk after the RF power failure, or the helium flow on the back side suddenly jumps abnormally, it can basically be concluded that the ESC surface has dielectric wear or microcracks.

Can the old 200mm Endura machine be modified into a 300mm process?

Absolutely. Endura hosts are extremely modular. The increase from 200mm to 300mm is mainly to replace the Load lock (sheet compartment), transfer manipulator and internal parts of the cavity (such as ESC, anti-fouling plate and target material). It is much more cost-effective to find a second-hand equipment manufacturer to buy a modification kit than to directly spend money on a new 300mm machine.

What is the best operation for AMAT Endura condensate pump regeneration?

Stop doing regular regeneration on a monthly basis and switch to “Condition-based regeneration” is the king’s way. Keep a close eye on the background pressure (Base pressure) recovery time and the boost rate (ROR). Partial or full regeneration is triggered only when the ROR exceeds the baseline you set, so that the machine can stay on the production line for the longest time.
