Applied Materials Equipment Spare Parts Identification

The rings, bushings or panels on the equipment look similar, but you cannot purchase orders based on the shape and a common name. Components, also called ring, liner, or faceplate, may belong to different platforms, process chambers, wafer sizes, and hardware versions. The name pair only indicates that a major category has been found. The interface and specific configuration have not been verified, and it is still impossible to judge whether they can be used.

First, break down the device information into several dimensions

When verifying spare parts, the product category and the equipment or tool name should be recorded separately. PVD, CVD, ETCH, etc. are usually used to describe the process or product classification, while Endura 5500 PVD, P5000, Centura 5200 DCVD, DPS, HDP-CVD, WCVD, Emax, Producer, LAM, C1, etc. are used to limit the scope of application of the equipment. Mixing the two types of information into one item is prone to misjudgment of "the platform name is the same, so the components are common.

First transcribe the original text that can be confirmed in the equipment nameplate, existing component identification and maintenance record, and do not rush to rewrite them into more familiar abbreviations. Next, the platform or tool, process configuration, wafer size, part name, item number, and hardware version are sorted out separately. Leave the missing items to be confirmed; do not fill them in with similar names.

Item should precede Common Name

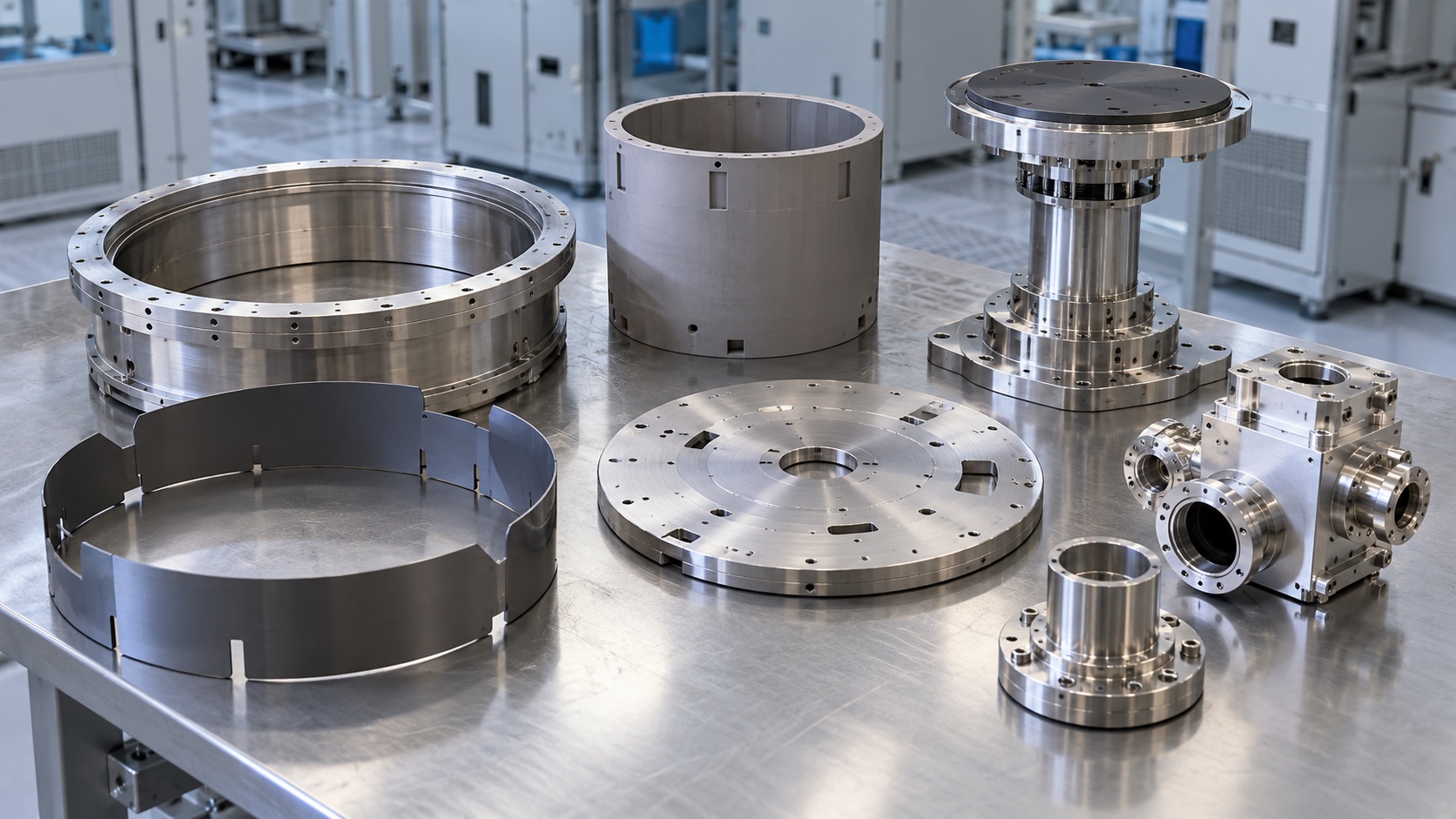

The 1 spare parts catalog can contain chamber body, liner, shield, faceplate, blocker plate, pedestal, ring, manifold, lid plate, adapter, blade, lift hoop, heater and insulator at the same time. The English name here is suitable to help determine which category the part belongs to, but it is not enough to determine the specific part alone.

The same English name may correspond to multiple items, or it may be divided into different records due to size restrictions such as 150mm, 200mm, 300mm, 6 inch, 8 inch, etc. DXZ, TXZ, DPS, HDP-CVD, SACVD, EMAX and other qualifiers are also identification information and should not be omitted in the inquiry. When dealing with applied materials equipment spare parts, it is safer to use the existing part number as the primary check item, and then let the platform, configuration, size and version confirm each other.

In case of unclear material number, worn label or only local identification, the overall shape, installation surface, hole position and readable characters can be photographed first, and then the equipment and process information can be provided to the supplier. Photographs can help rule out obvious discrepancies, but they should not replace the verification of part numbers and compatibility criteria.

Configuration still needs to be verified on the same platform

The platform name is not a check end point. Centura 5200 related records can cover different process configurations such as DCVD, DPS Metal, DPS Poly, DPS Poly, HDP-CVD and WCVD. P5000 related records also cover different expressions such as CVD, etching and 200 mm etching. Providing only “Centura” or “P5000” still leaves the scope too broad.

It is better to keep the complete qualifier in the inquiry and make it clear whether it comes from the equipment, cavity or old parts. If there are two similar numbers on the old part, do not judge which one is the purchased item number, and submit the two together with the position for verification. The adaptation conclusion given by the supplier should also be able to correspond to the specific platform, process configuration, size and item number, instead of just answering "same name".

Do not extend a single status to an entire category of spare parts

The status descriptions in the directory apply only to the records that are explicitly marked. For example, "2nd Source New" can only be used for a single product with this label. It cannot be inferred that other spare parts with the same name, platform or series have the same status because they have appeared once in similar parts.

When you see new, used or other status expressions, check it on the same line as the corresponding item and ask the other party to drop the final confirmation on the specific part. This approach avoids treating component categories as statuses and also prevents the description of a single record from being copied to an entire product group.

Perform a reverse check before placing the order

After the confirmation form is received, it is possible to reverse check the 1 from the target equipment: whether the platform or tool name is complete, whether the process configuration is omitted, whether the wafer size is consistent, whether the part name corresponds to the item number, and whether there is a conflict between the hardware version and the original identification. Whenever a decision can only be made through speculation, first gather more information before deciding whether to place an order.

The real reliable match is not "looks like", but the item, platform, process configuration, size and version can point to the same specific record.
