Amat Chamber Identification: What To Check Before Ordering

A metal cavity or internal part is placed in front of you, with a similar shape, hole position and even interface, but the purchase order only says “AMAT chamber”. This information is not enough for the following list. It does not specify the equipment platform, process category, wafer size, or hardware version; the appearance is similar, and it does not prove that the parts are interchangeable.

Truly useful judgments should be made from the equipment level all the way down to the specific material number. Completing this identity chain is often more important than asking about the price first.

First separate the platform and process cavity

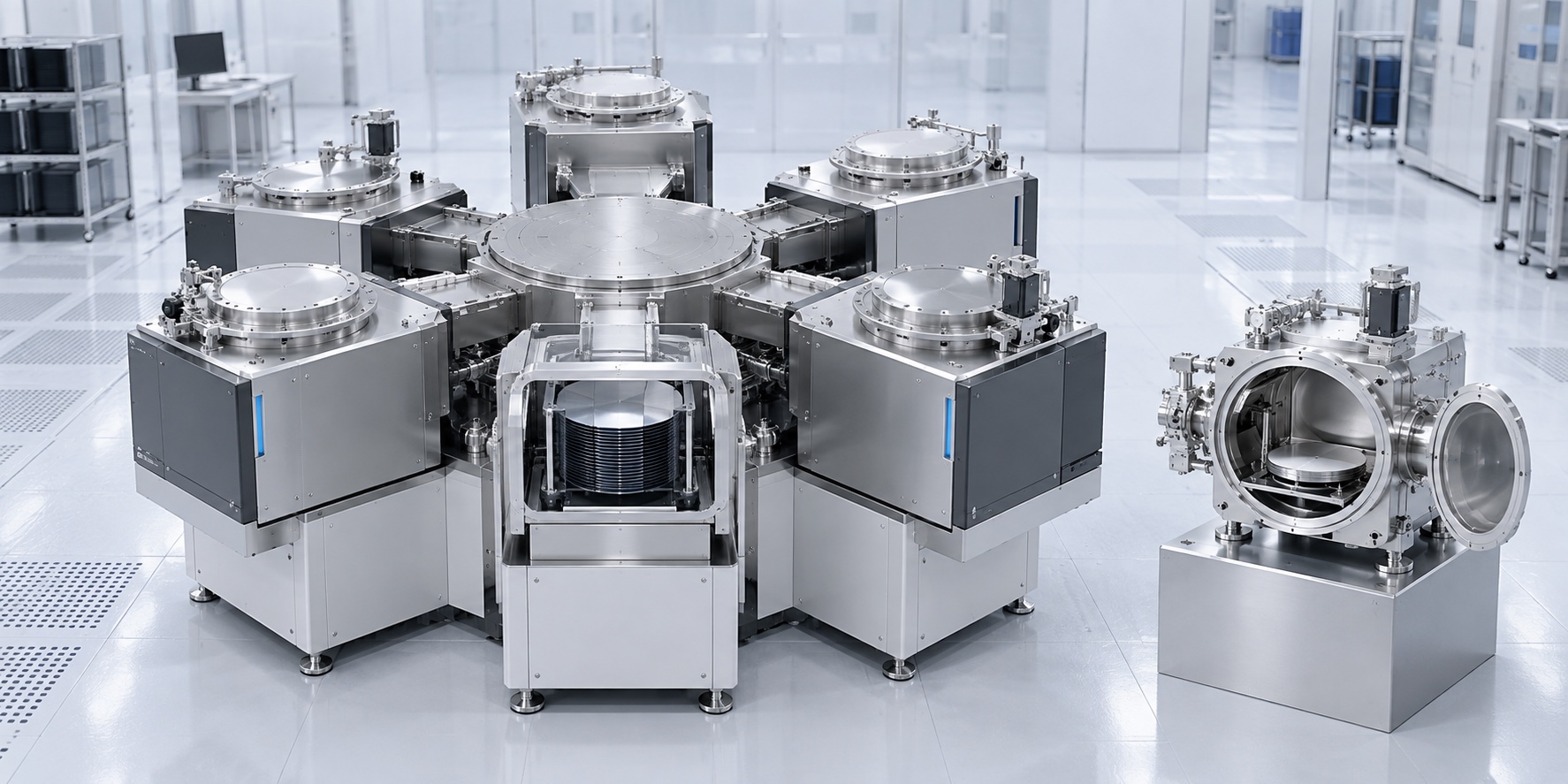

Applied Materials is an equipment manufacturer, and AMAT is a common abbreviation. A monolithic multi-cavity system typically includes a base platform, wafer transfer system, loading lock, process cavity, and vacuum and control subsystems. The platform is responsible for carrying and connecting different modules and is not equivalent to a fixed process.

Therefore, when you see an amat chamber, the first step is not to judge it by its appearance, but to ask whether it belongs to PVD, CVD, etching, epitaxy, or rapid heat treatment. PVD cavities work around solid targets and metal thin film deposition; CVD forms thin films through gaseous precursors; and etching cavities are used for selective material removal. They have different requirements for gas delivery, exhaust, plasma source, temperature control, and internal components.

Even “transmission cavity” and “process cavity” cannot be confused. The former is responsible for the transfer of wafers between modules, while the latter forms a controlled process space. Writing only about chamber still lacks the key information that determines adaptability.

Do not mistake platform names or abbreviations for full models

Endura, Centura, Producer, and P5000 may all include multiple process products and hardware versions. Taking Centura as an example, it can carry products from different processes such as etching, CVD, HDP-CVD, epitaxy, etc.; “Centura 5200” can only narrow the scope to the platform and cannot match the internal components of the cavity accordingly.

Abbreviations are also prone to misjudgment. DPS and DPS Plus belong to the context of etching products, DXZ belongs to the context of CVD products, Epi refers to epitaxial products, and RTP XE, XEplus and Radiance correspond to fast heat treatment products. HDP cannot be used alone: HDP-CVD is a deposition, while the historical HDP Dielectric Etch is an etching. The names differ by only a few letters, and the cavity's purpose and internal structure may already be different.

After obtaining the device information, break down the complete name and record it: host generation, process category, product family, cavity version, wafer size, and hardware revision. If one of them is missing, keep it as a candidate range first, and do not write it directly as confirmed adaptation.

Establishing a traceable chain of identities from old pieces

When there is a raw material number, first check the number of raw material numbers, revision and upper-level components on the label, and then return to the applicable scope of the platform and cavity. Applied Materials components may have their material number identified by barcode labels, but the labels themselves must also correspond to the actual product, assembly location, and accompanying documentation.

When labels are missing or the handwriting is unclear, record photos of the old parts in various directions, equipment nameplates, assembly locations, interface dimensions, material numbers of superior components, equipment serial numbers, and historical renovation details. Do not fill in missing numbers based on similar material numbers, and do not directly regard candidate numbers in third-party manuals as the final conclusion. A formal bill of materials, corresponding revised manual, engineering change documents, or verified installed capacity records are suitable for cross-validation.

The inquiry information should include at least the platform, host, process cavity, raw material number, part description, quantity, and known revisions. For older equipment, please also specify the installed hardware and control or software versions to avoid purchasing parts that are no longer suitable for the modified equipment according to the factory name.

Write wafer size and interface conditions into the inquiry

The same component name may correspond to different material numbers, wafer sizes, and process kits. The customer's product range includes limited expressions such as 150 mm, 200 mm, and 300 mm, as well as 6 inch and 8 inch; these are not optional descriptions, but part of the identity information.

When verifying replacement parts, the focus should not be on the shape and mounting holes. Key dimensions, vacuum interfaces, materials, surface treatment, gas and cooling water circuits, electrical and sensor interfaces, temperature range, and chemical compatibility must all be confirmed according to the specific application. Mechanically fit, it only means that there is no immediate dimensional conflict, and does not mean that it meets vacuum, thermal, gas, electrical or process performance requirements.

Supply status will change acceptance focus

New parts, cleaned parts, repaired parts and refurbished parts are not in the same condition. New parts still need to verify the material number, revised version and applicable configuration; the cleaning of cleaned parts does not mean that the size, coating, seal or function have been restored; repair parts should explain the fault, replacement content and test method; refurbished parts should explain the disassembly, cleaning, repair, coating or replacement items and the inspection results after completion.

Third-party alternatives should also provide the target material number correspondence, a list of differences, and verification basis. If changes occur in materials, coatings, geometry, gas flow channels, thermal properties, or electrical characteristics, the process impact and acceptance conditions need to be reassessed, and the word “compatibility” cannot be regarded as equivalent proof.

Arrival inspection does not stop at appearance and trial installation

First, correspond the material number, revision, quantity, batch, supply status, and packaging label to the order item by item, and then check for bumps, scratches, corrosion, residues, coating peeling, particles, sealing surfaces, and transportation damage. Dimensions should be based on official drawings or key dimensions confirmed by both parties; it is not appropriate to use another revised version as the sole reference.

Vacuum components should be checked for sealing, leakage, extraction, or pressure retention performance according to the applicable environment; dynamic components should focus on related items in motion, position, repeatability, limiting, interlocking, or signal output. Specific limits should still be derived from equipment documentation or customer specifications confirmed by both parties.

Before final release, review the initial identity chain: whether the platform, process cavity, wafer size, material number and revision all correspond to the same set of configurations. As long as one of them remains a guess, the cavity or part is not yet suitable for entry into a formal order.
