Applied materials endura 2 Parts Identification Guide

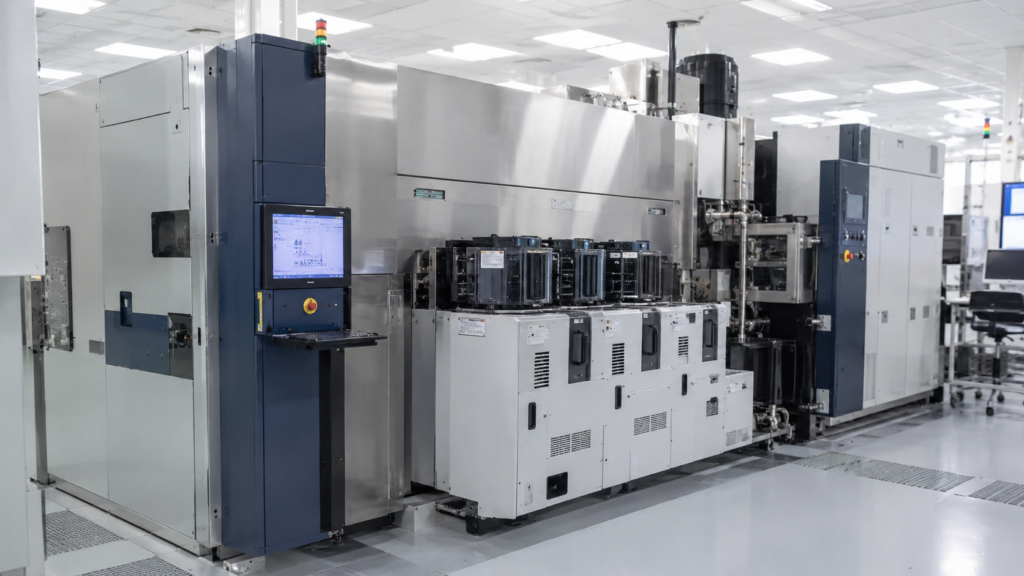

When many people see the writing of “applied materials endura 2”, they often mistakenly think that it refers to a certain hardware version, a specific process cavity or a unique compatible material number. Actually, this is a misunderstanding. Endura is just a series of PVD platforms under Applied Materials (AMAT). If you open the equipment information, you will find that Endura 5500, Endura II, Endura HP and Endura TXZ are divided into different eras and configurations. Don’t treat them as the same device just because they look similar.

The purpose of the version name is just to help you narrow down the scope of the investigation

What kind of process an Endura can actually perform depends entirely on the combination of cavities mounted on the machine. Although the purpose of this platform is to integrate pre-cleaning and multiple metal deposition processes in a controlled vacuum environment, based on just one “platform name”, you can’t tell which cavities a machine is equipped with, which process combination it uses, let alone confirm the specific version of a part.

Also, don’t use old historical data on the Endura 5500 to hard-cover the current configuration on the machine. The most accurate information is the hardware configuration, cavity configuration file, software manual, and the latest parts catalog of the ready-made equipment. When encountering platforms with similar names, the first step must be to distinguish between generation, mainframe (mainframe) and process cavity to avoid confusing the configuration of the bull’s head and the horse’s mouth.

No qualifier in the component list can be missed

When looking at the product list, the equipment or tool fields do map to specific material numbers, but this by no means means that the entire Endura series can be used with eyes closed. If you go through the PVD records, you will see various parts such as thimble (wafer lift), pressure ring (clamp ring), heating tray (pedestal), cover ring (cover ring), edge ring (edge ring), baffle (shield) and robot (robot). Note that some descriptions are often followed by qualifiers such as 150 mm, 200 mm, 6 inch, 8 inch, or TXZ. These words are core information for identifying parts and are definitely not notes that can be omitted at will.

You should know that the same English part name may correspond to several completely different material numbers, wafer sizes, cavity types or hardware versions; conversely, even if the material numbers are exactly the same, they may be limited by the specific cavity configuration, wafer size or process kit (Process Kit). To put it bluntly, if the part name or platform name looks alike, it can only help you narrow down the scope of material search and should never be used directly as evidence that “it is interchangeable” or “definitely compatible”.

Do you have the material number or just the name? The focus of verification is very different

If you have a complete material number, the key points are clear: keep an eye on the label on the component, the number of bits in the material number, the version number (Revision), the parent component to which it belongs, and which platforms and process cavities this material number is suitable for.

But if you only have one part name, it will take a little more effort. The scope needs to be narrowed down layer by layer, like peeling an onion, from the platform, main unit, process cavity, specific installation location, wafer size, and even the removed old part markings.

The situation becomes even more complicated when encountering old equipment or refurbished machines. You have to take into account the actual components that the machine is currently assembled, the interface dimensions, whether it has been modified before (Retrofit), and even the versions of the software and control systems. When using official documents, be sure to repeatedly check the document number, version number, applicable platform, system type, cavity name, wafer size and software version to see if they can match the current real state of the machine.

In summary, if the above information cannot be matched seamlessly layer by layer, then the conclusions you draw can only remain at the “candidate range” stage at best. Don’t blindly assume that an Endura or similar model is the only basis for compatibility just because you see it written in the same way.
