Applied Materials Centura: System Specs & Cost Analysis

A Centura system from Applied Materials (Applied Materials) has a wide price range: a used main unit sold “as is (as is” for around $600,000, while a fully factory-refurbished and certified multi-cavity device can easily exceed $3.5 million. The reason why major fabs prefer this architecture is that it is a high-capacity, multi-cavity platform that can continuously perform various processes such as chemical vapor deposition (CVD), etching (Etch), rapid heat treatment (RTP) and epitaxy (Epi) without destroying the vacuum environment.

When purchasing used Centura equipment, purchasing managers often tend to step into financial “sinkholes”. If you buy a console back from the informal “gray market” for a bargain, you often end up using it as a pile of scrap metal on the wafer fab workshop —for a simple reason: software licenses are impossible to transfer, and older VHP robotic arms are long obsolete.

Supply chains are already tight these days, and to buy a Centura machine that works properly, you have to systematically review the hardware specifications and factor in those hidden refurbishment costs.

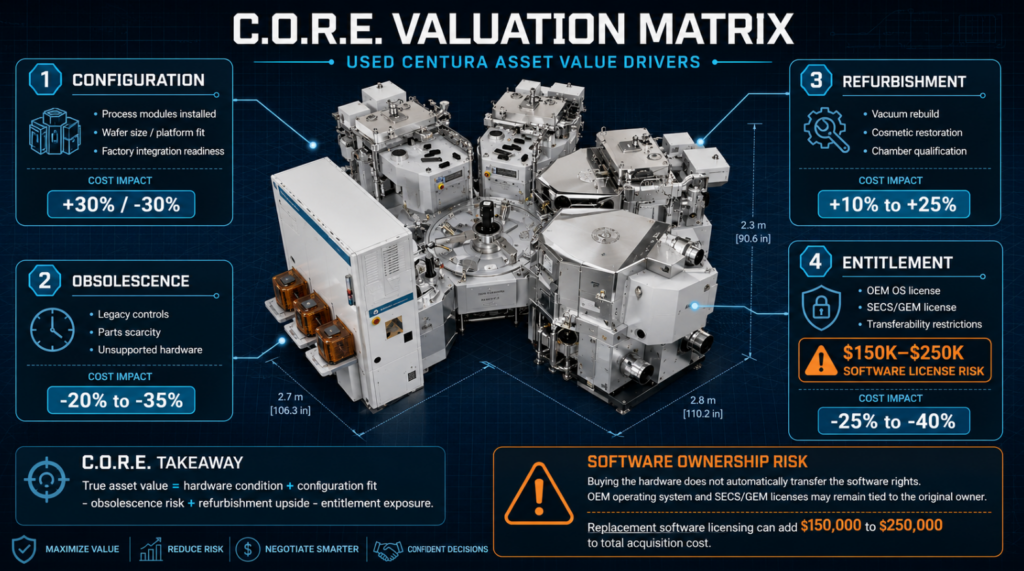

CORE Evaluation Matrix: Calculate the true cost of the equipment

Experienced fab executives often apply “CORE A matrix ”——i.e., configuration (Configuration), obsolescence (Obsolescence), refurbishment grade (Refurbishment), and authorization (Entitlement)—— to uncover the hidden cost traps behind used equipment quotes. It’s absolutely fanciful to think that you can accurately price a Centura system with just a few exterior photos and a crude spec sheet.

Configuration: Variability Between Host And Cavity

The value of the Centura depends entirely on what kind of process cavity it is equipped with. Its polygonal main unit can mount up to four process chambers plus two loading chambers (Load Lock). For example, a machine specifically configured for high-temperature RTP (rapid heat treatment) is completely different from a device used for DPS (decoupled plasma source) metal etching, whether it is a gas disk, chiller pipeline or thermal shield design. You have to make sure your equipment’s gas delivery system (GDS) is a perfect match to your in-plant process formula, or you’ll have to bite the bullet and shell out $300,000 for the conversion.

Outdated: The 200mm SiC Renaissance In 2026

With the explosion of silicon carbide (SiC) and gallium nitride (GaN) power electronics manufacturing, the 200mm Centura 5200 mainframe on the used market has been almost wiped out. As of 2026, even the original factory (OEM) will struggle to supply brand new 200mm equipment. Looking for spare parts for those cliched first-generation Centura consoles ——especially those long-discontinued CRT monitors and vintage single-board computer (SBC) controllers—— leaves you to be ripped off by third-party reverse engineering companies, paying exorbitant premiums.

Refurbished Level: Original Regular Army Vs. Gray Market Guerrilla

A hollow “refurbished” sentence means nothing without figuring out the exact level. A true “first-class refurbishment (Tier 1)” means completely disassembling the machine into a bare board, replacing all the O-rings, re-anodizing the cavity walls, and replacing them with a brand new VHP (Extremely High Pressure) robotic arm. In contrast, “Level 3 renovation (Tier 3)” is, to put it bluntly “just wipe the dust with a rag and turn on the electricity”. If you dare to bring a third-grade refurbished machine through the door, I guarantee it will immediately cause a disaster of particulate contamination as soon as it enters the clean room.

Licensing: “Ghost Software” Trap

A common misconception among many people is that after buying hardware, you naturally have the software to run it. The original factory had long tied the operating system and the license of the SECS/GEM factory automation software to the original buyer. If you were to save yourself the trouble of taking over a used Centura from a device clearing company, the manufacturer would unceremoniously lock up your software permissions. And buying a new software license at this time is often a huge loss, costing an additional $150,000 to $250,000.

System Specifications: Disassemble Centura Architecture

The secret to the incredible throughput of the Centura platform is that it completely isolates the central transport environment from the external clean room air.

Central Transfer Chamber (VHP Arm)

The heart part of the whole device is the magnetically coupled VHP (very high pressure) or HP (high pressure) mechanical arm located in the central transmission chamber. This robot arm can flexibly grasp the wafer and transfer the wafer back and forth between the loading chamber and the four process chambers in a vacuum environment. Its dual-blade (dual-blade) design is even more ingenious. The robotic arm can simultaneously complete the replacement of “removing processed wafers” and “placing wafers to be processed” in one action, which makes the wafer output per hour (WPH) A qualitative leap.

Loading Chamber Mechanism

The system uses two separate loading chambers. This dual-load chamber architecture means that while the machine is busy processing wafers in load chamber B, the fab’s automation system (crane OHT or AGV trolley) can simultaneously load 1 whole boxes of new wafers into load chamber A. The equipment takes less than three minutes to draw the loading chamber to the basic vacuum.

Process Chamber Flexibility

This high degree of modular design, it is the application of materials Centura platform to dominate the industry’s fundamental reasons. The fab can assemble specific process modules on the host at will according to the needs of its own process nodes. The standard configurations on the market are all-encompassing, such as DxZ cavities for plasma-enhanced CVD(PECVD), Super-E specializing in advanced etching, and Radiance cavities for RTP (rapid thermal processing).

Cost Anatomy: Second-hand Market in 2026

When budgeting for second-hand Centura, be sure to separate the money of the main engine and the money of the process cavity.

Today, on the market, a bare mainframe with a dual loading chamber and a working VHP robotic arm trades for between $300000 and $500000. The process cavity is the real big head. Even if the most common DxZ CVD cavity is installed, the unit price will be 150000 to 250000 US dollars more. If it is replaced by a high-end epitaxial (Epi) or advanced DPS etching cavity, the price of a single cavity can directly exceed $400000.

The cost of the plant’s docking pipeline (hookup) is another extremely large capital expenditure. To install a Centura full of four cavities in place, you have to be equipped with a special dry pump (rough pumping pump), a machine end (POU) tail gas treatment device, and a high-power chiller. Listen to me, it is best to set aside a separate budget of $200000 for each device to deal with factory integration, exhaust lines, and toxic gas monitoring systems (TGMS).

Configuration Type	Typical Application	Estimated Market Price (2026 USD)	Refurbishment Level
Centura 5200 (200mm) – Bare Mainframe	Base Platform	$300k – $500k	As-Is / Power-On
Centura 5200 (200mm) – 2x RTP Chambers	SiC Power Devices	$1.2M – $1.8M	Fully Refurbished (Tier 1)
Centura AP (300mm) – 4x DxZ CVD	Logic/Memory Dielectrics	$2.5M – $3.5M	Fully Refurbished (OEM Certified)
Centura 5200 (200mm) – 3x Etch	Legacy Analog/Sensors	$1.5M – $2.0M	Tier 2 (Functional)

Expert Pit-Avoidance Guide: Stay Away from Used Equipment Thunder Site

Senior equipment engineers will definitely stare at several fatal points that are easy to go wrong before signing to buy second-hand Centura.

O-Ring Aging Of Isolation Valve (Slit Valve)

The function of the isolation valve is to isolate the process chamber from the central transfer chamber. After years of heat cycling, the Viton O-rings on these valves are baked dry. Once the O-ring is crushed and loses its elasticity, it will cause a small vacuum leak. At this time, the process gas in the CVD chamber will sneak into the transfer chamber, directly contaminating the next wafer to be processed beyond recognition. Remember, before making a payment, be sure to force the seller to issue 1 copies of a comprehensive helium mass spectrometry leak detection report for all isolation valves.

Z-Axis Mechanical Arm Sagging Fatigue

As long as the mechanical arm moves back and forth millions of times, its Z-axis lifting mechanism will have serious mechanical wear. The Z-axis “droop” means that the blade of the robotic arm will directly scratch the edge of the electrostatic chuck (ESC) or the crystal box. This 1 doesn’t matter, it will immediately scrape out thousands of tiny aluminum particles, directly to your fab defect density (D0) index to dry waste. You must tell your purchasing and testing team: in the testing process, you must take a dial indicator to personally test the repeated positioning accuracy of the Z axis.

FAQs

What Is The Difference Between The Centura Of Applied Materials And Endura?

The Centura platform is mainly used for CVD, etching and RTP processes, and the working environment is usually at medium and high vacuum levels. The Endura platform is specifically tailored for PVD (physical vapor deposition/sputtering), which must be run in an ultra-high vacuum (UHV) environment so that metals such as copper, titanium or aluminum can be plated with extremely high purity.

What Size Wafers Can AMAT Centura Make?

The old Centura 5200 platform eats 150mm (6 inches) and 200mm (8 inches) films. The newer Centura AP (Advanced Platform) is designed specifically for 300mm (12-inch) wafers. Don’t expect to be able to easily change a 200mm mainframe to 300mm. The inherent limitations of the physical structure are there. This road is impassable.

How Many Cavities Can A Centura Host Hang At Most?

The standard polygon host can hold 4 cavities for running processes and two loading chambers at full capacity. There are indeed some special configurations that can use the transition cavity (pass-through chamber) to connect several hosts into one piece, but if you only look at the scope of a single robotic arm, up to 4 process cavities is the standard upper limit.

What Is The Power Demand Of AMAT Centura?

The power consumption is completely followed by the cavity configuration, with great differences. A conventional 4 chamber CVD machine usually needs to 1 a three-phase four-wire 208V AC lead-in line with a rated current of 250 to 400 amperes. However, if it encounters a high-temperature RTP configuration, its peak current demand will be much more frightening in order to be able to move those dense halogen lamp arrays.

Can Old-Fashioned Centura 5200 Still Run SECS/GEM?

Of course. Centura 5200 is supported for interfacing fab automation systems via the SECS/GEM protocol. However, there is a hole here: for those hosts that are still using antique OS/2 or early Windows NT systems, if you want to connect stably with the latest manufacturing execution system (MES), you usually have to install a modern hardware simulator or simply upgrade the SBC.
