AMAT Endura 5500 Manual: Setup & Maintenance Steps

What are the difficulties in installing AMAT Endura 5500? There are mainly two parts: fixing the ultra-high vacuum system and leveling the VHP robot to millimeter level. For engineers in a hurry to get the production line back to work, going through the hundreds of pages of amat endura 5500 manual is too much of a delay. Simply put, give the answer directly: to successfully install the machine, two hard indexes must be broken-the background vacuum degree (Base Pressure) of the core cavity must be pressed below 5 × 10-8 Torr within 4 hours; The wafer transmission deviation of all slit valves (Slit Valve) cannot exceed 0.1mm. As long as these two conditions meet the standards, the machine can be directly on the production line.

Old original documents such as amat endura manual and amat p5000 manual in the 1990 s are indeed the basis for equipment maintenance. However, in the past 20 years, people have stepped on countless pits in the renovation of second-hand equipment and high-intensity mass production, and the “pit avoidance guides” they have saved cannot be found in these rigid manuals. In the following article, let’s skip the nonsense warnings in the traditional guide and disassemble the troubleshooting logic and advanced diagnostic techniques that senior equipment engineers are really using.

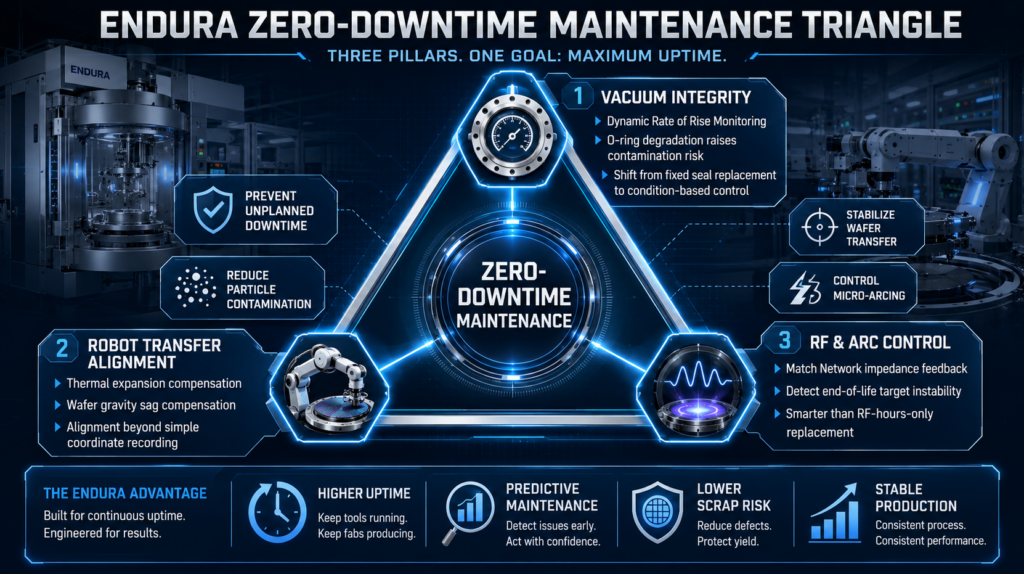

Endura’s “Zero Downtime Maintenance Iron Triangle”

The PM (preventive maintenance) plan in the factory is usually on a dead schedule, which can easily lead to two extremes in actual mass production: either overmaintenance or sudden machine crash. Senior renovation experts and first-line Fab Daniel combined years of on-site experience to condense the complex original factory specifications into “Endura Zero Downtime Maintenance Iron Triangle”.

Vacuum integrity (Vacuum Integrity): This is the lifeblood of PVD systems. O-ring even if a little aging, film impurities will exceed the standard. Our maintenance focus must be changed from “changing the sealing ring on time” to “dynamically monitoring the leakage rate (Rate of Rise)”.

Robot transfer alignment (Robot Transfer Alignment): Endura 5500’s Buffer and Transfer double-layer cavity structure is very complex. Leveling the manipulator is by no means a simple record of the coordinates. Thermal expansion and contraction and the gravitational sagging of the wafer itself must be taken into account.

Radio Frequency and Arc Control (RF & Arc Control): Target materials are particularly prone to micro-arcing (Micro-arcing) later in their life. Don’t just stare at the “RF hours”, it is much more scientific to decide when to change targets by matching the real-time impedance fed back by the network (Match Network).

Core Installation And Calibration Steps

Mechanical assembly is just the fur of the installation machine. Accurate alignment of parameters and physical feedback is the soul of equipment debugging. After the equipment is pulled into the production line, the most easy place to get stuck is the following steps.

Benchmarking of the vacuum system and the condensate pump (Cryo Pump)

Whether the condensate pump can be deeply regenerated (Regeneration) and whether the exhaust pipe has a leak point directly determines whether the equipment can enter a high vacuum state. When a novice encounters a slow start-up vacuum, his first reaction is to suspect that the cavity is leaking, and then he starts to disassemble and assemble blindly.

What does the veteran do in the field? First do the leak rate test (Rate of Rise), and then grab the data of the residual gas analyzer (RGA). If the gate valve of the condensate pump is turned off, the cavity pressure rises slowly and linearly, it is usually just too much moisture adsorbed in the cavity, and a baking (Bake-out) can be solved. However, if the pressure soars instantly, then stop talking nonsense and go directly to the helium mass spectrometer leak detector and accurately spray helium around the gap valve that has just changed the O-ring.

Symptom / Leak Characteristic	RGA (Residual Gas Analyzer) Signature	Likely Cause	Diagnostic Method	Recommended Solution
Slow, linear pressure rise after gate valve closure	Elevated H₂O (mass 18), gradual increase of background gases	Moisture adsorption inside chamber surfaces	Rate of Rise (pressure vs time) test	Perform controlled bake-out to desorb water molecules
Rapid pressure spike immediately after isolation	Mixed gas peaks including N₂ (28), O₂ (32), and He (4 if present)	Active leak at seals or O-rings	Helium leak detection (sniffer mode)	Inspect and replace Slit Valve O-rings or damaged seals
Long pump-down time but stable final vacuum	Low-level broad spectrum elevation, no dominant spike	Contaminated chamber surfaces or polymer outgassing	RGA spectral sweep during pump-down	Clean chamber and perform extended conditioning pump cycles
Intermittent pressure instability	Fluctuating peaks in H₂O (18) and CO (28)	Temperature variation causing desorption	Temperature correlation test + RGA monitoring	Stabilize chamber temperature and repeat bake-out
Poor ultimate vacuum limit	Elevated noble gases and residual background noise	Micro-leaks in exhaust or vacuum lines	Helium mass 4 detection across fittings	Tighten fittings, re-torque flanges, re-test with helium spray
Recovery improves after extended pumping	Gradual reduction of all mass signals over time	Normal seasoning effect of new chamber surfaces	Time-based pump-down curve analysis	Continue conditioning; no repair required

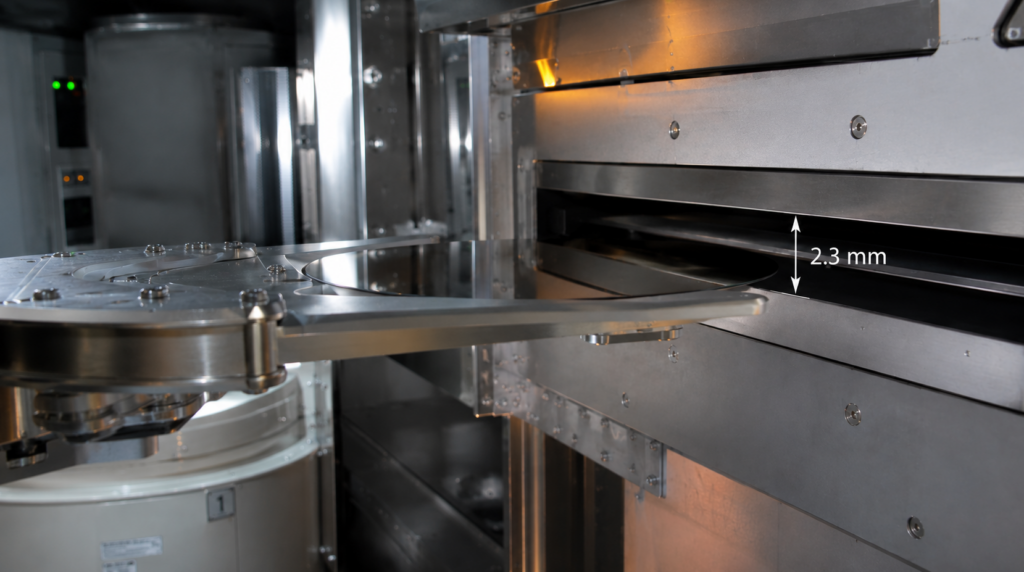

Actual combat alignment and leveling of wafer transfer robot

The alignment of the VHP manipulator is not accurate, which is directly related to whether the wafer will be scratched or dropped during transmission. Official manuals generally let you use special alignment fixtures, but when engaged in second-hand equipment, fixtures are often not found. At this time, on-site engineers have to rely on rules of thumb.

Key points: Leveling operation must be carried out when the cavity is at working temperature, and must not be carried out in a cold state. The metal will expand at high temperature, and the perfect coordinates are called out when the machine is cold. When the machine is hot, the wafer will easily rub against the edge of the cavity. When debugging, the engineer should take the teaching device (Teach Pendant), send the manipulator into the target cavity bit by bit, and confirm the gap above the thimble (Lift Pins) with naked eyes to ensure that the force at four points is absolutely uniform.

Core Cavity Maintenance And Consumables Replacement Guide

The daily PM of the cavity is the most critical part of reducing the defect rate (Defect Rate). The operation here can’t tolerate any metaphysics, and every step has to be broken into the clean room operation specification.

PVD Target Replacement and Burn-in Process

Changing the target is not as simple as screwing a few screws. The torque of the bottom layer is uneven, which directly determines the consistency of sputtering behind. After the new target material is installed, it is absolutely impossible to run the film directly on the production line, and the Burn-in (target burning) process must be strictly implemented.

When installing the target material, a torque wrench must be used and twisted in 3 stages by diagonal cross method to reach the target torque, so as to prevent micro-warping of the back plate. Target burning is to clean the oxide layer and factory residue on the surface of the new target. We have to ignite (glow) at low power and use the baffle (Dummy Wafers) to absorb the impurities that are sputtered at the beginning until the voltage and current parameter curves are completely flattened, indicating that the target has entered a stable period.

RF Matching Network and Plasma Ignition (Glow) Fault

When operating Endura 5500, no ignition (Plasma Ignition Failure) is one of the most maddening problems. Traditional troubleshooting ideas often let you check the radio frequency generator (RF generator), but the real mole is often hidden in the matching network, or the details of the cavity grounding are not well done.

If the senior technician encounters ignition failure, the first is to see if the ground strap of the cavity is oxidized or loose. RF energy will only pick the path with the lowest impedance. As long as there is a little problem with the grounding, the matching network will not find the lowest reflected power point. In case of this, don’t rush to replace those expensive RF matching parts. First, take a multimeter and measure the conduction resistance from the matching box shell to the main frame of the machine to ensure that it is below 0.1 ohms.

AMAT P5000 Vs. Endura 5500

The equipment maintenance brothers in the factory often have to deal with several AMAT classic platforms at the same time. The amat p5000 manual talks about CVD and etching (Etch) processes, but its underlying mechanical logic highly coincides with the Endura 5500.

The core differences are mainly in the vacuum management mechanism and the structure of the transmission platform. The P5000 uses a single central robot to diverge into multiple process cavities. The design of the Loadlock (locking cavity) is relatively simple and suitable for medium and low vacuum environments. Endura 5500 is engaged in Buffer and Transfer double-layer isolation architecture, in order to meet the demanding requirements of PVD for ultra-high vacuum. Engineers who turned from P5000 to repair Endura had to adapt to this multi-stage vacuum gradient voltage control logic. However, the pneumatic valve, VME control bus and some motor drivers at the bottom of the two platforms are interchangeable, which provides a great spare parts turnover space for second-hand equipment refurbishers.

Break The Rigid Limit Of Manual By Sensor Upgrade

The new way to play in the industry is to use Internet of Things (IoT) technology for predictive maintenance of old equipment. For example, the factory documents stipulate that the condensate pump of Endura 5500 must be overhauled every 3000 hours. This dead rule wastes a lot of production capacity.

There is an 8-inch factory in California that plays well. They have attached vibration and sound sensors to an old Endura 5500. The test data is: as long as the vibration frequency of the cold head of the condensate pump is monitored in real time, the maintenance period can be safely extended to about 4500 hours. The system will only trigger an alarm and schedule a shutdown when the base vibration frequency deviates from the baseline by 15%. With such a small technological transformation, the unplanned downtime of the machine has been cut by 40% every year. The dividends brought by modern projects like this cannot even be found in the old original factory documents.

FAQs

Q1: How can I get a piece out of the Transfer Chamber?
Never use a mechanical hand to Transfer the Chamber to catch debris blindly. The operator must first disable all mechanical actions of that chamber in the software interface, and then follow the standard Vent (vacuum breaking/inflation) program. After opening the lid of the cavity, the engineer will manually clip out the broken wafers with special Teflon wafer tweezers, then dip the dust-free cloth with isopropyl alcohol (IPA) to clean the O-ring groove and the inner wall inside and outside, and never let even a little silicon particles stay to cause vacuum leakage.

Q2: What is the normal background vacuum level of the Endura 5500 PVD chamber?
Under standard operating conditions, the background vacuum (Base Pressure) of the PVD process chamber should be maintained in the order of 10 ^-8 Torr. If the vacuum is pumped slowly and finally only barely reaches 10-7 Torr, then the water in the cavity is not drained clean, or the condensate pump needs to be regenerated (Regeneration).

Q3: Can AMAT P5000 manipulator parts be used on Endura 5500?
Only a few non-core pneumatic parts and standard sensors can be universal, and the main body of the manipulator is absolutely incompatible. The central robot design of P5000 is completely different from the HP/VHP dual transmission system 5500 by Endura, whether it is shaft length, motor encoder resolution or Z-axis lifting logic.

Q4: Why does Endura 5500 not catch fire after changing the target?
Ignition failed after changing the target, 90% of which was due to the wrong spacing of Dark Space Shield, resulting in short circuit of RF energy. The reason for the remaining 10% is that the oxide layer on the surface of the new target is too thick. In this case, the operator has to temporarily increase the initial ignition pressure in the control panel, wait for the plasma to stabilize, and then change the formula back to the standard value.

Q5: How long does it take for Endura 5500 condensate pump to do a standard regeneration?
It usually takes 4 to 6 hours to complete a complete condensate pump regeneration cycle. This includes heating the exhaust gas, nitrogen purging to remove moisture, and a cooling stage to reduce the temperature below 15K again. If after 6 hours, the secondary cold head has not dropped below 20K, it means that either the helium compressor pressure is not enough, or the internal sealing ring wear is too serious.

Q6: Where can I download the complete AMAT Endura 5500 Manual PDF?
Official complete maintenance manuals and drawings are protected by intellectual property rights and are generally only available when buying new equipment or through official customer service through applied materials (Applied Materials). Engineers who repair used equipment want to get engineering notes for specific submodules, usually they have to go to the circle of refurbishers or to professional semiconductor equipment forums.

Q7: What is the difference between HP and VHP manipulator on Endura platform?
The HP robot usually stays in the buffer Chamber (buffer chamber), which is responsible for moving the wafer from the atmospheric end to the buffer vacuum area. The VHP robot is installed in the Transfer Chamber (transmission chamber) and specializes in precision film transfer in extreme ultra-high vacuum environment. Compared with HP,VHP robot on the material outgassing rate (Outgassing) and high temperature deformation requirements are much more demanding.
