Semiconductor Replacement Parts | 0010-20132

Wuxi Zhanshuo Technology Co., Ltd. specializes in providing high-precision, long-life semiconductor component customization and replacement services for core equipment in the integrated circuit industry, leveraging advanced semiconductor material‑processing technologies to enhance equipment uptime and yield. As a manufacturer with direct production capabilities, Chinsor Tech operates its own machining workshop and maintains an in-house technical team. By cutting out intermediaries, we work directly with wafer fabs and refurbishers, ensuring faster overseas delivery and highly competitive ex-factory pricing.

99.99% Material purity

0.005mm Machining tolerance

0.1 microns Surface roughness

1200 degrees Celsius Applicable temperature

0.0000001 Pa Chamber vacuum

1.0E-9 Air leakage rate

20 kV Insulation strength

1800 Vickers hardness Hardness grade

Get a Quote

Our products

Semiconductor replacement parts are primarily used inside the chambers of chemical vapor deposition equipment for integrated circuit thin films, in the wafer‑heating and‑support mechanisms of physical vapor deposition systems, in gas distribution systems operating under high vacuum conditions, and in the vacuum‑locking chambers of wafer handling systems.

semiconductor replacement parts characteristics

Precision tolerance control improves yield:

product processing tolerance is strictly controlled within 0.005mm, effectively reducing particle pollution caused by mechanical wear, reducing the particle defect rate in wafer manufacturing by 45%, and directly improving the yield of production line chips.

High-purity materials extend life:

high-purity silicon carbide and alumina ceramic materials with a purity of up to 99.99% are used to increase the erosion resistance by 2 times in a highly corrosive plasma environment and extend the overall replacement cycle of components by 2 years.

Thermal Field Uniformity Optimization Film:

The internal flow channel and structure design of the wafer heater are optimized by thermodynamic simulation, and the surface temperature difference is less than plus or minus 1.5 degrees Celsius at a high temperature of 800 degrees Celsius, ensuring that the thickness uniformity of film deposition reaches 99%.

High vacuum sealing zero outgassing:

vacuum chamber parts through strict vacuum baking and precision sealing surface polishing treatment, in the ultra-high vacuum environment to achieve zero outgassing standards, to avoid gas phase pollution caused by the release of impurity gases.

High temperature and high pressure resistance and thermal shock resistance:

ceramic brittle material components can withstand severe temperature changes of 200 degrees Celsius per minute without cracking, effectively preventing the risk of component fracture and fragmentation due to frequent thermal cycling.

Perfect matching of original factory-level specifications:

one-to-one precision re-engraving is carried out in strict accordance with the mechanical interface and electrical parameters of mainstream machines, seamless replacement can be realized without any changes to the original equipment, thus shortening the downtime and maintenance time of the equipment.

Detailed structural parameters of semiconductor replacement parts

Parameter	Specification Data	Test Standard / Notes
Main Application Equipment	Thin Film CVD / PVD Semiconductor Equipment	Designed for 8-inch IC manufacturing production lines
Base Material Classification	High-purity Metal / Precision Ceramic / Silicon Carbide	Material selection depends on different process chamber environments
Machining Tolerance	±0.005 mm	Meets ultra-precision fitting requirements
Surface Roughness	Ra 0.1 – 0.2 μm	Reduces particle adhesion and friction coefficient
Maximum Operating Temperature	1200 °C	Suitable for high-temperature epitaxy and deposition processes
Dielectric Breakdown Strength	>20 kV/mm	Ensures insulation reliability in plasma environments
Thermal Conductivity	150 W/m·K	Enables rapid and uniform heat transfer for optimized thermal distribution
Quality Certification System	ISO 9001 Certification	Each product includes a complete CMM inspection report

semiconductor replacement parts comparison point

Relying on deep semiconductor precision manufacturing experience, Chinsor Tech has made breakthroughs in the research and development of key thin film deposition and plasma etching process components. Through the fine control of the sintering process of high-purity ceramic materials and the metal surface treatment technology, the replacement spare parts have excellent performance in plasma etching resistance and high temperature creep resistance, which can not only completely replace the original parts, but also show a lower particle release rate under specific harsh working conditions, significantly reducing the risk of wafer contamination for customers. As the source factory, Chinsor Tech has established a perfect quality control system for the whole process of semiconductor spare parts manufacturing. From the detection of raw materials entering the factory to the ultra-high vacuum side leakage and three-coordinate precision dimension measurement before leaving the factory, they all meet the strict standards of the industry. Compared with traditional international factories, we have more flexible customized transformation capabilities, and can provide customized design and manufacturing services in a very short delivery period to meet the specific production line reconstruction needs of fabs, helping enterprises to significantly reduce spare parts procurement costs. Especially in the renovation and parts upgrade of the 5000/5200 WXZ CHAMBER platform, we have mature field engineering experience and excellent cost performance.

The long procurement cycle of the original factory leads to downtime.

In view of the serious losses faced by the wafer factory due to the delivery of original spare parts for several months, we shorten the production and logistics cycle and shorten the delivery time of standard replacement parts to less than four weeks.

Traditional replacement parts have short service life and frequent replacement.

In view of the problem that some No.2 supplier products in the market do not meet the wear resistance and corrosion resistance standards, resulting in frequent cavity replacement, we have improved the purity and hardness of materials and doubled the working life of spare parts.

The mismatch of cavity components causes wafer contamination.

In view of the pain points of plasma leakage and metal ion contamination caused by small deviation of spare parts size during the refurbishment process, we ensure that the fit reaches zero gap through ultra-precision machining.

semiconductor replacement parts for people

The fab procurement and supply chain manager

is suitable for the IC manufacturing plant procurement leader who is saddled with KPIs to reduce production costs and establish a diversified supplier system. This group needs to look for local component source manufacturing plants with equivalent quality, certified quality management systems, and stable high-volume delivery capabilities to ensure supply chain security. Especially in the face of old equipment such as Chamber Body Hdp-cvd parts wear and need to be replaced or modified as a whole, it can provide a reliable localization of the second source of choice.

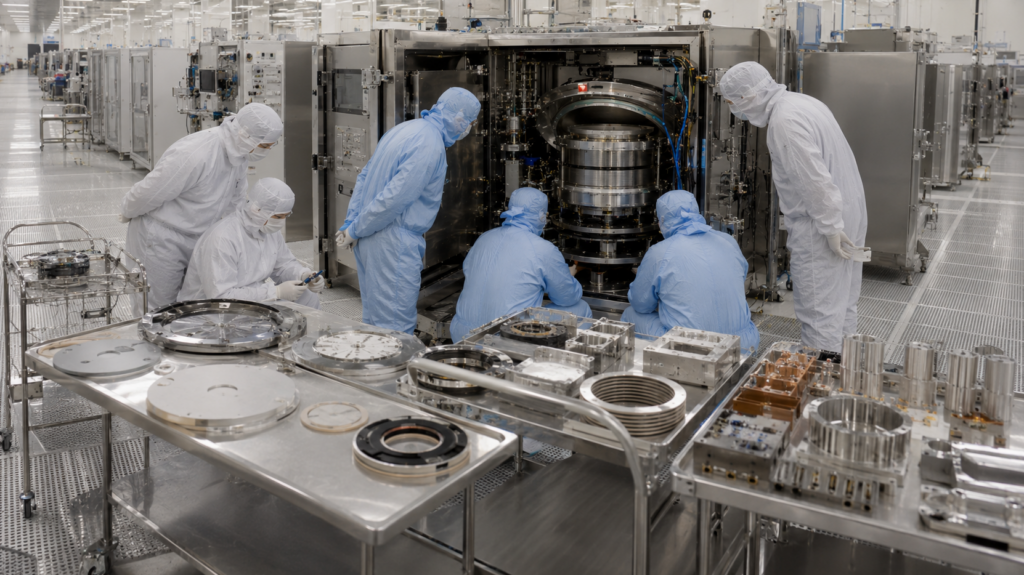

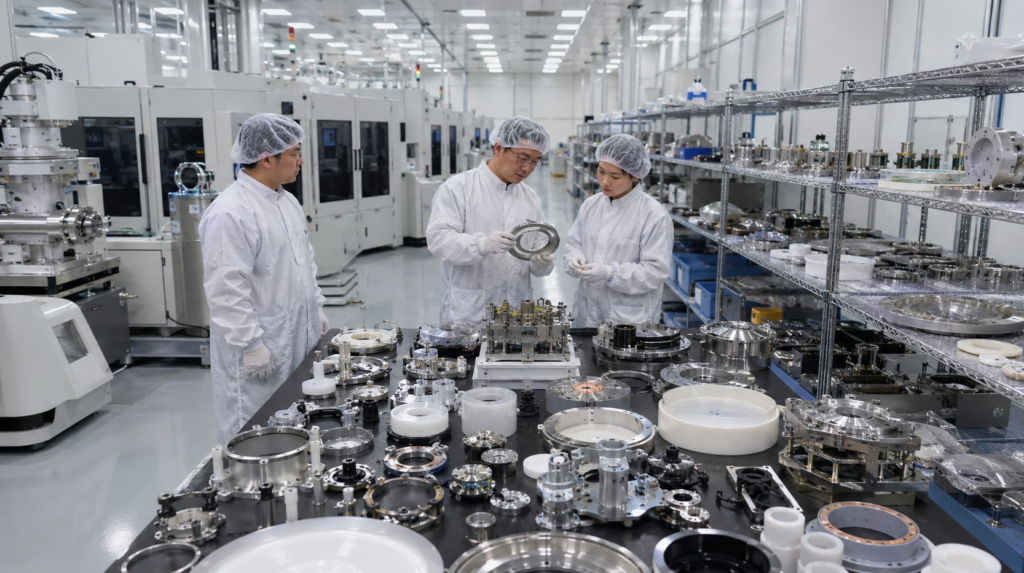

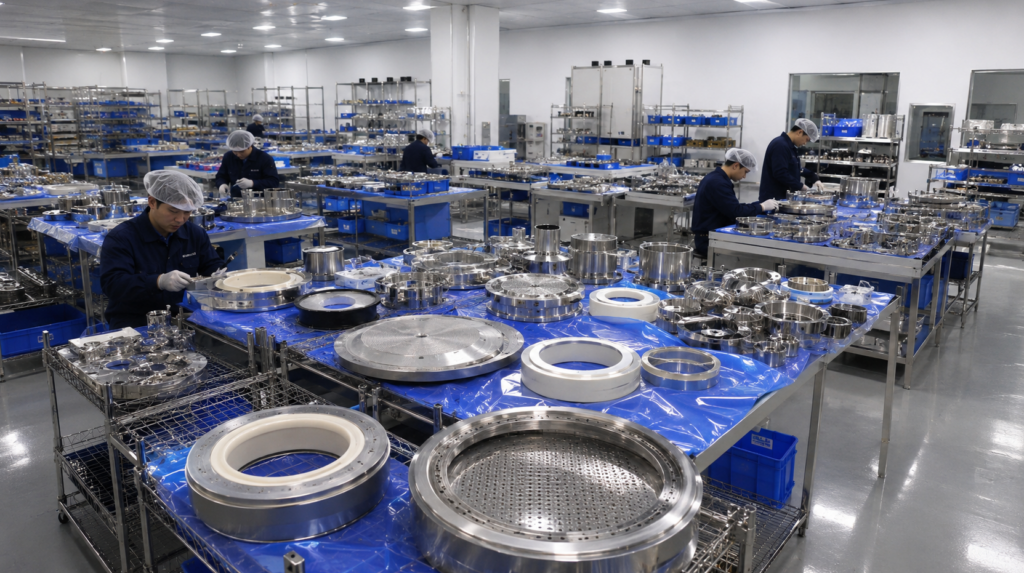

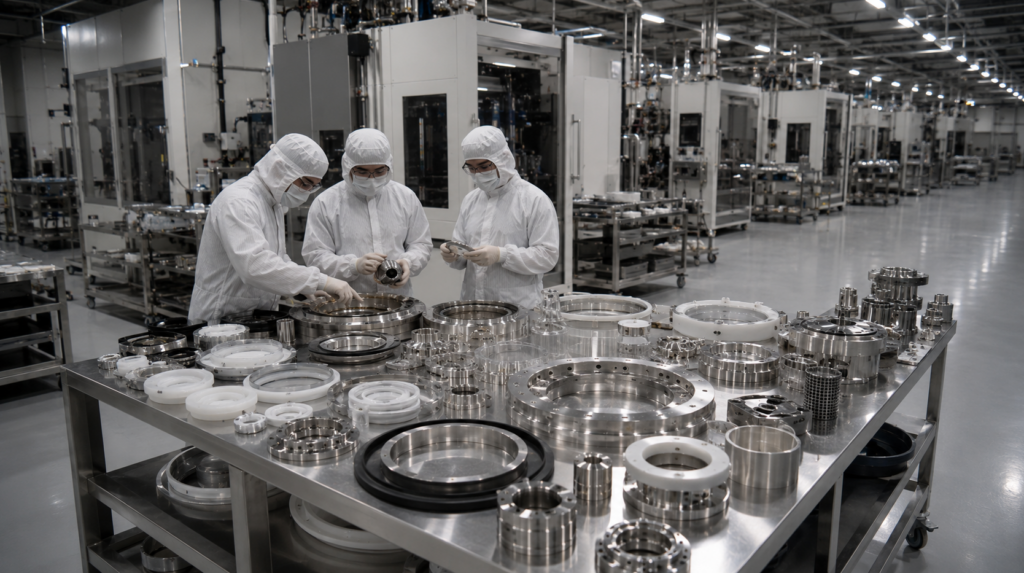

Semiconductor Replacement Parts For People

Semiconductor equipment refurbishment and maintenance engineers

are suitable for equipment maintenance technical experts within third-party semiconductor equipment refurbishment companies or fabs. This part of the user in the classic platform machine upgrade, cavity replacement or component maintenance, the need for high-precision, size completely matched metal and ceramic brittle material spare parts to restore equipment performance.

Semiconductor process development engineers

are suitable for fab technology developers who are developing new processes or making specific functional modifications to existing production lines. They need spare parts suppliers to develop non-standard high vacuum chamber parts or heater structures according to special temperature, pressure or plasma environment.

Semiconductor equipment manufacturers

are suitable for emerging equipment manufacturers that produce non-standard semiconductor equipment or epitaxial and equipment. These manufacturers need to find upstream core OEM foundry partners with a high percentage of invention patents, process standards, and collaborative research and development of key components during the equipment assembly phase.

semiconductor replacement parts instructions

Opening and cleanliness inspection:

the product adopts double vacuum and dust-free packaging, please be sure to unpack in a thousand-level or 100-level clean room. Wipe the surface with high-purity isopropyl alcohol and purge with high-purity nitrogen before installation to ensure that there is no particle adsorption or grease residue on the surface of the part.

Accurate alignment and torque tightening:

Move the replacement part into the corresponding installation position inside the equipment cavity to ensure that the positioning pin or sealing surface is completely aligned. In particular, for precision airflow distribution components such as Blocker Plate Dxz, a special torque wrench must be used to tighten the bolts in staggered times according to the torque standard specified in the equipment manual to avoid ceramic parts fragmentation or uneven airflow due to uneven stress.

Ultra-high vacuum leak test:

After the chamber is assembled, the chamber door must be closed and the vacuum pump system must be opened for vacuum pumping test. Use helium mass spectrometer leak detector to strictly check the sealing surface and connection, and ensure that the leakage rate meets the standard requirements before entering the next step.

High-temperature thermal cycle pre-baking:

Before the first production process, the preheating program of the machine should be started, and the temperature should be slowly increased to the working temperature at a rate of 5 to 10 degrees Celsius per minute, and the baking should be kept for several hours under high-temperature vacuum to completely eliminate trace volatiles that may exist.

factory and certificate

certificate

FAQ And Contact Us

Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.

Q: Can your semiconductor replacement parts directly replace the original factory parts?

A: Yes. Our products are processed one-to-one precision in strict accordance with the original mechanical drawings, electrical interfaces and material specifications of mainstream semiconductor equipment. The dimensional tolerances and physical properties of materials fully conform to the original standards and can be directly installed and used without modifying the equipment.

Q: Under high temperature and high vacuum environment, will your ceramic parts release impurity gas?

A: No. We use high-purity alumina and silicon carbide materials with a purity of up to 99.99 percent, and undergo rigorous high-temperature vacuum baking and degassing treatment before leaving the factory. The parts exhibit extreme chemical stability in ultra-high vacuum and 1200 degrees Celsius, achieving zero outgassing.

Q: How to ensure the service life of replacement parts in a highly corrosive plasma environment?

A: We have improved the hardness and compactness of precision ceramic and metal surface treatment layers by optimizing the grain size and sintering density of materials. This makes the parts in the face of fluorine-based or chlorine-based strong corrosive plasma bombardment, erosion wear resistance significantly improved.

Q: What quality management system certifications have your factory’s products passed?

A: Wuxi Zhanshuo Technology Co., Ltd. has passed the 9001 quality management system certification of the International Organization for Standardization. We have established a full-process quality inspection mechanism from raw material inspection, processing process monitoring to three-coordinate precision measurement of the final finished product, and each product can be traced back.

Q: How long is your communication and delivery cycle for customized non-standard parts?

A: After receiving your customized requirements or drawings, our technical team will complete the feasibility assessment within 24 hours. Because we are the source manufacturing facility, standard replacement parts are usually delivered within four weeks, and complex customized cavities or heating parts are usually delivered within six to eight weeks.

Q: How are your products shockproof and pollution-proof during international logistics transportation?

A: All our products are cleaned in a dust-free laboratory and are packaged in a double-layer high-density vacuum to effectively isolate the outside air and moisture. The outer packaging adopts customized high-strength shockproof wooden box and thickened foam shock-absorbing structure to ensure the safety of cross-border sea or air transportation.

Please feel free to contact us. We look forward to hearing from you.
