Semiconductor Parts Suppliers | 0290-35673-03

With a high proportion of core invention patents and ISO 9001 quality inspection system, Chinsor Tech focuses on providing high-precision metal, brittle ceramics and other cavity core custom parts for mainstream vapor deposition and etching equipment renovation. As a semiconductor source factory with a physical manufacturing base and a multi-axis CNC machining center, Chinsor Tech refuses middlemen to earn the difference, and can directly provide global maintenance upgrade service providers with highly competitive ex-factory prices and agile supply chain delivery.

99.70% Material purity
± 0.001mm Machining accuracy
200mm Applicable process
500 Vickers hardness Surface hardness
2000 degrees Celsius Maximum temperature scale
10 to the negative power of 9 Vacuum leak rate
Ra 0.1 microns Roughness
10 ultra clean room Clean level

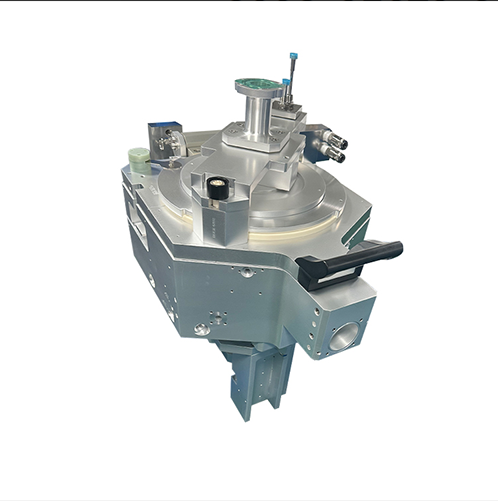

semiconductor parts

gear

Micron-level geometric tolerance control

As a professional semiconductor component supplier, we adopt a multi-axis precision machining center to stabilize the geometric tolerance of the parts within ± 0.001mm, with high installed fit and perfect compatibility with mainstream renovation platforms.

gear

High temperature and high corrosion material modification

select purity up to 99.7 percent of alumina ceramics and modified aluminum alloy, in the strong plasma bombardment environment to reduce the wear rate of 45%, greatly extend the operating life of the modified equipment internal parts.

gear

Ultra-high vacuum zero leakage sealing quality

the leakage rate of all vacuum chambers and transmission parts is strictly controlled below 10 minus 9 millibar liters per second to ensure the ultimate pressure performance of refurbished equipment under ultra-high vacuum process.

gear

High uniformity temperature field hardware and software collaboration

with independent wafer heating technology and software and hardware copyright, so that the temperature difference on the wafer heating surface is less than 0.5 percent, helping refurbished equipment to achieve the original film uniformity in film deposition.

gear

Flexible non-standard reverse engineering customization

for the old spare parts that have been discontinued by the original factory, we can carry out agile reverse engineering and modification manufacturing according to the drawings or objects provided by the renovation service provider, so as to realize the efficient replacement of the lower cavity and other components.

gear

Anti-particle pollution control in the whole process

all delivered parts are ultrasonically cleaned by multiple channels of deionized water before leaving the factory, and vacuum double-layer anti-static packaging is completed in a 10-level ultra-clean room to ensure that there is no secondary pollution during the installation process.

Technical parameter classificationSupply Specifications and Technical Indicators
Compatible equipment rangeThin film chemical vapor deposition, physical vapor deposition equipment, plasma etching machine, epitaxial growth chamber
Corresponding wafer specifications200mm and below mature process equipment platform
Main material systemHigh-purity aluminum alloys, stainless steel, alumina ceramics, silicon nitride, and brittle silicon carbide materials
Core supply componentsVacuum chamber, wafer heating plate, gas path control box assembly, lower chamber replacement parts, vacuum lock assembly
Surface treatment technologyAdvanced anodizing, micro-arc oxidation, Teflon special coating, ultra-high vacuum polishing
Particle size indexThe number of dust particles with a surface diameter greater than 0.1 micrometers is strictly less than 0.05 per square centimeter.
Quality StandardsThe quality management system fully complies with internationally recognized semiconductor supply chain access standards.

In the equipment remanufacturing and maintenance market, it is very important to find qualified semiconductor component suppliers. Traditional overseas trade-oriented suppliers often lack physical manufacturing and processing capacity, in the face of non-standard customization and original production of spare parts, can not provide accurate technical re-engraving, and due to the layer of change of hands resulting in procurement cycle is usually as long as several months. Chinsor Tech has its own patented R & D team and manufacturing plant. All spare parts are processed with full-process precision and surface treatment in the physical workshop, which can not only shorten the delivery cycle of non-standard customization by more than 25%, but also endow components with better plasma etching resistance and avoid frequent downtime through the independently developed surface modification process.

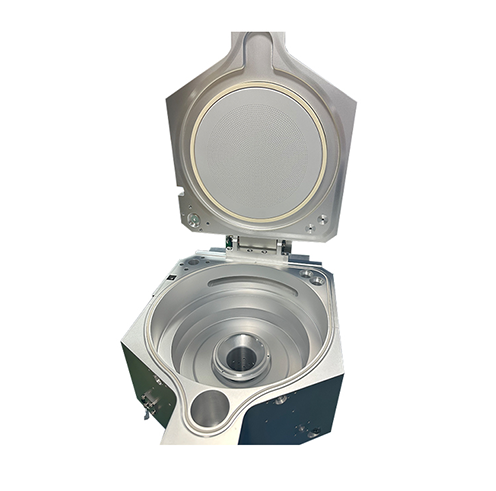

semiconductor parts
solution

There is no way to purchase spare parts for old platforms

Chinsor Tech customized parts supply: in view of the problem that the original factory stopped technical support for the early model platforms, which led to the supply of spare parts, we solved the industry pain point that there was no place to purchase non-standard spare parts and the lack of drawings in the renovation of old equipment.

solution

Poor compatibility of common machined parts installation

Chinsor Tech high-precision assembly components: In view of the risks of mismatching of form and position tolerances and slight leakage of cavity caused by maintenance engineers using common foundry parts, we have solved the adaptation problem of sealing failure of non-standard modified parts installation.

solution

Supply chain price increases lead to high maintenance costs

Chinsor Tech source factory direct supply: in view of the refurbishment service providers from multi-level international traders to take goods led to serious compression of profit margins, we have solved the problem of high procurement costs of semiconductor core spare parts.

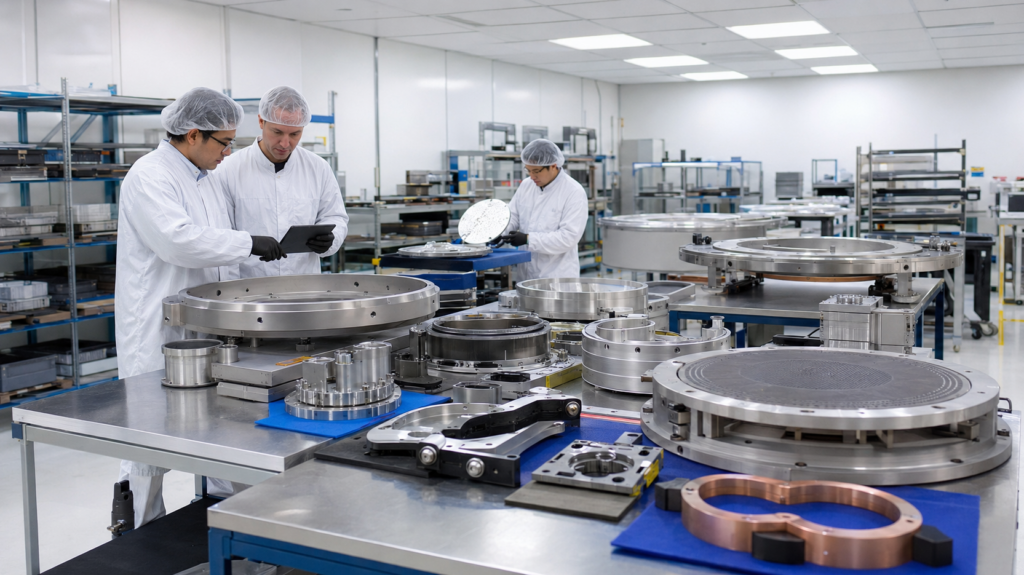

Engineering Director of Semiconductor Remanufacturing Enterprise

It is suitable for technical leaders who specialize in refurbishing old equipment, functional modification and cavity upgrade of fab, and need to find long-term semiconductor component suppliers with reverse engineering and customized processing capabilities.

pasted image 20260707 014043 978

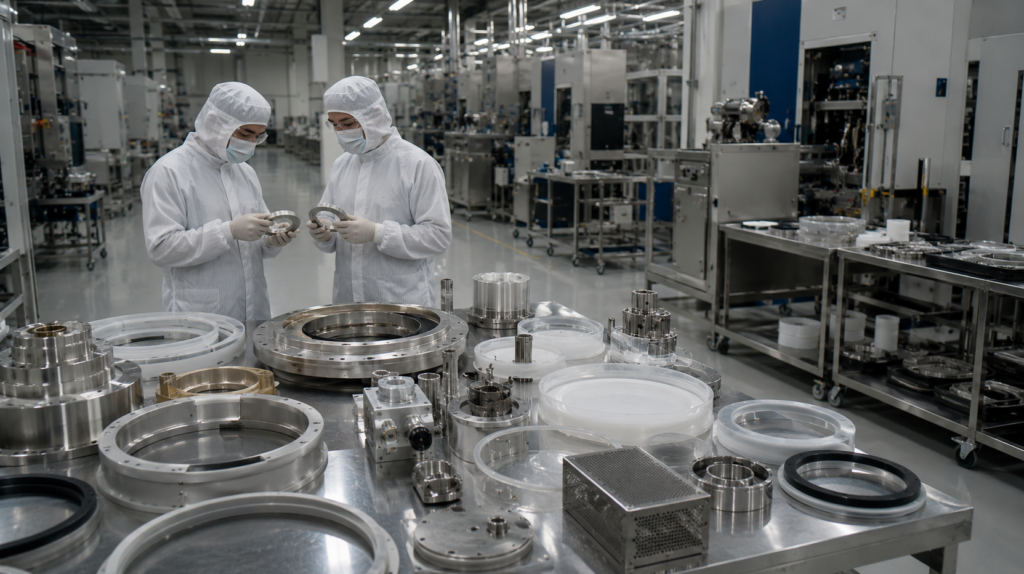

Wafer maintenance and on-site maintenance engineers

suitable for on-site engineers who are responsible for the daily maintenance of diffusion, etching and thin-film process lines in wafer manufacturing plants and are in urgent need of cost-effective and stable quality alternative second supply spare parts to ensure equipment utilization rate.

pasted image 20260707 014106 869

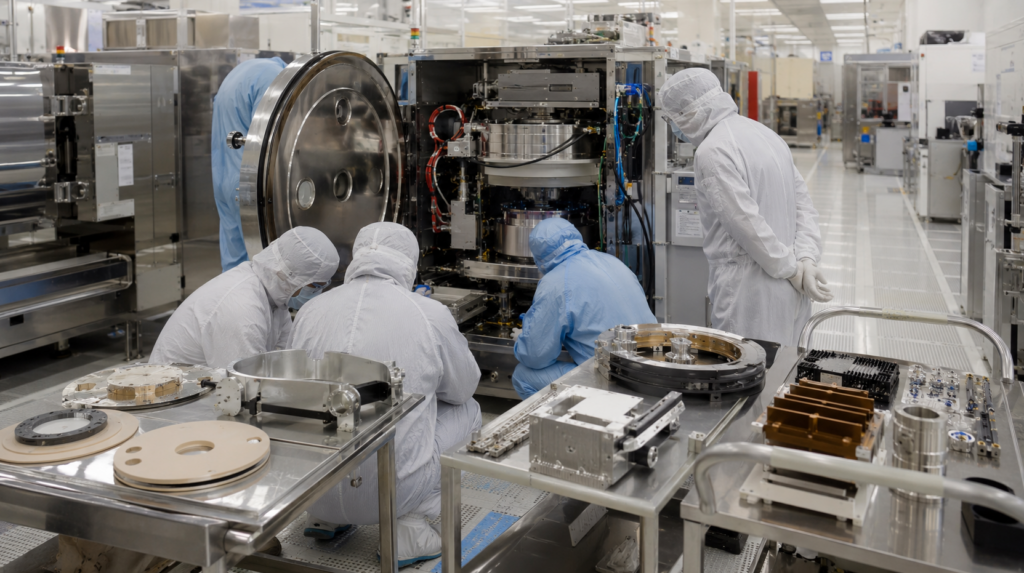

Mature process equipment modification and upgrade experts

suitable for upgrading 6-inch to 8-inch wafer expansion and transformation projects, the cavity structure, heating plate power control and hardware and software collaboration has a very high demand for non-standard customization of professional and technical teams.

pasted image 20260707 014128 695

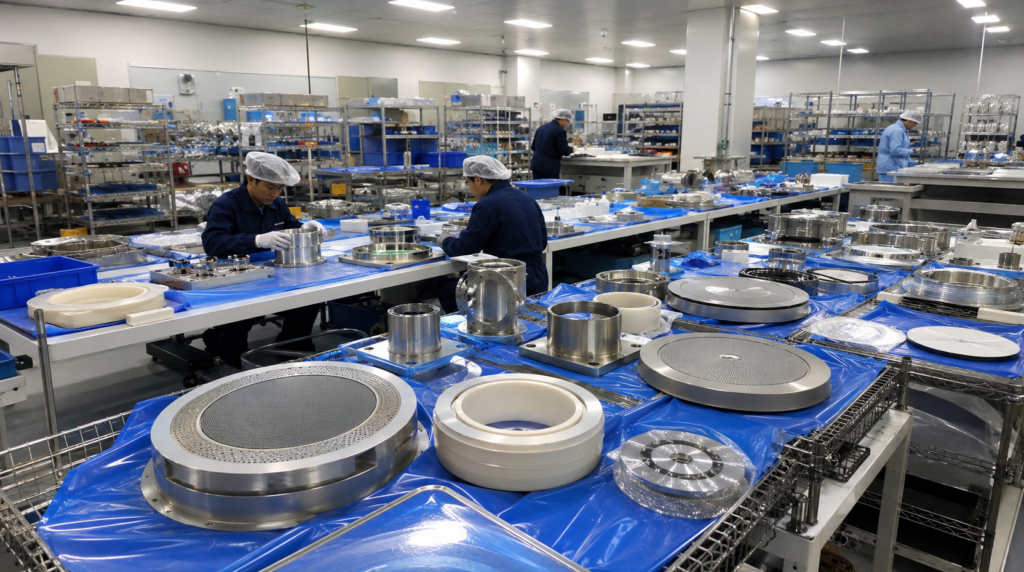

Global semiconductor spare parts wholesalers and distributors

suitable for professional supply chain service providers who have a complete maintenance network in international markets such as Europe, America or Southeast Asia, and need to connect with high-quality source physical factories in China to enrich their high-quality spare parts inventory.

pasted image 20260707 014155 602
011

The product must be moved to an ultra-clean workbench of not less than level 100 to open the vacuum double-layer packaging, and a high-purity nitrogen gun must be used to perform dust-free purging on the surface of the parts, and direct skin contact with the surface is strictly prohibited.

022

Calibrate the positional alignment with the shape tolerance according to the technical specifications of the original equipment, and use tools with preset standard torque for symmetrical locking to prevent metal or ceramic parts from deforming due to uneven force.

033

After complete assembly, close the cavity and turn on the vacuum pump to pump to the ultimate negative pressure. Use the helium mass spectrometer leak detector to conduct overall detection of the gas circuit joint and cavity seal to ensure that the leak rate meets the process standard.

044

Before the process gas is officially introduced, the control equipment gradually heats up and bakes the newly installed parts to remove trace volatiles, and introduces inert gas for plasma cleaning.

certificate

6 1

Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.

Q1: As a semiconductor parts supplier, what core spare parts can you provide to refurbishment service providers?
A1: We focus on providing one-stop component supply for mainstream vapor deposition, etching and other equipment platforms, including high-precision vacuum cavities, wafer heating discs, gas circuit control box customized parts, and various corrosion-resistant metal and ceramic brittle structural parts.
Q2: How do you guarantee that the custom parts provided to the refurbished equipment are perfectly compatible with the original factory system?
A2: We have rich patent and software copyright accumulation. Through precise three-dimensional reverse engineering and shape and position tolerance simulation verification, we can make the processing accuracy of components reach the micron level, ensuring perfect matching with the original factory in size, sealing and software and hardware communication.
Q3: Old spare parts that have been discontinued by the original factory for many years, can you make replica manufacturing by drawing or sample?
A3: Yes. This is where our strength as a source-manufactured supplier comes in. We have our own Taizhou factory and advanced processing equipment, which can be customized R&D and mass production according to the samples, drawings or technical parameters you provide.
Q4: How do you control the surface particle size and cleanliness of semiconductor components leaving the factory?
A4: After processing, all parts must go through a rigorous multi-pass ultrasonic deionized water cleaning process, and complete comprehensive inspection and vacuum double-layer packaging in a 10-level ultra-clean room to ensure that the products reach a particle-free state when installed and ready for use.
Q5: Buy in bulk directly from your factory, what are the advantages of price and delivery time compared with international traders?
A5: As the source factory for direct connection with customers, we eliminate all middleman’s turnover fees and can provide highly competitive ex-factory prices. At the same time, our non-standard delivery periods are typically twenty-five percent shorter than those of traders due to the complete autonomy and control of the production process.
Q6: Do your component products have practical application cases of large-scale factory cooperation or large-scale semiconductor projects?
A6: Yes. Our technology is at the leading level in the country and has passed ISO 9001 certification. Our products have been successfully used in many heavy-duty bidding projects with a total value of over 10 million, including equipment transformation and cavity renovation projects at well-known IoT innovation promotion centers and large-scale wafer fabs.
