Etched Precision Parts For Semiconductor | Centura Ap Advantage G5

Chinsor Tech specializes in producing high-precision semiconductor etching precision parts, with micron-level tolerances and zero-stress edge control, perfectly matching the mainstream front-line process requirements. We are a source manufacturer with independent R & D patents, refusing middlemen to increase prices, providing you with highly competitive ex-factory prices, efficient sample response and fast batch delivery services.

stainless steel, copper alloy, titanium, nickel alloy, special ceramic Material range
0.01mm to 2.5mm Material thickness
± 0.01mm to ± 0.025mm Machining tolerance
100% of material thickness Minimum hole diameter
Ra 0.2 microns Surface roughness
600mm x 1500mm Maximum processing size
no burr and no heat affected zone Edge characteristics
Centura AP Advantage G5 Compatible Model
Etched Precision Parts For Semiconductor | Centura Ap Advantage G5

gear

Micron-level limit tolerance control

Through advanced photochemical etching technology, the processing tolerance can be stably controlled within ± 0.01mm. The high consistency reduces mechanical wear during precision assembly and reduces assembly failure of key conductive components of etching equipment by 65%.

gear

Zero-stress burr-free edges

The chemical etching process does not produce mechanical cutting forces or high-temperature heat-affected zones on metal materials, ensuring that the edges of the part meet the 100 percent burr-free standard. This avoids material deformation caused by microscopic stress, and makes the gas flow channel more uniform and stable in high vacuum environment.

gear

Excellent chemical corrosion resistance

selection of high purity semiconductor grade raw materials, combined with fine chemical stripping surface treatment process, so that in the harsh process environment such as strong acid, strong alkali and high concentration of fluorinated gas, the corrosion resistance of various parts life extended by more than 1.5 times.

gear

Complex geometry integrated molding

supports the complex design of high-density micropores, micro-channels and ultra-thin metal sheets, and the processing cost does not increase with the increase of graphic complexity. One-button lithography mask technology can complete rapid proofing and technical solution verification within 24 hours.

gear

The semiconductor front-end process is deeply compatible

product performance optimization is carried out for high-density plasma and high vacuum environment to ensure that the factory metal and brittle ceramic spare parts will not release metal ions into the cavity, effectively eliminating impurity particle pollution in the high vacuum cavity.

gear

A high proportion of invention patent technology precipitation

relying on the enterprise’s own 52 patented technology and 11 software copyrights, the wafer heating and deposition process technology accumulation directly applied to the manufacturing of parts, product technical parameters fully in line with high standards of process specifications.

Parameter CategoriesDetailed Technical SpecificationsCompatible Platforms
Basic MaterialsStainless steel (SUS304/316L), oxygen-free copper, titanium alloys, nickel alloys, brittle ceramic materialsCentura AP Advantage G5 / Centura 5200
Device PN Code/ModelCentura AP Advantage G5Centura AP Advantage G5 / Centura 5200
Thickness Range0.01 mm – 2.5 mmCentura AP Advantage G5 / Centura 5200
Standard Tolerance±10% of material thickness (minimum ±0.01 mm)Centura AP Advantage G5 / Centura 5200
Minimum Hole Size100% material thickness (minimum thickness can be 0.1 mm when the thickness is less than 0.1 mm)Centura AP Advantage G5 / Centura 5200
Corner RadiiInner corner radius $\ge$ 100% thickness; outer corner radius $\ge$ 75% thicknessCentura AP Advantage G5 / Centura 5200
Core ComponentsLower cavity replacement parts, gas distribution plate, heating plate base, radio frequency shielding, sealing ringCentura AP Advantage G5 / Centura 5200
Quality Control SystemStrictly adhere to ISO 9001 certification standards, performing full-range coordinate measuring machine (CMM) geometric dimension precision inspection.Centura AP Advantage G5 / Centura 5200

Precision etched parts produced by Chinsor Tech achieve micron-level processing of metal and non-metal materials through precision masks and multi-stage chemical spray processes. Compared with traditional machined parts, Chinsor Tech has undergone rigorous surface passivation and cleanliness testing before leaving the factory. We ensure that the fine geometry of the surface of the part will not undergo thermal degradation or physical spalling when it is washed by high concentration reaction gas, which greatly extends the replacement cycle of spare parts in the previous process.

Etched Precision Parts For Semiconductor | Centura Ap Advantage G5
solution

The micro-stress and flash burr pain points caused by etch chamber components traditional machining are solved

Chinsor Tech precision etching parts adopt non-contact chemical processing, which completely eliminates metal thermal deformation and edge flash caused by mechanical cutting, and avoids the risk of wafer scratches caused by tiny burrs falling off.

solution

It solves the pain point of long and costly original procurement cycle of high-frequency consumable parts for Centura AP Advantage G5 and other refurbished equipment

for the upgrade of spare parts for specific platforms, Chinsor Tech relies on strong technology accumulation to provide perfectly compatible customized replacement schemes, reducing the procurement cost by more than 30% and greatly shortening the delivery period.

solution

It solves the pain point that etch chamber components made of hard and brittle materials are easy to crack and fail under strong corrosion conditions

the ceramic and metal etching process optimized by Chinsor Tech improves the thermal shock resistance of the material, and solves the mechanical cracking problem caused by uneven thermal expansion of complex parts under alternating high temperature and high vacuum environment.

Semiconductor Front Road Process Equipment Refurbishment Service Provider

For engineering companies that focus on refurbishing and upgrading classic equipment platforms such as AMAT. They need customized precision components and etch chamber components with high precision and quality compliance to replace the original aging spare parts and effectively reduce the overall renovation and commissioning costs.

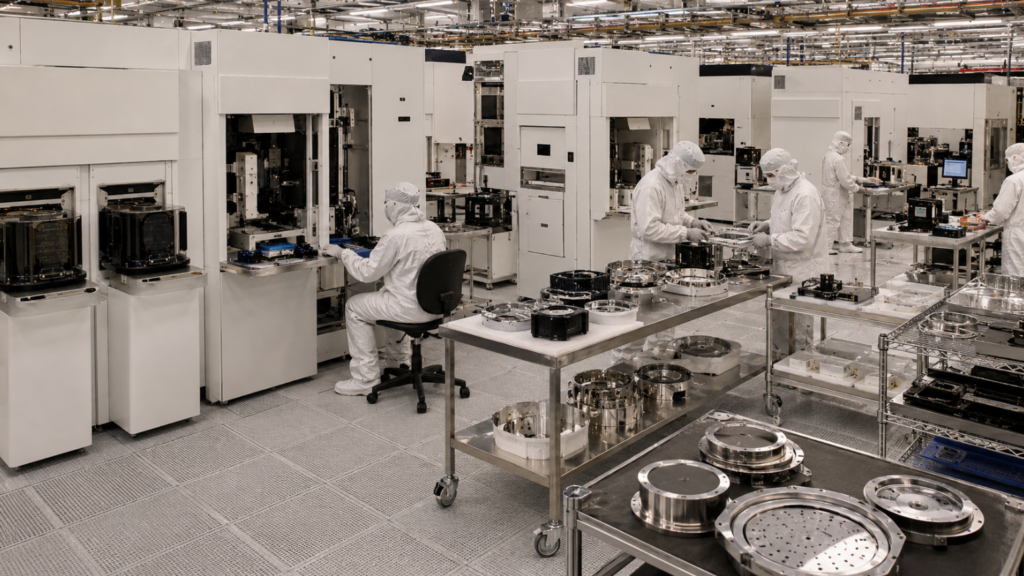

Etching of semiconductor precision parts for the crowd

Purchasing director of large integrated circuit wafer foundry

applicable to the purchasing supervisor who manages the spare parts supply chain of 8-inch or 12-inch wafer fabs. Such groups urgently need to find source parts manufacturing plants that have passed ISO 9001 certification, have rich project bidding experience for mainstream models such as Centura AP Advantage G5, and have highly stable delivery time.

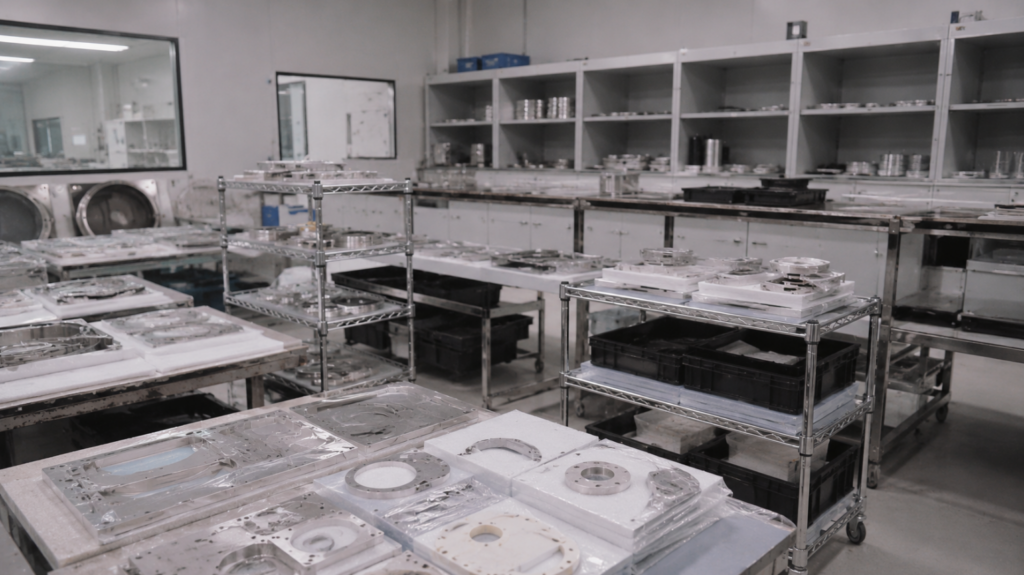

Etching of semiconductor precision parts for the crowd

Wafer etching and film deposition equipment engineer

suitable for senior technicians who are responsible for the daily maintenance of high-frequency production lines and cavity upgrades in the factory. They are highly concerned about the physical life of various etch chamber components under strong corrosion and high temperature conditions, chemical stability, and technical compatibility with existing mainstream cavity systems.

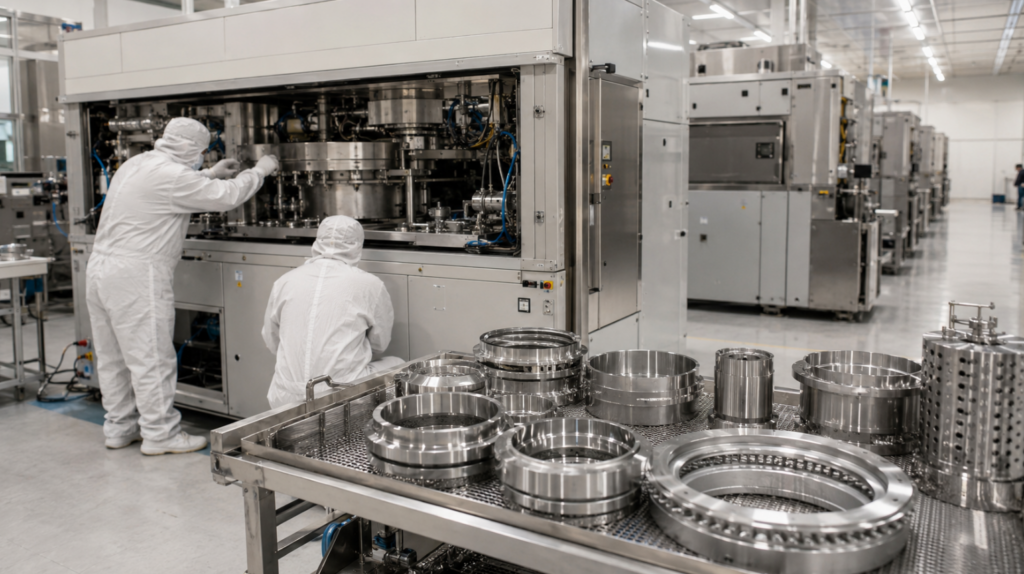

Etching of semiconductor precision parts for the crowd

Semiconductor precision spare parts global cross-border traders

suitable for the United States, Japan, South Korea, new and Southeast Asia and other overseas markets distribution of semiconductor supplies professional B2B trading enterprises. They need suppliers with perfect export qualification, strong invention patent endorsement and flexible small batch proofing ability.

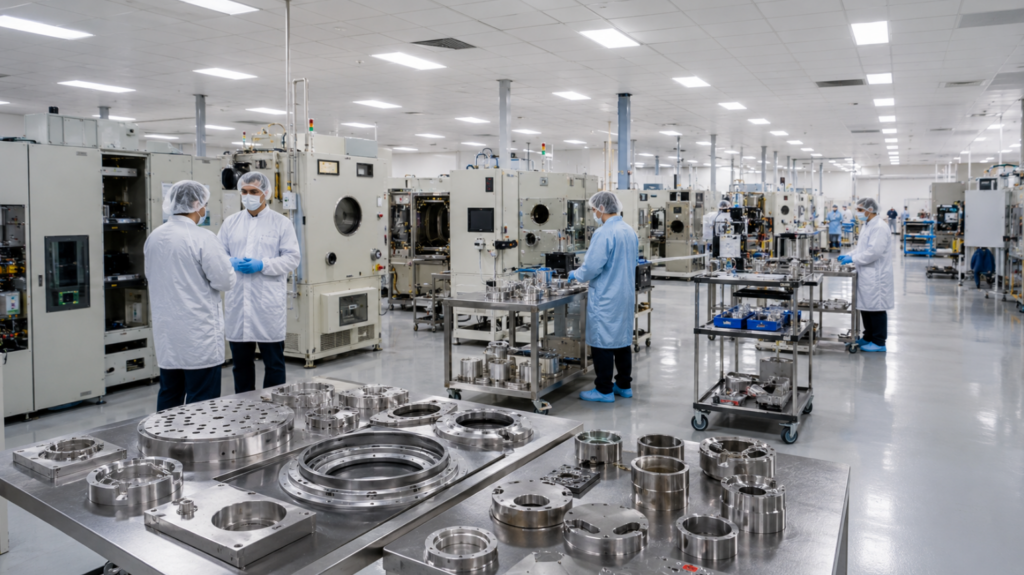

Etching of semiconductor precision parts for the crowd
011

open the sealed package in a dust-free room that meets the standard, and check whether the photoresist coating or passivation layer on the surface of the Centura AP Advantage G5 related components is intact. It is strictly prohibited to touch with bare hands during the whole process to avoid skin grease from contaminating the surface of high vacuum components.

022

according to the positioning pin hole instructions in the equipment technical manual, the customized etch chamber components is smoothly placed into the specified position of the cavity, and high-precision measuring tools are used to ensure micron-level alignment to prevent airflow disturbance caused by installation displacement.

033

special torque wrench shall be used to lock the fixing bolts in different times according to the principle of cross symmetry, and the locking torque shall be strictly controlled within the specification range to avoid micro plastic deformation of precision flow channel caused by excessive local force.

044

after the components are installed, the cavity shall be closed and pumped to the vacuum degree required by the process, and the pressure rise rate and leakage rate test shall be carried out for at least 24 hours to ensure that the system tightness is fully up to standard before ventilation operation.
