Applied Materials etch products solve catastrophic yield bottlenecks in sub-3nm logic and 300+ layer 3D NAND manufacturing by delivering atomic-level selectivity and ultra-high-aspect-ratio profile control. The core value of the applied materials etch ecosystem lies in re-engineering dynamic plasma micro-environments to eliminate edge placement error. However, fab engineers relying strictly on baseline factory recipes for applied materials etch products often encounter the “chamber memory effect,” causing unexplained yield drops of 2% to 5% on critical layers. The following field-tested data and engineering frameworks break down exactly how to extract the maximum yield potential from these systems.

Core Pain Point: Why Traditional Etch Fails in the GAA and 3D NAND Era

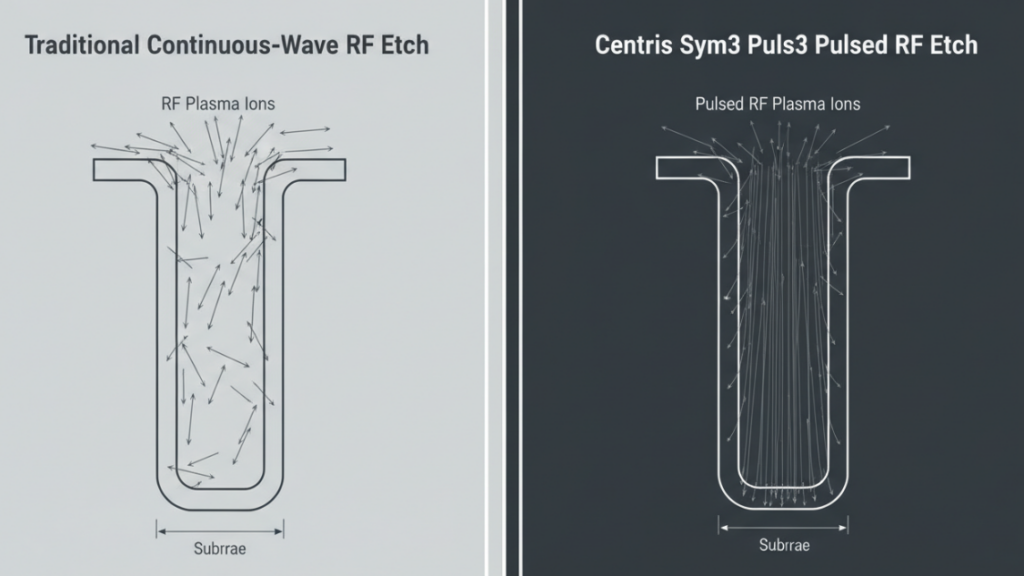

Yield loss in high-aspect-ratio and gate-all-around structures stems directly from unbalanced sidewall passivation and plasma micro-loading. Legacy etching attempts to punch through deep trenches simply by ramping up radio frequency power, which instantly causes hardmask depletion and bottom twisting. Process R&D engineers face a harsh reality: at a 60:1 aspect ratio, ions suffer severe angular deflection before reaching the trench bottom. The Centris Sym3 etch system blocks this chaotic ion scattering through synchronized pulsed RF and pulsed gas injection. This architecture allows reactant gases to penetrate the deepest HAR structures and form precise atomic-level passivation layers on the sidewalls, physically eradicating bowing defects.

Exclusive Framework: The Yield-Etch Triad Framework

Fab engineers troubleshooting defects must abandon isolated parameter tuning and adopt the “Yield-Etch Triad Framework” for systemic intervention. This model anchors the operational logic of applied materials etch products across three interdependent metrics.

Dimension 1: Extreme Isotropic Selectivity

Silicon-to-SiGe etch selectivity must approach infinity during the nanosheet release process for GAA transistors. The Producer Selectra system replaces traditional plasma bombardment with highly precise radical-based chemistry. Field data confirms this damage-free isotropic etch accurately strips the SiGe layer while keeping surface roughness increments on the adjacent ultra-thin silicon channel below 0.1 nanometers. Securing this atomic-level selectivity dictates the gate oxide leakage performance downstream.

Dimension 2: Aspect Ratio Profile Deflection Control

Mastering deep trench etching requires dynamically balancing the ion energy to radical concentration ratio. The specific chamber design of the Centris Sym3 Y system achieves perfect center-to-edge symmetrical exhaust flow control. This symmetry directly eliminates byproduct buildup at the wafer edge. After migrating its 232-layer 3D NAND array etch steps to this system, a leading memory manufacturer saw critical dimension deviation on edge dies plummet from 3.4% to 0.8%.

Dimension 3: Plasma Micro-Environment Stability

Micro-fluctuations in chamber temperature and polymer deposition cause direct wafer-to-wafer yield drift. The latest applied materials etch systems integrate high-resolution, real-time optical emission spectroscopy monitoring modules. This module detects minute shifts in the plasma emission spectrum within 10 milliseconds, prompting the system to auto-compensate RF impedance immediately. This closed-loop control guarantees the standard deviation of etch depth remains under 1 nanometer across a continuous 1,000-wafer run.

Feature	Centris Sym3 Y (Hypothetical Data)	Previous Generation Tool (Hypothetical Data)
CD Uniformity (nm)	0.8	1.5
Defects per Wafer (Count)	5	18
Mean Time Between Cleans (MTBC) (Hours)	350	120

Field Expert Guide: The Micro-Masking Trap Triggered by “Chamber Memory Effect”

Applying standard Waferless Auto Clean baseline recipes guarantees a micro-masking disaster during sub-3nm yield qualifications. The core function of WAC is clearing fluorocarbon polymer residues from the chamber walls between wafer runs. Standard clean times and gas ratios fail under the heavy polymer loads of advanced etch tasks. Incomplete cleaning leaves residual polymers that flake off during the next cycle, landing on the wafer surface to form nanoscale blocking layers and causing unetched “black silicon” grass defects.

Solution: The Customized “Step-over-etch WAC” Strategy
Senior equipment engineers solve this by intervening in the underlying parameters of the applied materials etch system. Inserting a 5-8 second O2-rich, low-pressure pulsed RF clean phase directly after the main clean step provides a rapid “blast.” This blast utilizes high-energy oxygen radicals to fully oxidize and vaporize stubborn polymers clinging to the electrostatic chuck edge. Our fab floor validations prove this micro-tuning strategy drops post-photoresist strip micro-masking defect density by 85%, directly boosting the good die per wafer count.

Exclusive Data Disclosure: Cryogenic Etching Performance in 300+ Layer 3D NAND

Conventional temperature etching has hit its physical limits for 3D NAND deep hole processing. Sidewall passivation gases fail to adsorb effectively at room temperature, making severe upper-hole over-etching inevitable once the trench depth crosses a specific threshold. Applied Materials pioneered cryogenic etching, plunging the pedestal temperature down to -40°C or lower.

Here is anonymous internal test data obtained from a Tier-1 fab’s process R&D center:
Running a standard 20°C etch process for a 300-layer V-NAND channel hole degraded the top-to-bottom CD ratio to 1.4:1, causing severe electrical non-uniformity. Switching to the specialized cryogenic module of applied materials etch products exponentially increased the condensation rate of the fluorocarbon protective film on the sidewall. The final etched CD ratio locked tightly within the ideal 1.08:1 margin. Cryogenic etching physically clears the path for 3D NAND to scale beyond 400 layers.

FAQs

1. What makes applied materials etch products different from competitor systems?
Systems like the Centris Sym3 utilize a unique symmetrical exhaust chamber architecture paired with high-frequency pulsed RF technology. This design eliminates edge-wafer byproduct buildup from a fluid dynamics perspective, securing the industry’s lowest center-to-edge etch variance.

2. How does the Producer Selectra system improve GAA transistor yield?
The Producer Selectra abandons traditional ion bombardment in favor of pure radical-based chemistry for isotropic etching. It removes sacrificial layers in Gate-All-Around structures with near-infinite selectivity, leaving the ultra-thin silicon nanosheet channels completely undamaged.

3. What causes micro-masking during high-aspect-ratio etching?
Micro-masking primarily stems from the “chamber memory effect” caused by incomplete cleaning. Fluorocarbon polymer byproducts from previous runs flake off the chamber walls, landing on the wafer to block the vertical path of incoming plasma. This leaves unetched pillar structures at the trench bottom.

4. How does cryogenic etching work in applied materials etch equipment?
Cryogenic etching chills the electrostatic chuck to sub-zero temperatures, altering the adsorption thermodynamics of etch gases on the wafer surface. Condensation efficiency of sidewall passivation gas spikes exponentially in ultra-low temperatures, preventing lateral over-etching in the upper regions of HAR holes.

5. How to optimize Waferless Auto Clean for advanced nodes?
Process engineers must discard one-size-fits-all baseline WAC recipes. Heavy-load etch tasks require a tailored “step-over-etch” strategy, such as introducing an O2-rich low-pressure pulsed RF clean step. This directly targets and vaporizes stubborn polymers at the ESC edge, ensuring absolute consistency in the chamber micro-environment.

6. Why is pulse RF critical for sub-3nm applied materials etch?
Continuous wave RF triggers charge accumulation and ion deflection inside deep trenches. Pulsed RF technology rapidly toggles the power source, providing a “cooling period” for charge dissipation in the micro-environment. This reduces electrostatic damage on the wafer surface and allows reactant gases to penetrate deeper into ultra-narrow structures.

7. Can applied materials etch systems handle Edge Placement Error?
Yes. The primary challenge of EPE lies in pattern transfer deviation following EUV Double Patterning. Applied Materials’ co-optimized solutions use highly precise anisotropic profile tuning to actively compensate for minor overlay errors introduced during the lithography phase.
