“applied materials endura pvd”This combination actually refers to the Endura PVD platform under Applied Materials (Applied Materials) and specific process categories, but you cannot directly use it to finalize a specific part. As everyone knows, Endura is mainly used for PVD metal and related thin film deposition. Application scenarios generally involve metallization, aluminum and copper interconnects, or partial metal encapsulation layers. When actually checking for spare parts, the platform name is just a “clue to entry”.

Endura PVD is by no means a single-cavity device

Endura is a highly integrated, clustered, multi-cavity platform that can connect pre-cleaning and multiple metal deposition processes in a tightly controlled vacuum environment. According to the official product description, its architecture can theoretically accommodate up to 9 process cavities (including 2 pre-cleaning cavities). But this is only the upper limit of the platform’s configuration in terms of architecture, and it is definitely not equal to how many cavities are actually installed on each device, or what type of cavity is installed.

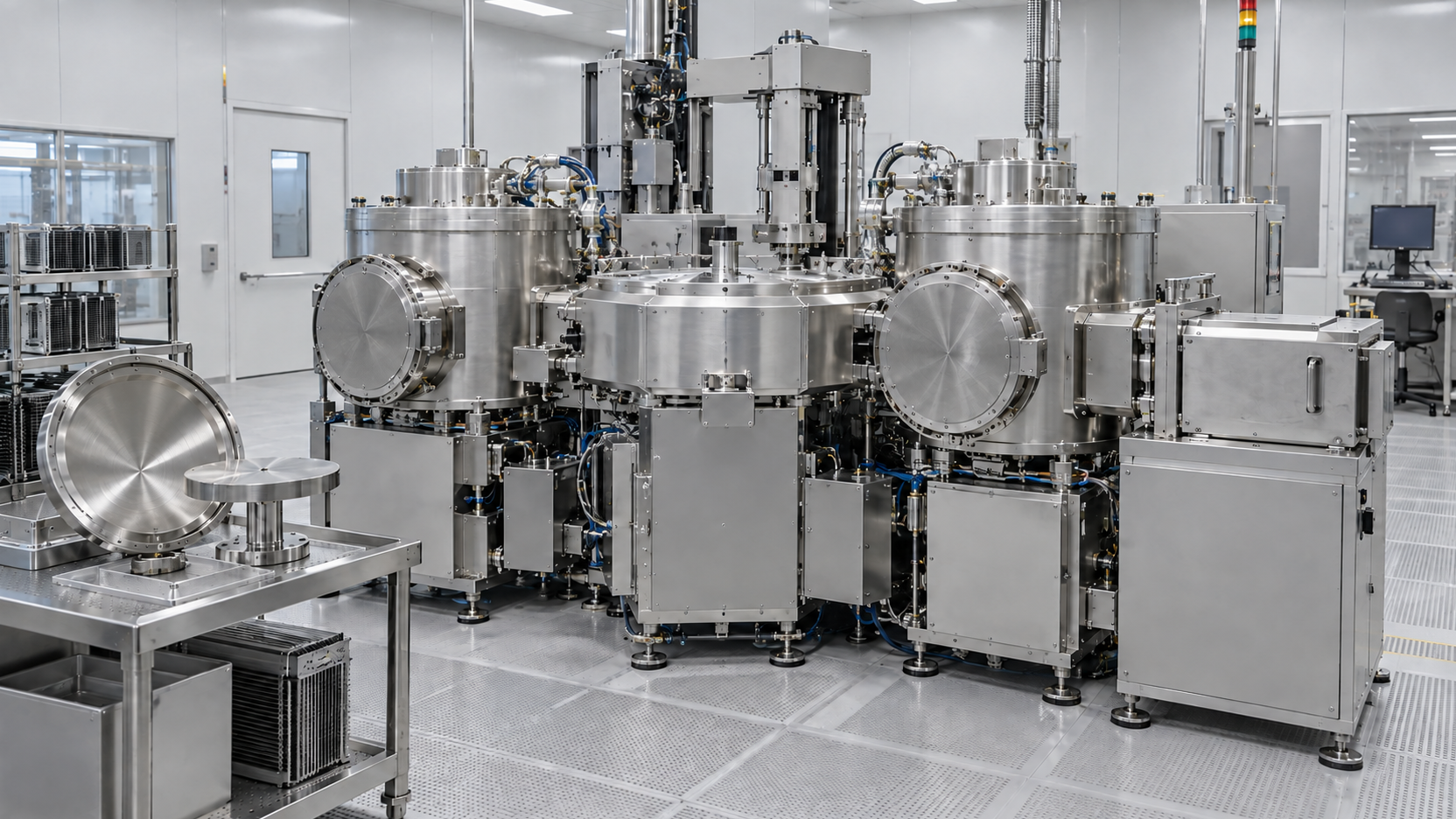

Unbranded multi-chamber PVD semiconductor equipment in a cleanroom.

The Endura 5500, Endura II, Endura HP and Endura TXZ available on the market are from different eras and have very different configurations. Never treat them as the same hardware version when working. They must be combined with the actual cavity installed in the equipment, the size of the running wafer and the specific version of the components to verify their true identity.

Find clues from component descriptions

In the existing Endura 5500 PVD spare parts record, you will see a wide variety of part names: wafer lift assembly (wafer lift assembly), heating base (pedestal), pressure ring (clamp ring), cover ring (cover ring), baffle (shutter disk), edge ring (edge ring), antifouling plate (shield), Insulators (insulators) and robotic arm supports (transfer blades), etc. These things each have their own functions. Some are responsible for carrying and transmitting wafers, some are used to circle the deposition area, and some are used to protect the cavity surface or make isolation connections. Even if they all belong to the same platform, as long as they have different names, they should never be used interchangeably out of course.

Modifiers like 6-inch, 8-inch, 150mm, 200mm, TXZ, Preclean II are very critical “identity tags”. They often directly correspond to specific wafer sizes, dedicated process cavities, or specific hardware versions. If you look at the English name alone, you will likely find that the same full name corresponds to several completely different material numbers, wafer sizes, process cavities or hardware revisions.

Clarify the two identification paths

A complete spare parts verification chain should look like this: “Platform — Host — Process Cavity — Process Kit (Process Kit) — Wafer Size — Material Number — Version Number (REV)”.

If you have a clear original material number: keep it in its most complete form, including the material number number and REV version information on the part label, and follow the clues to find its previous components and corresponding cavities;

If you only have the name of a part and can’t find the material number, you have to use the elimination method to peel down layer by layer from the platform, host, cavity, installation location, wafer size to the characteristics of the old part to narrow the scope.

This kind of verification work should never be based solely on the name. When looking for a replacement part, you must also compare key dimensions, vacuum interface, material, surface treatment process, cleanliness, temperature resistance range, chemical compatibility, and specific functional requirements. Sometimes two parts seem to be able to be installed, which only means that “mechanical installation” is fine, only a part of the assembly relationship is met, and it does not mean that the process can be run.

Equipment refurbishment and use of supporting documents

On-site situations often occur where parts labels are worn and cannot be clearly seen. At this time, photos of old parts, equipment nameplates, BOM (bill of materials), installation locations, material numbers of previous-level components, and equipment configuration files need to be cross-verified. For equipment that has undergone cavity upgrades, platform modifications, or control system changes, the judgment criteria must be the current hardware, modification records, and the latest configuration files that are actually installed. Do not use the original factory model to make up a hard cover.

If you want to check the supporting manual, just searching for one “Endura repair manual” is definitely not enough. This kind of information cannot cover all the details of a device. You have to carefully check the file number, revision, release date, applicable platform, system type, cavity name, wafer size, and even software version. After all, platform manuals, cavity manuals, parts atlases, and safety and maintenance documents are all responsible for solving completely different problems.

Ultimately, only when key fields such as platform, cavity, wafer size, complete material number, and version number are all perfectly aligned can we further confirm that this part is incompatible. If they look like each other or have the same name, they should never be used as evidence alone, and they should not be replaced without saying a word.
