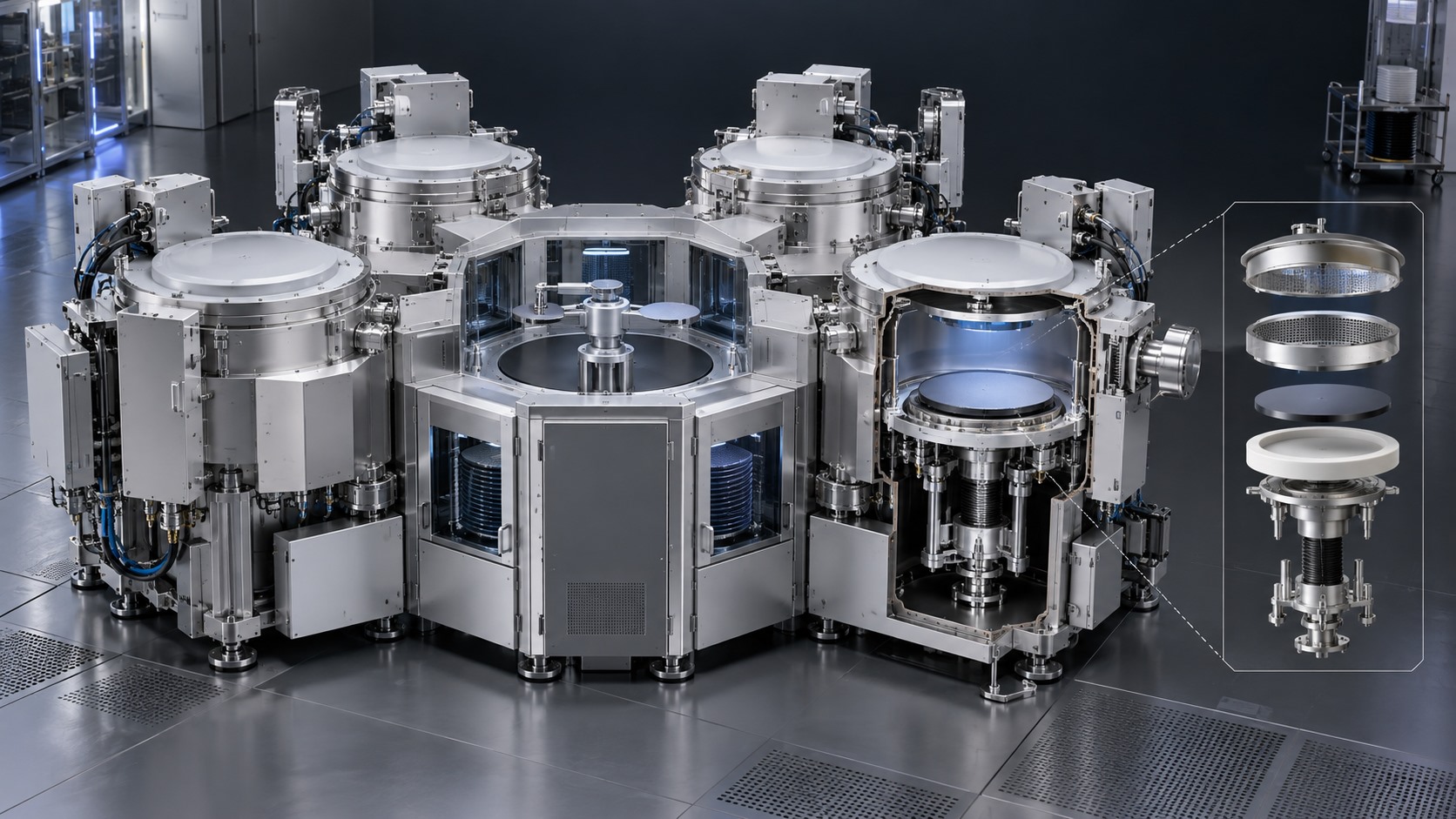

AMAT Endura Platform Parts

When you encounter a spare parts inquiry for the Endura platform, what you really need to verify is not the name of the platform, but the specific process cavity, wafer size, hardware version and material number hanging under the platform. It’s fine to think of the AMAT Endura platform as a starting point for recognition, but it would be a big mistake to equate it directly with a complete device configuration. Only by disassembling this set of layers can we effectively reduce the risk of taking the wrong parts, the versions not matching, or even if we barely install the process, it will not run.

Our Featured Products
View More Products ↗
Compare Products

Highlighted rows show different specifications. “—” means the source does not provide that value.

Request A Quote

* Name and email are required. Your inquiry will be sent to the CHINSOR sales team.

Open Official Contact Page ↗

At What Level Is The Endura Platform?

Endura is a PVD platform series under Applied Materials (Applied Materials). PVD typically uses solid targets as deposition sources, primarily for the deposition of metals and related thin films. According to publicly available product information, Endura’s application scope covers metallization, aluminum-copper interconnects, and some encapsulated metal layers, but what specific function this device can play depends on what kind of process cavity it is equipped with.

Generally speaking, a single-chip multi-cavity device is assembled from a basic platform, a wafer transfer system, a chip inlet (Load lock), one or more process cavities, and a vacuum and control subsystem. Endura can connect pre-cleaning and several steps of metal deposition in series under a controlled vacuum environment, thereby reducing vacuum damage between multi-step processes. It can be seen that “platform” actually describes the system architecture and integration boundaries, “cavity” further defines the process functions, and “spare parts” are things that are specifically implemented in a certain installation location and version.

The Platform Name Cannot Replace The Actual Installed Configuration

Currently, the configuration disclosed by Endura PVD is mainly for 150mm (6 inches) and 200mm (8 inches) applications. The information says that it can be equipped with up to 9 process chambers (which can include two pre-cleaning chambers). However, please note that the “at most” statement here only indicates that the platform architecture has this carrying capacity, and does not mean that every field device is equipped with the same number or type of cavities.

Like Endura 5500, Endura II, Endura HP and Endura TXZ, they represent different generations or different configurations. Don’t think that if Endura is in the name, the hardware versions are the same. Early data also mentioned that the Endura 5500, as a modular monolithic multi-cavity platform, not only contains ultra-high vacuum PVD, but can also be equipped with conventional high vacuum CVD and etching cavities. These historical materials are merely references and cannot replace the actual configuration sheet (Configuration file) of a particular device at present.

Therefore, if you only have the name of the equipment platform, it is best not to directly choose the chamber body (Chamber body), liner (Liner), dust cover (Shield), heating table (Pedestal) or various rings (Ring). Platform, host model, process cavity, process kit, wafer size, material number, and version-these elements must be strung together on the same verification chain and cannot be omitted.

Re-Understand The Endura Structure From A Different Perspective

From The Perspective Of Spare Parts Installation Locations.The function of the chamber body is to provide a controlled process space, which must work in conjunction with the chamber cover, seals, intake and exhaust devices, and wafer transport and support structures. When buying a cavity, be sure to verify which craft cavity it belongs to, and don’t claim it based on your feelings just by looking at its appearance or name.

The base (Pedestal) is used to support the wafer. Depending on different needs, it may also integrate heating, cooling, electrostatic adsorption (ESC), back gas supply, and even radio frequency functions. The ejector pin (Lifting pin) and the retaining ring (Lifting ring) are mainly responsible for completing the wafer handover between the base surface and the robotic arm (Robot blade). This requires us to confirm these two parts and figure out how they match the base and the transmission robotic arm when considering their actual installation locations.

While the vast array of rings and covers-the liner (Liner), dust cover (Shield), edge ring (Edge ring), blackout ring/shadow ring (Shadow ring), pressure ring (Clamp ring), and cover ring (Cover ring)-are housed within the cavity, they do completely different things: some protect the cavity’s inner walls Some are used to limit the area of deposition or etching, some control the state of the wafer edge, and some are for convenient future maintenance and replacement. Just because the names sound similar does not mean that their structure, material, or size are the same.

Spray heads (Showerheads), panels, gas rings, and gas lines are definitely not interchangeable without corresponding model documents. The exhaust channel, exhaust ring and related structures directly affect the path of process gas and by-products discharged into the vacuum system; the slit valve (Slit valve) pipe is the opening state of the wafer when it enters and exits the cavity, while the robotic arm must complete the loading and unloading after the valve is opened. Putting the names of these spare parts back to their actual installation locations often makes it easier to spot matching differences than examining a single appearance diagram.

Size, Workmanship And Version Must Be Bundled Together To Confirm

In Wuxi Zhanshuo’s product catalog, there are a variety of records related to the Endura 5500 PVD, covering a bunch of cavity or platform components such as wafer lifting assemblies, Degas (degassing) cavities, pressure rings, cover rings, edge rings, bases, dust covers, insulators, chamber inserts, robotic arms, etc. The catalog also contains restriction terms such as 6-inch, 8-inch, 150mm, 200mm, Preclean (pre-cleaning), and TXZ. Please note that these words are not random modifiers; they are core criteria used to define the identity of spare parts.

For example, they are all of the same kind of ring, because the wafer size, the process cavity, the material used, the surface treatment method or the hardware version are different, and the corresponding material number is likely completely different. Even on the same platform, there may be different process configurations such as PVD, CVD, and ETCH. The “Equipment” column in the product list is only responsible for that specific material number record and cannot be regarded as the “universal compatibility conclusion” for all versions of the entire Endura series.

Before formally inquiring about the price or placing an order, at the very least, you must write down the equipment platform, host model, cavity name, material number, English description, quantity, and version number (Revision). If you encounter old equipment, modified or refurbished machines, you will need to add the equipment serial number, photos of existing spare parts, interface dimensions, labels on old spare parts, historical modification records and versions of software or control systems.

When you encounter objects with REV, version letters or various suffixes, you can write them however you want. You must record them word for word and don’t miss them just to save time.

Official documentation must be fully aligned with the actual status quo of the equipment. When it comes to Endura-related materials, there are too many types: safety instructions, installation requirements, operation manuals, preventive maintenance (PM) documents, repair manuals, process cavity information, parts catalogs (Parts catalogs), BOM sheets, drawings, as well as software manuals and upgrade guides, etc. It should be noted that the platform manual cannot be simply copied and hard-fitting onto the cavity, and looking at the parts catalog should never replace safety operating procedures. Before going through these documents, you need to clarify the basic information and get the document number, version number, release date, applicable platform, system type, cavity name, wafer size and software version.

If the device has undergone cavity upgrades, platform modifications, or control system changes before, the evaluation must be based on its current hardware configuration and modification records. If you encounter a situation where the spare parts label is worn and you can’t see it clearly, you can find the photos of the old spare parts, the equipment nameplate, the BOM sheet, the installation location, the material number of the previous-level component, and the machine configuration sheet, and do a cross-comparison. Simply placing an order based on similar names, similar looks, or simply picking out a random alternative material number is absolutely not guaranteed to be a unique match.

In addition, the description standards for new parts, cleaning parts, repair parts and refurbished parts are also very different. Don’t assume that once the cleaning is complete, the dimensions, coating, seals, or functions will automatically return to their original state; as for refurbished parts, simply because they look bad cannot be considered incomplete standards. Specific acceptance items must cover qualification certification, dimensions, surface condition, sealing, vacuum, particles (particles), contamination, or functional testing. Exactly which ones to check depends on the material of the part itself, what process chemicals it comes into contact with, and which cavity it is used in.

Turn “Identification Platform” Into Actual Verification Operation

When only “amat endura platform” is written on the requirements, we must first regard it as a general range prompt, and then go through the details layer by layer according to the order of host, process, cavity, size, spare parts, and version. If the specific requirement is “Endura 5500 PVD”, then it is necessary to verify the specific cavity combination of this machine and the current hardware condition. If the requirements also include the words TXZ, Preclean, or 6-inch or 8-inch spare parts, remember that none of these qualifiers can be omitted when inquiring and placing an order.

At the final confirmation step, the material number, version, installation location, material and surface treatment method, vacuum interface, temperature range, chemical compatibility, cleanliness, and acceptance conditions must be taken as the basis. If alternative parts (alternative parts) are used, they must also be provided with their correspondence with the target material number, a list of differences, and concrete verification evidence. Don’t take chances, thinking that as long as the spare parts can be hard-installed on the mechanical structure, the process performance will be fine.

Ultimately, the real identifying value of the Endura platform name lies primarily in helping users establish a correct set of device hierarchy concepts, rather than simply using a single platform name to completely destroy all cavities and spare parts. Only by honestly going to the site to find out the true condition of the equipment, going back to check the official documents and the complete material number, and finally clarifying the supply status and acceptance boundaries can “amat endura platform” no longer be a general term, but become a truly effective spare parts verification process.
